Power Steering Reservoir: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

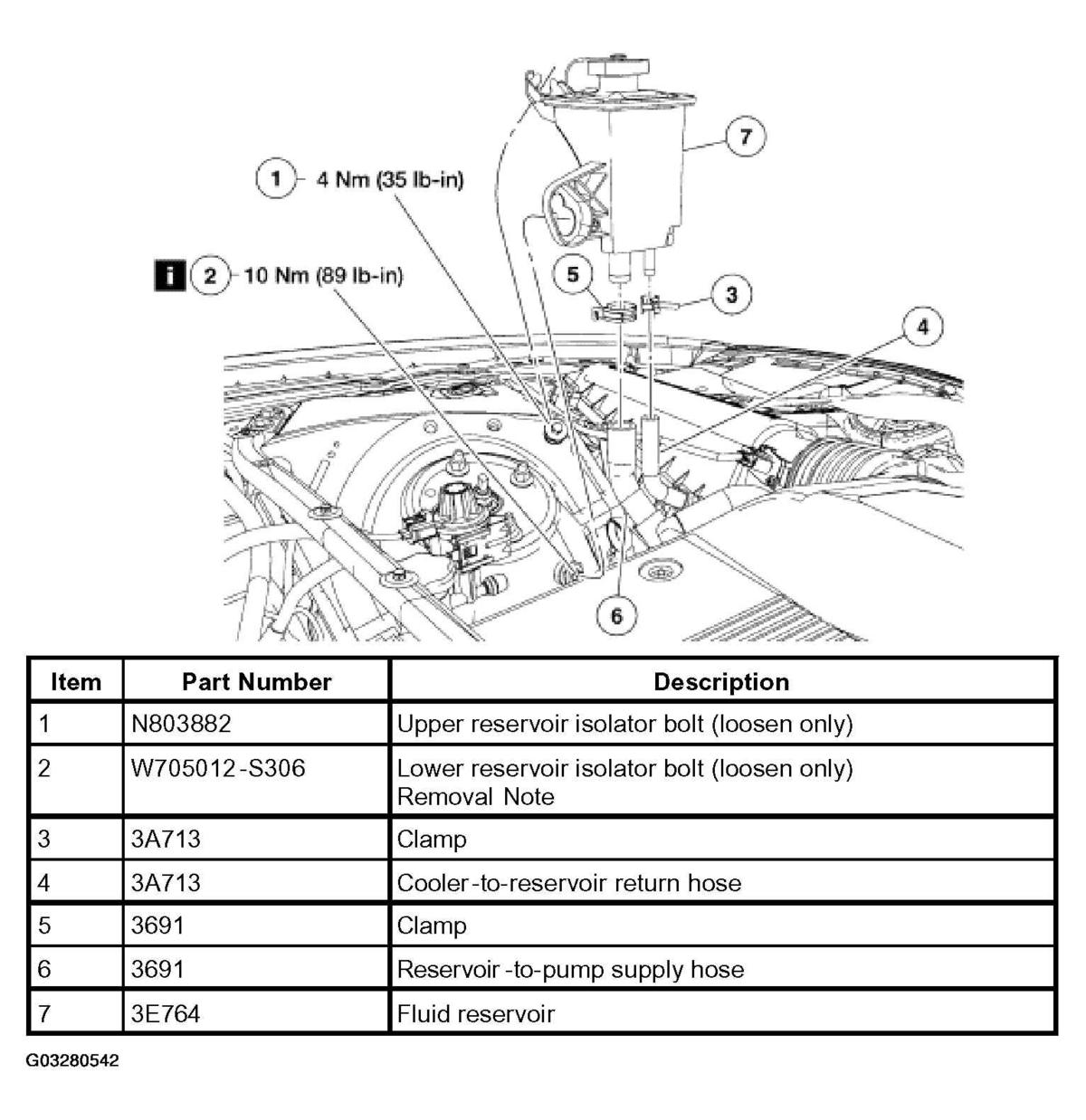

    Fig 1: Identifying Power Steering Reservoir Parts Removing Order
    G03280542Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
  3. Fill and leak test the system. For additional information, refer to POWER STEERING SYSTEM FILLING .
