Steering Column: Notes

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the steering column shaft to rotate while the intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

NOTE: If removing the intermediate shaft only, proceed to item seven in the removal procedure.

Remove the driver air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
If removing the steering column, remove the steering column opening trim cover and reinforcement.
If removing the steering column, remove the multifunction switch. For additional information, refer to STEERING COLUMN SWITCHES .

Remove the parts in the order indicated in the following illustration and table.

PARTS REMOVING STEPS SPECIFICATION

Component	Steps
Steering wheel	1-6
Steering column	1-11
Steering column release motors	1-17
Intermediate shaft	7, 8, 18-21

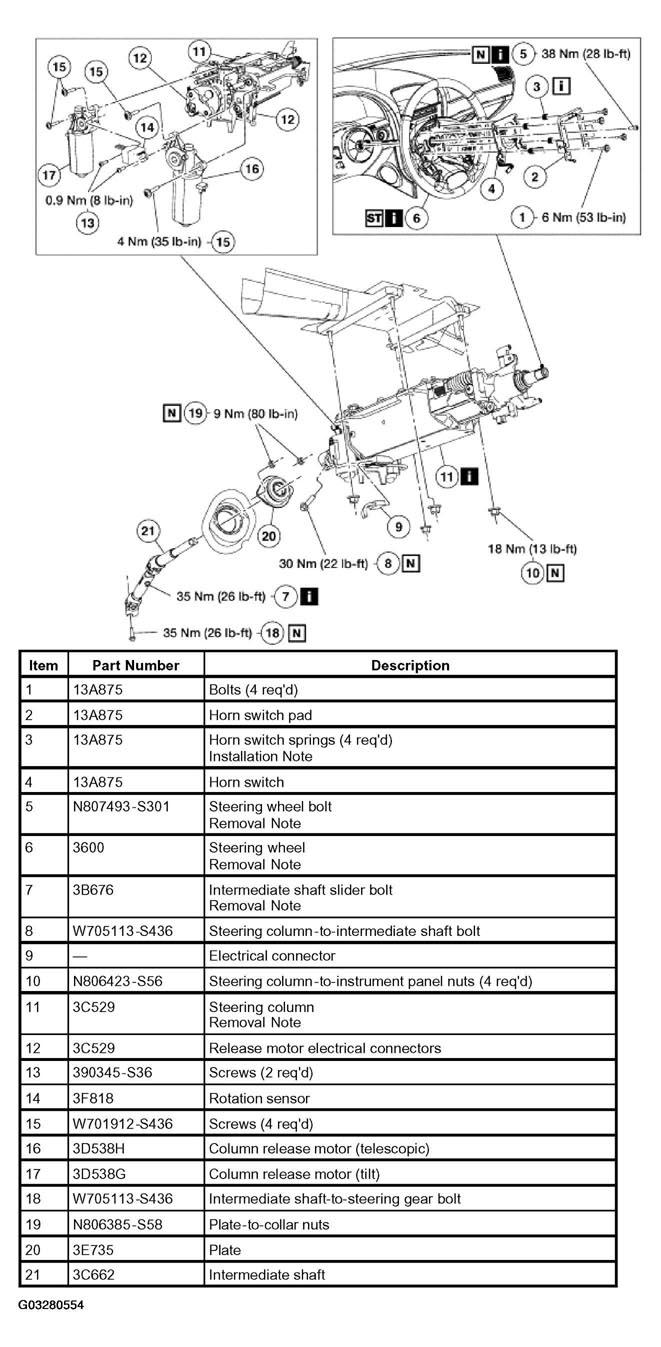

Fig 2: Removing Steering Column Components

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
