Toe-In Adjustment: Rear

Hold rear tie rod end while loosening locking nuts. See Fig 1 . Rotate tie rod to obtain correct toe-in. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten locking nut to specification. See TORQUE SPECIFICATIONS  . Recheck toe-in.

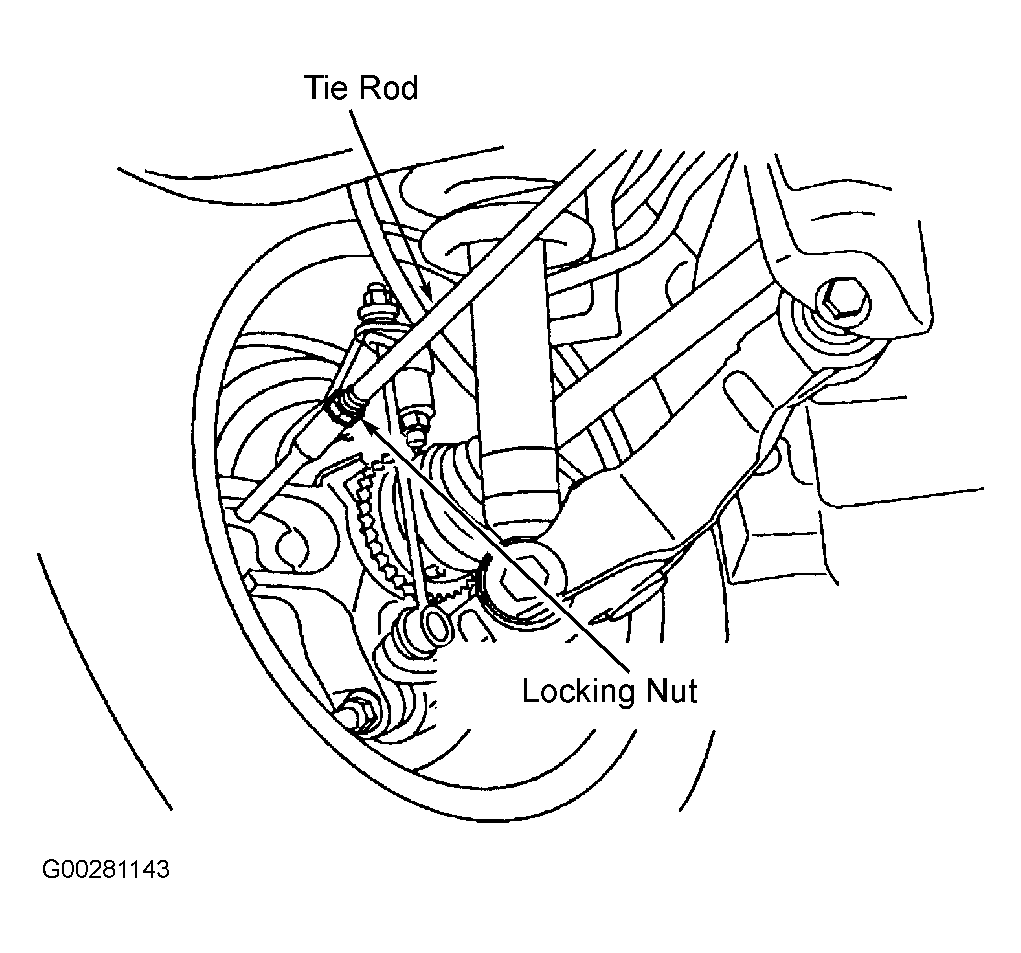

Fig 1: Adjusting Rear Toe (Left Side Is Shown; Right Side Is Similar)

Courtesy of FORD MOTOR CO.
