Disassembled Views

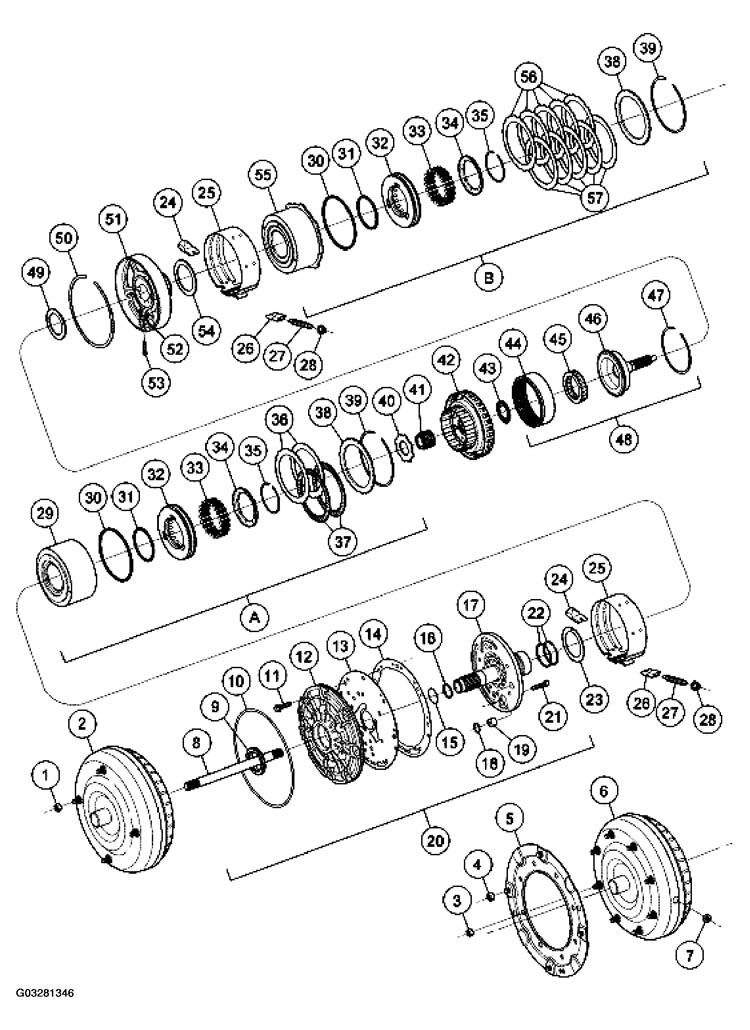

Fig 1: Exploded View Of Automatic Transmission (1 Of 3)
Courtesy of FORD MOTOR CO.

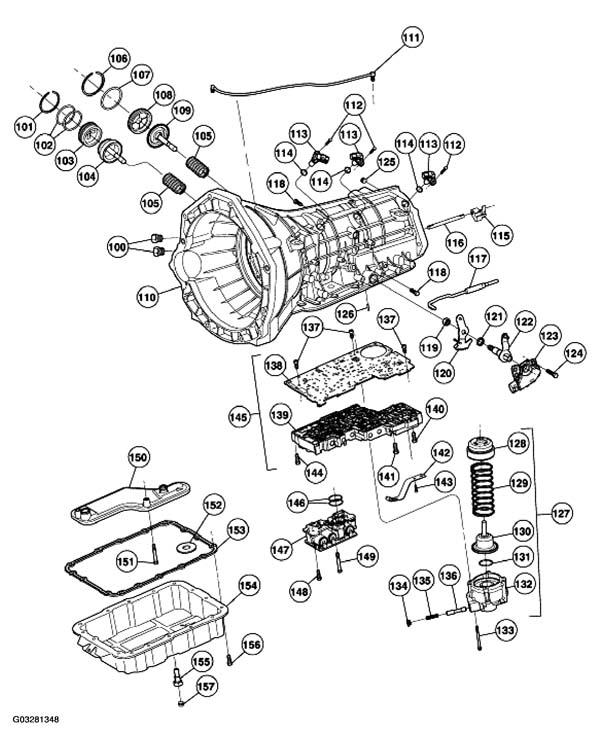

Fig 2: Exploded View Of Automatic Transmission (2 Of 3)
Courtesy of FORD MOTOR CO.

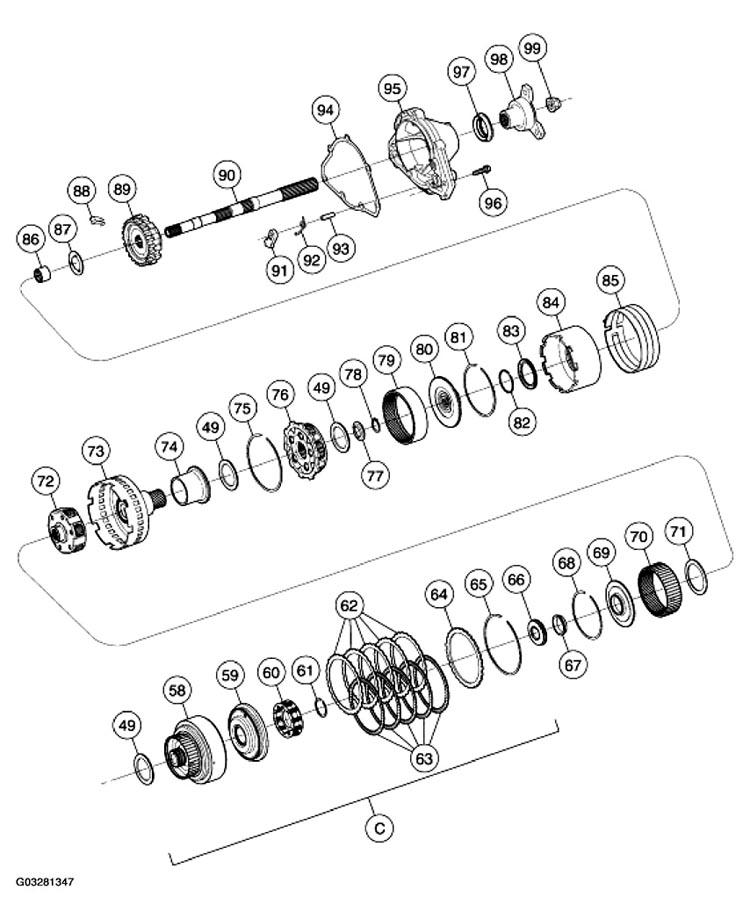

Fig 3: Exploded View Of Automatic Transmission (3 Of 3)
Courtesy of FORD MOTOR CO.

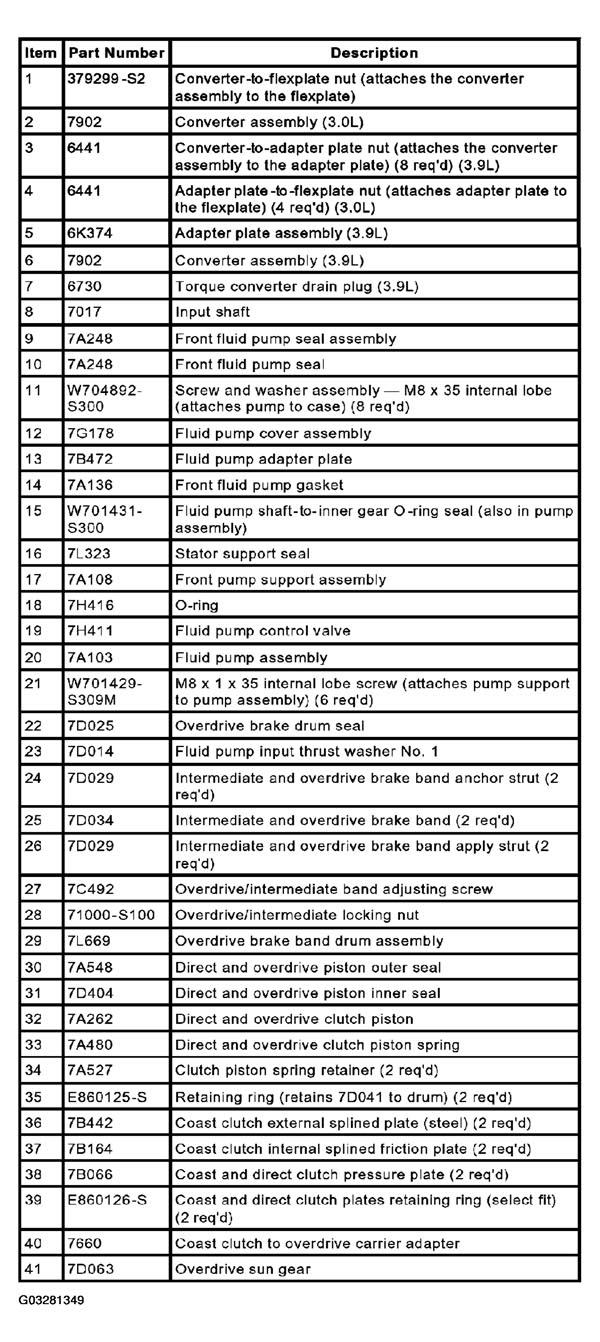

Fig 4: Exploded View Of Automatic Transmission Legend (Items 1-41)
Courtesy of FORD MOTOR CO.

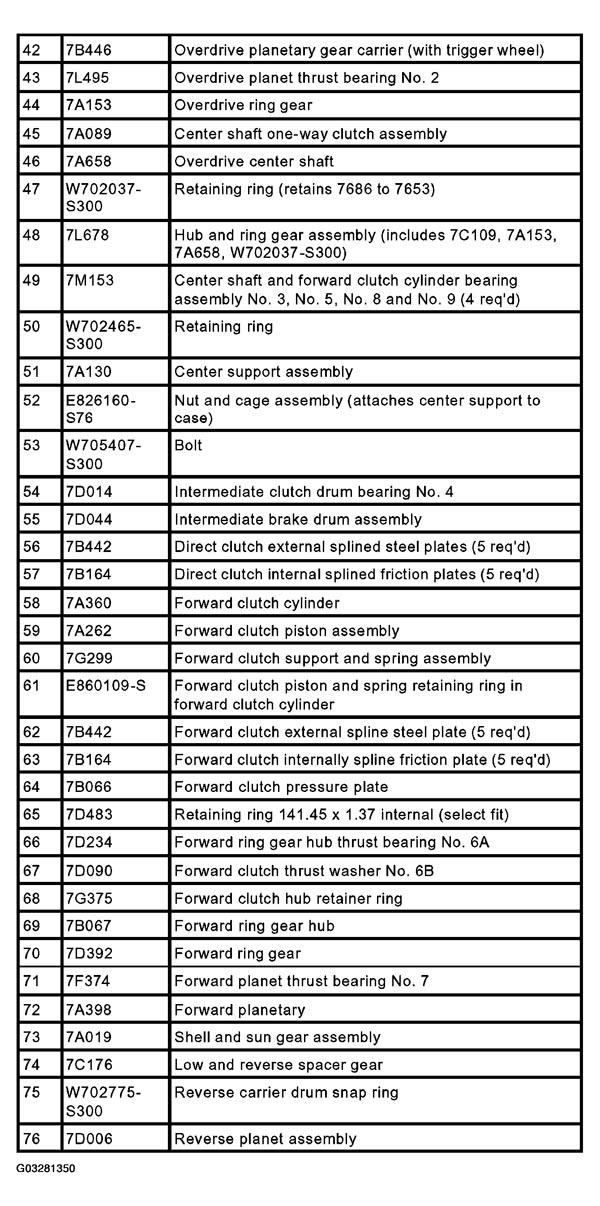

Fig 5: Exploded View Of Automatic Transmission Legend (Items 42-76)
Courtesy of FORD MOTOR CO.

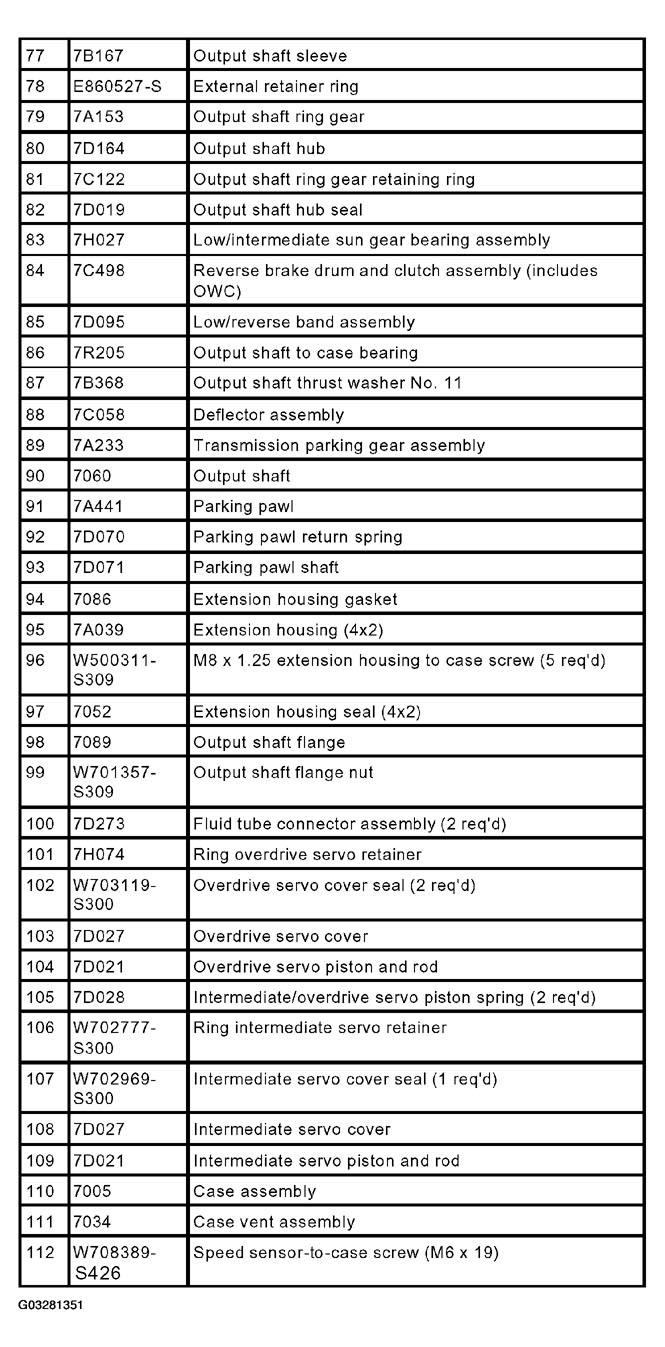

Fig 6: Exploded View Of Automatic Transmission Legend (Items 77-112)
Courtesy of FORD MOTOR CO.

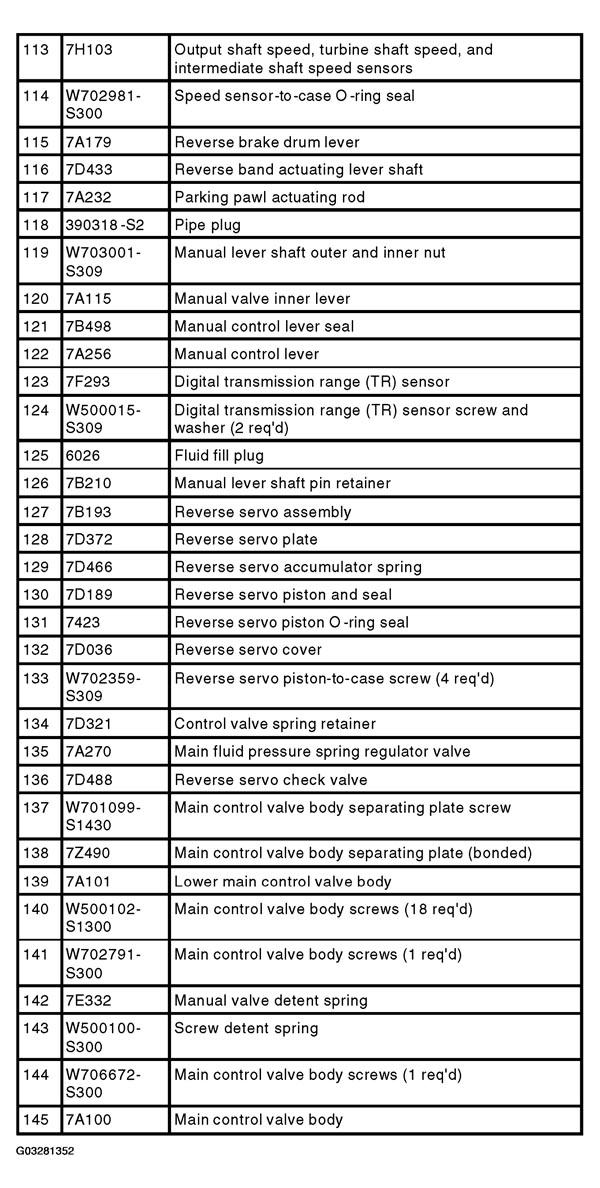

Fig 7: Exploded View Of Automatic Transmission Legend (Items 113-145)
Courtesy of FORD MOTOR CO.

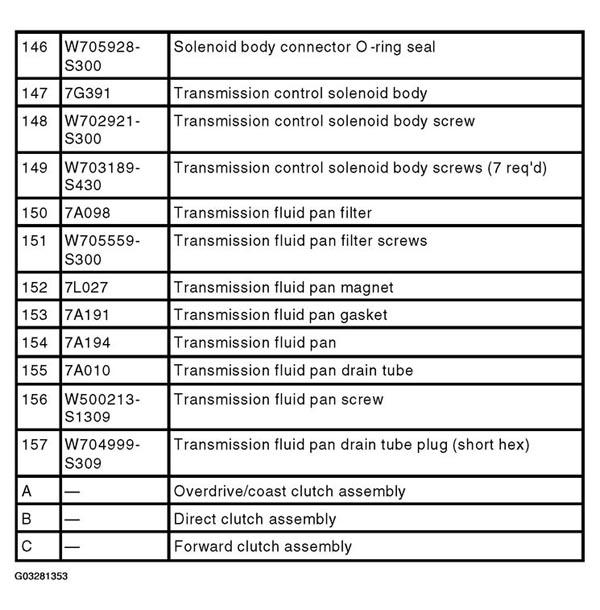

Fig 8: Exploded View Of Automatic Transmission Legend (Items 146-157; A-C)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
