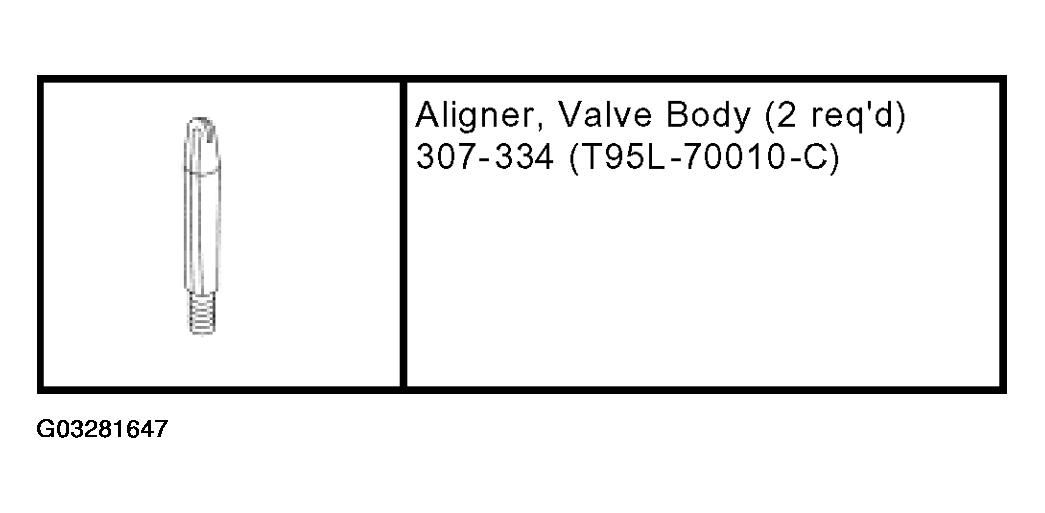

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Remove the parts in the order indicated in the following illustrations and table. Clean and inspect the valves.

   To remove individual parts, only carry out the listed steps:

   MATERIAL SPECIFICATION



   Part	Steps
   Minor overhaul and cleaning	1-5
   For removal, cleaning and inspection of the valves	5-80

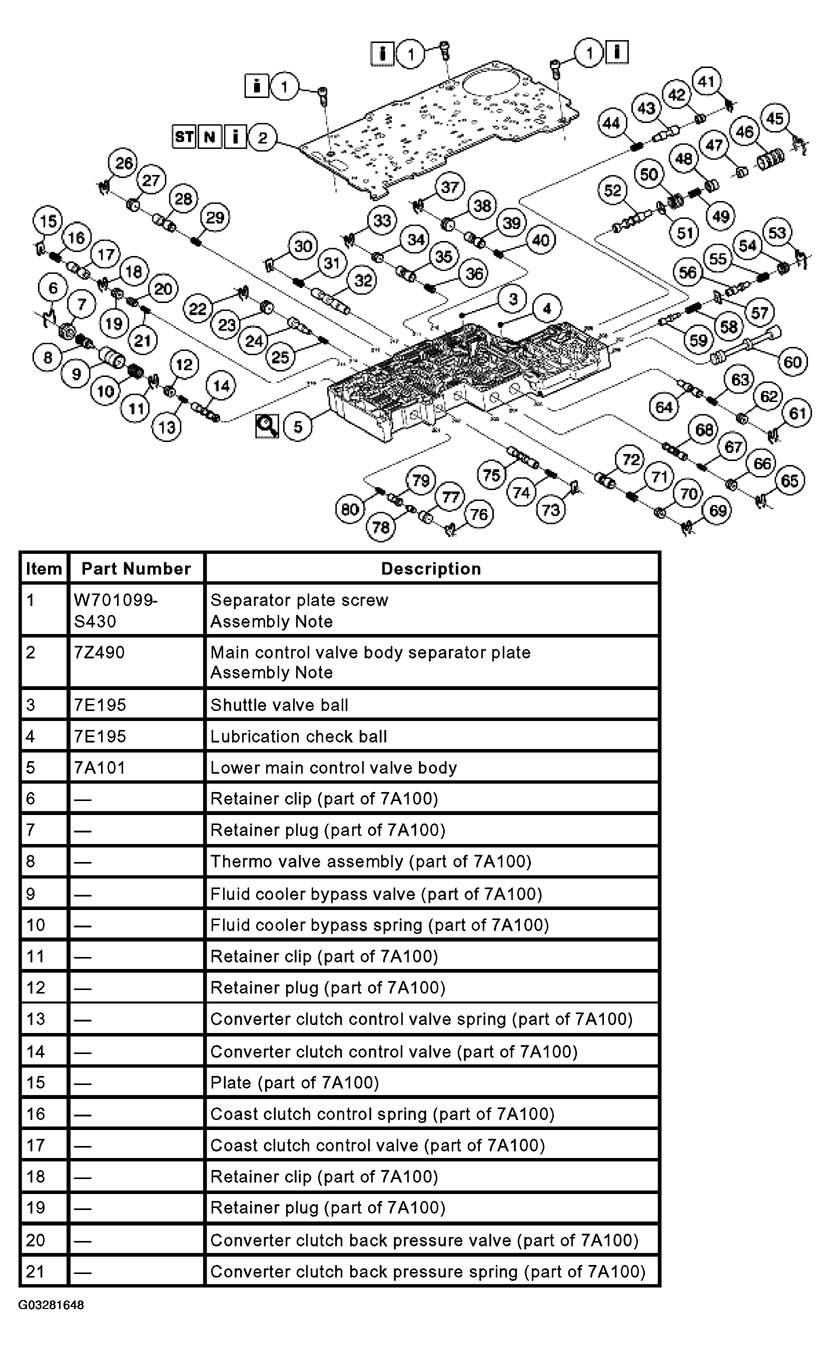

   Fig 2: Main Control Valve Body Disassembly Sequence (Items 1-21

   Courtesy of FORD MOTOR CO.

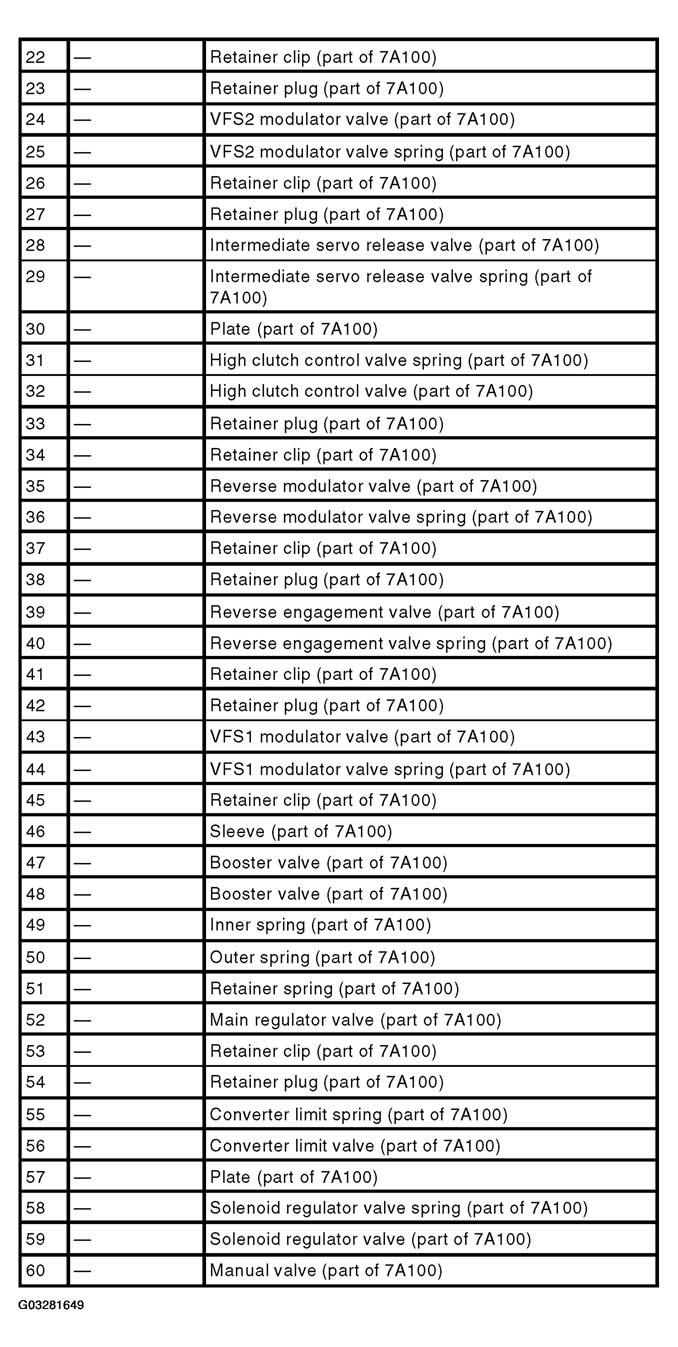

   Fig 3: Main Control Valve Body Disassembly Sequence Legend (Items 22-60)

   Courtesy of FORD MOTOR CO.

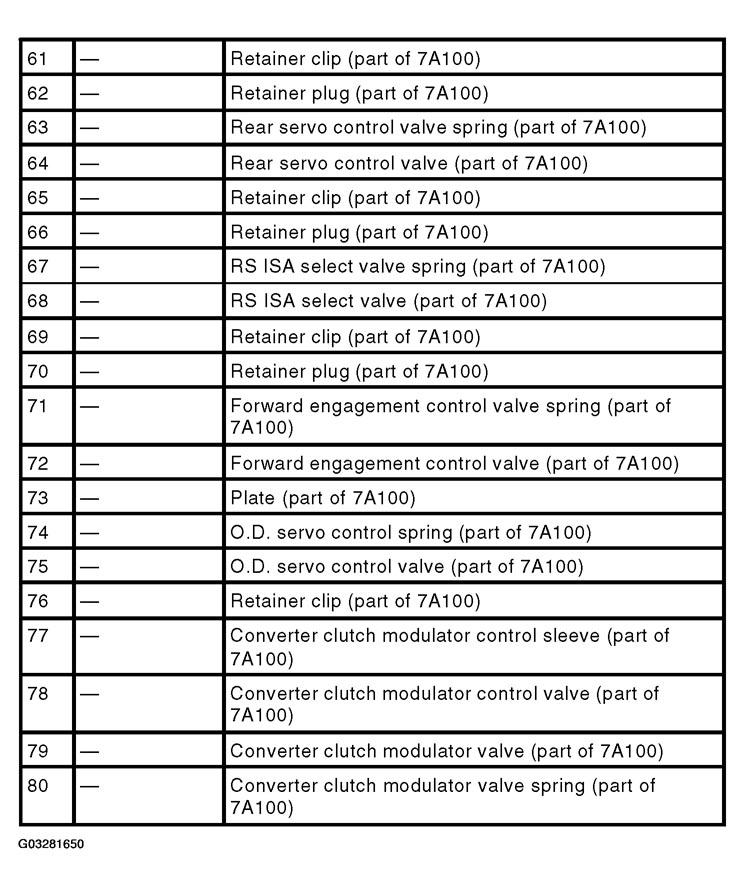

   Fig 4: Main Control Valve Body Disassembly Sequence Legend (Items 61-80)

   Courtesy of FORD MOTOR CO.
2. After cleaning the main control valve body, carry out the following.
   • Inspect all valve and plug bores for scoring or burrs.
   • Check all fluid passages for obstructions.
   • Inspect all valves and plugs for burrs.
   • Inspect all mating surfaces for burrs or distortion.
   • Inspect all springs for distortion.
   • Check all valves and plugs for free movement in their respective bores.
   • Valves and plugs, when dry, must fall from their own weight into their respective bores.
   • Roll the manual valve on a flat surface to check for a bent condition.
3. To assemble, reverse the disassembly procedure.

Items 1 and 2: Main Control Valve Body Separator Plate Assembly Note

NOTE: Use a new valve body separator plate for main control valve body installation.

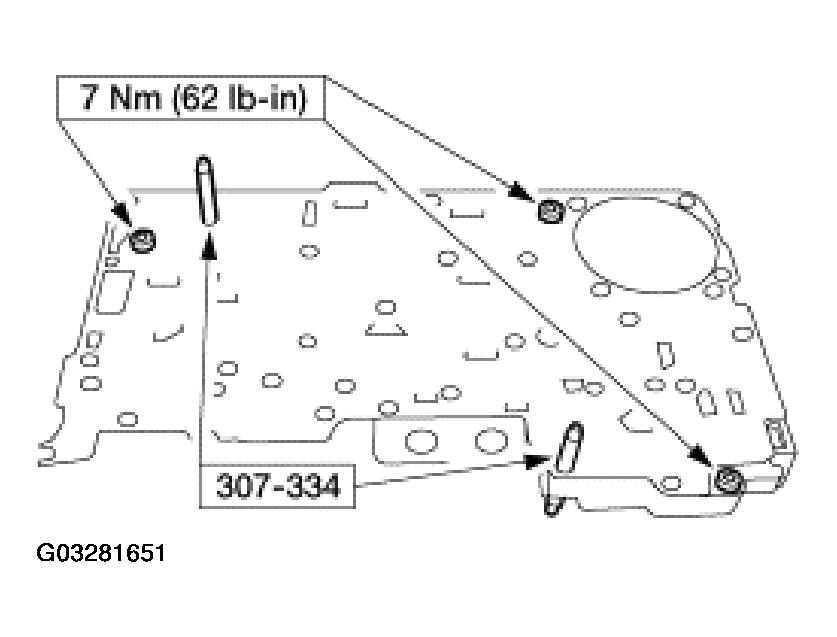

Fig 5: Installing Main Control Valve Body Separator Plate
Courtesy of FORD MOTOR CO.
1. Using the special tools, install the main control valve body separator plate.
