Reverse Servo Assembly

1. Disassemble the parts in the order indicated in Fig 1.

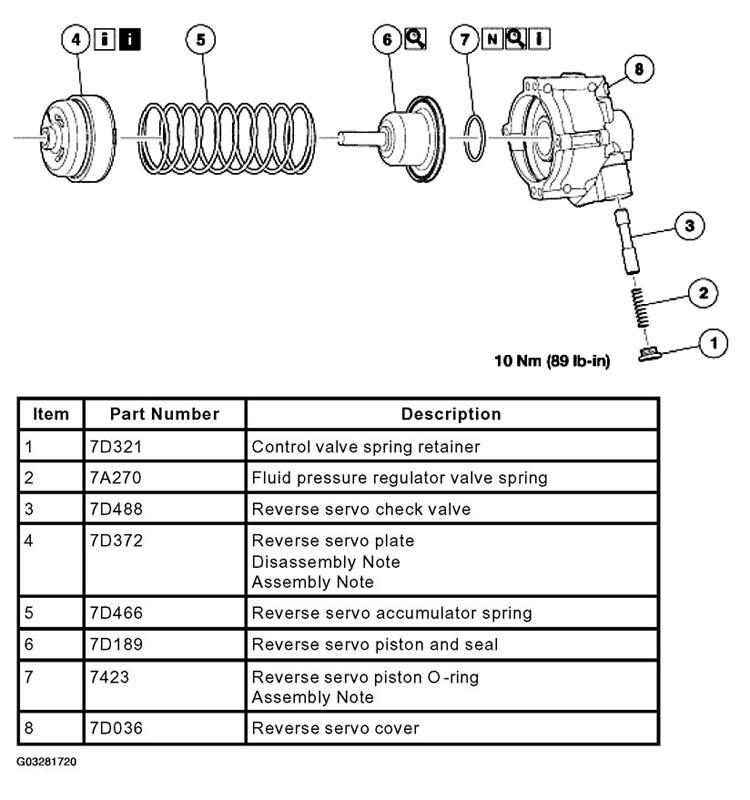

   Fig 1: Reverse Servo Assembly Disassembly Sequence

   Courtesy of FORD MOTOR CO.
2. To assemble, reverse the disassembly procedure.

Item 4: Reverse Servo Plate Disassembly Note

WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.
NOTE: Tabs on servo plate mate with slots on cover every 120 degrees.

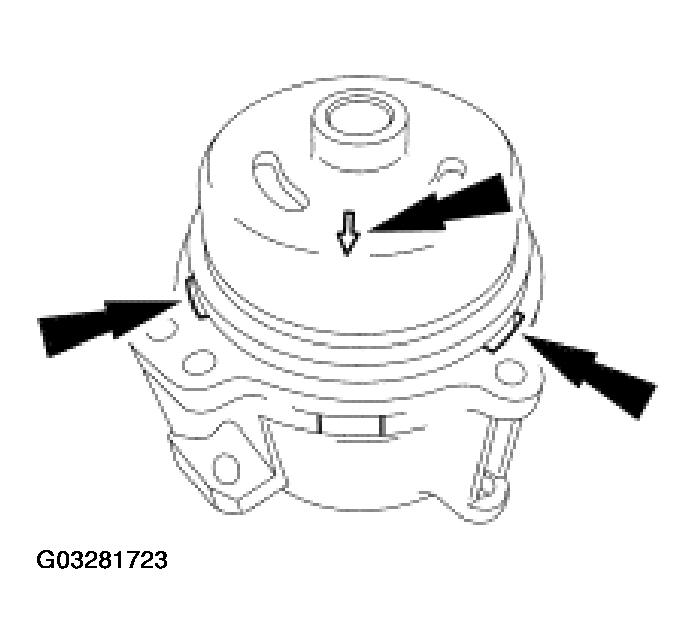

Fig 2: Removing Reverse Servo Plate
Courtesy of FORD MOTOR CO.
1. Remove the reverse servo plate by turning in either direction to release.
   • Align the arrow on the servo plate with any slot on the cover.

Item 7: Reverse Servo Piston O -Ring Assembly Note

NOTE: Try not to roll the seal onto the housing when installing the seal or damage to the seal can occur.

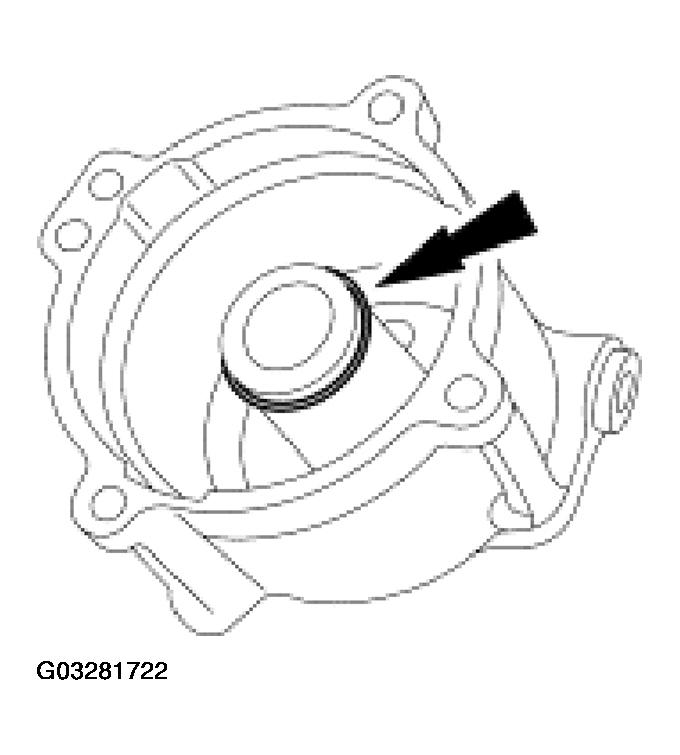

Fig 3: Installing A New Reverse Servo Piston Seal
Courtesy of FORD MOTOR CO.
1. Lubricate and install a new reverse servo piston seal.

Item 4: Reverse Servo Plate Assembly Note

WARNING: The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.
CAUTION: The arrow on the servo plate must be aligned evenly between any two slots on the cover.

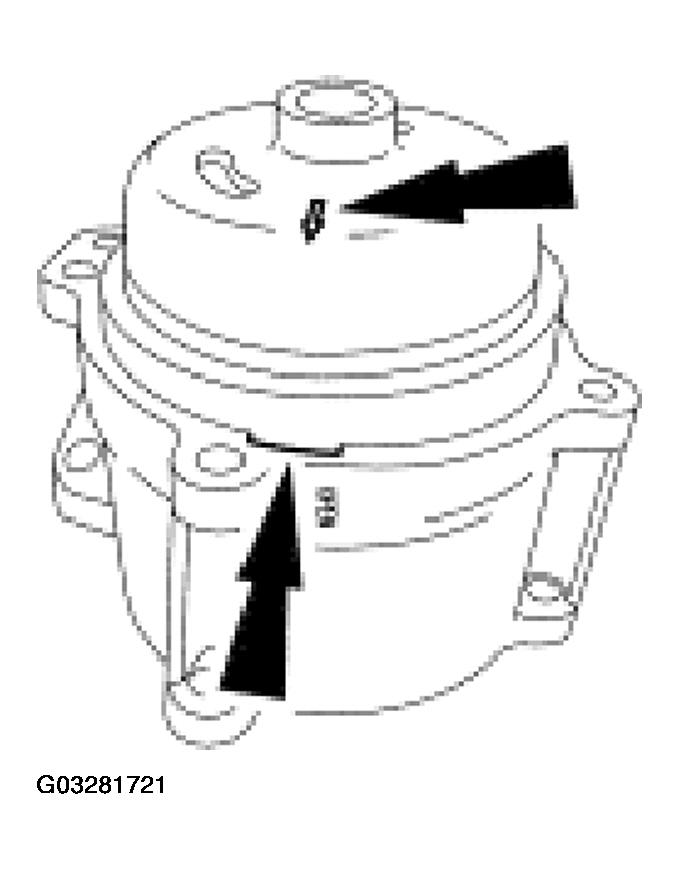

Fig 4: Installing Reverse Servo Plate
Courtesy of FORD MOTOR CO.
1. Install the reverse servo plate.
