Axle Ratio Code

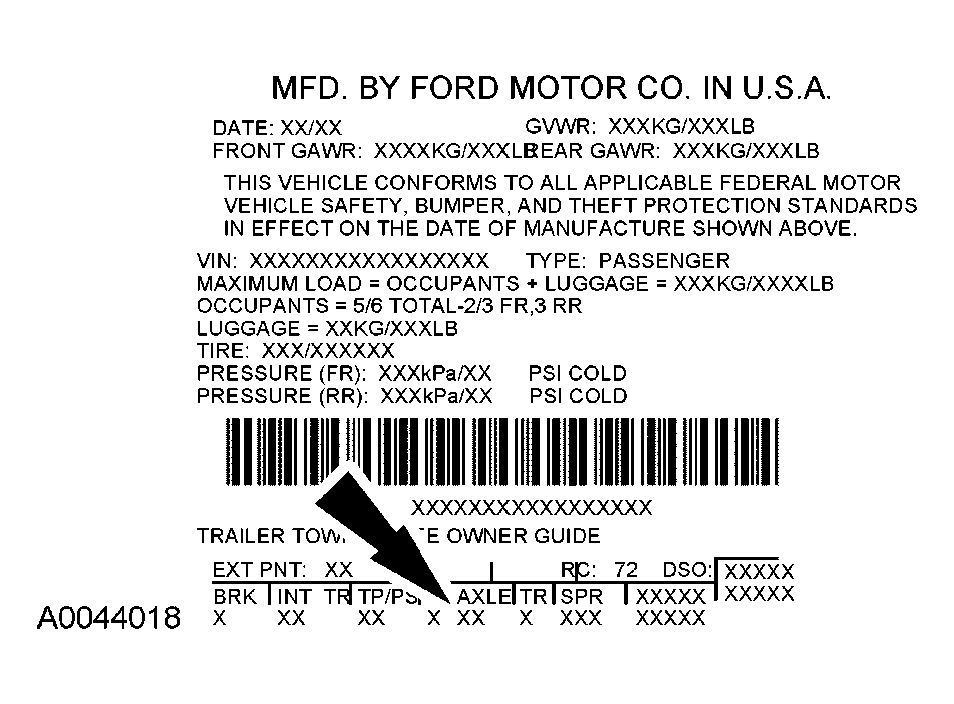

Fig 1: Identifying Axle Ratio Code

Courtesy of FORD MOTOR CO.

The axle ratios are:

• 58 - 2.73 conventional
• C8 - 2.73 limited slip
• C6 - 3.55 conventional
• Z5 - 3.27 limited slip
• X5 - 3.27 conventional
