Parking Brake System

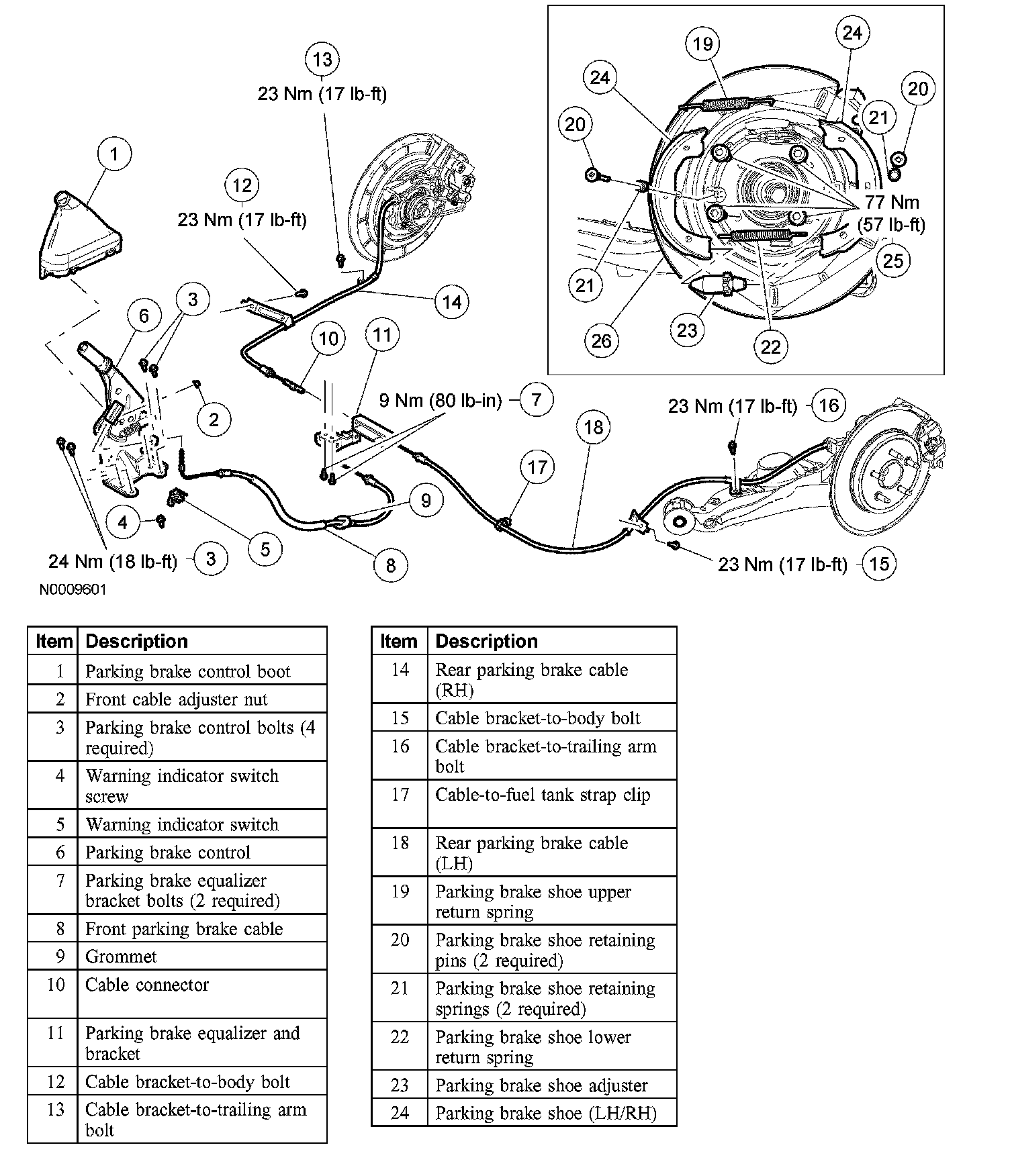

Parking Brake - Exploded View (Part 1):

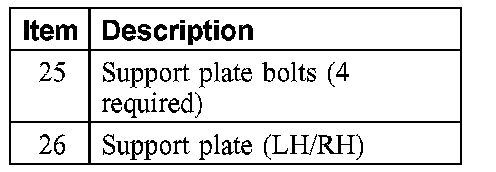

Parking Brake - Exploded View (Part 2):





Parking Brake-Exploded View
