Valve Guide

Valve Guide Inner Diameter

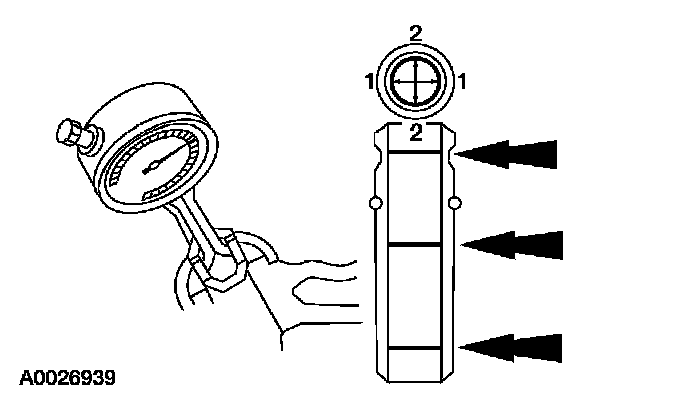

1. Measure the inner diameter of the valve guides in two directions where indicated.
2. If the valve guide is not within specifications, install a new cylinder head assembly.
