Refrigerant Pressure Sensor / Switch: Service and Repair

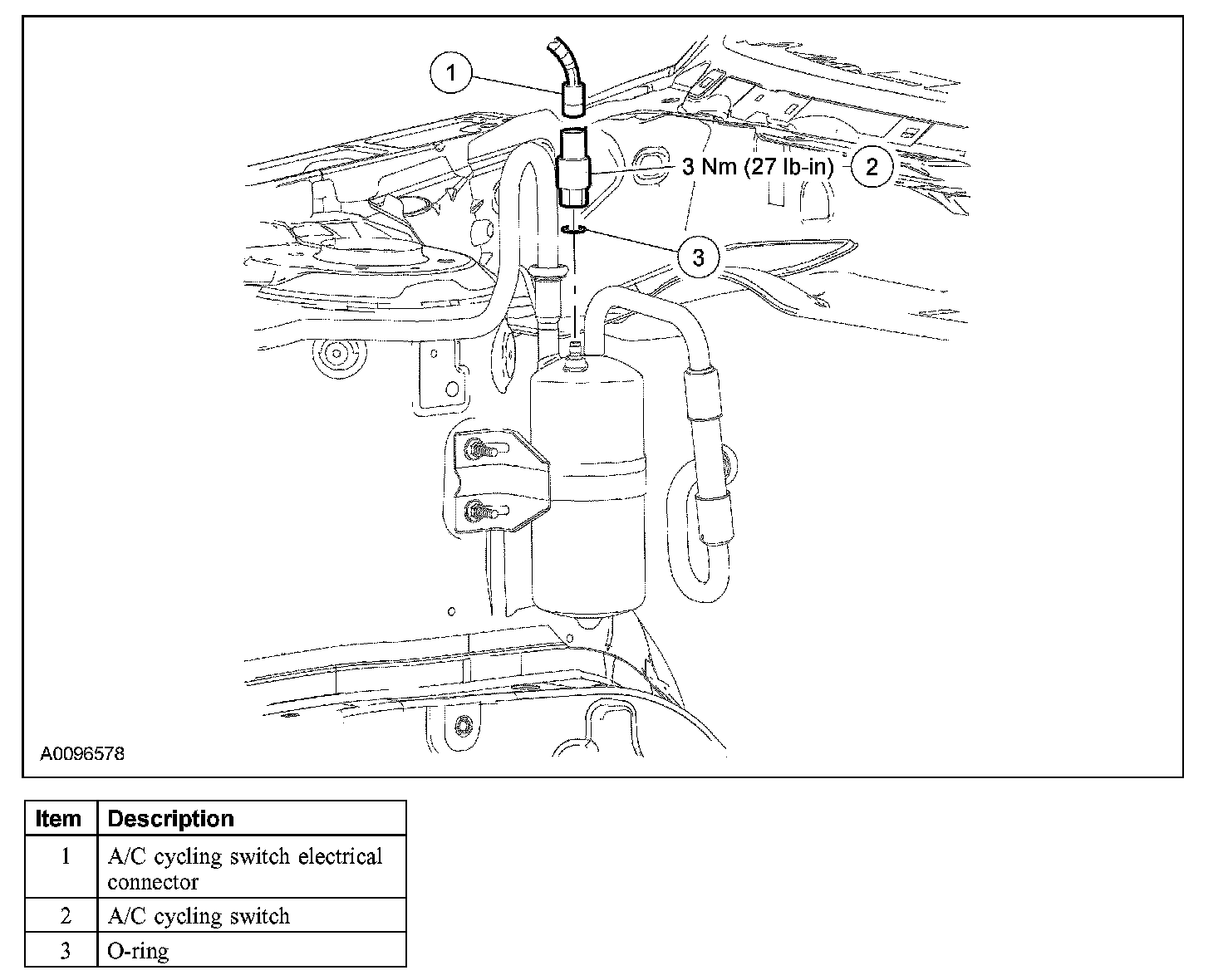

AIR CONDITIONING (A/C) CYCLING SWITCH







Removal and Installation
1. Disconnect the A/C cycling switch electrical connector.
2. Remove the A/C cycling switch.
- To install, tighten to 3 Nm (27 lb-in).

3. NOTE: A new O-ring seal lubricated with clean mineral oil must be installed before installing a new switch.

To install, reverse the removal procedure.
