General Specifications

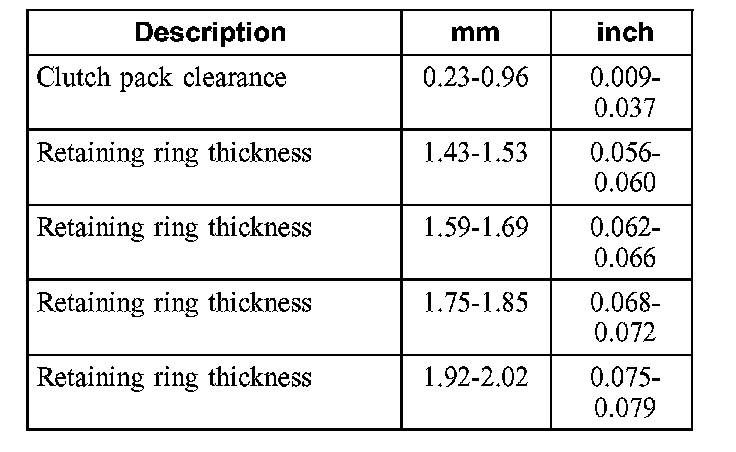

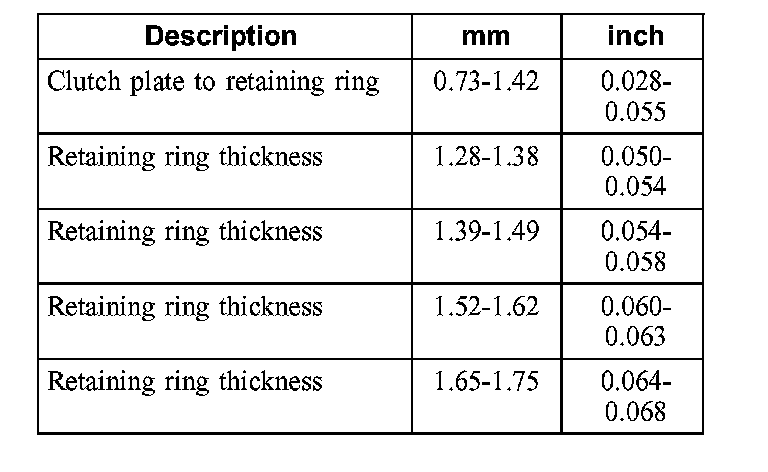

Forward/Coast Clutch Pack

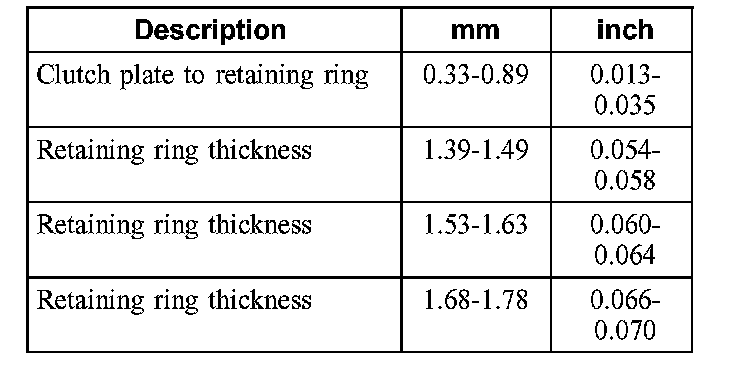

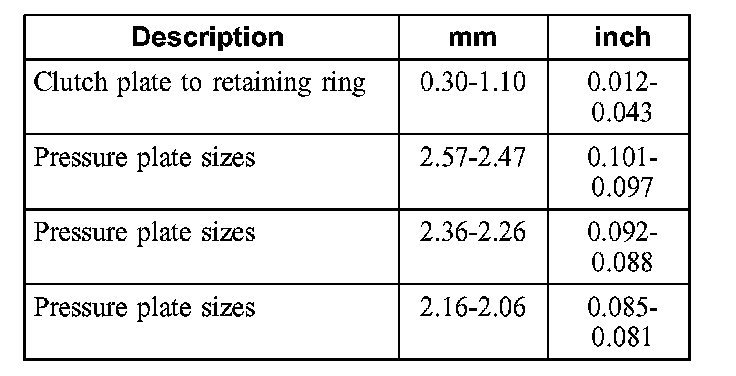

Reverse Clutch Pack





Direct Clutch Pack





Low/Reverse Clutch Pack

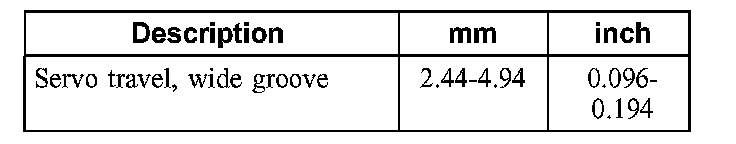

Intermediate and Overdrive Servo

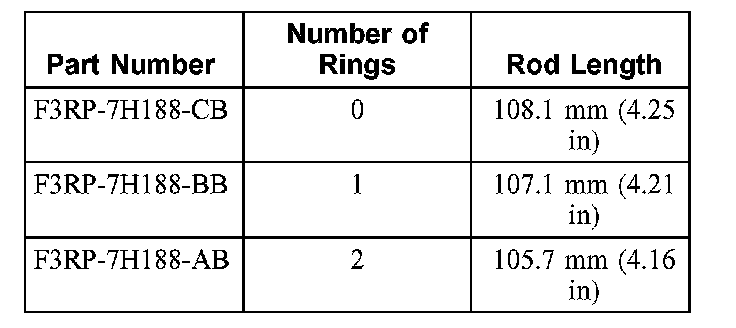

Intermediate/Overdrive Servo Apply Rod





Reverse/Overdrive Carrier Assembly Pinion Gear

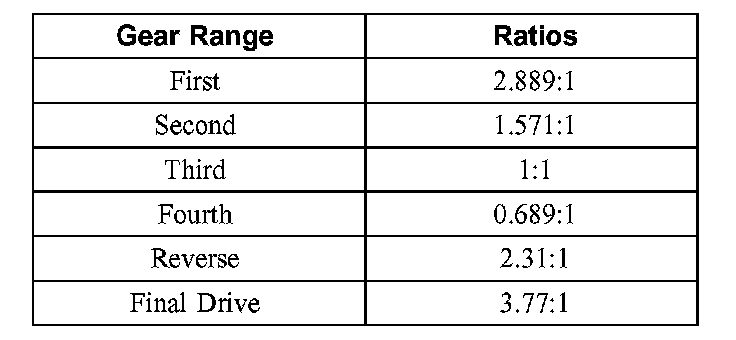

Gear Ratios

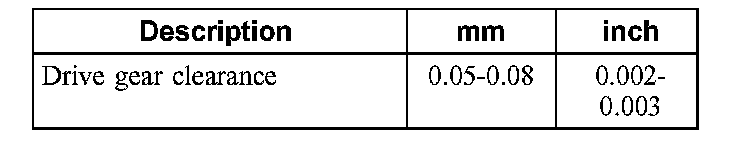

Pump Gear End

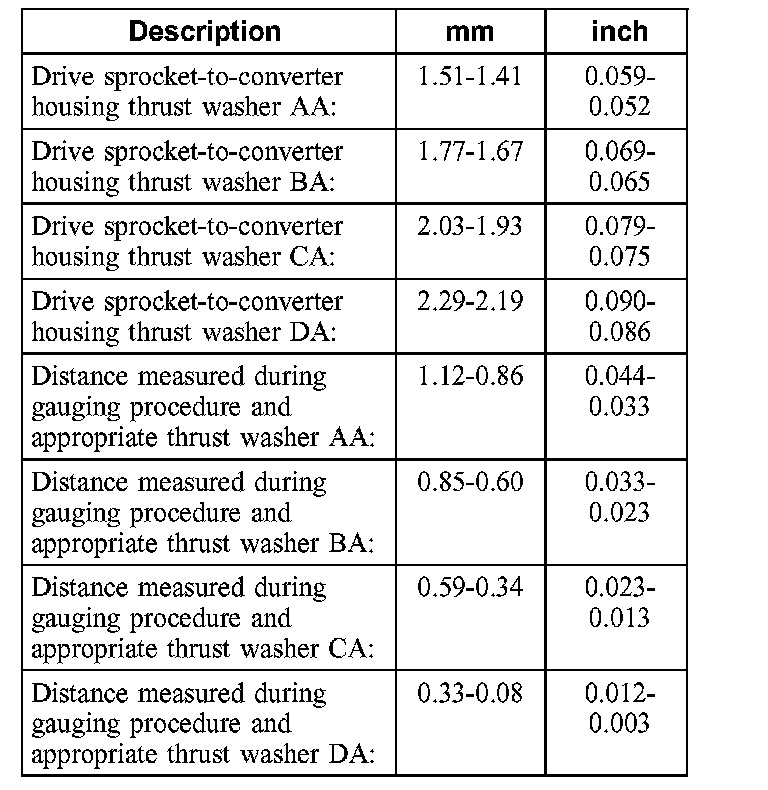

Drive Sprocket Alignment No. 10 Thrust Washer

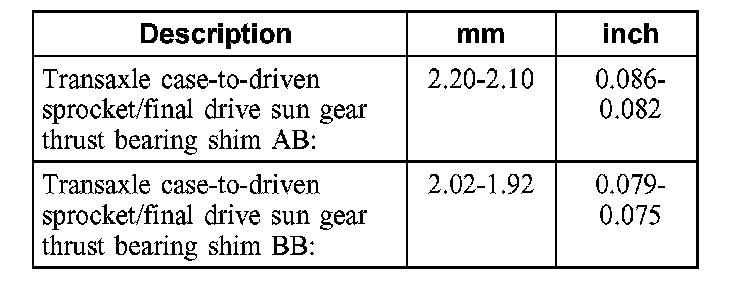

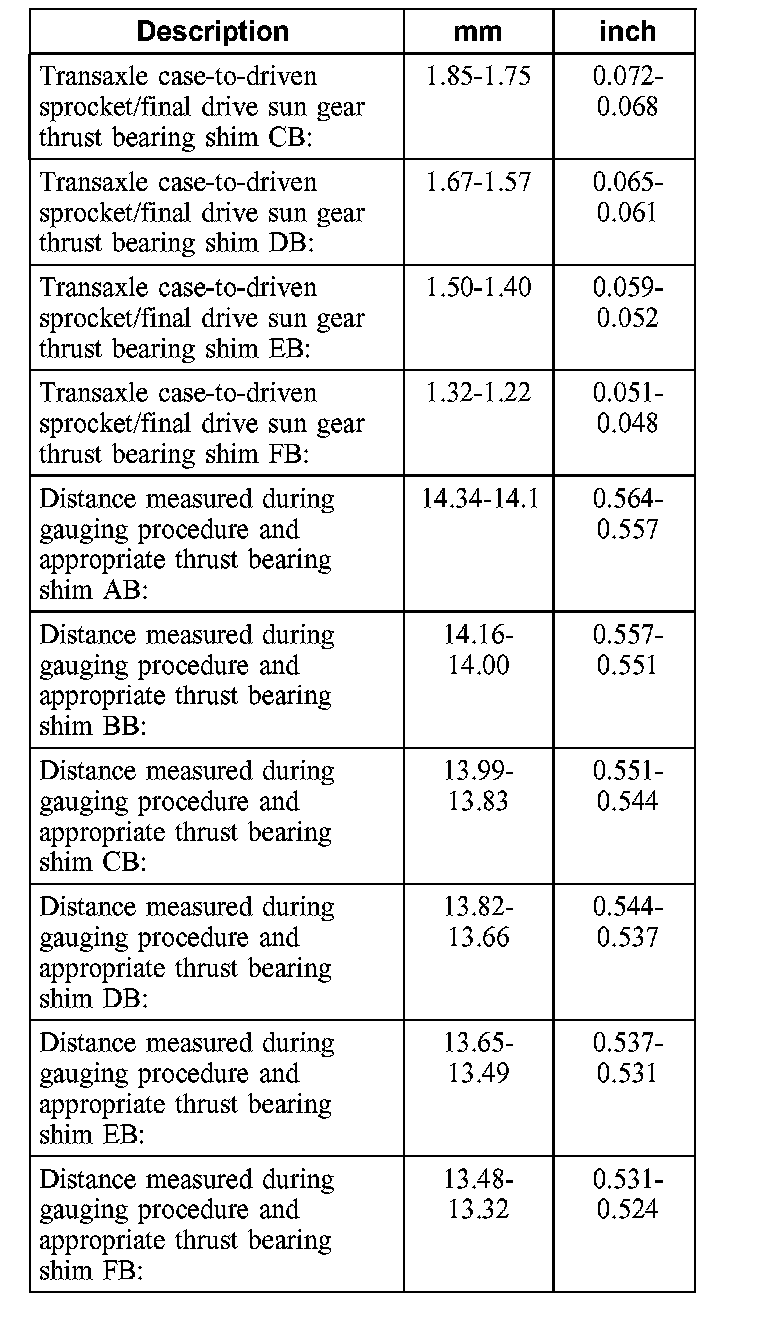

Driven Sprocket Alignment No. 11 Shim

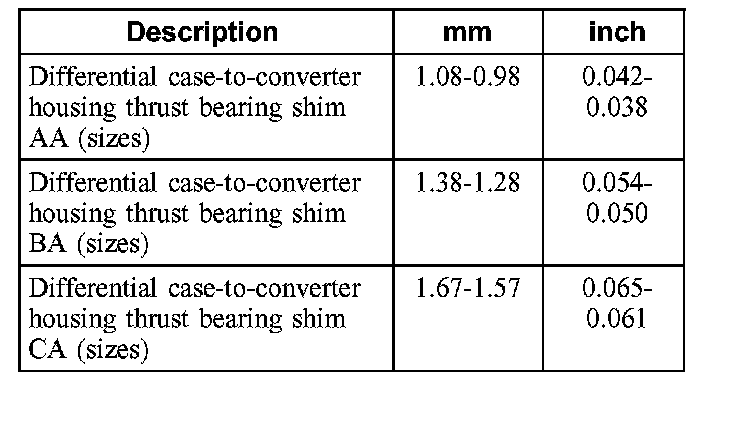

Differential End Play No. 14 Shim

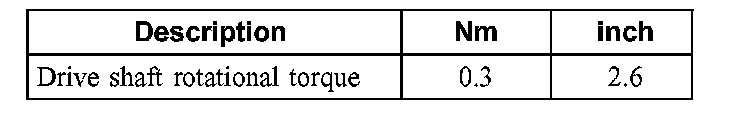

Pump Assembly Rotating Torque
