LH Front Window Control Switch C508

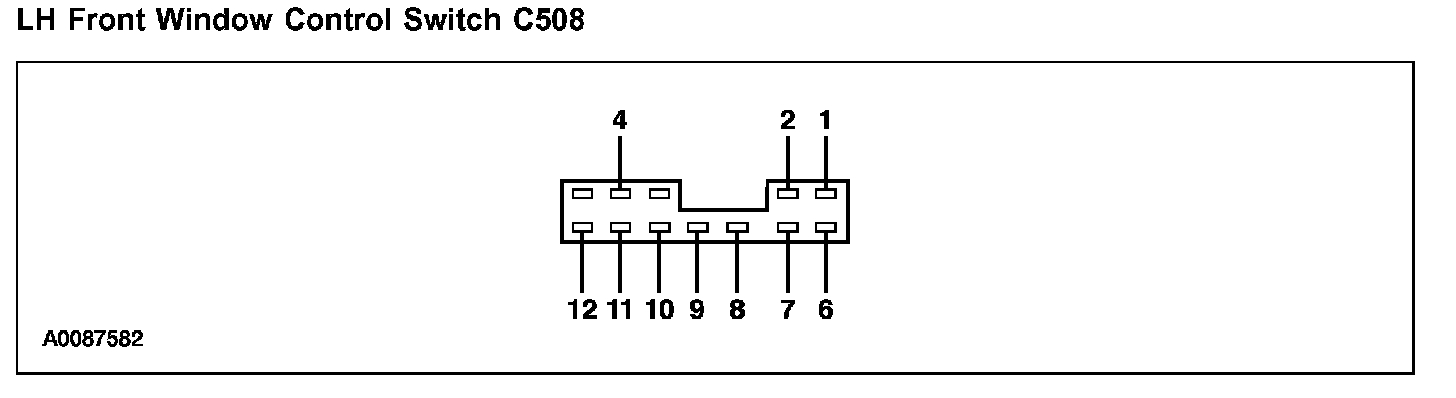

LH Front Window Control Switch C508 (Part 1):

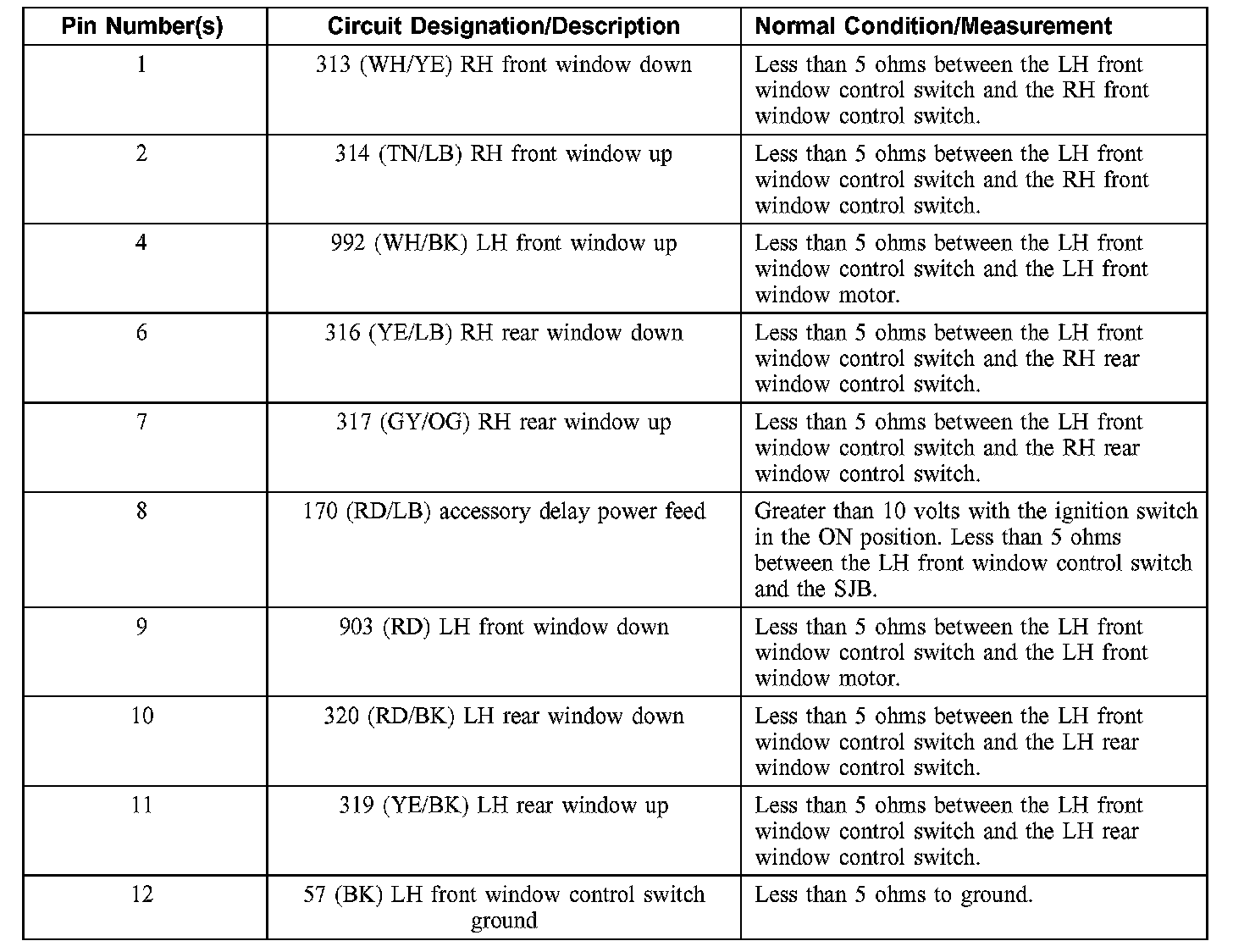

LH Front Window Control Switch C508 (Part 2):
