Seat Temperature Control Module
>>
Heated Seat Module, Driver Side Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

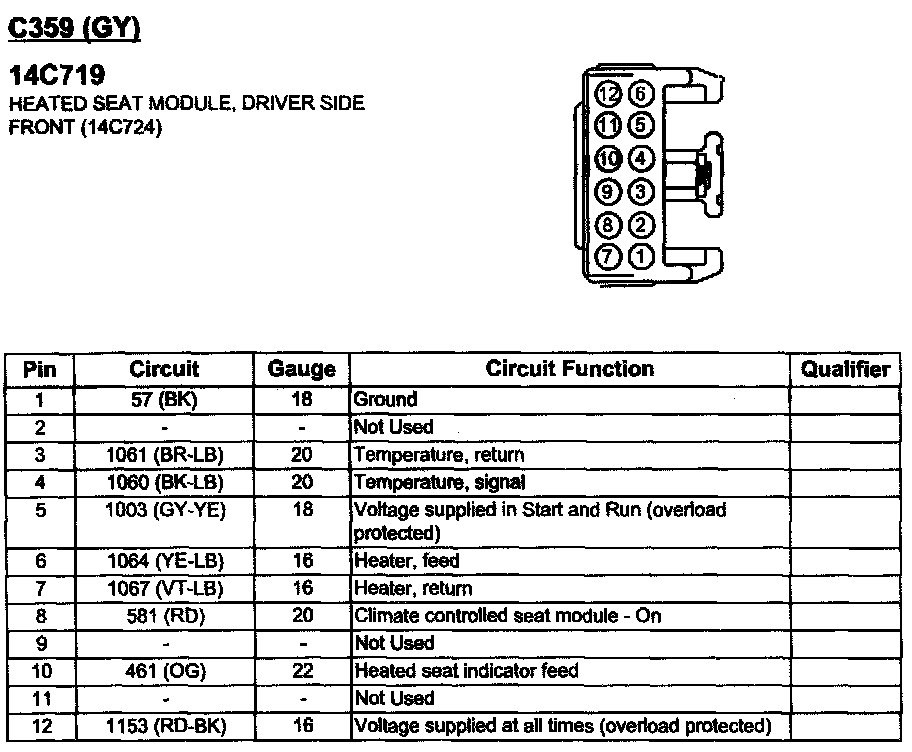

Heated Seat Module, Driver Side Front
