Child Safety Seat Tether Anchor: Notes

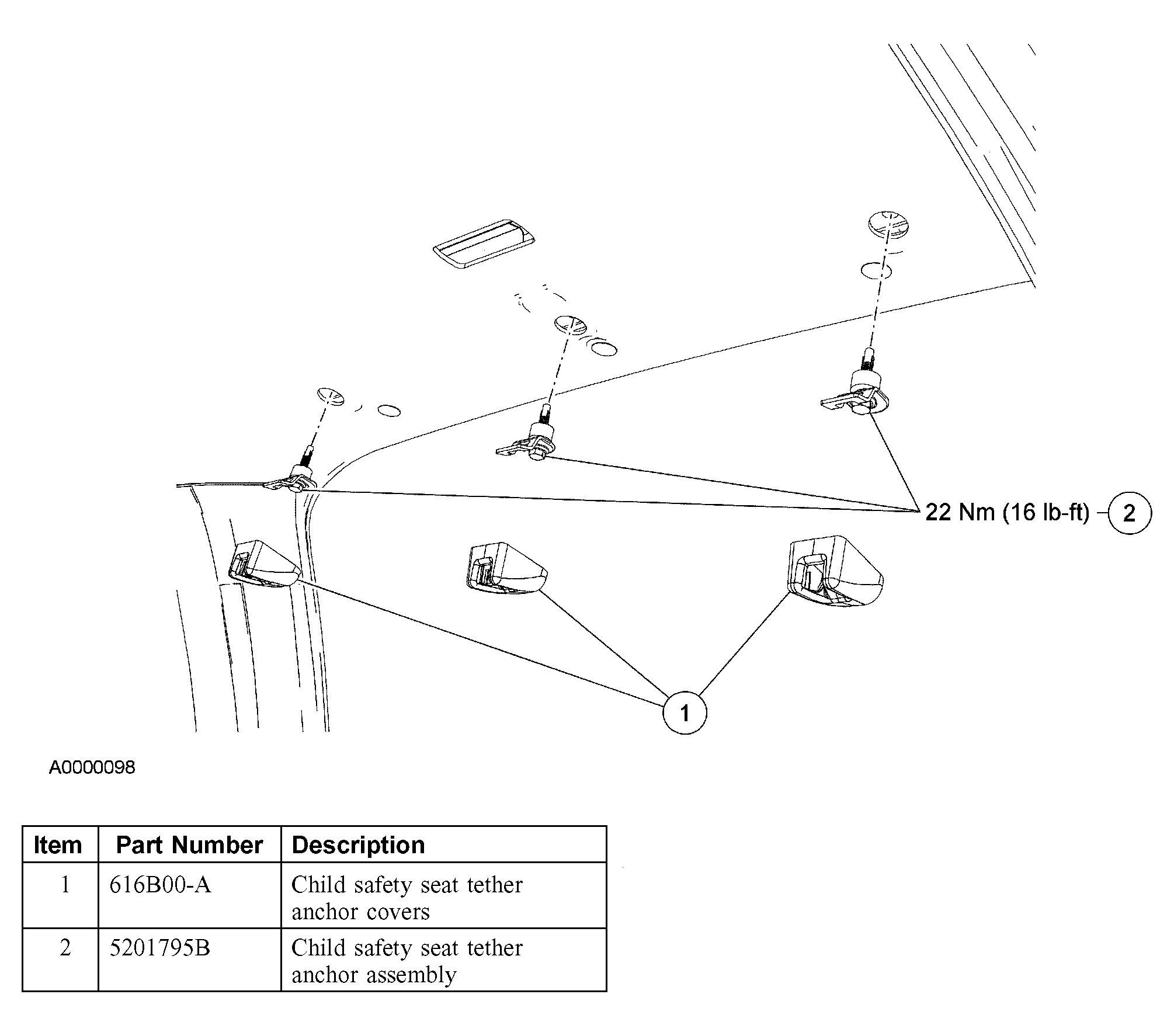

Fig 1: Displaying Child Safety Seat Tether Anchor With Torque Specifications
G03903562Courtesy of FORD MOTOR CO.
