Steering Column - Exploded View

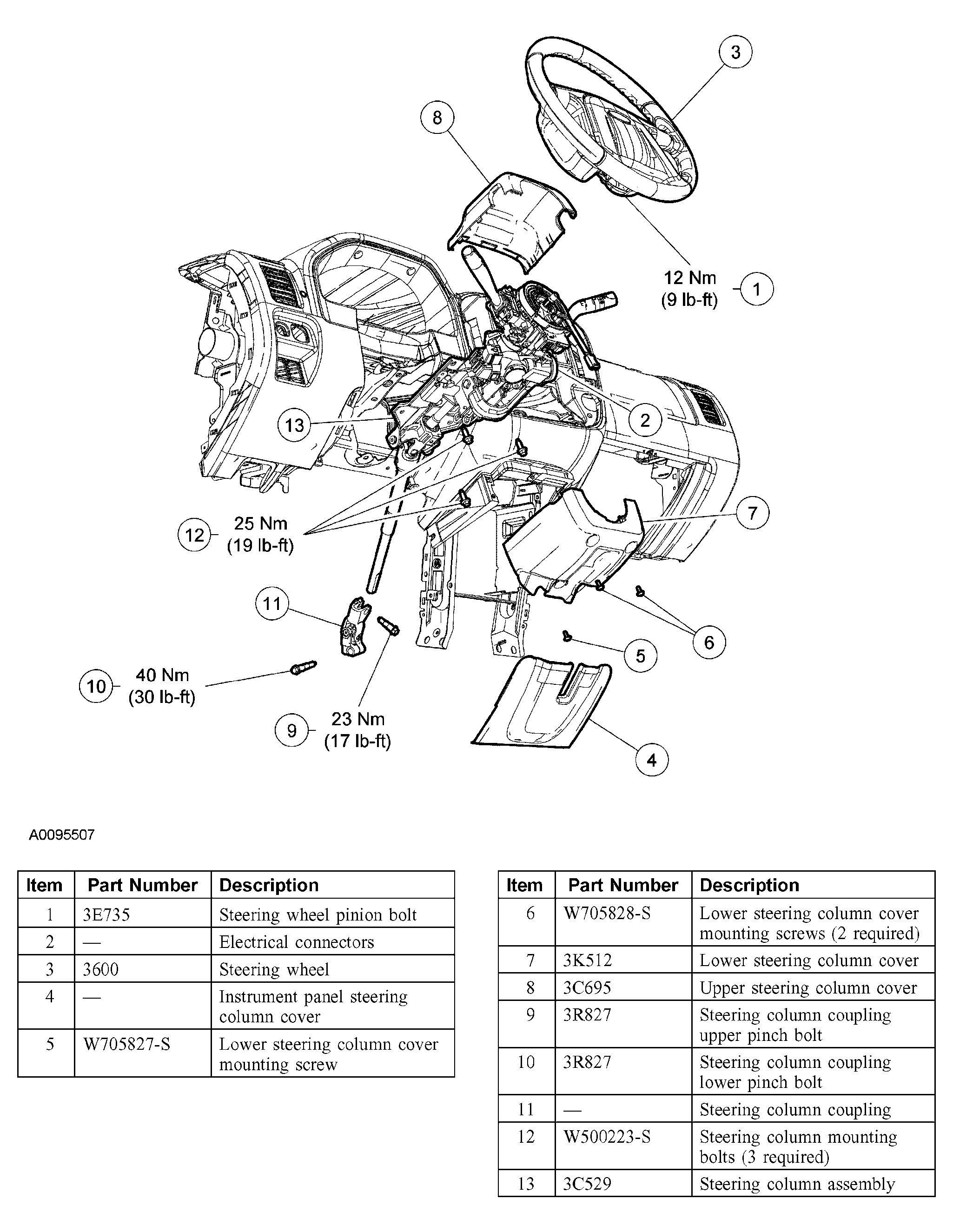

Fig 1: Exploded View Of Steering Column With Torque Specifications
G03897615Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
