Connector Circuit Reference

Anti-Lock Brake System (ABS) Module C155

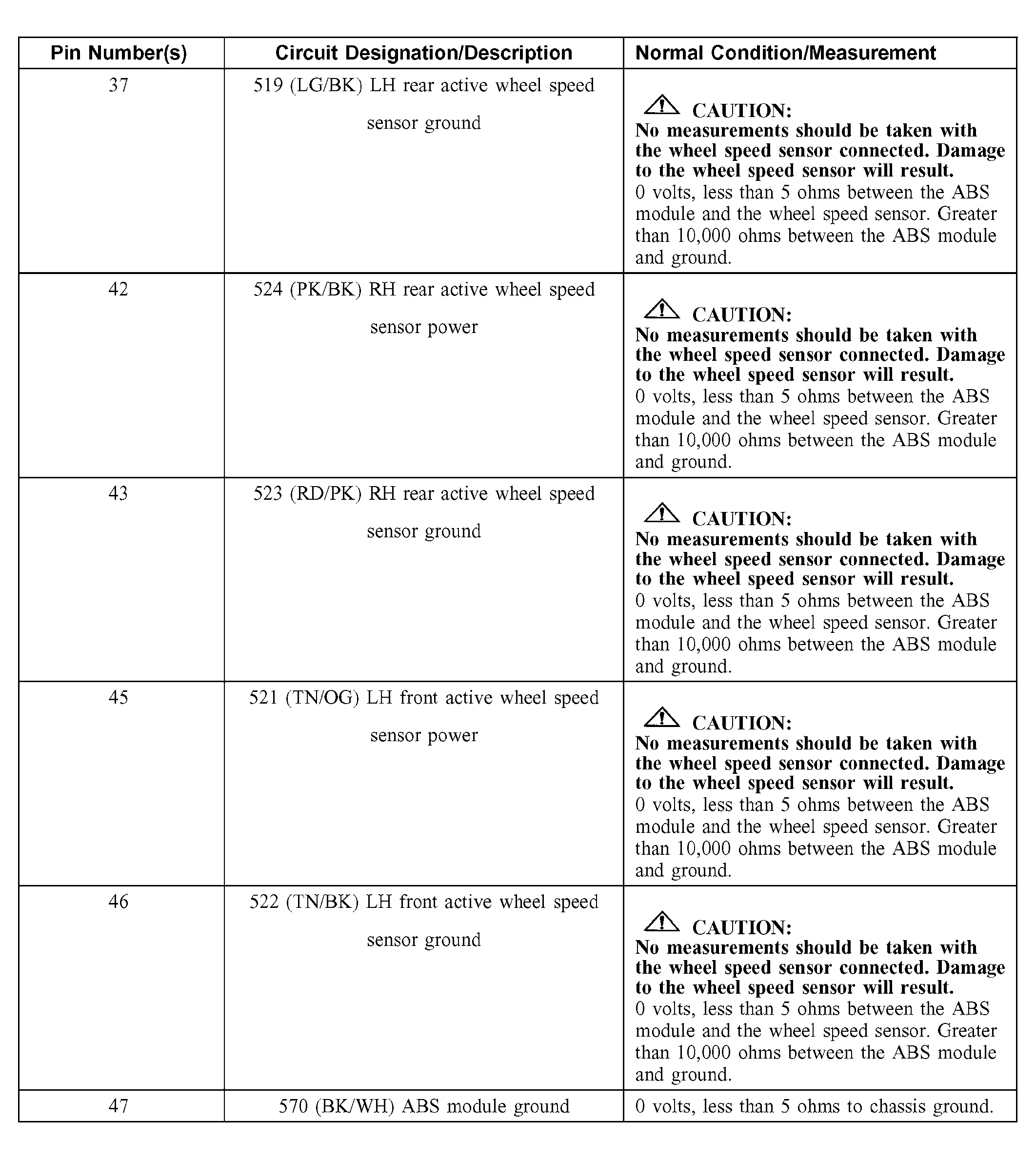

Fig 1: Identifying Anti-Lock Brake System (ABS) Module C155

Courtesy of FORD MOTOR CO.

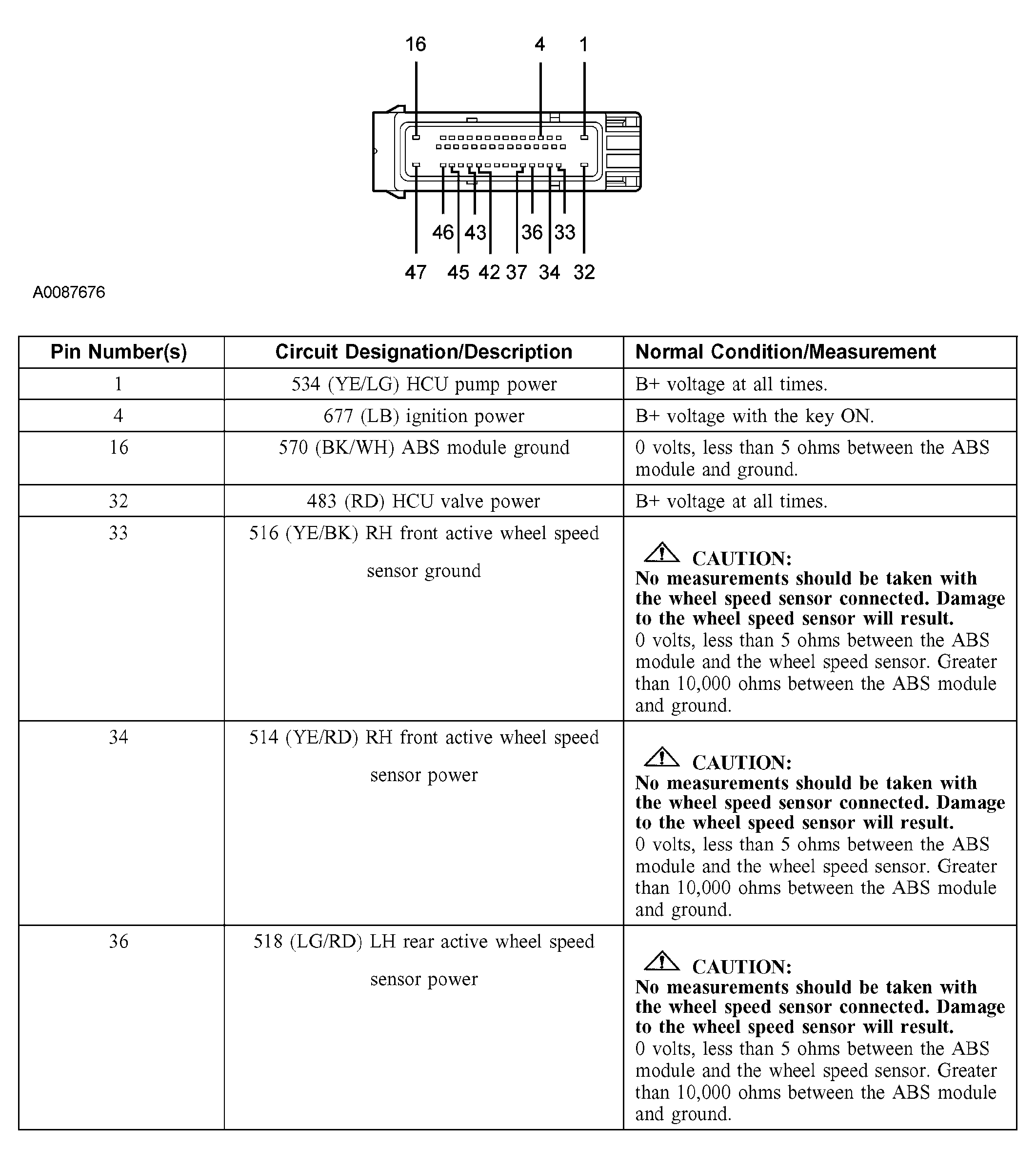

Fig 2: Identifying Anti-Lock Brake System (ABS) Module C155

Courtesy of FORD MOTOR CO.

LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160

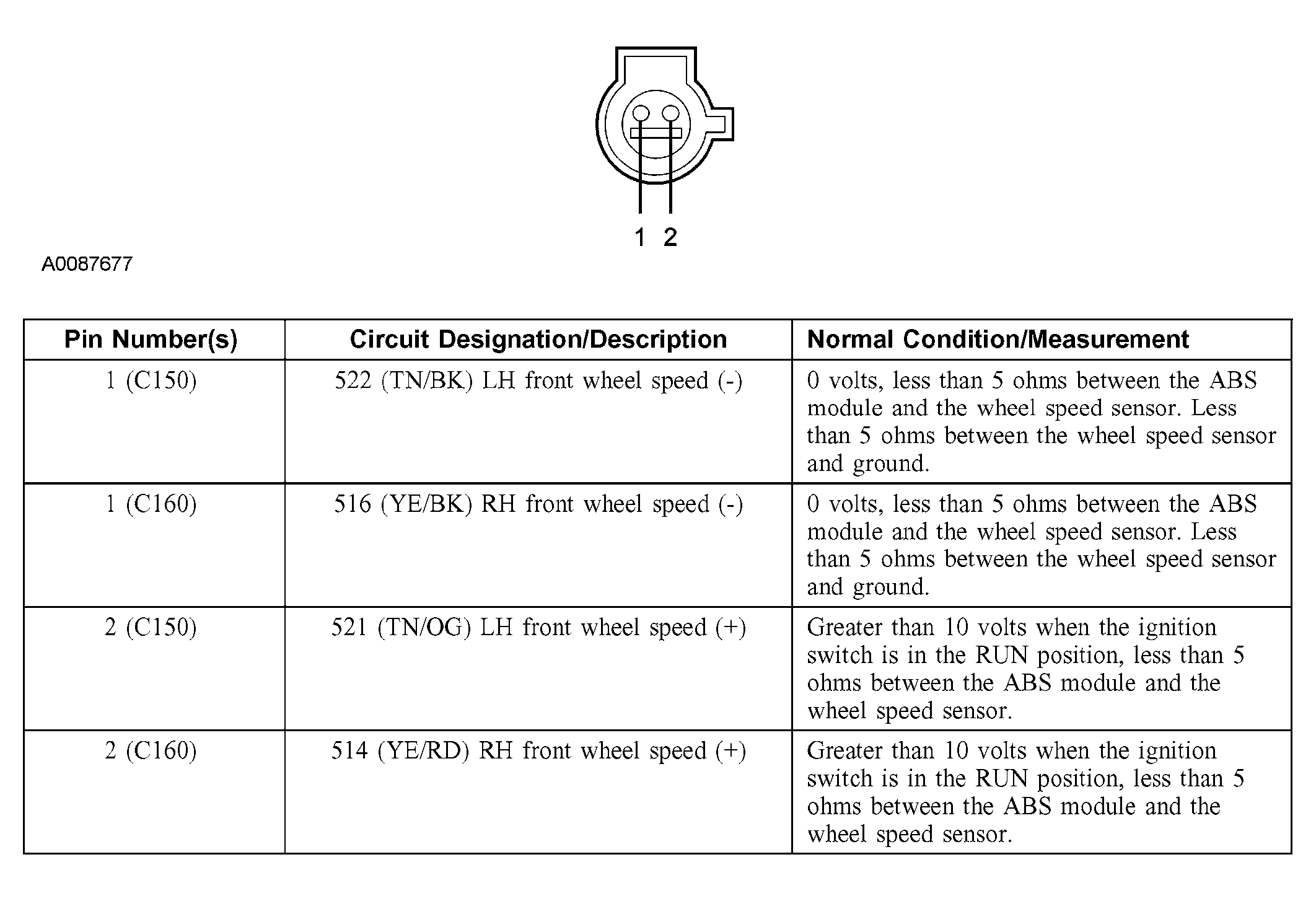

Fig 3: Identifying LH Front Wheel Speed Sensor C150, RH Front Wheel Speed Sensor C160

Courtesy of FORD MOTOR CO.

LH Rear Wheel Speed Sensor C440, RH Rear Wheel Speed Sensor C426

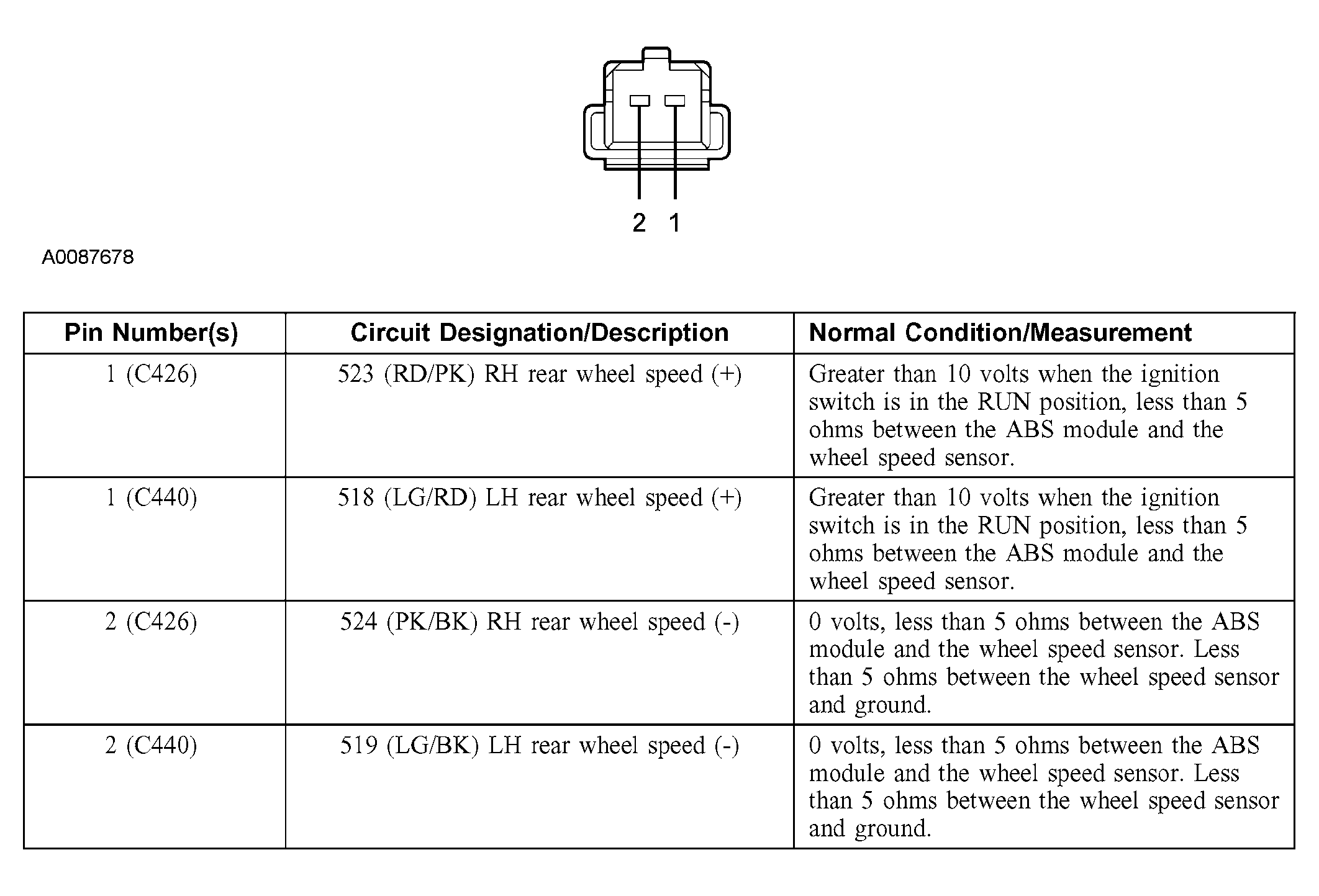

Fig 4: Identifying LH Rear Wheel Speed Sensor C440, RH Rear Wheel Speed Sensor C426

Courtesy of FORD MOTOR CO.
