Wheel Speed Sensor - Front: Notes

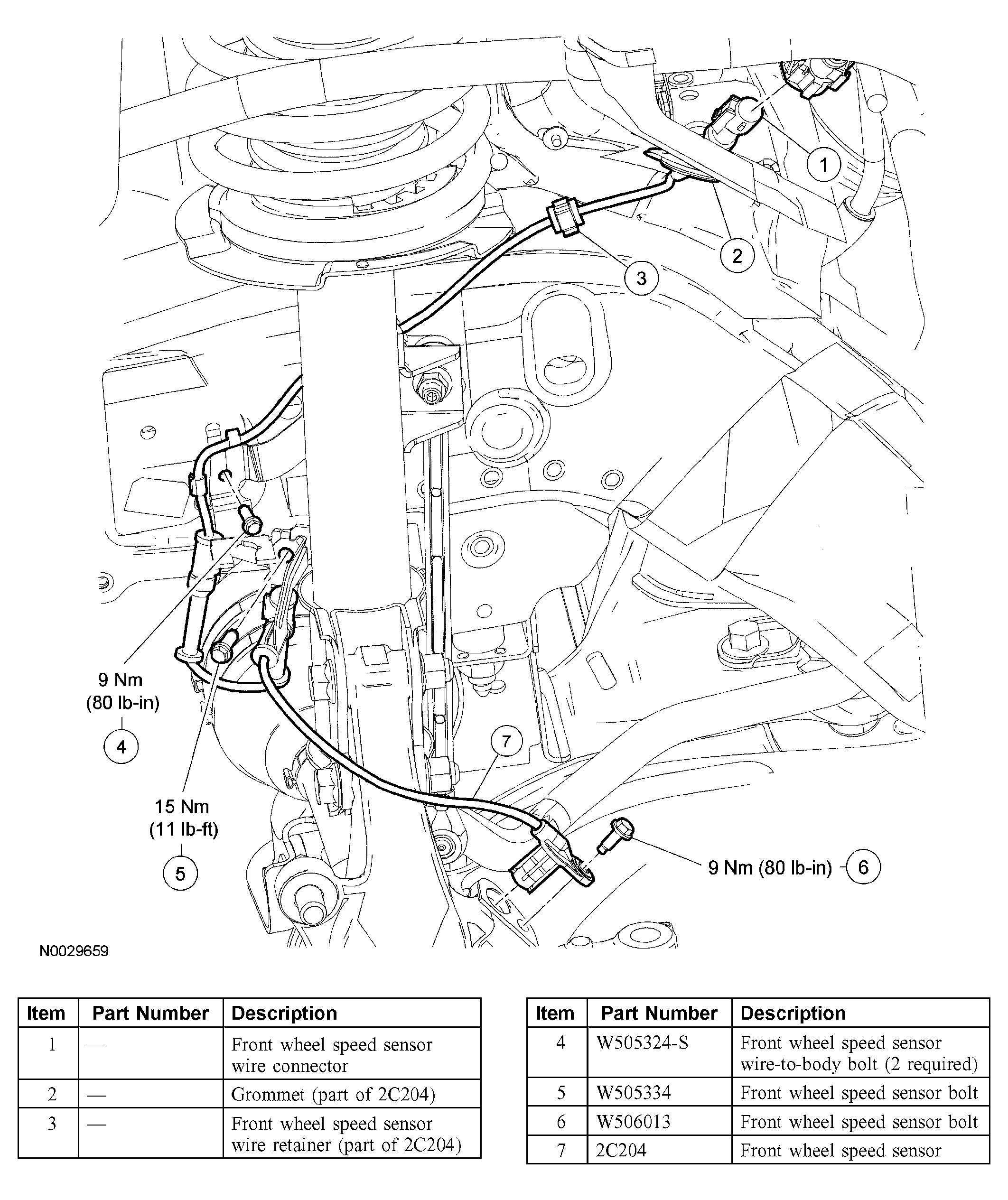

Fig 1: Wheel Speed Sensor - Front With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
