Engine Ignition Components - Exploded View

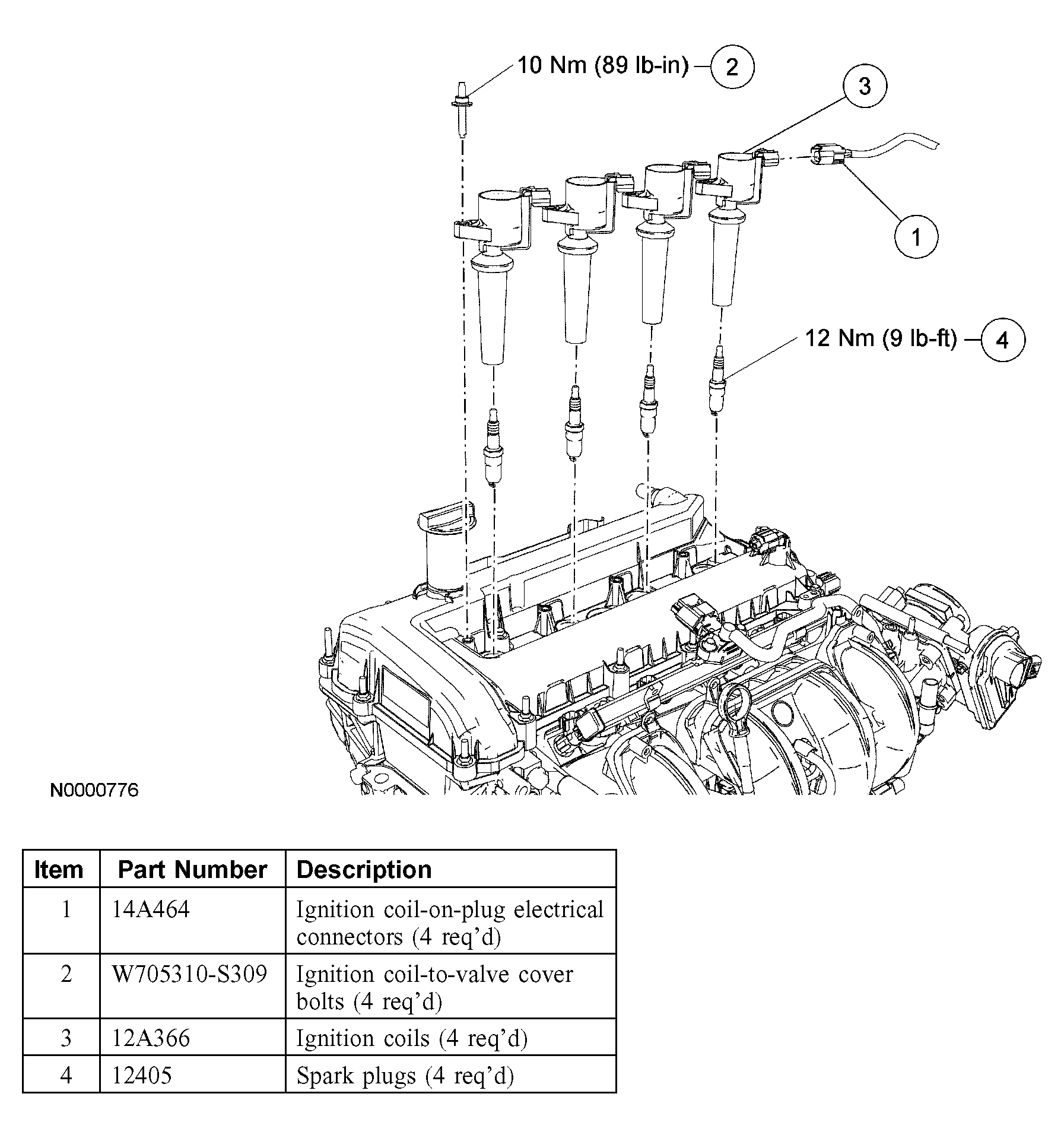

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
G03900435Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
