Test G: Unprogrammed Encoded Ignition Key (Keycode Format OK)

PINPOINT TEST G: UNPROGRAMMED ENCODED IGNITION KEY (KEYCODE FORMAT OK)

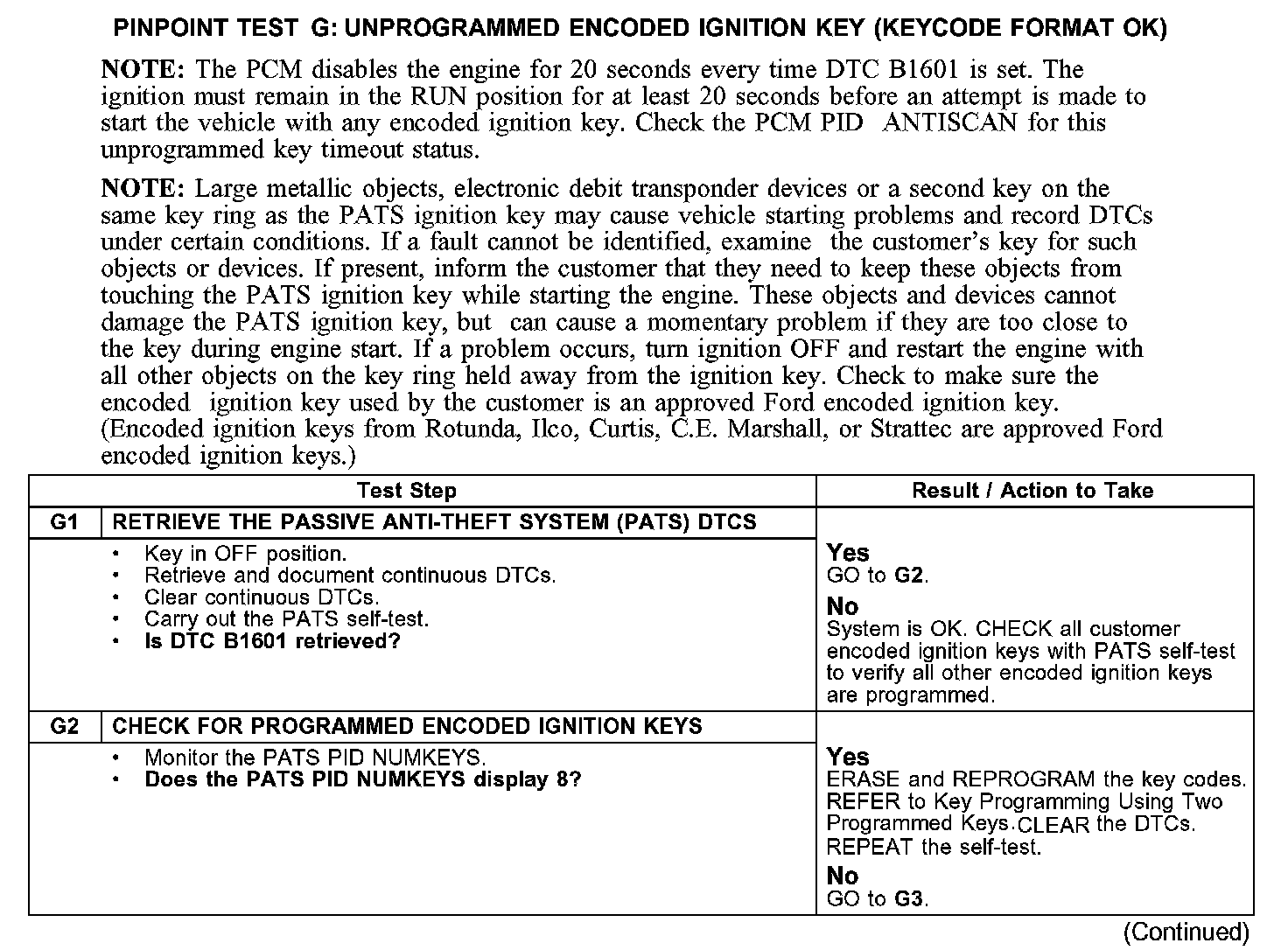

G1-G2:

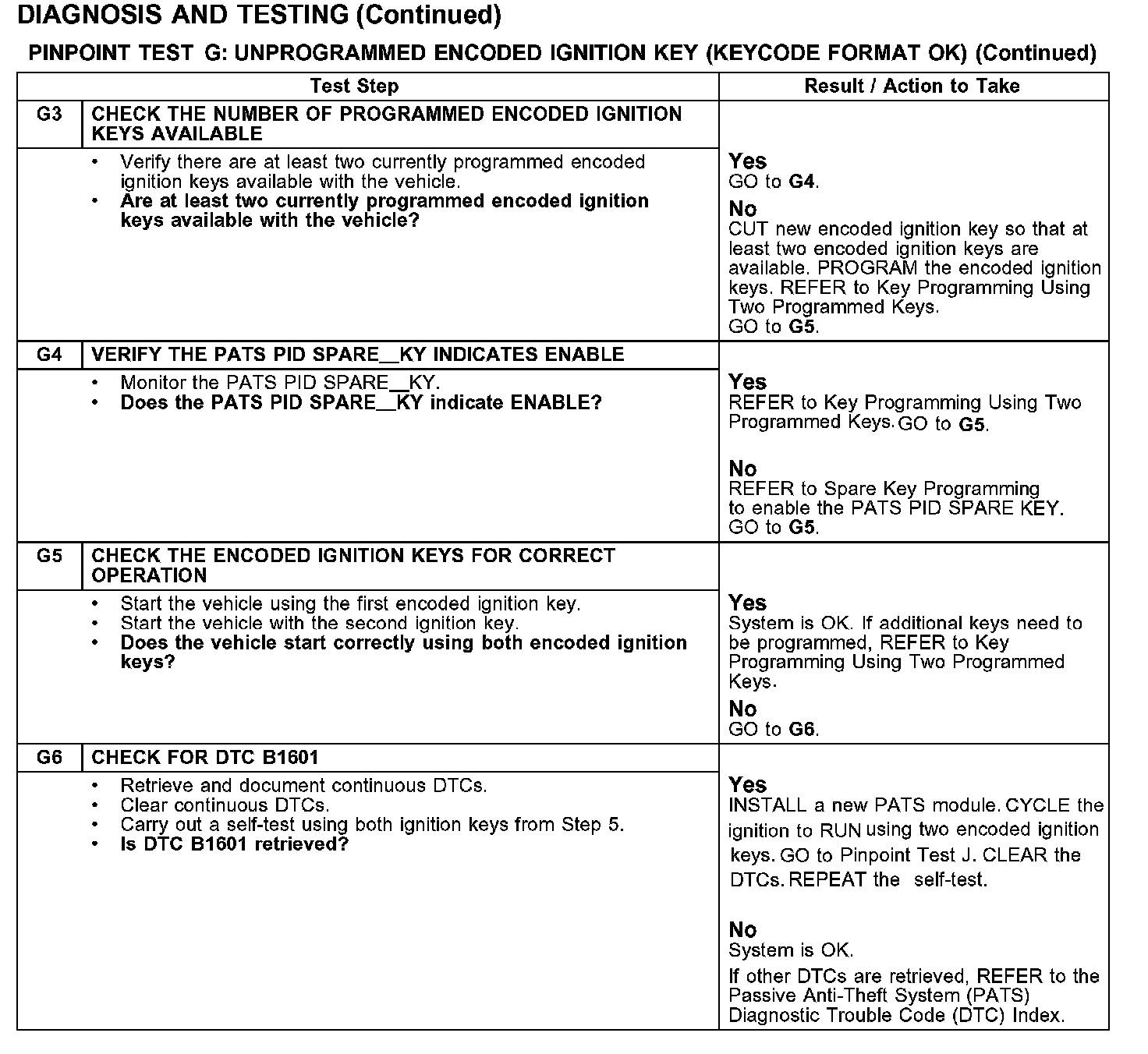

G3-G6:
