Keyless Entry Key-Pad: Service and Repair

REMOTE KEYLESS ENTRY KEYPAD

Removal and Installation
1. Disconnect the battery.
2. Remove the front door trim panel.
3. Position the watershield aside.
4. Disconnect the remote keyless entry (RKE) keypad electrical connector.
- Release the harness pin-type retainers.

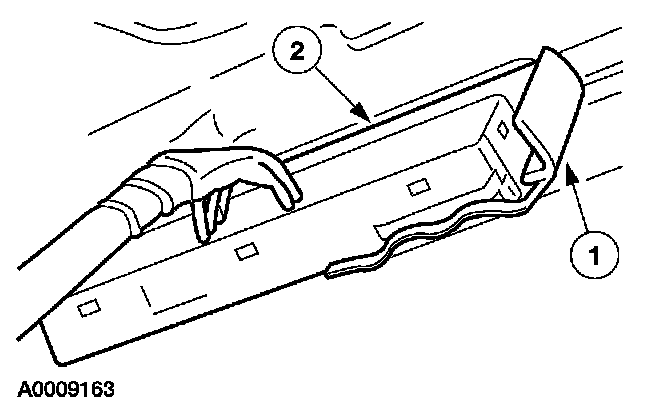

5. Remove the RKE keypad and harness.
1 Remove the clip.
2 Remove the RKE keypad and harness.

6. To install, reverse the removal procedure.
