Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Removal and Installation
1. Remove the upper intake manifold

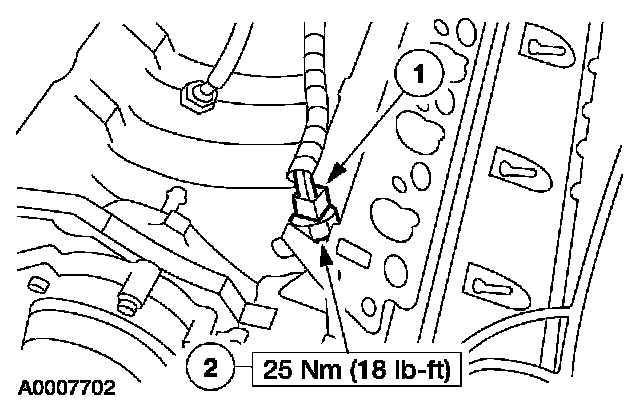

2. Remove the cylinder head temperature (CHT) sensor.
1. Disconnect the electrical connector.
2. Remove the CHT sensor.

3. To install, reverse the removal procedure.
