Tests DH: Throttle Position (TP) Sensor



PINPOINT TEST DH: THROTTLE POSITION (TP) SENSOR

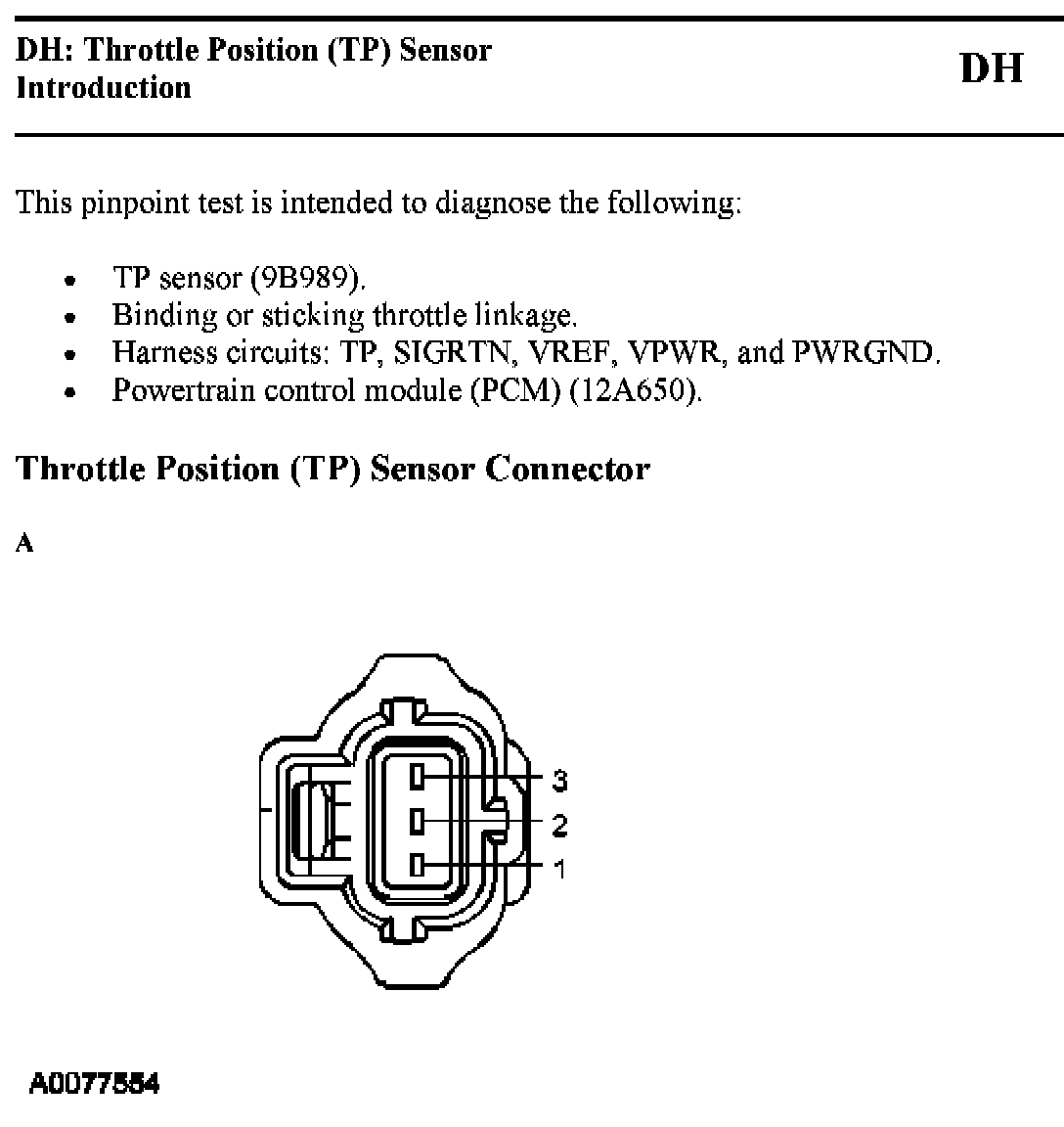

DH Introduction:

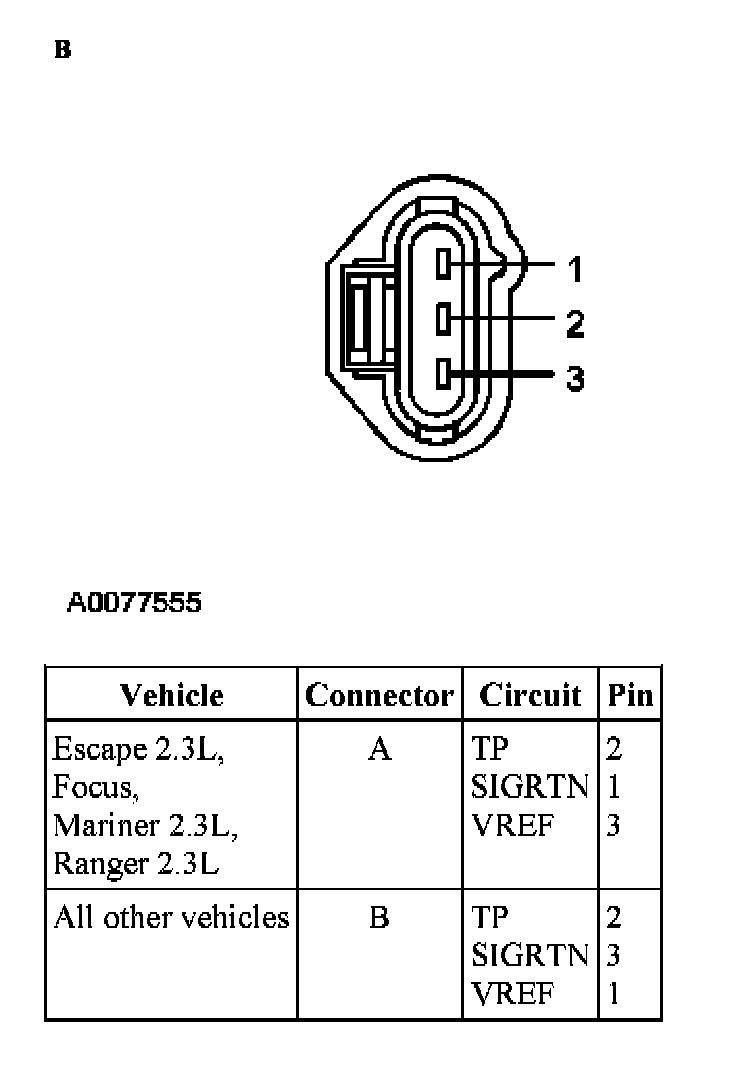

DH Introduction:





DH Introduction:

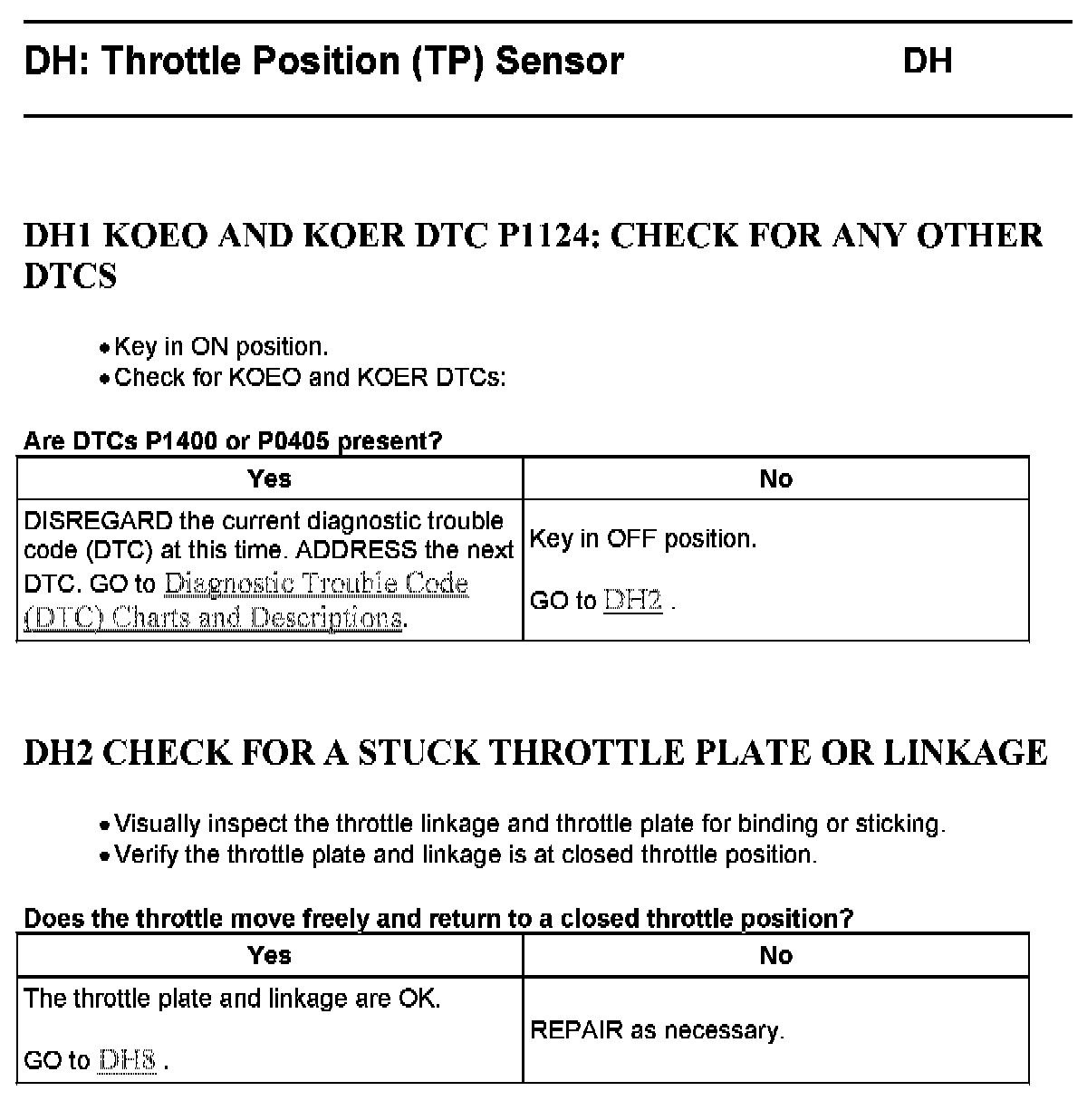

DH1 - DH2:

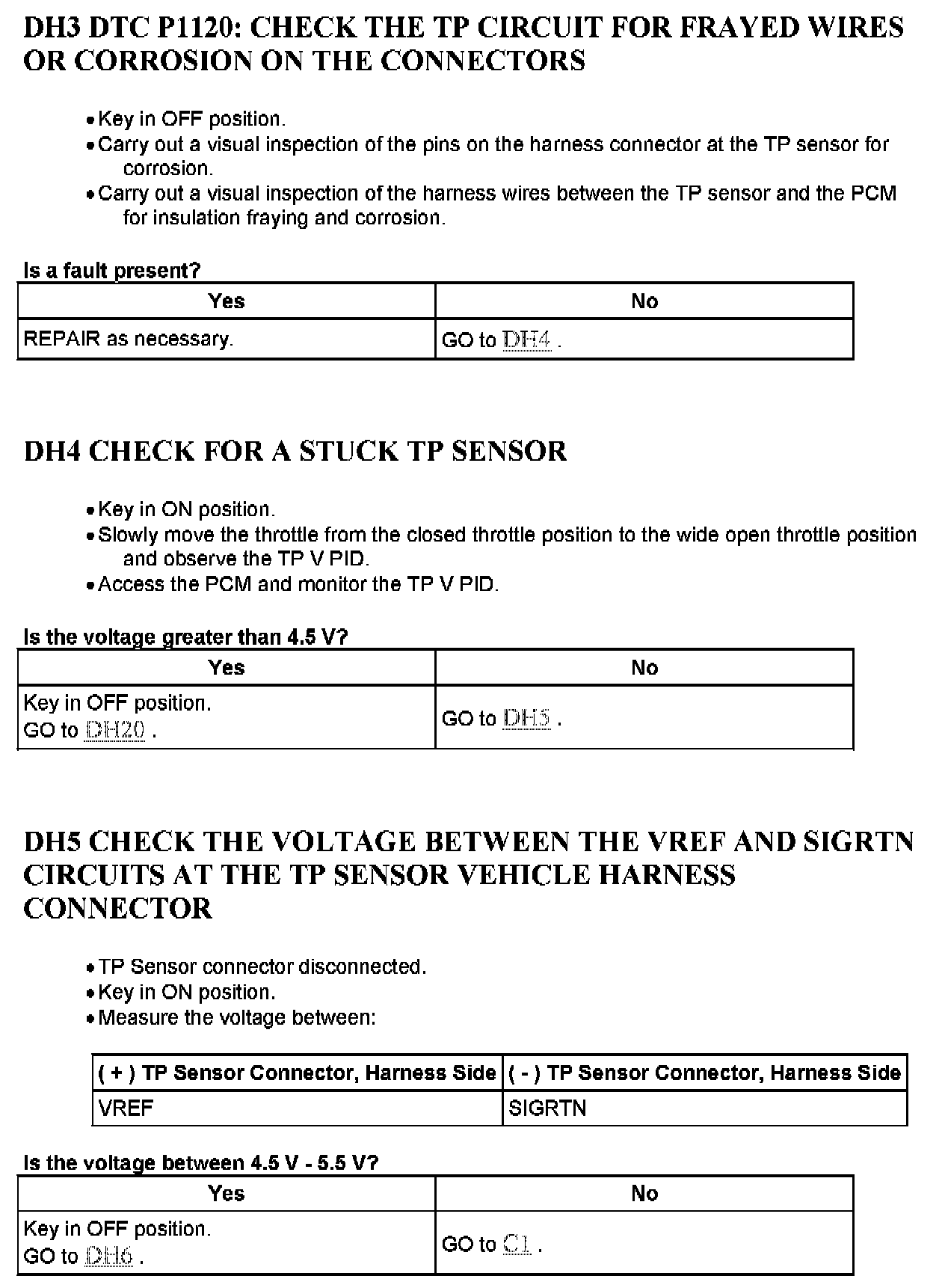

DH3 - DH5:

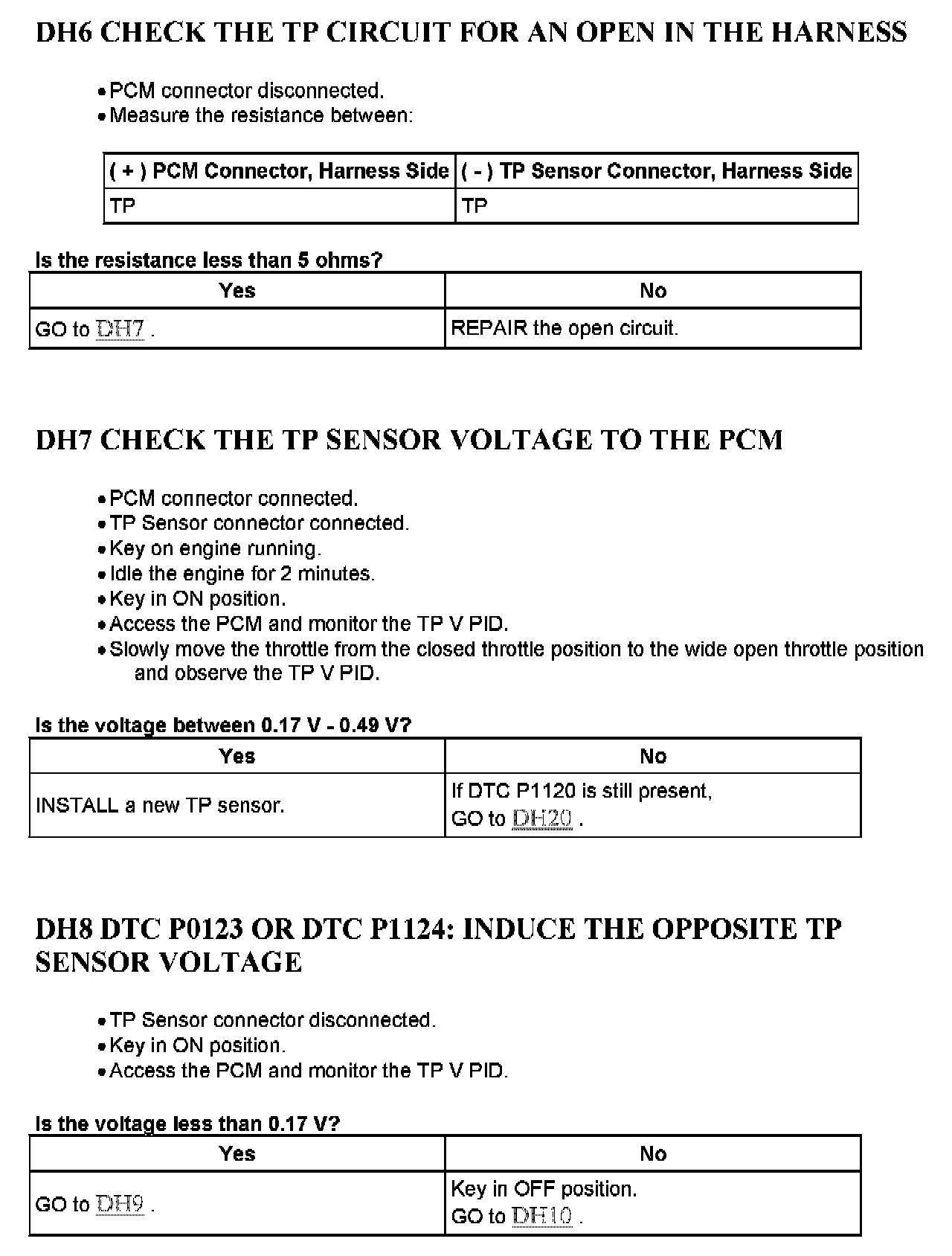

DH6 - DH8:

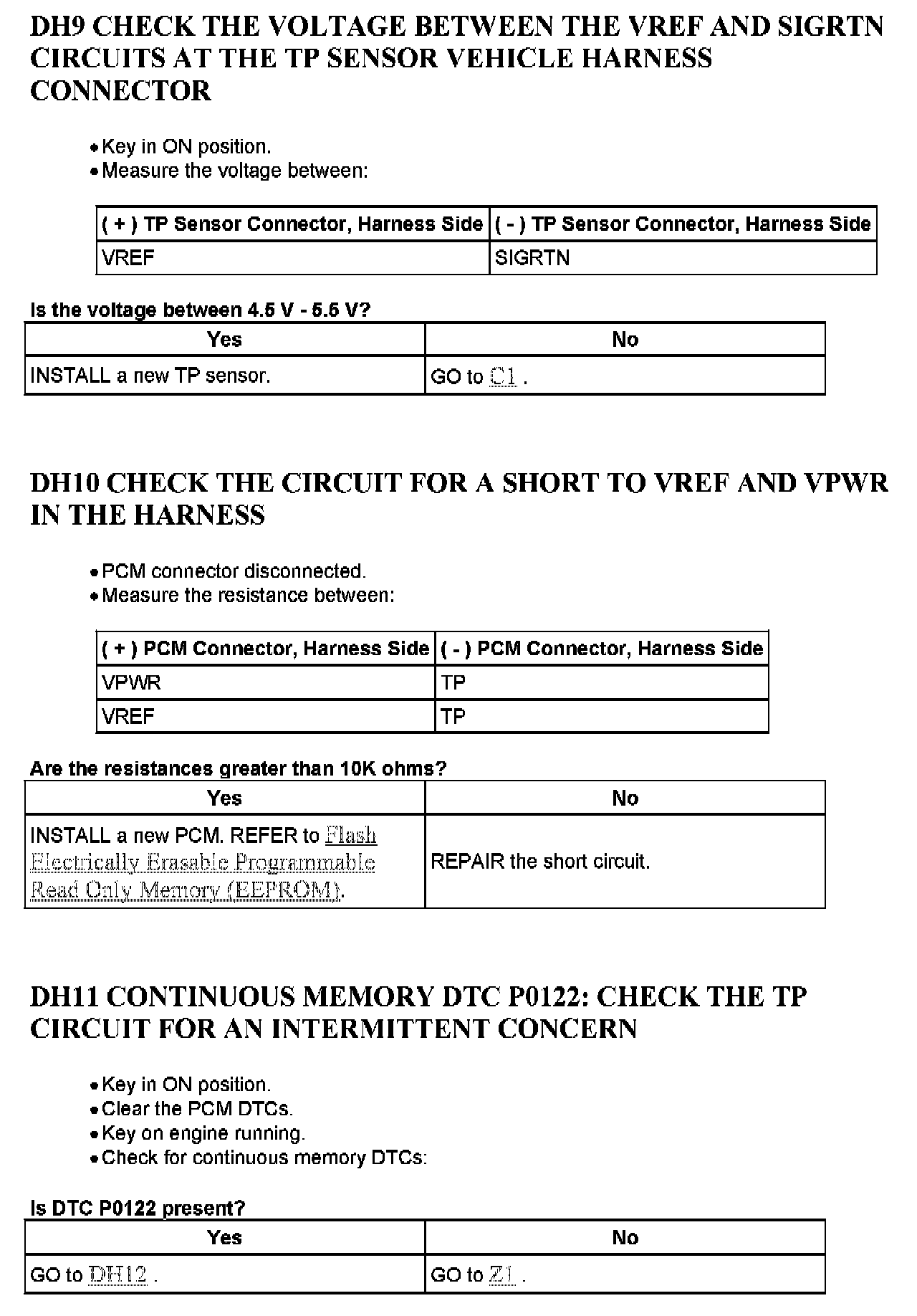

DH9 - DH11:

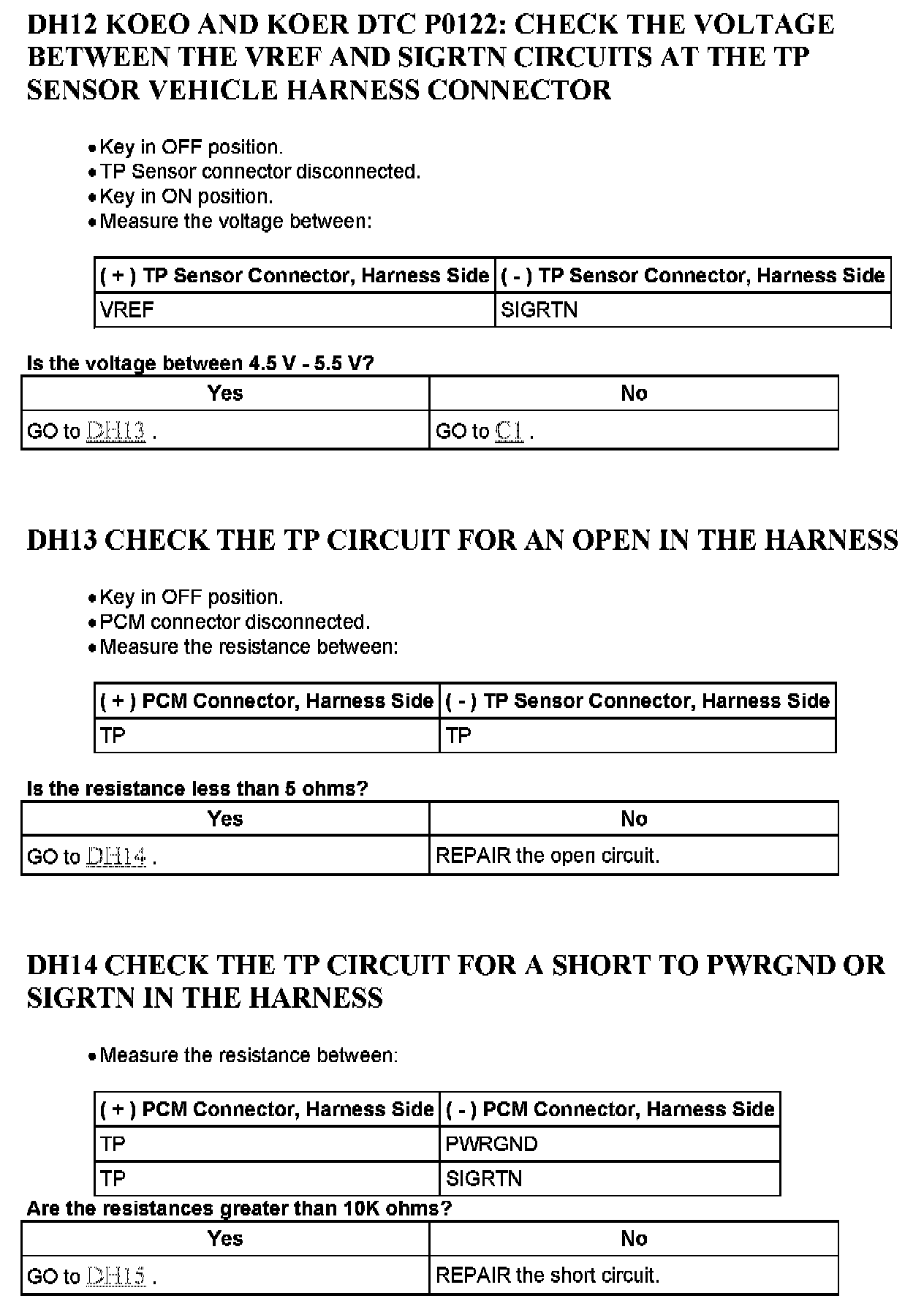

DH12 - DH14:

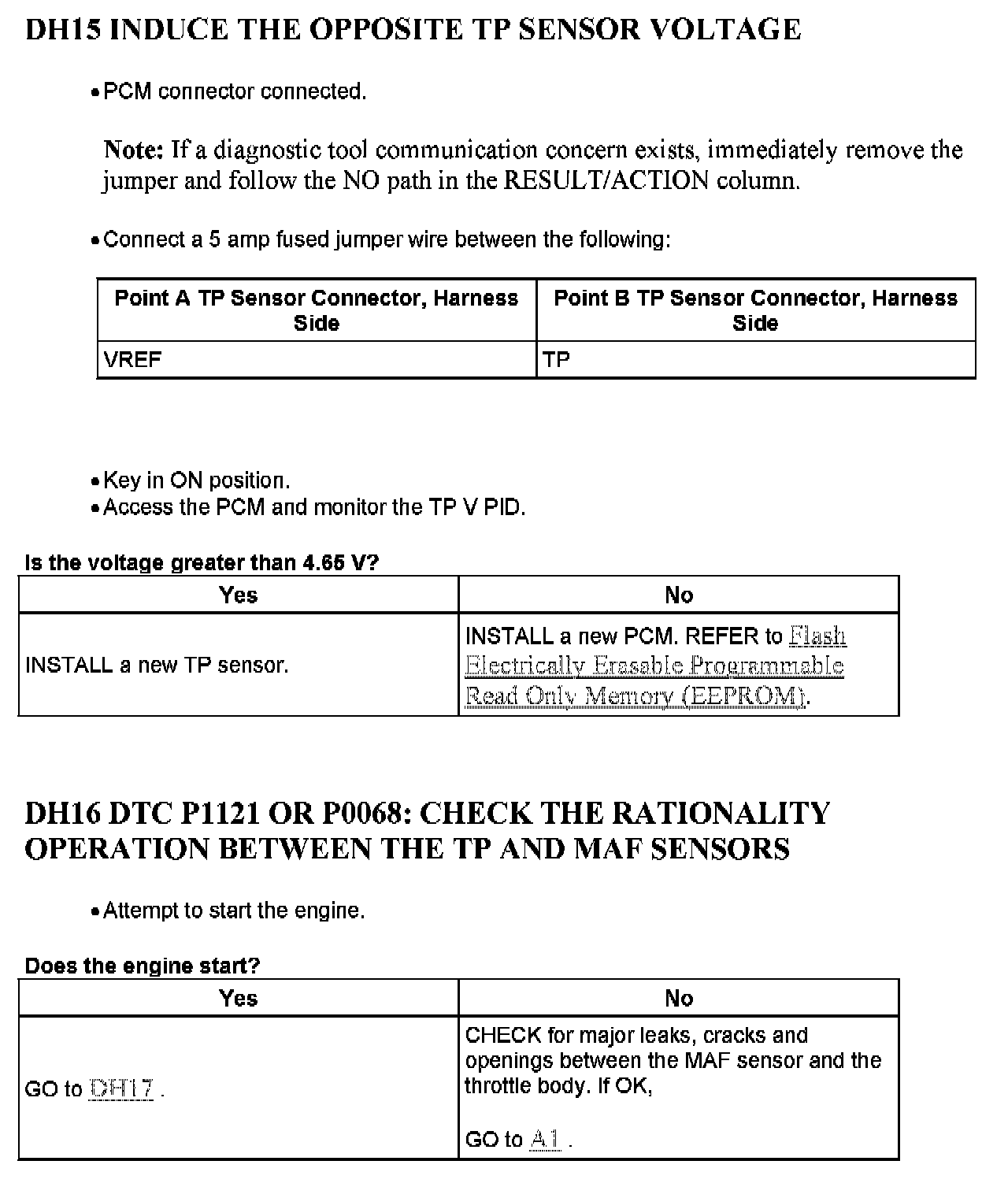

DH15 - DH16:

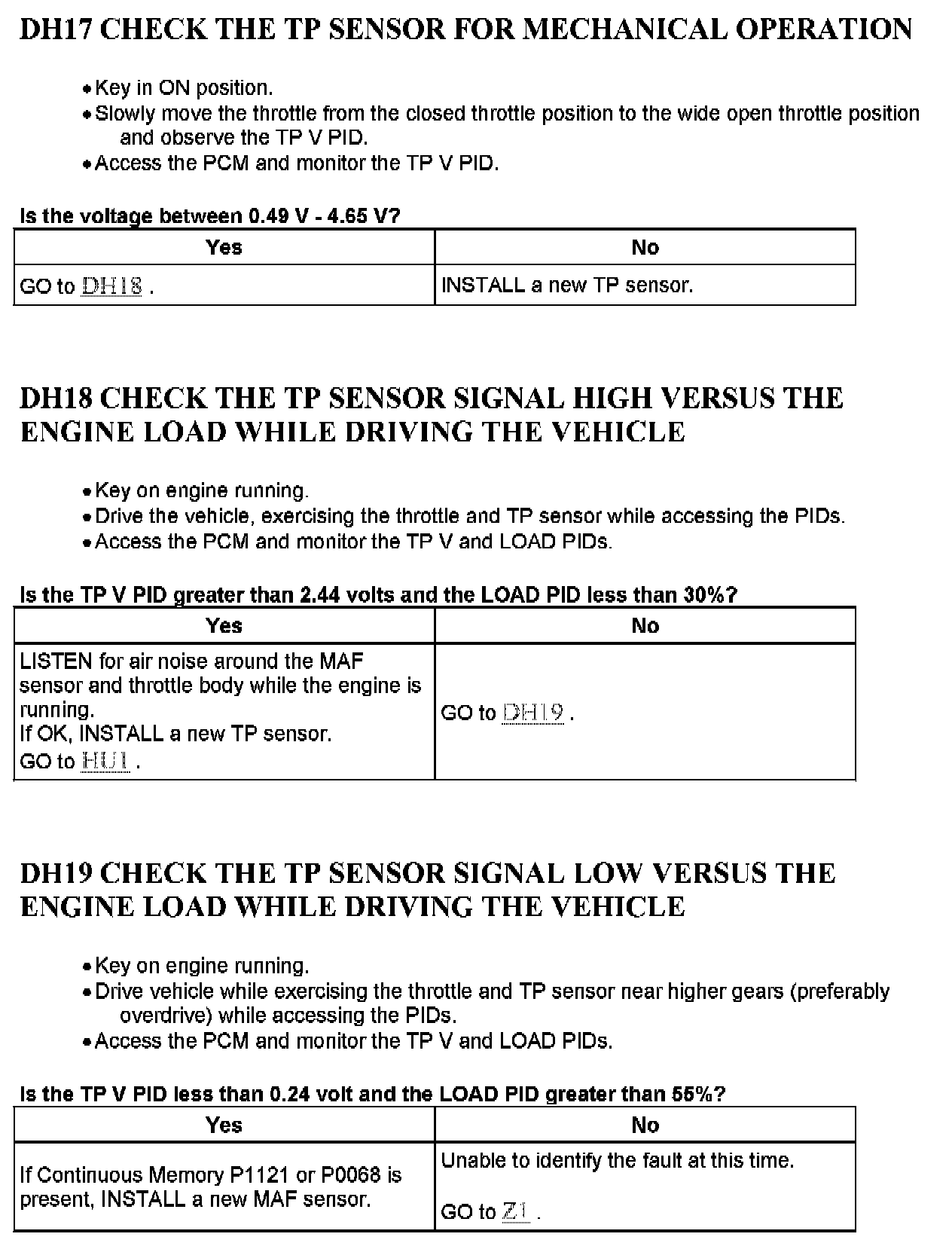

DH17 - DH19:

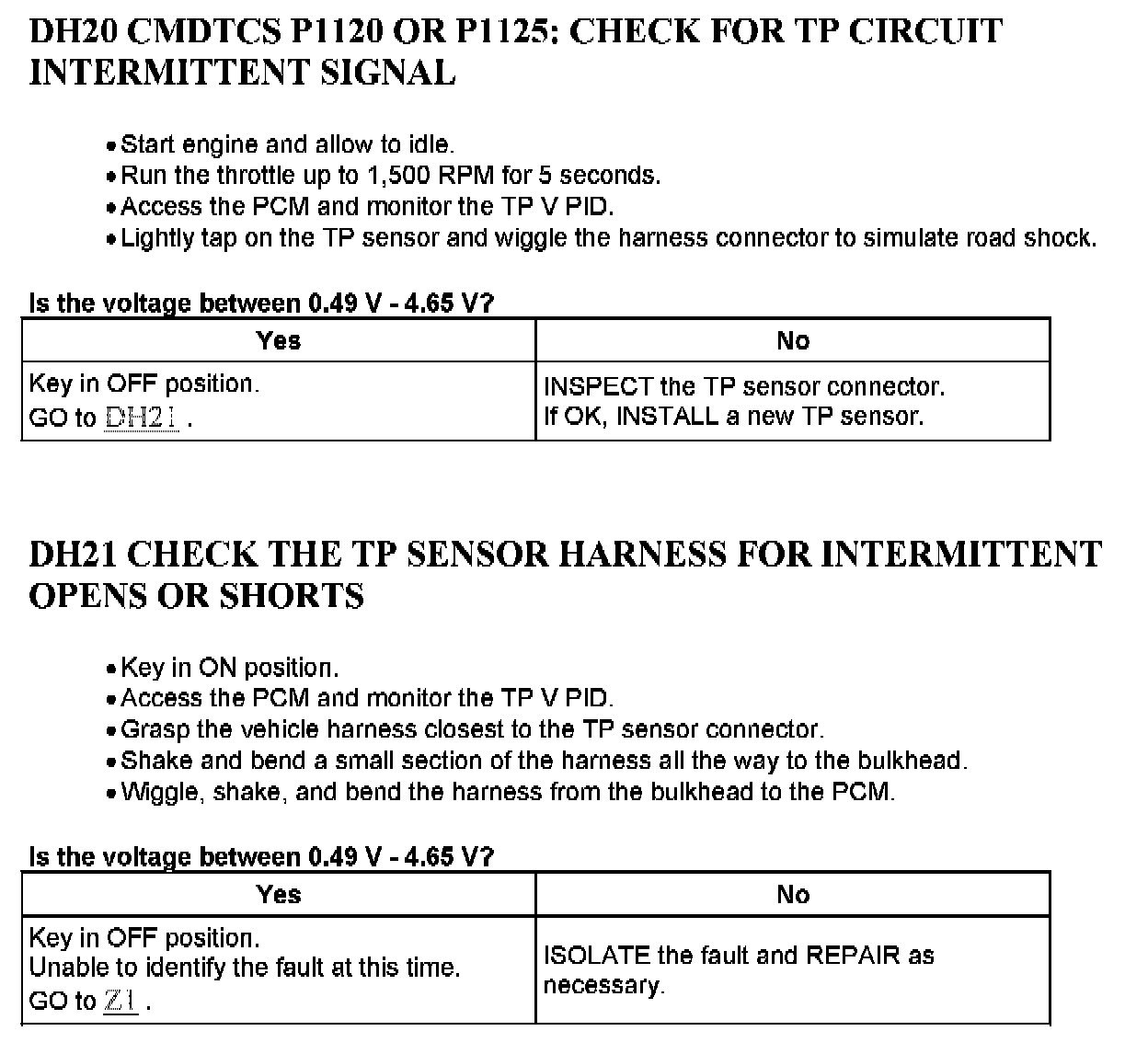

DH20 - DH21:

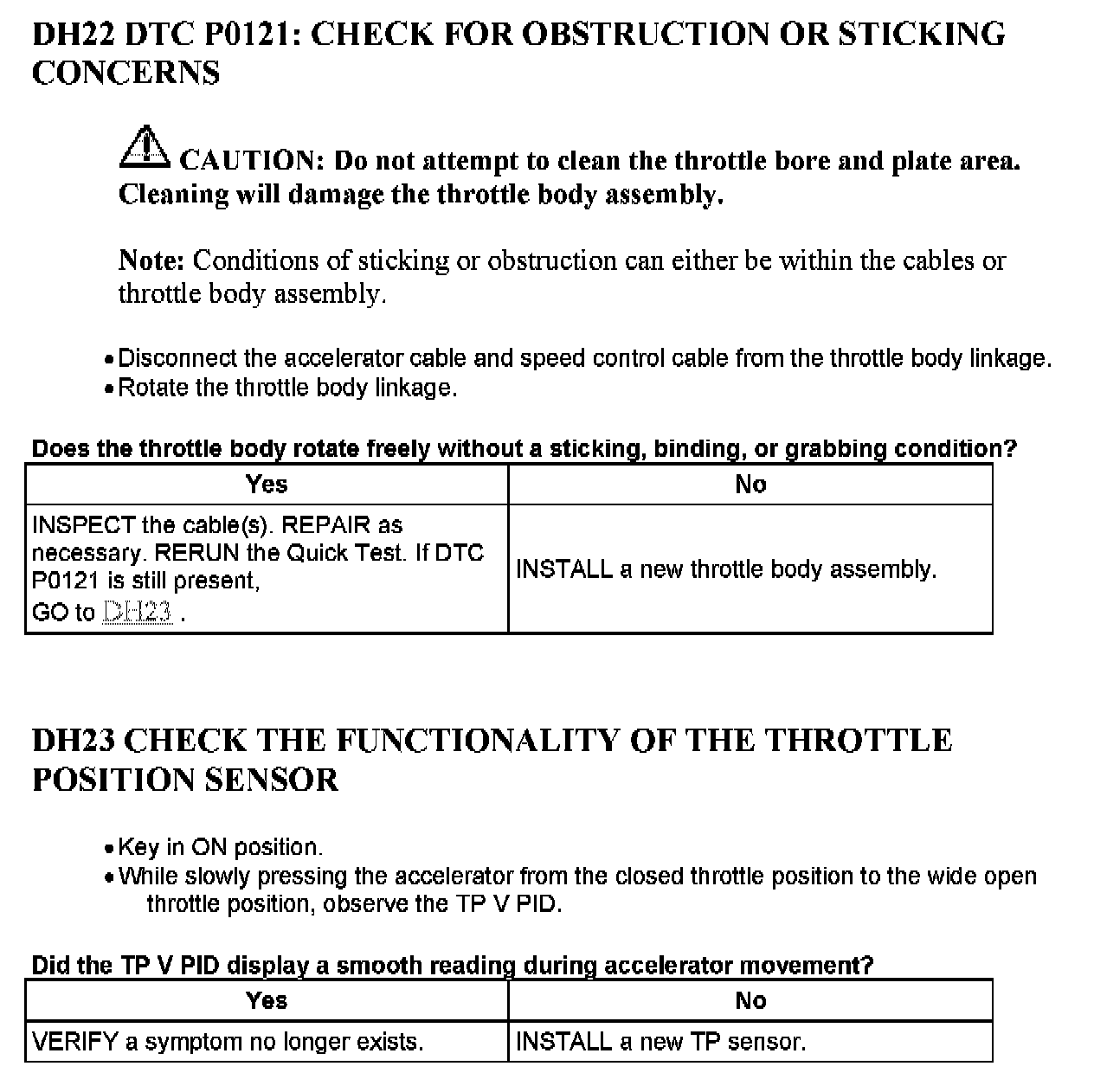

DH22 - DH23:
