Tests HU: Intake Air System



PINPOINT TEST HU: INTAKE AIR SYSTEMS

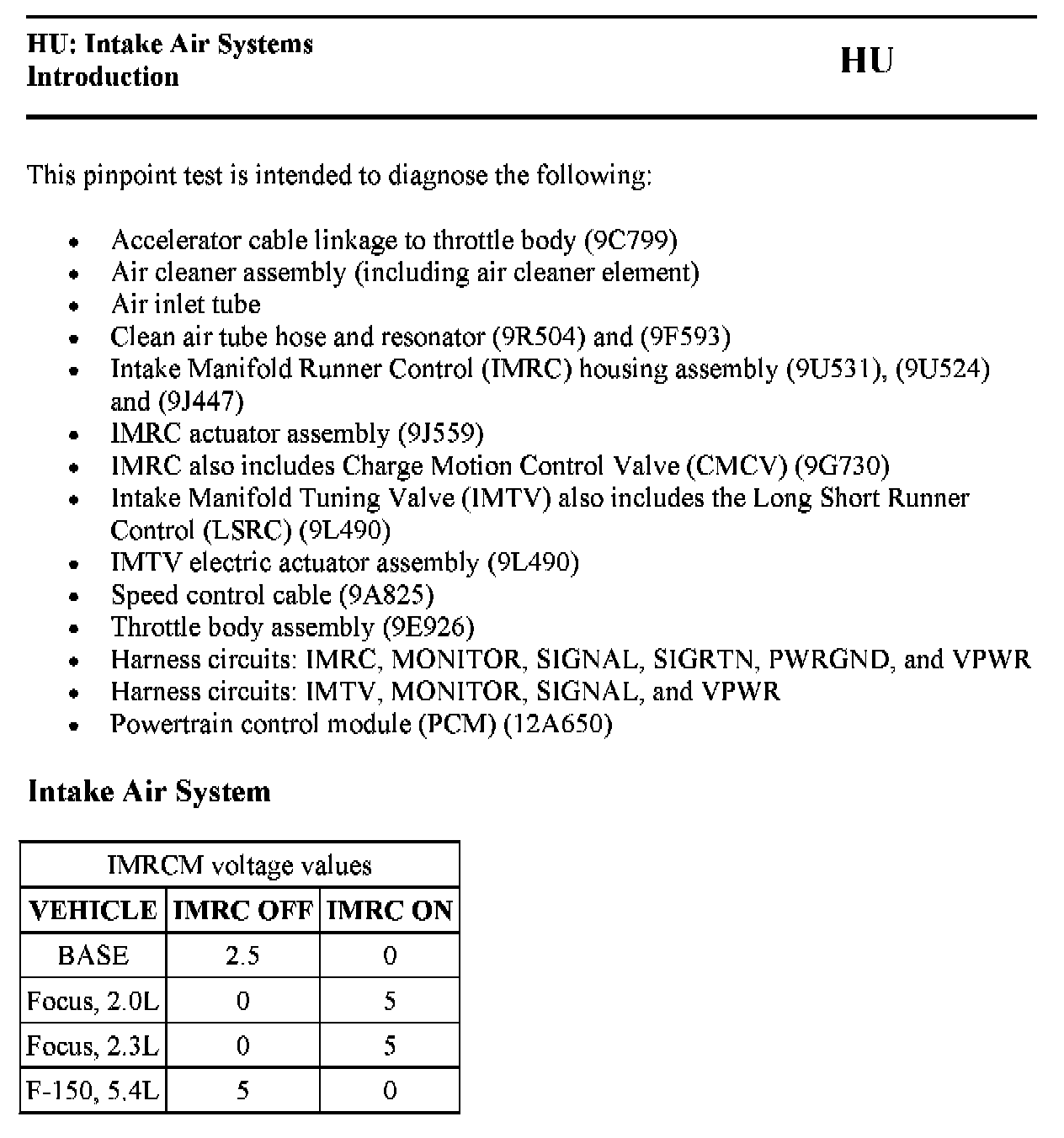

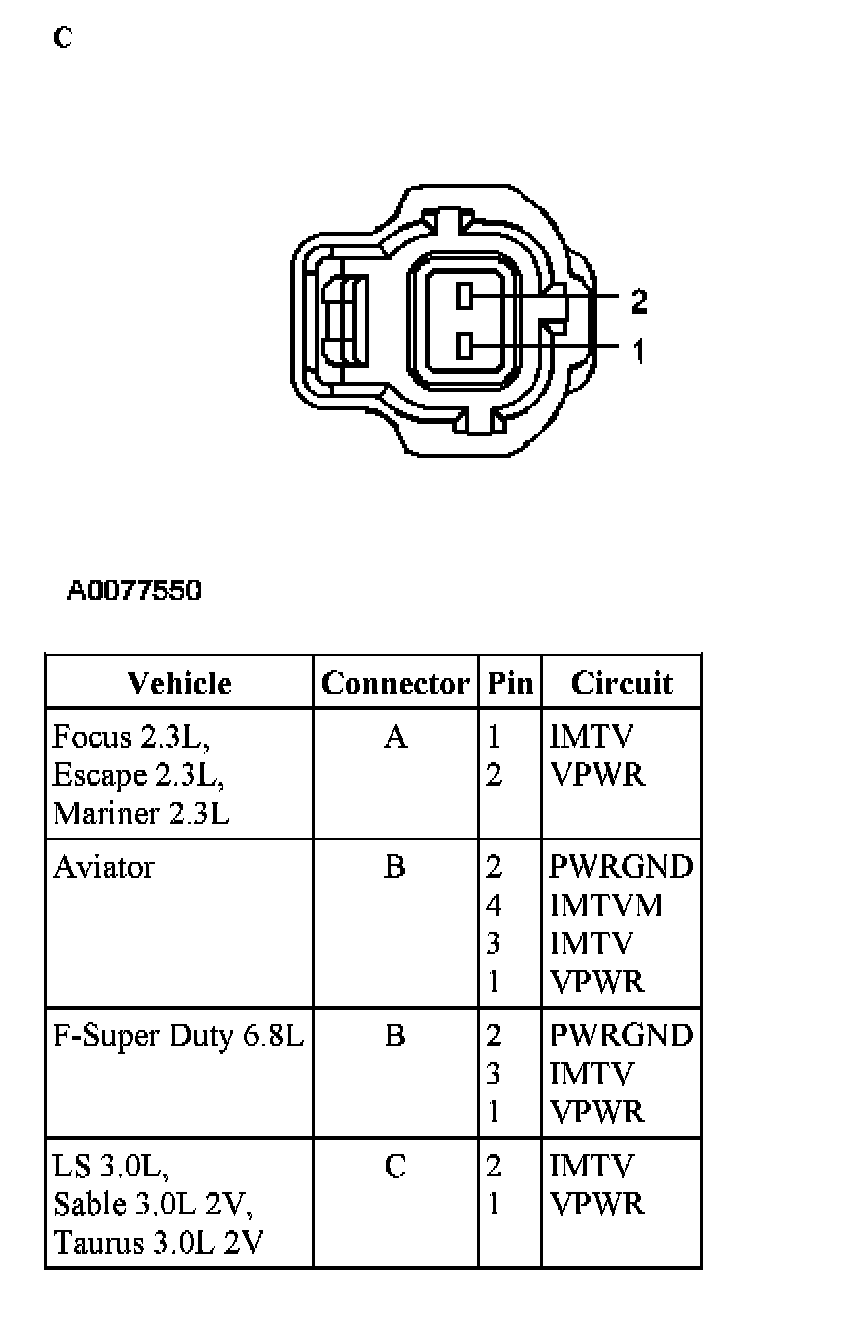

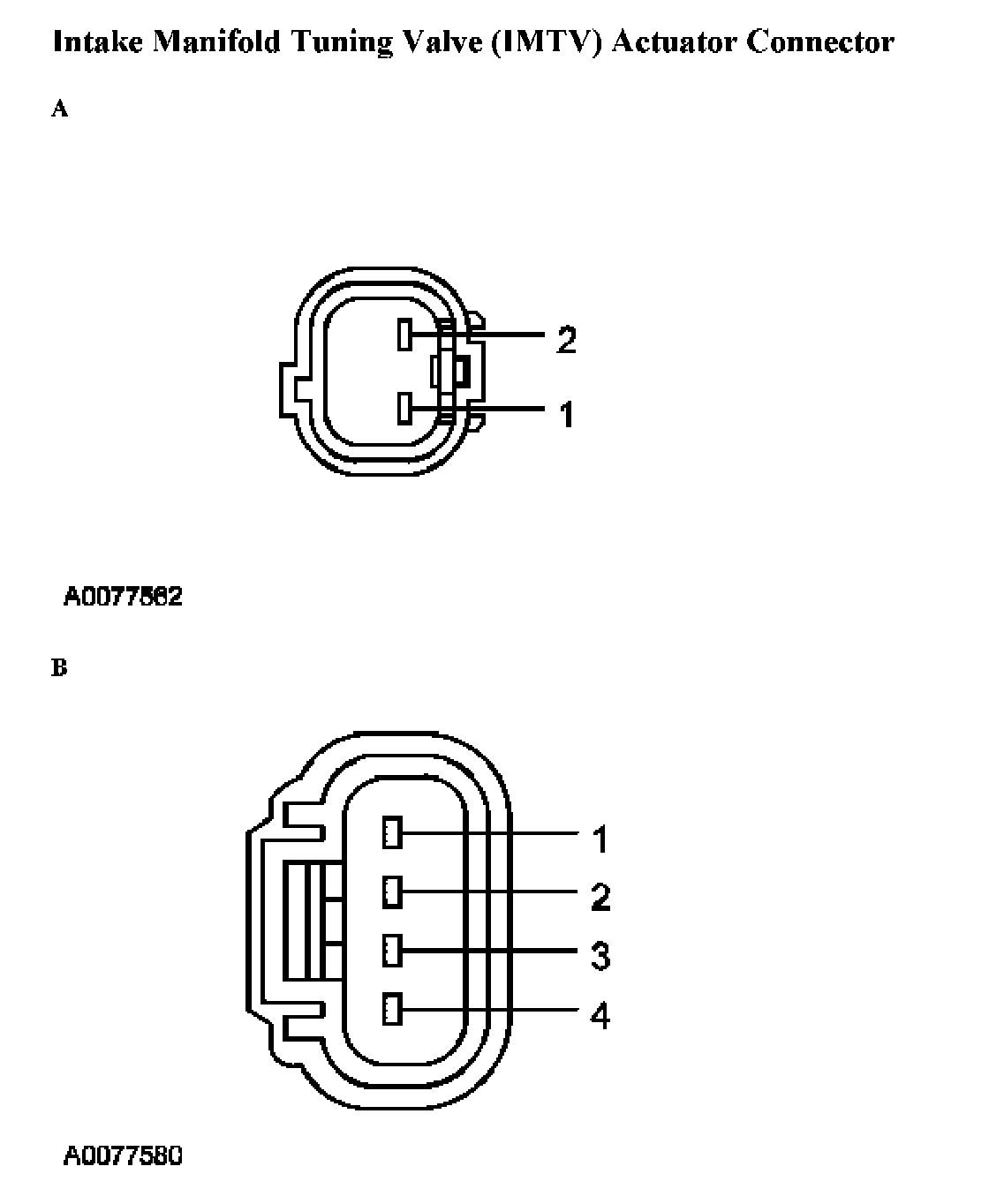

HU Introduction:





HU Introduction:





HU Introduction:





HU Introduction:





HU Introduction:





HU Introduction:





HU Introduction:





Hu Introduction:





Hu Introduction:





HU Introduction:





HU Introduction:

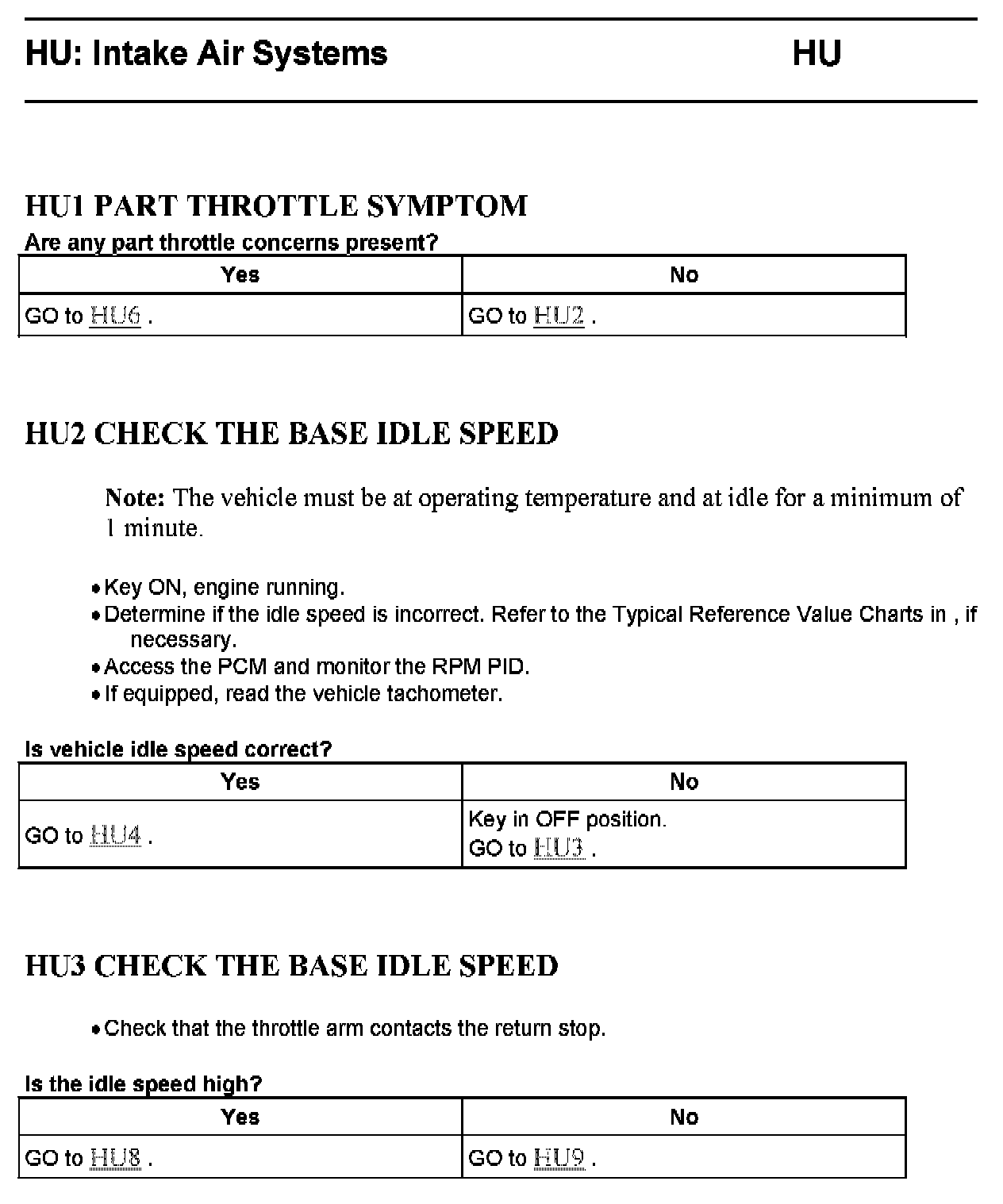

HU1 - HU3:

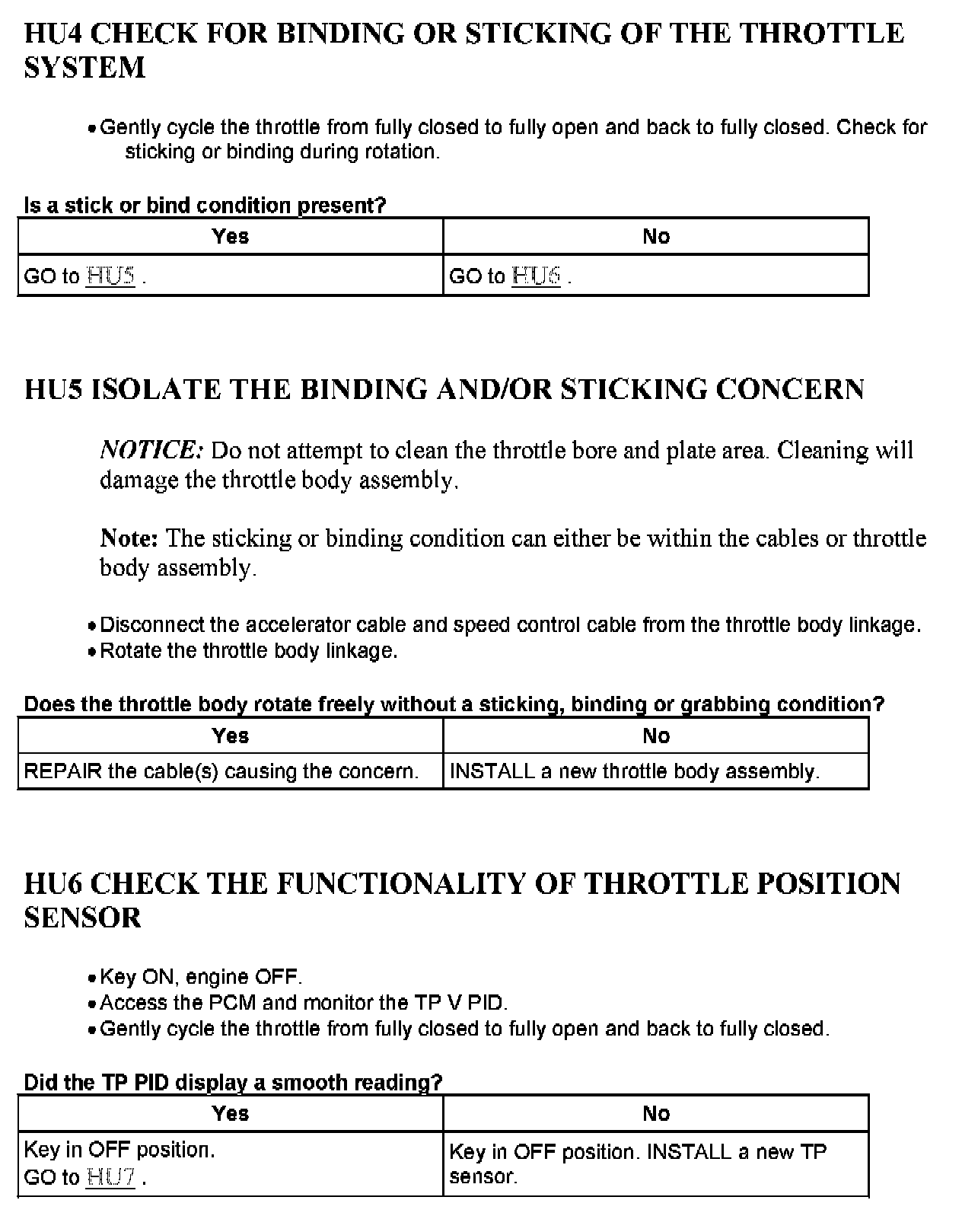

HU4 - HU6:

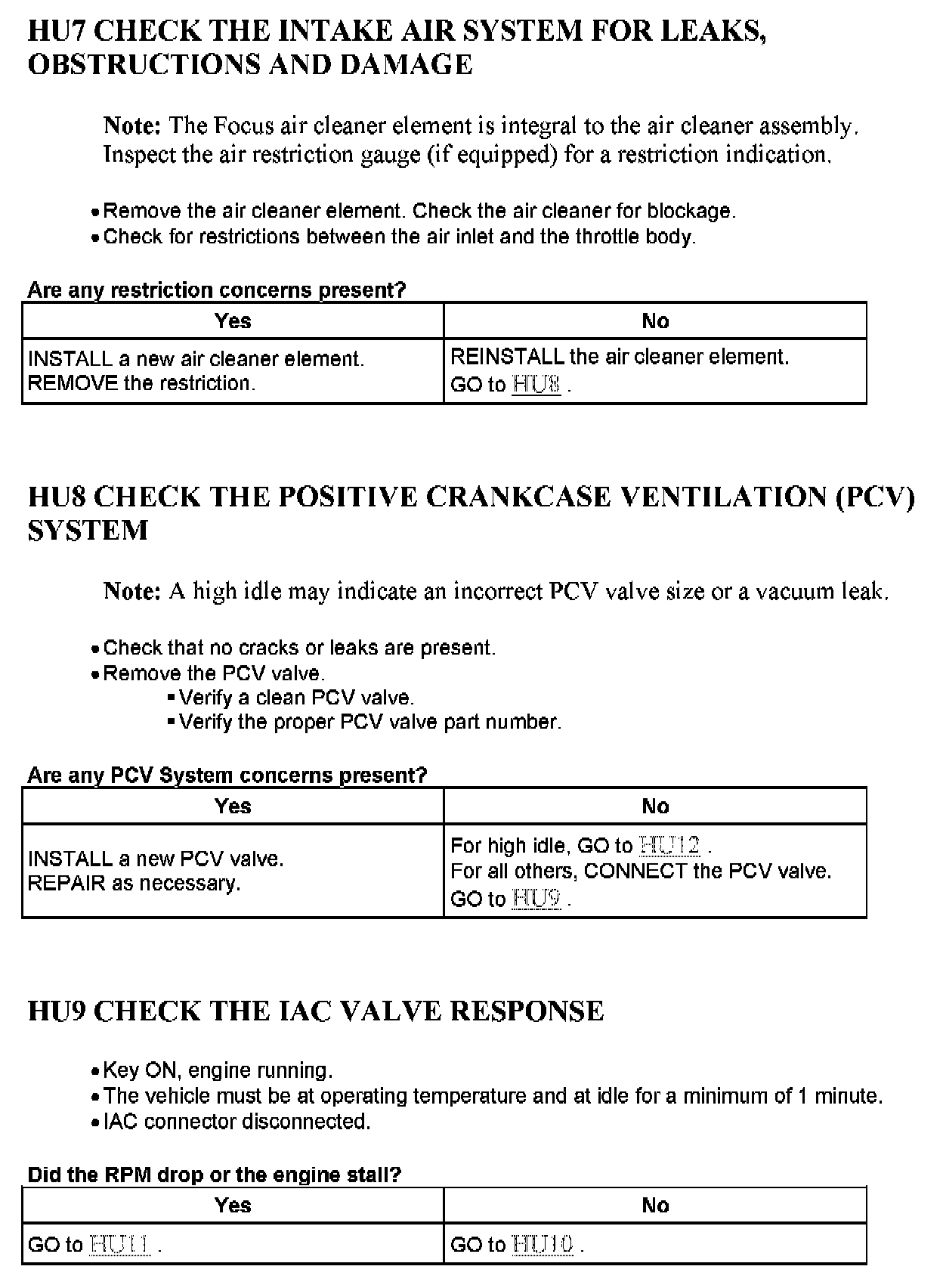

HU7 - HU9:

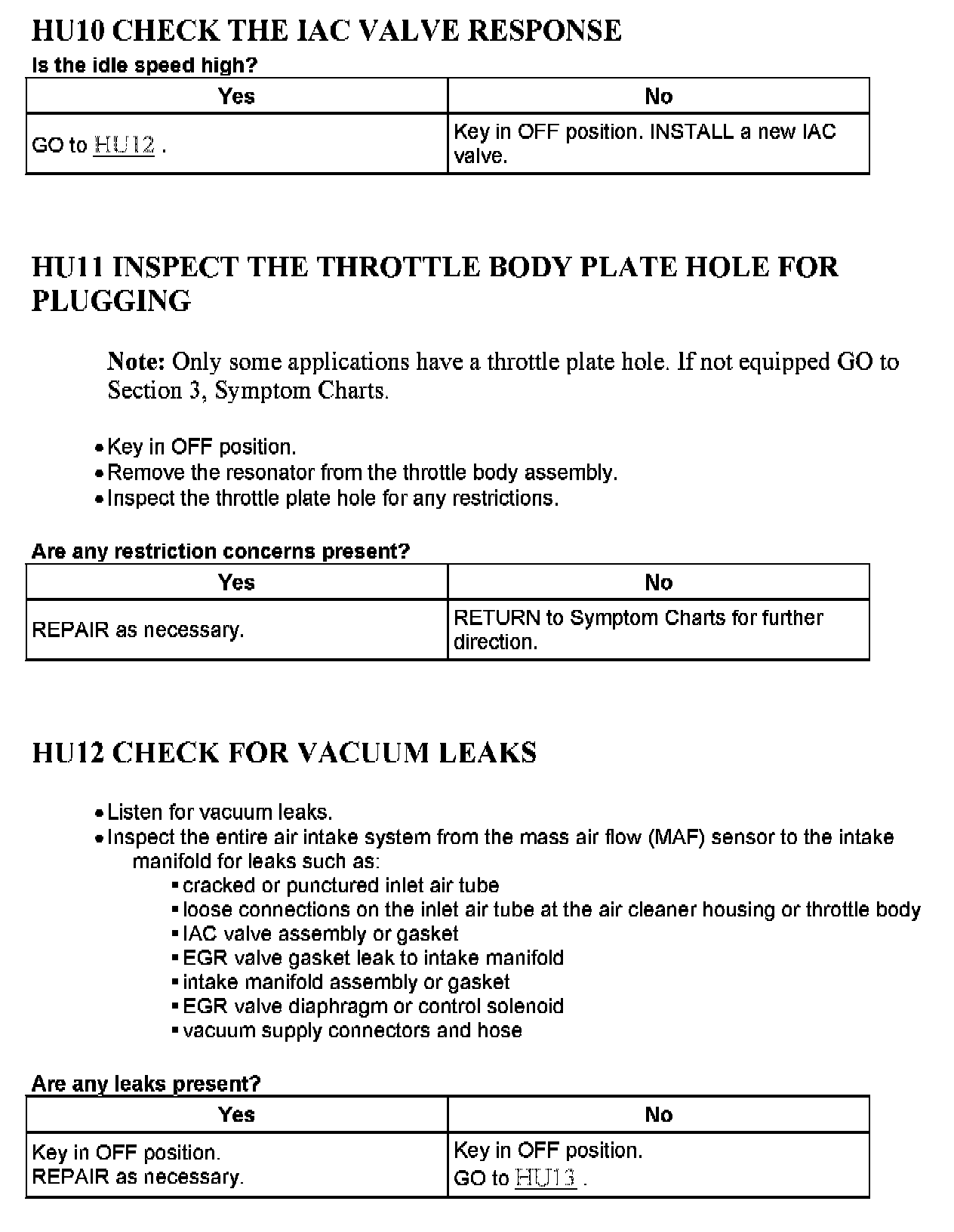

HU10 - HU12:

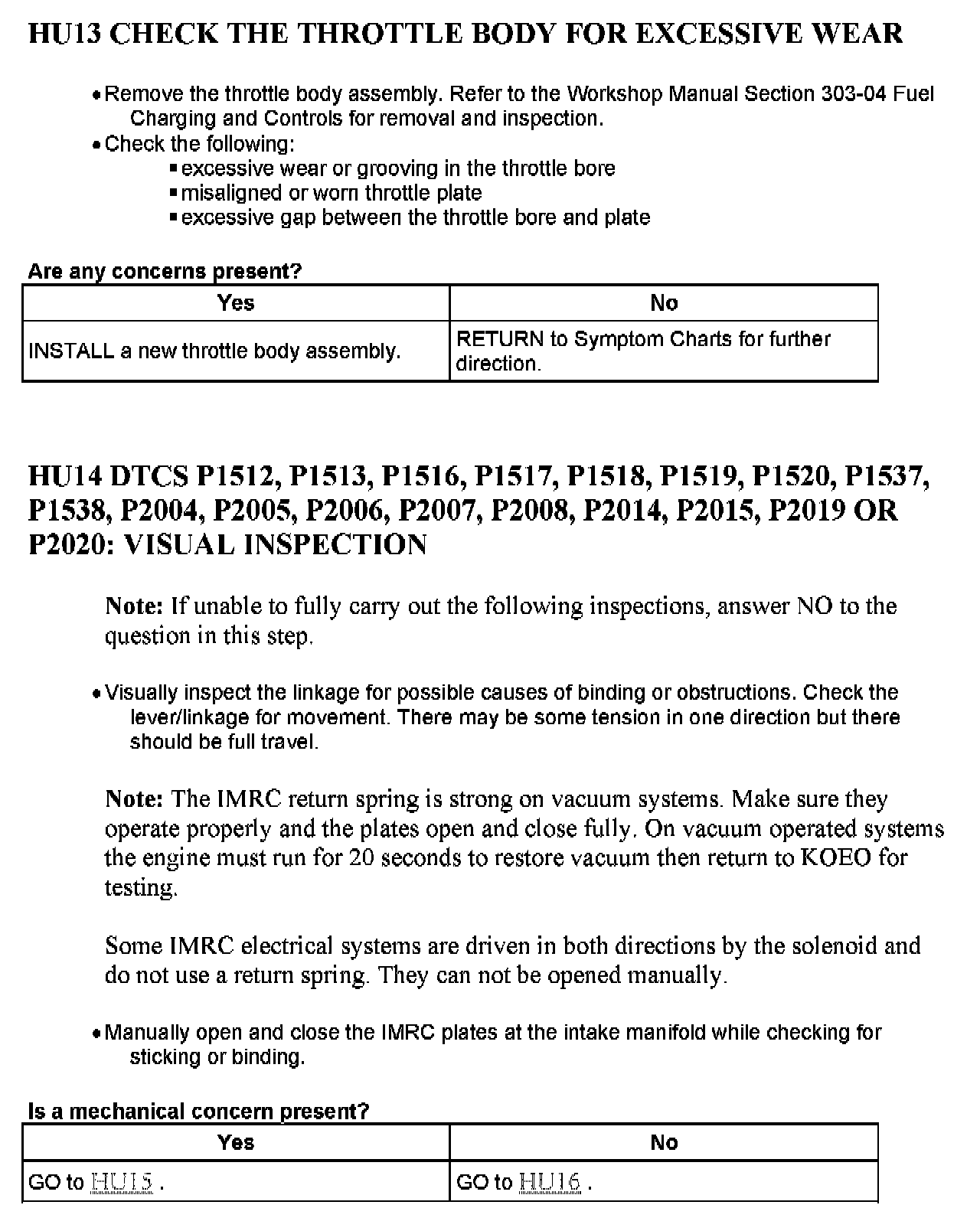

HU13 - HU14:

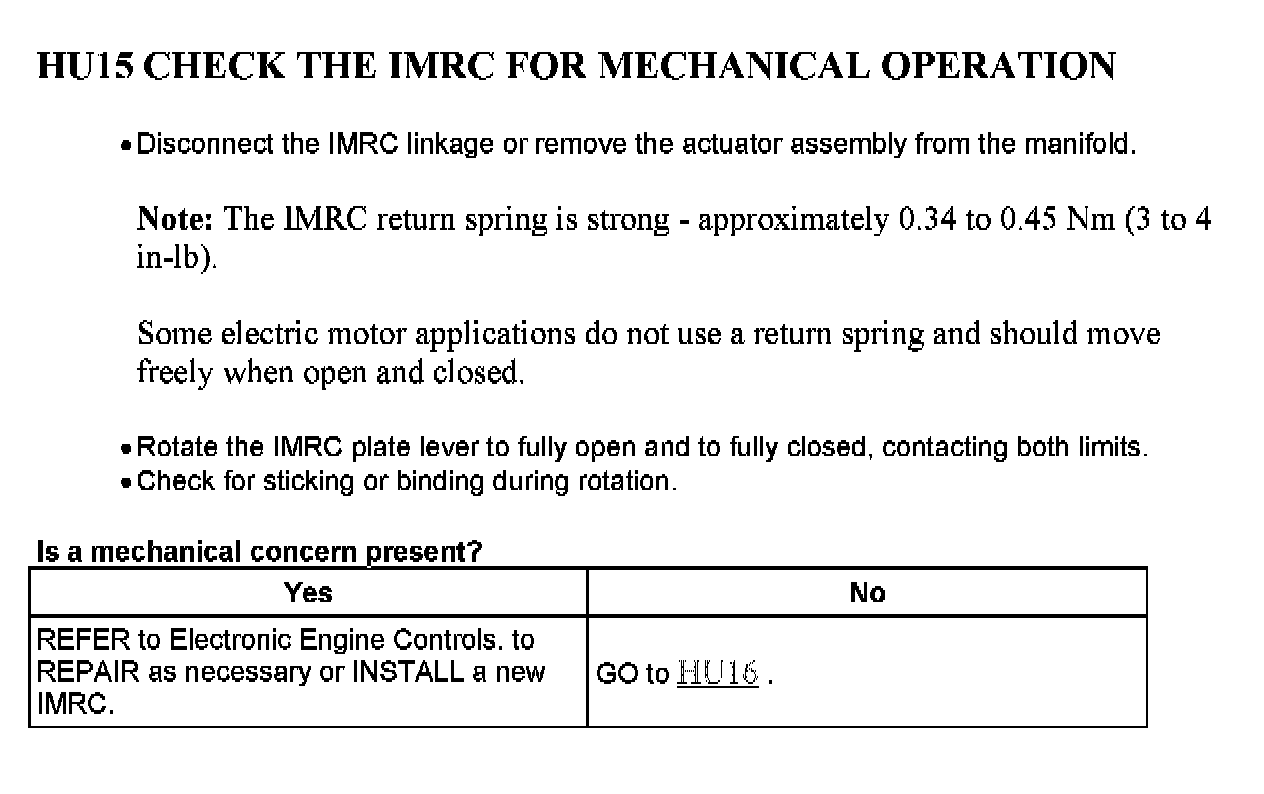

HU15:

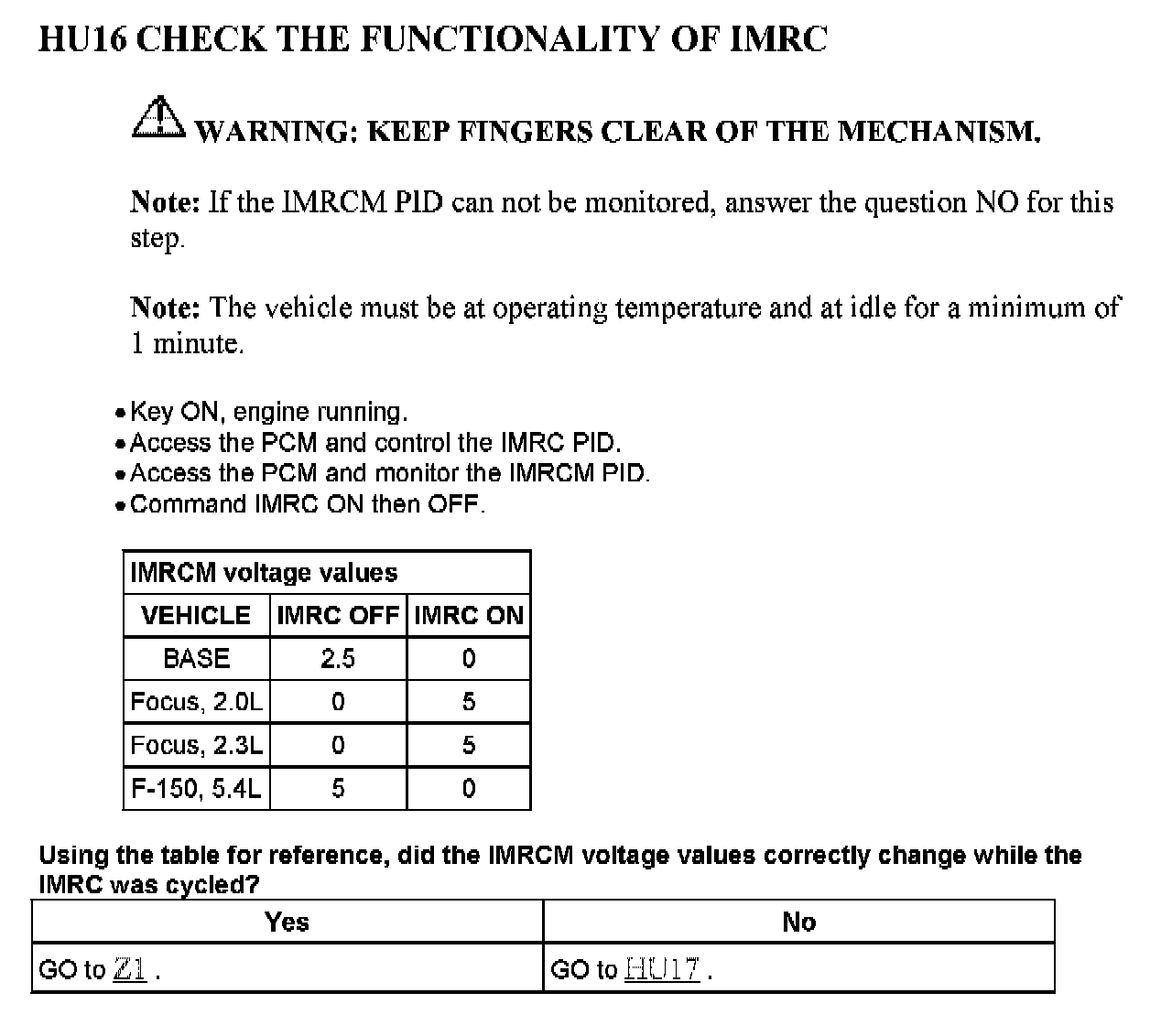

HU16:

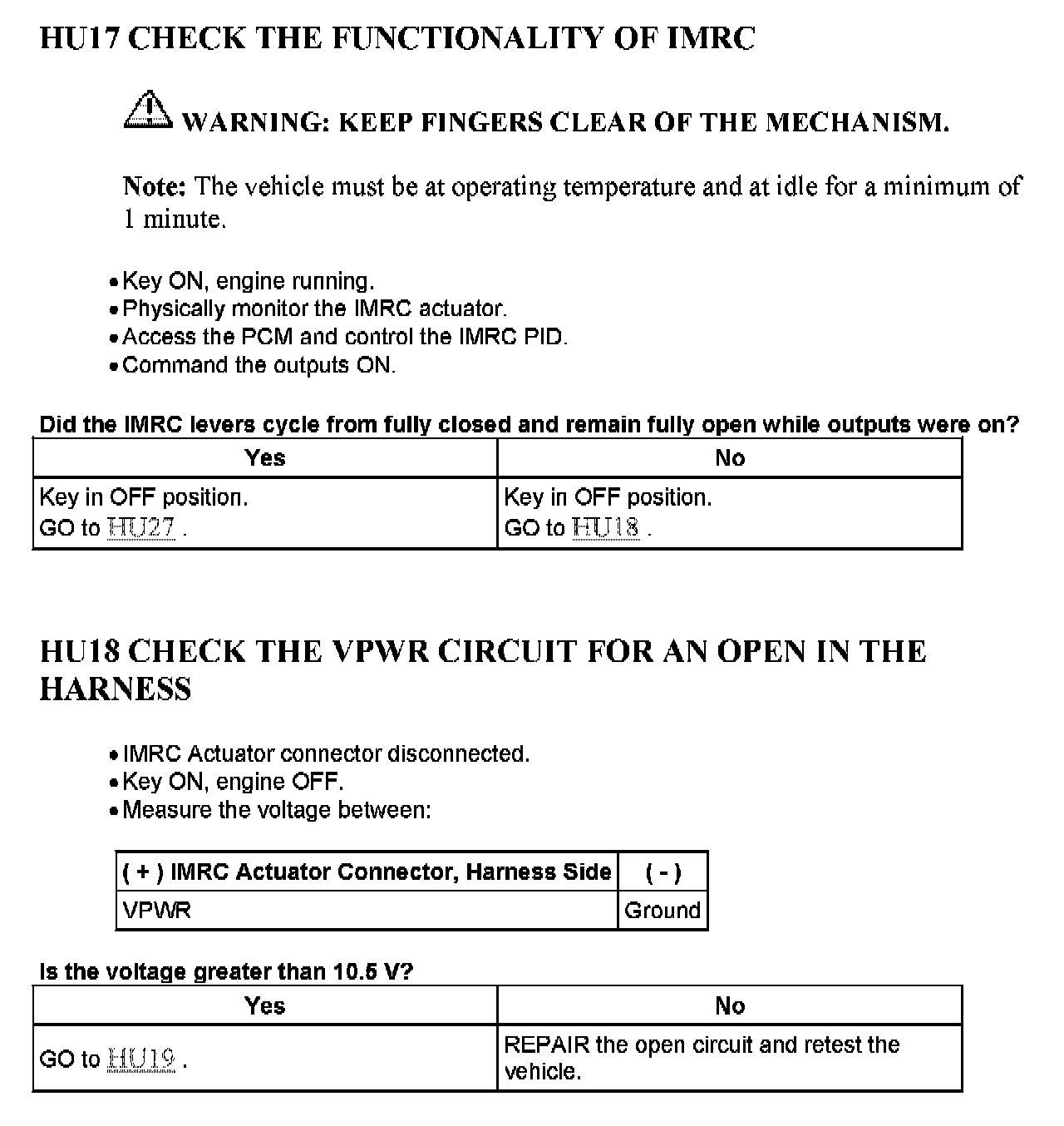

HU17 - HU18:

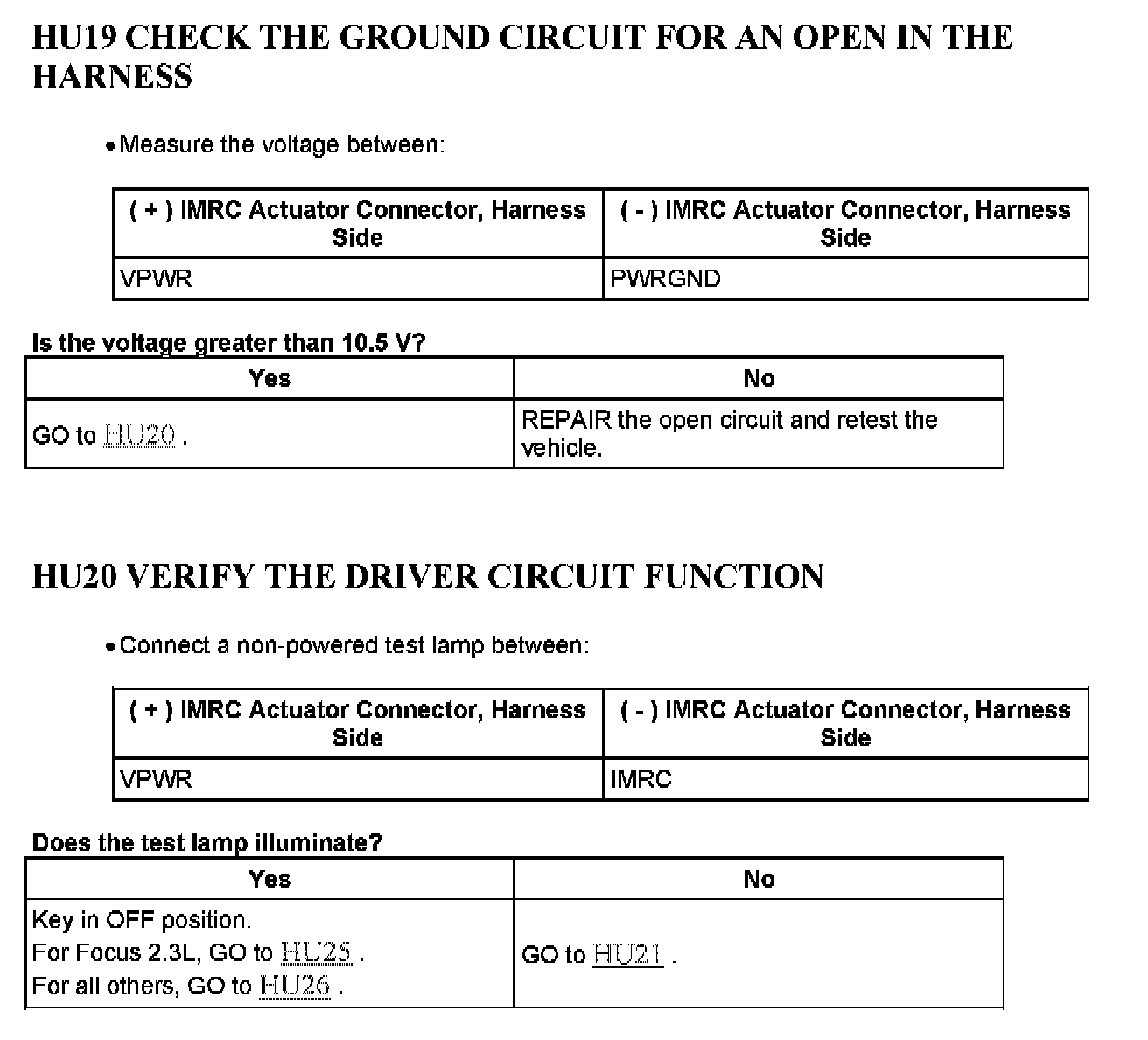

HU19 - HU20:

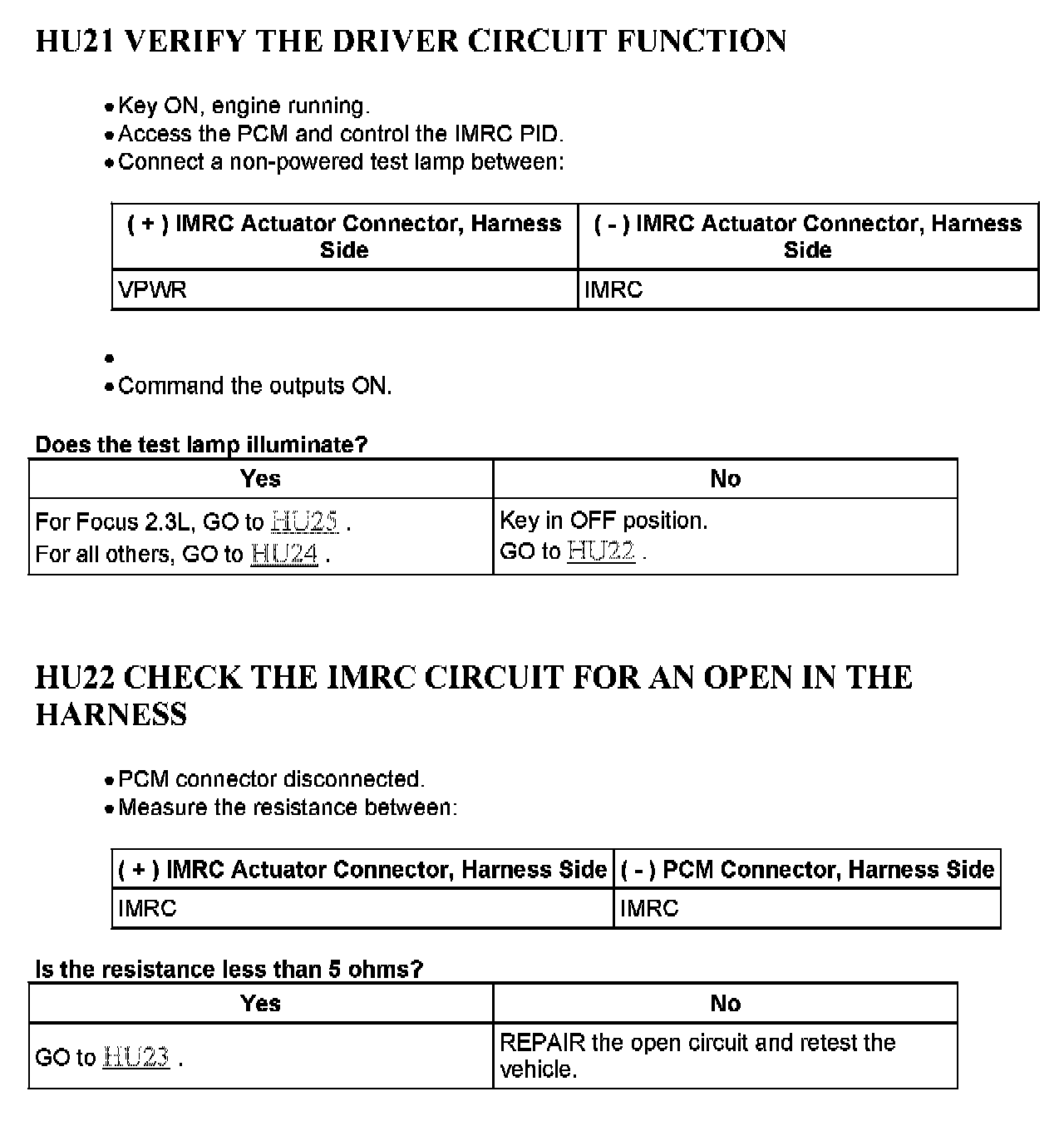

HU21 - HU22:

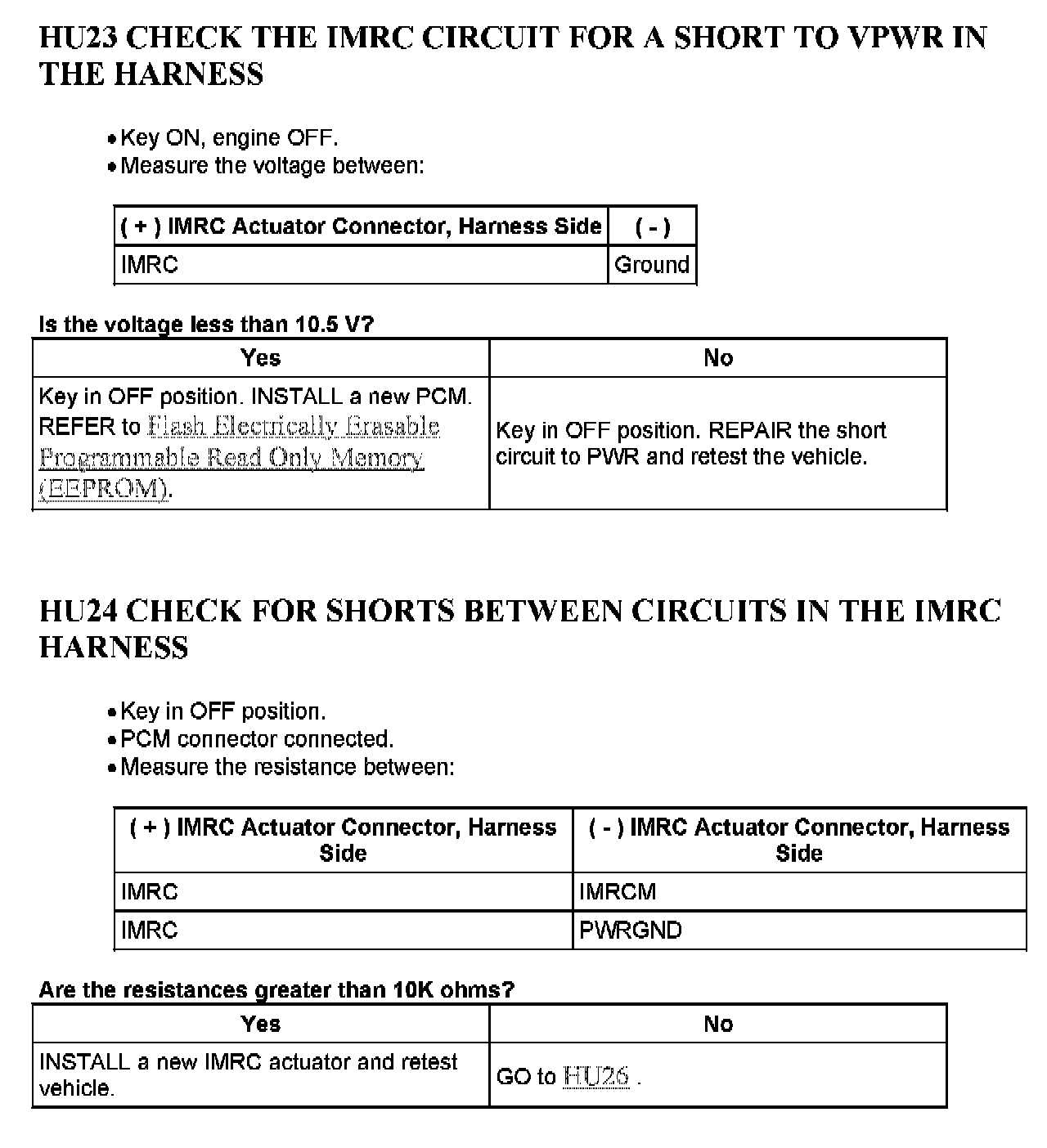

HU23 - HU24:

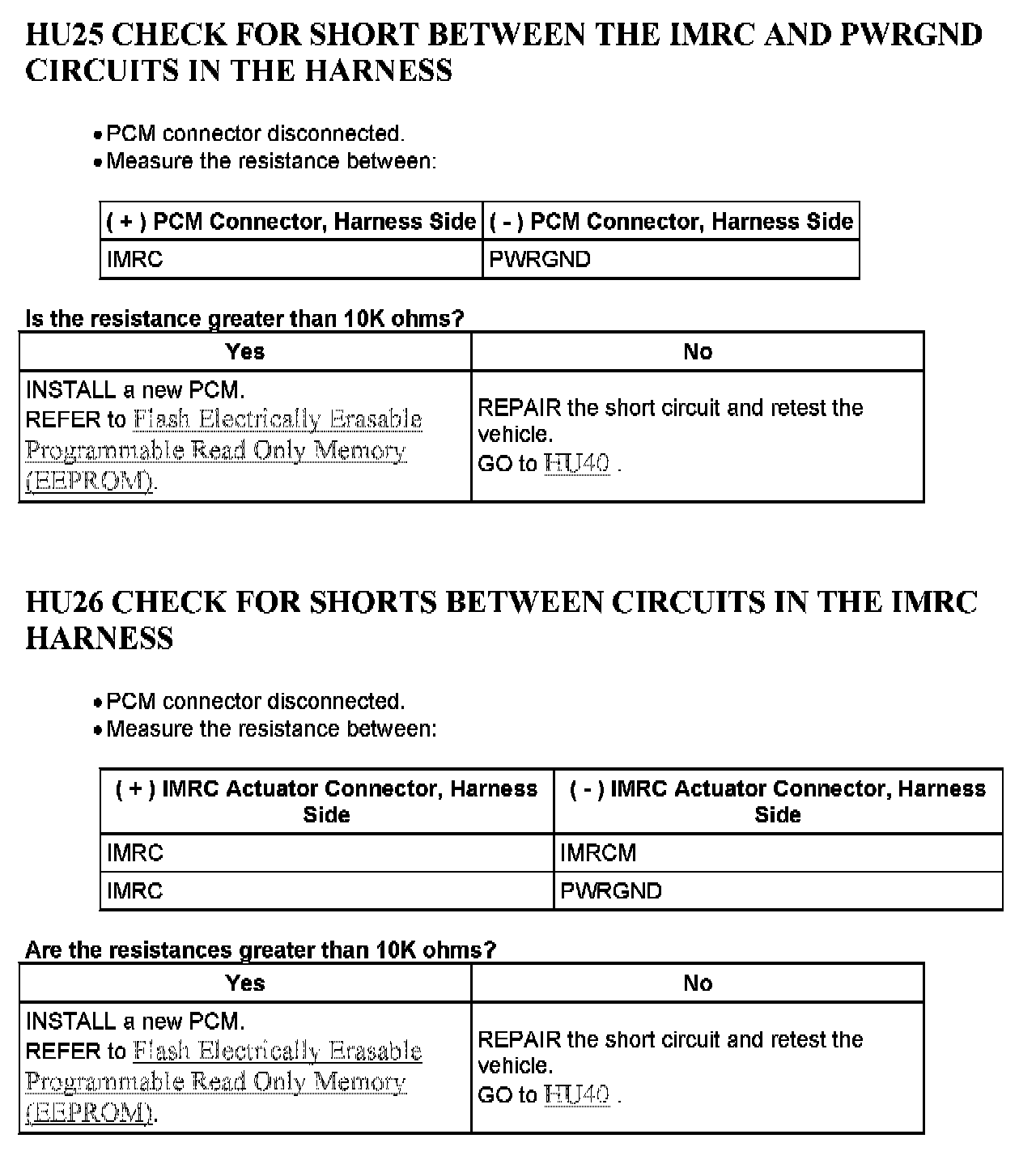

HU25 - HU26:

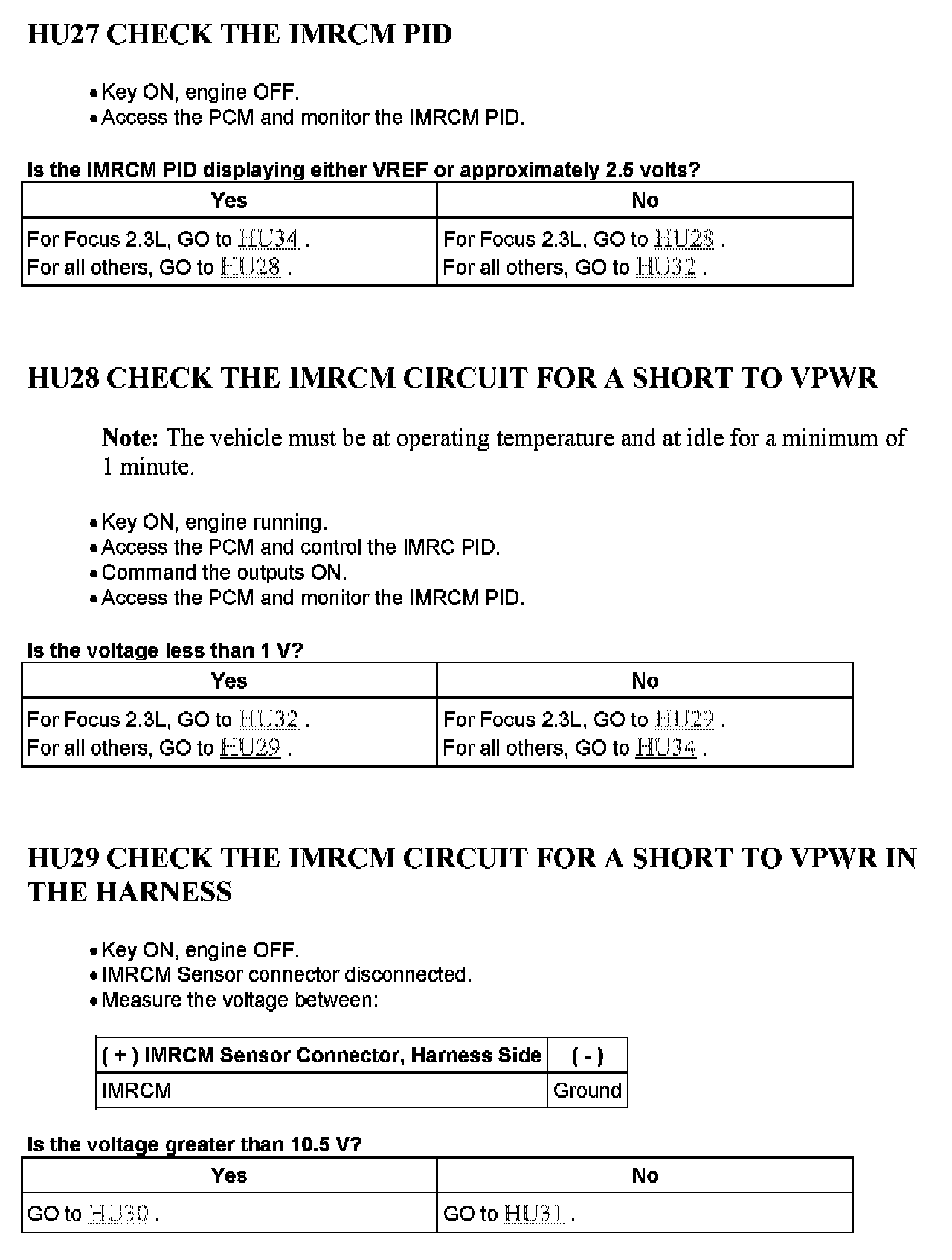

HU27 - HU29:

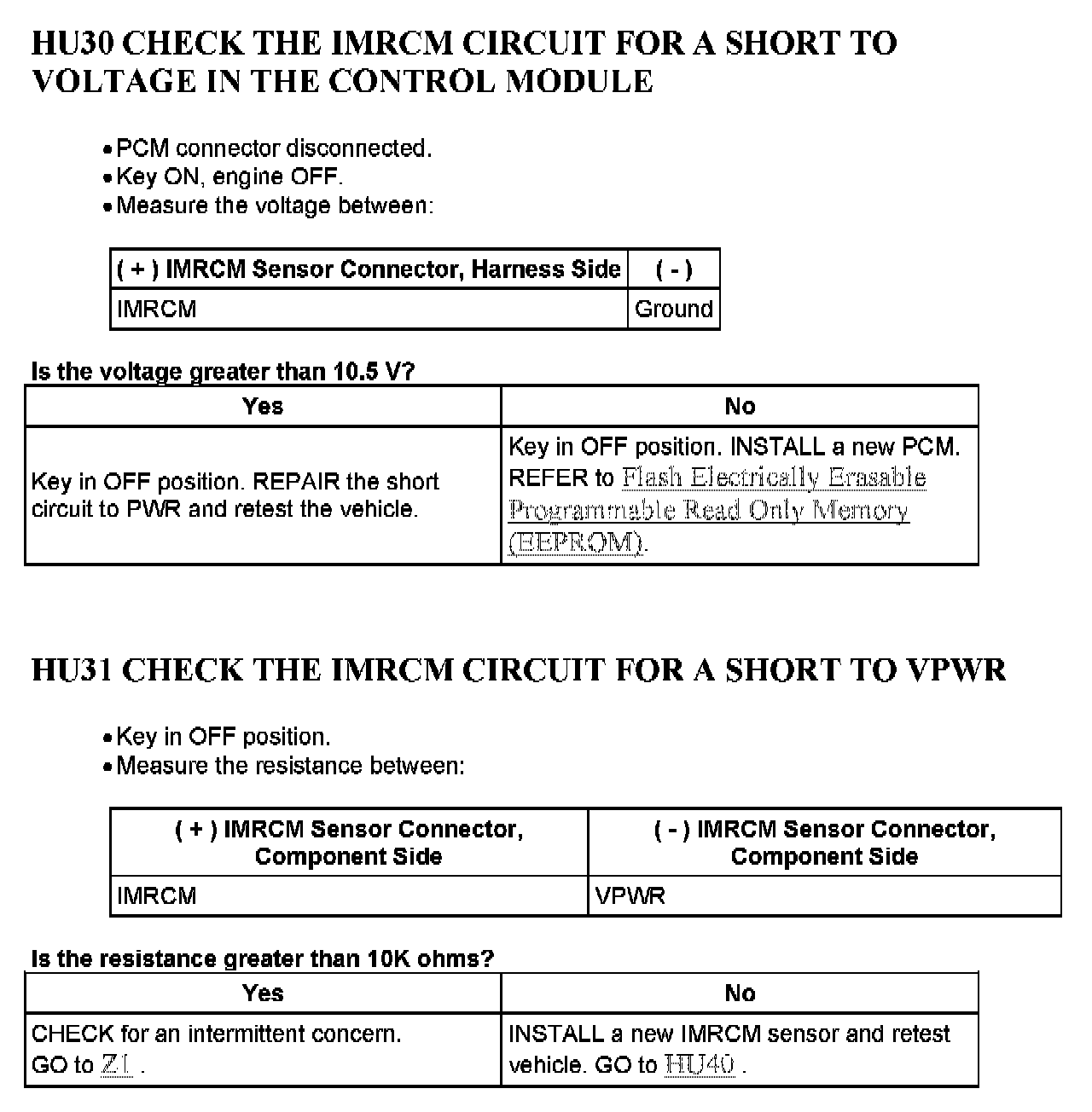

HU30 - HU31:

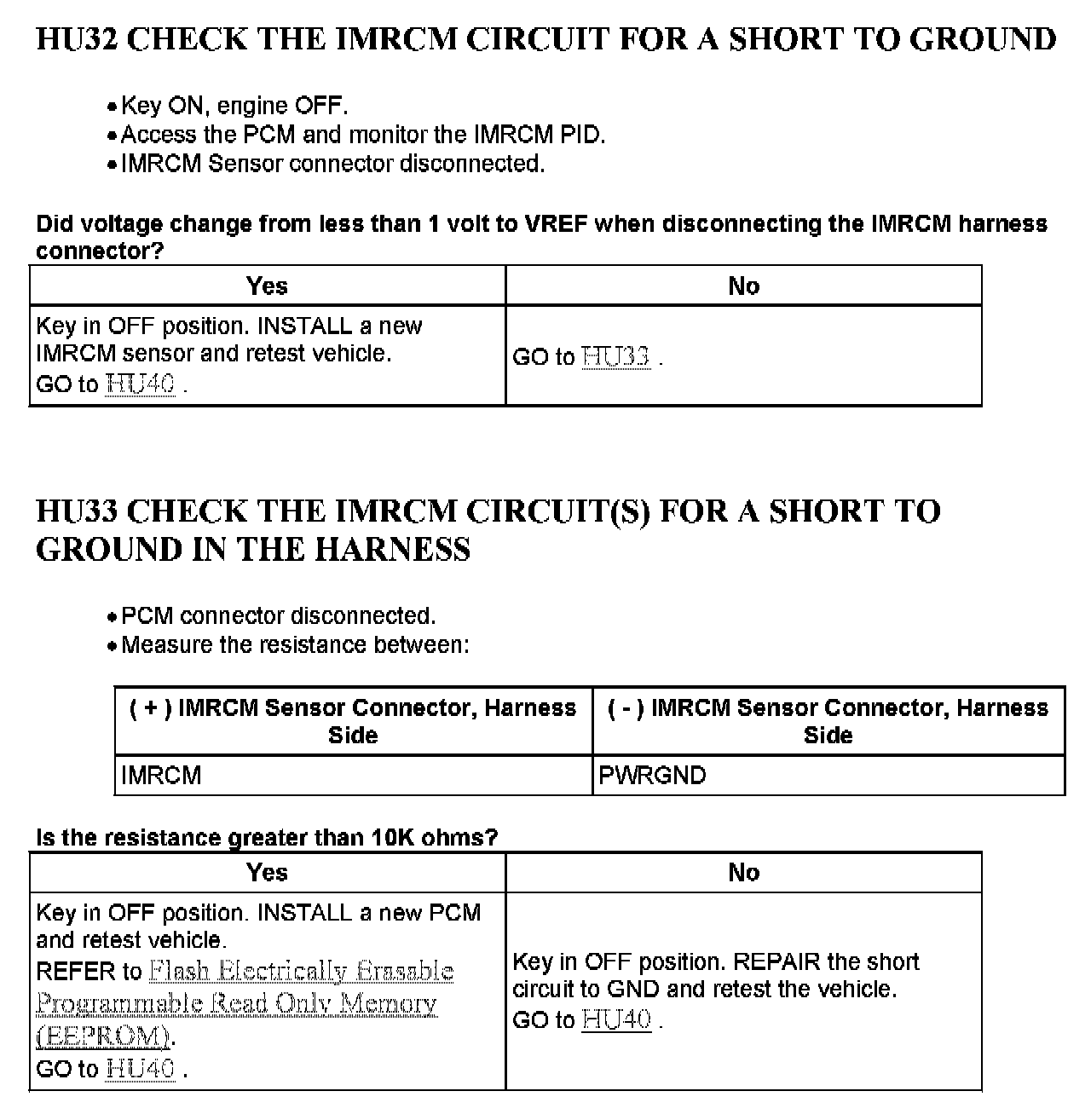

HU32 - HU33:

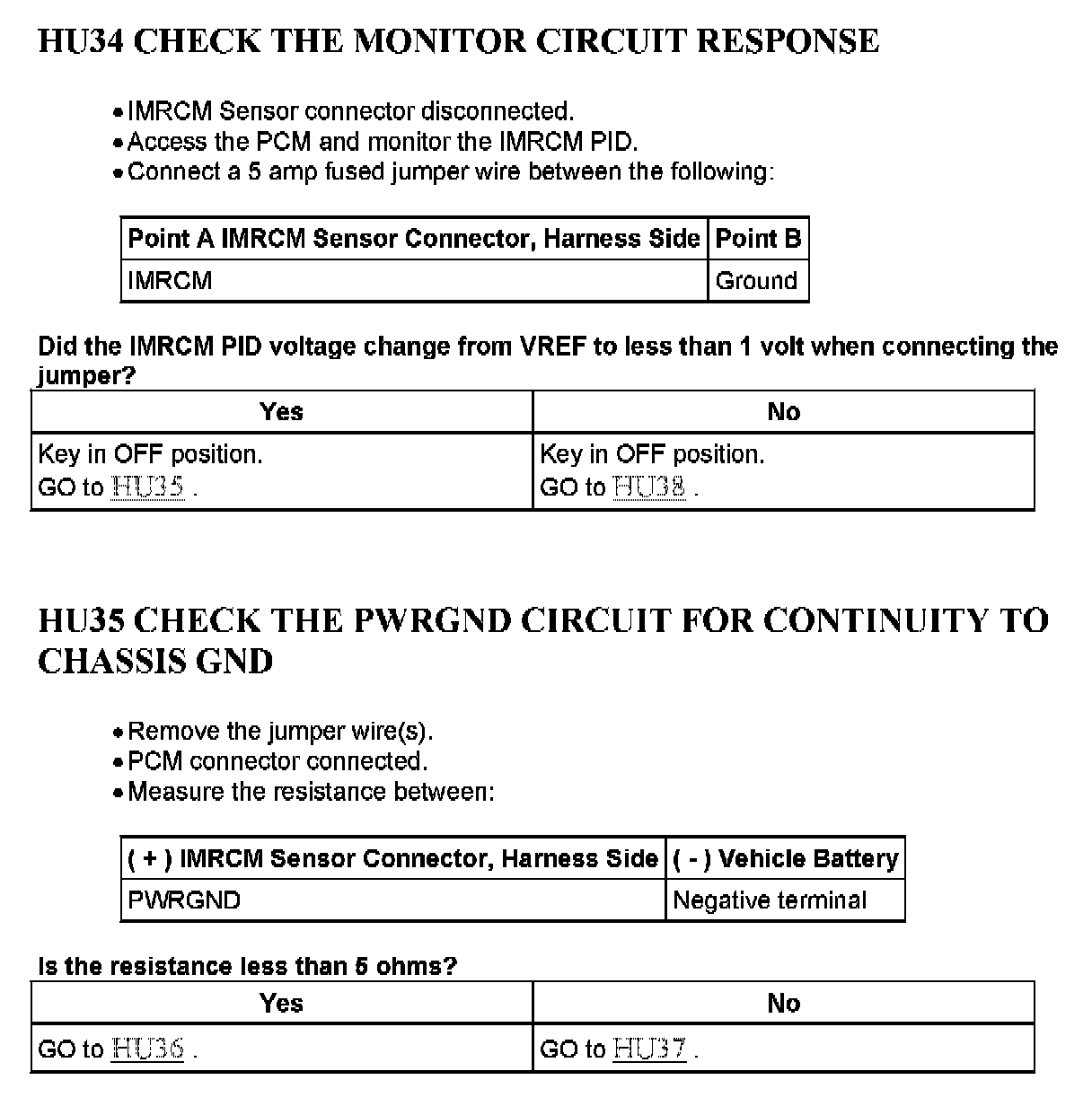

HU34 - HU35:

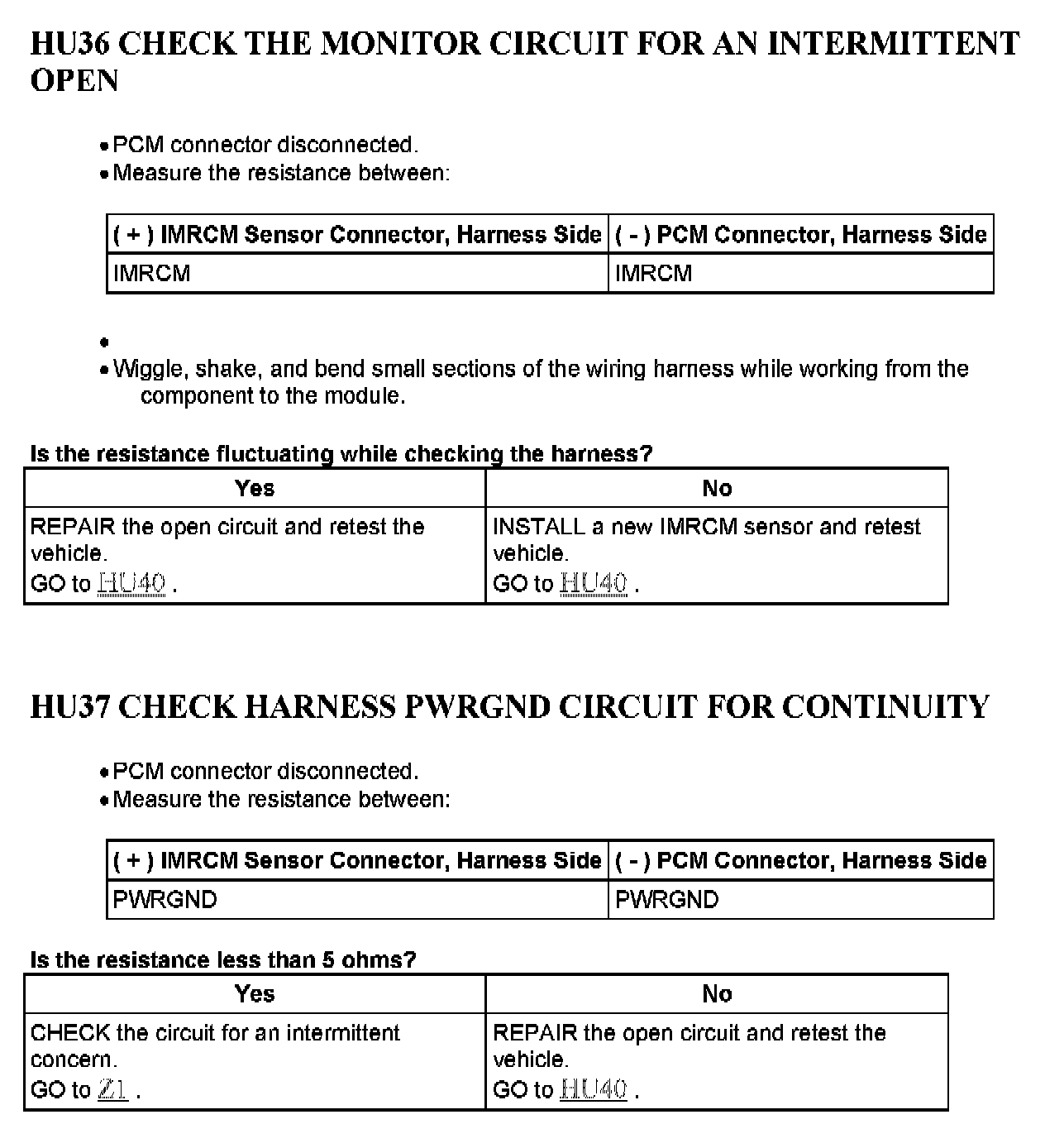

HU36 - HU37:

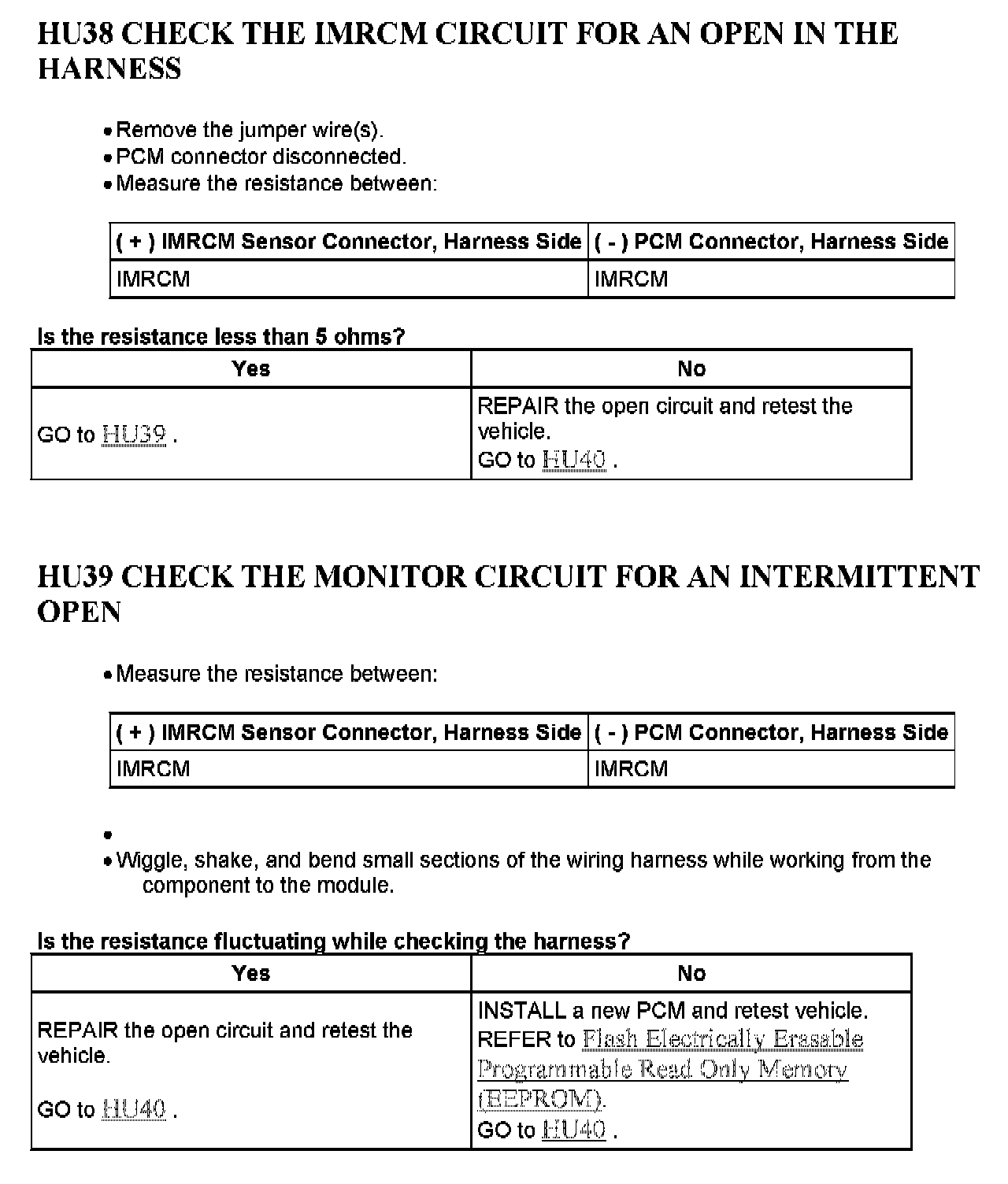

HU38 - HU39:

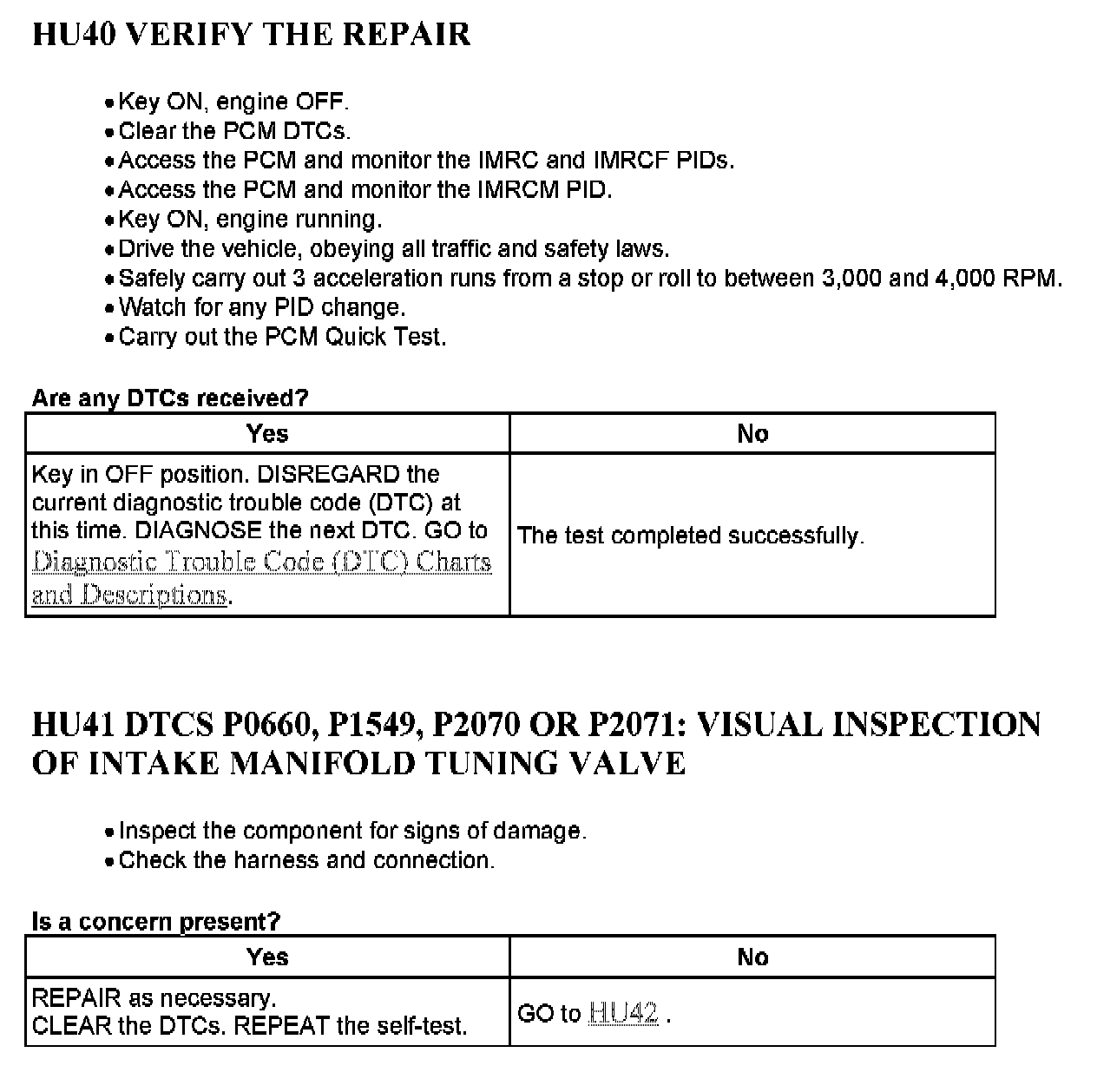

HU40 - HU41:

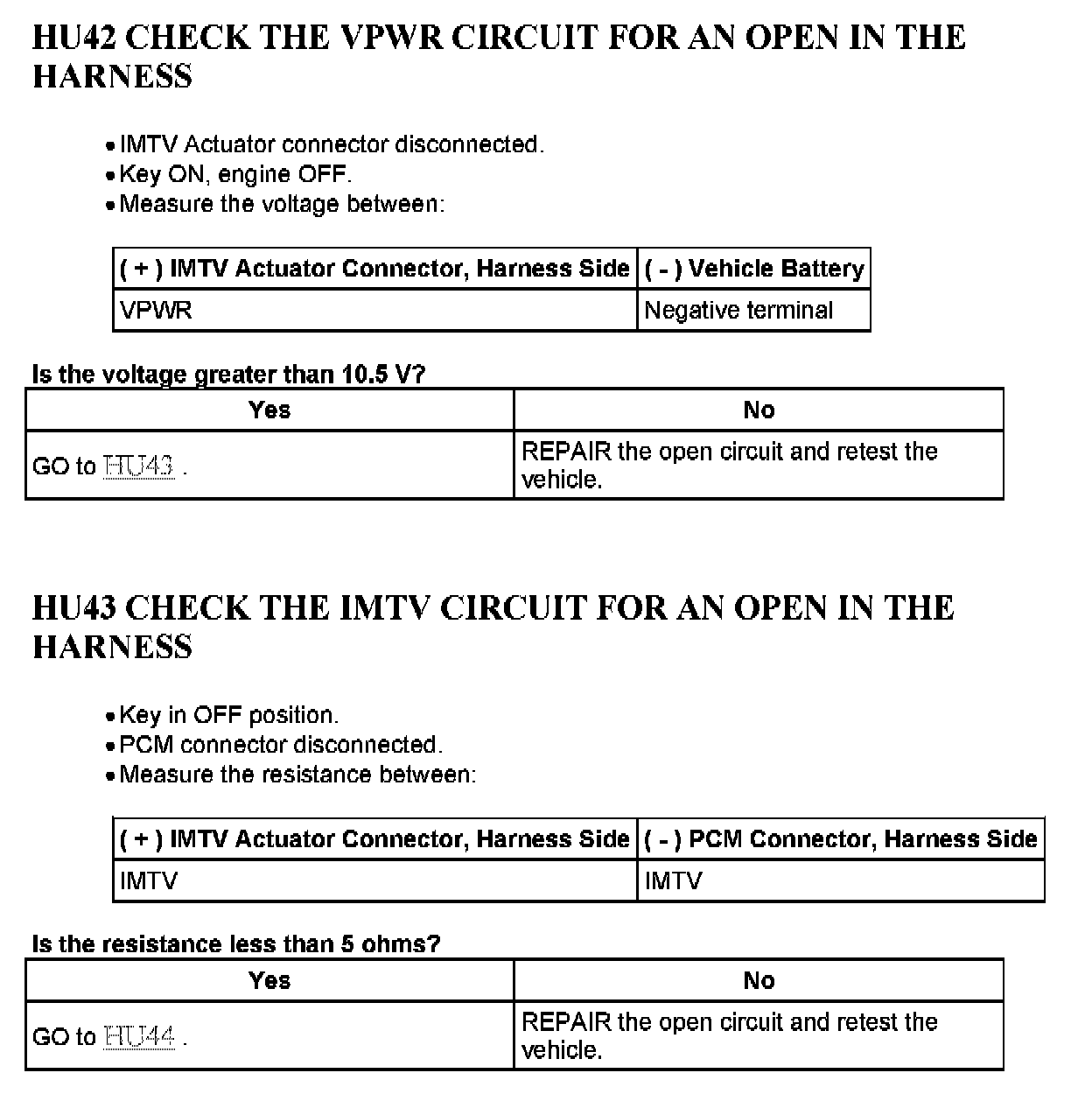

HU42 - HU43:

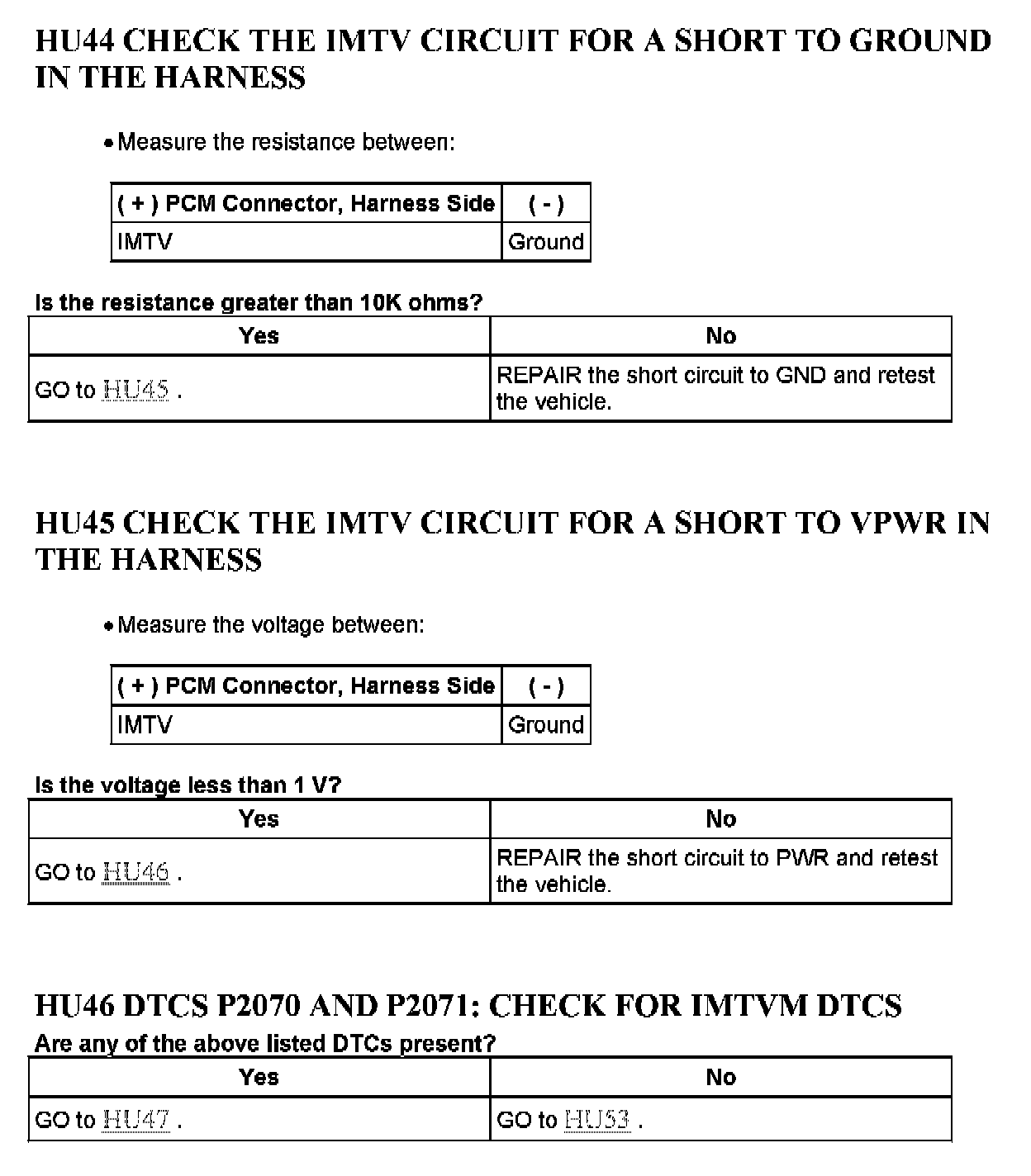

HU44 - HU45:

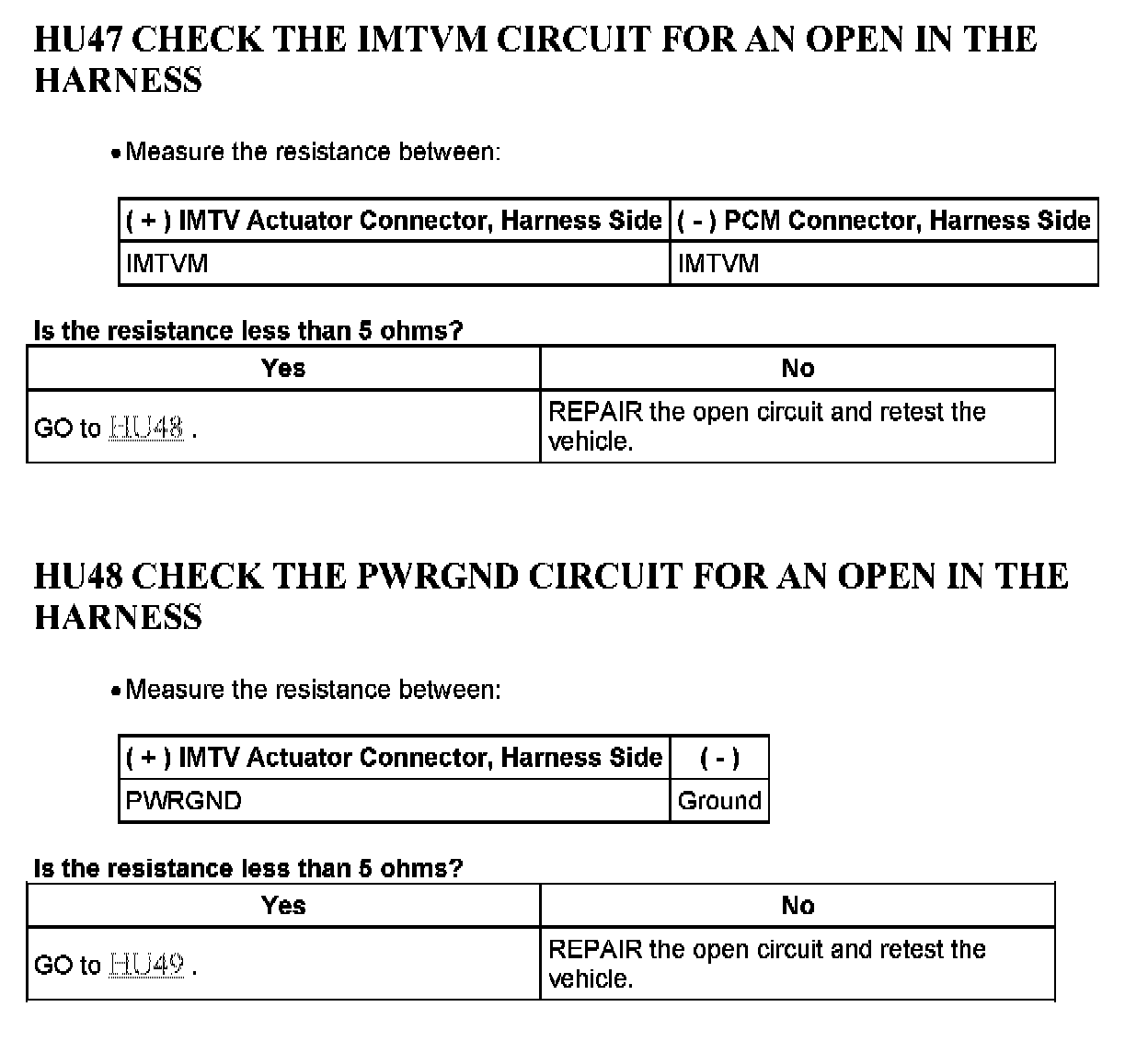

HU47 - HU48:

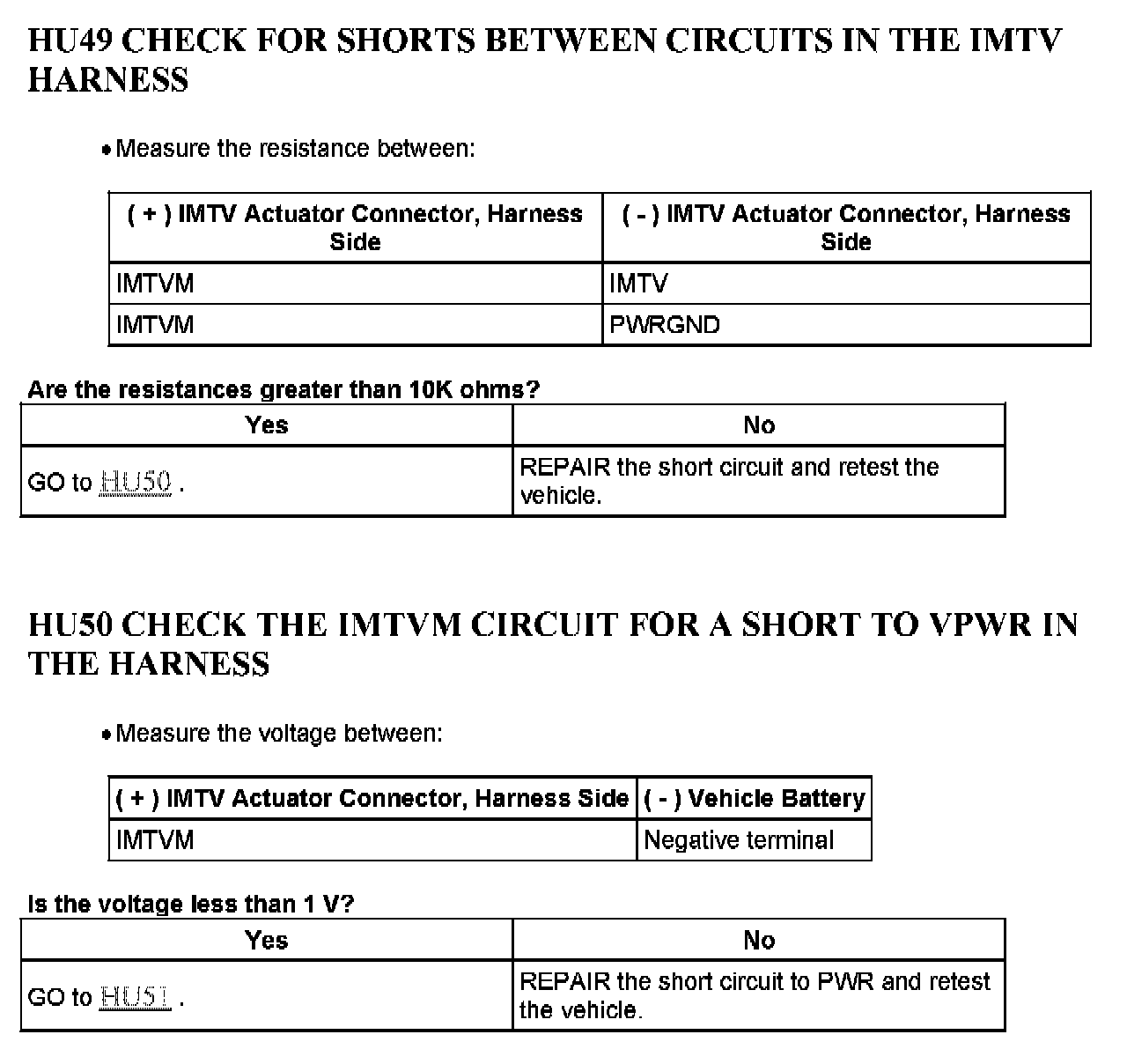

HU49 - HU50:

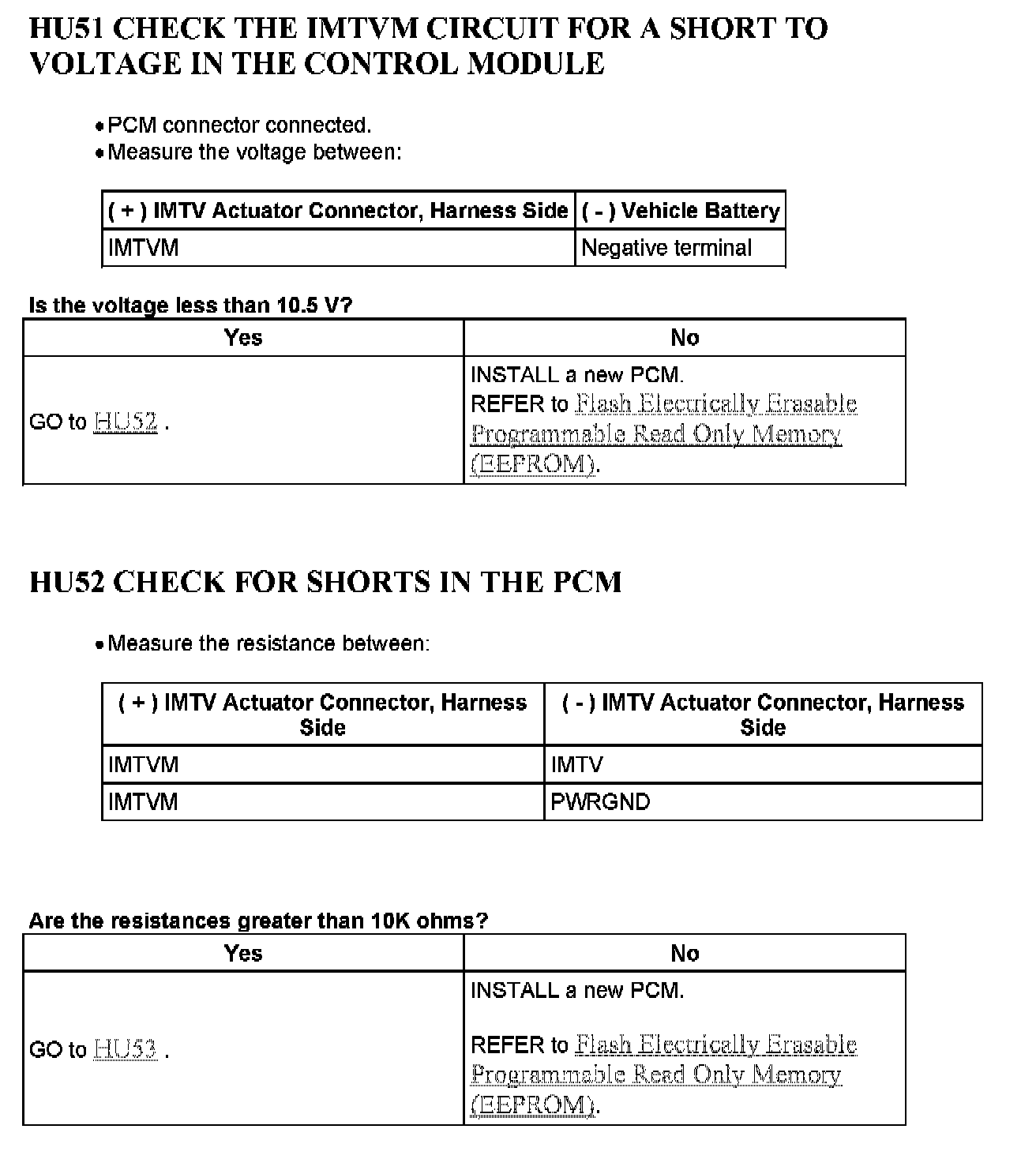

HU51 - HU52:

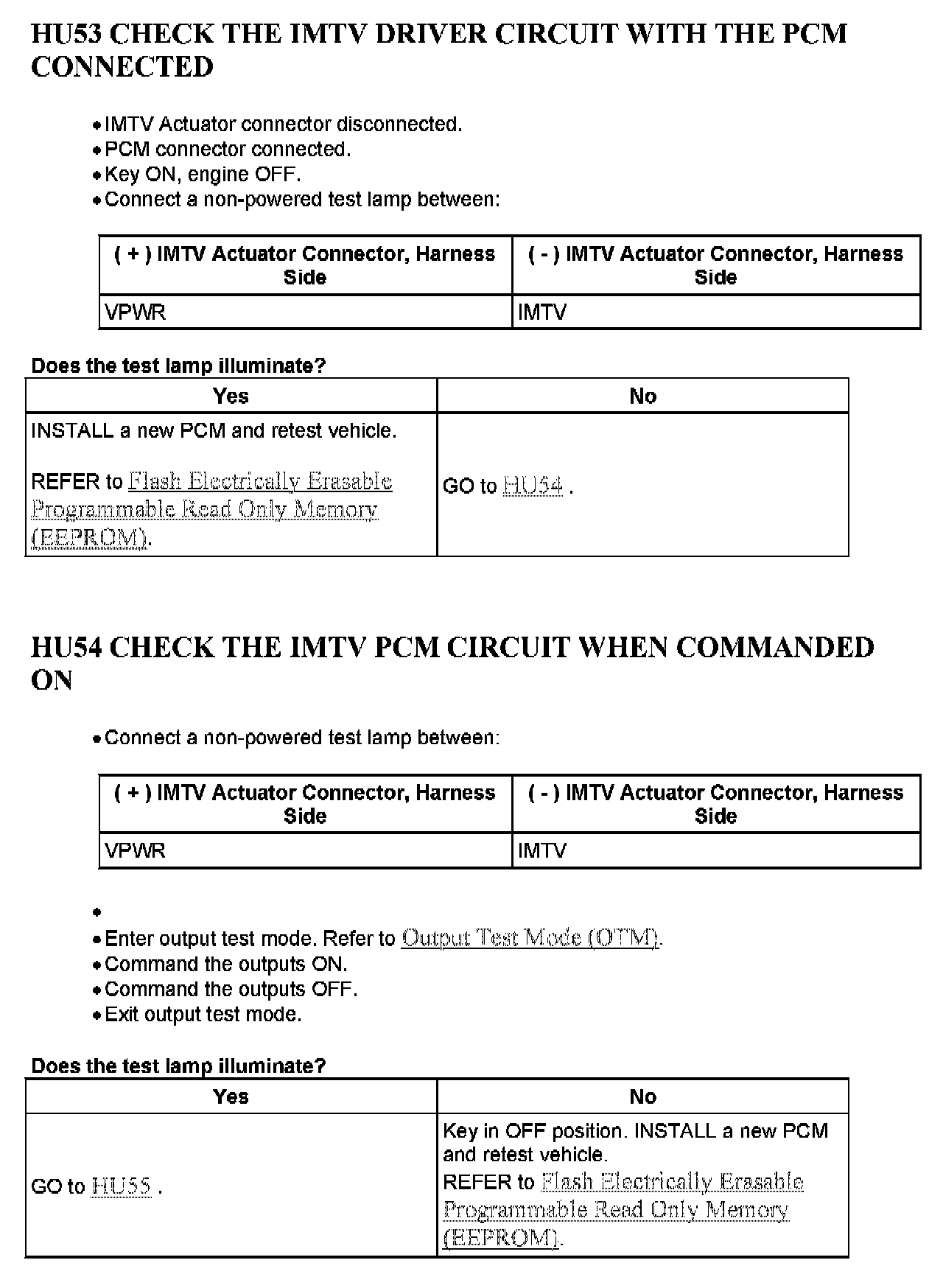

HU53 - HU54:

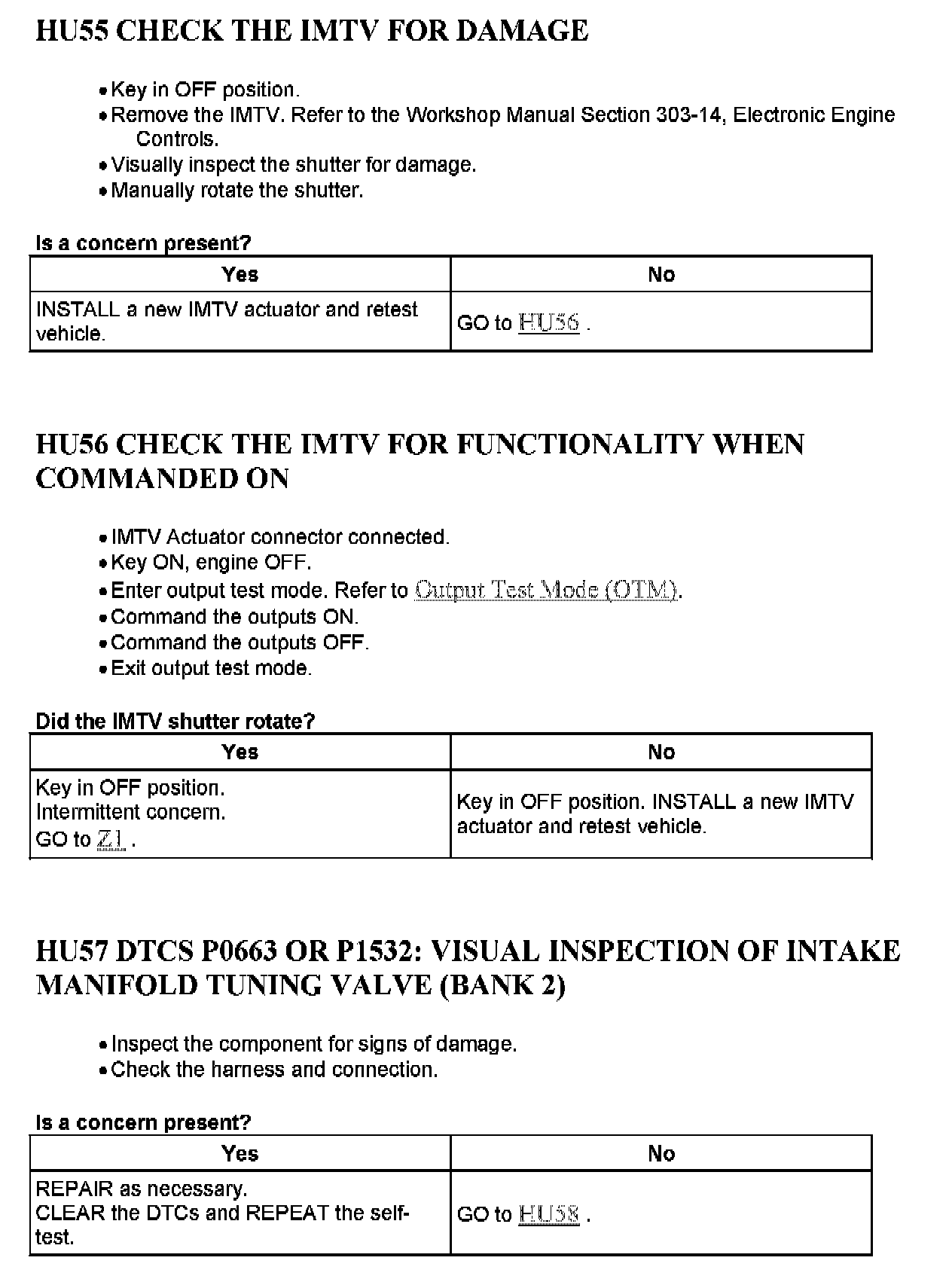

HU55 - HU57:

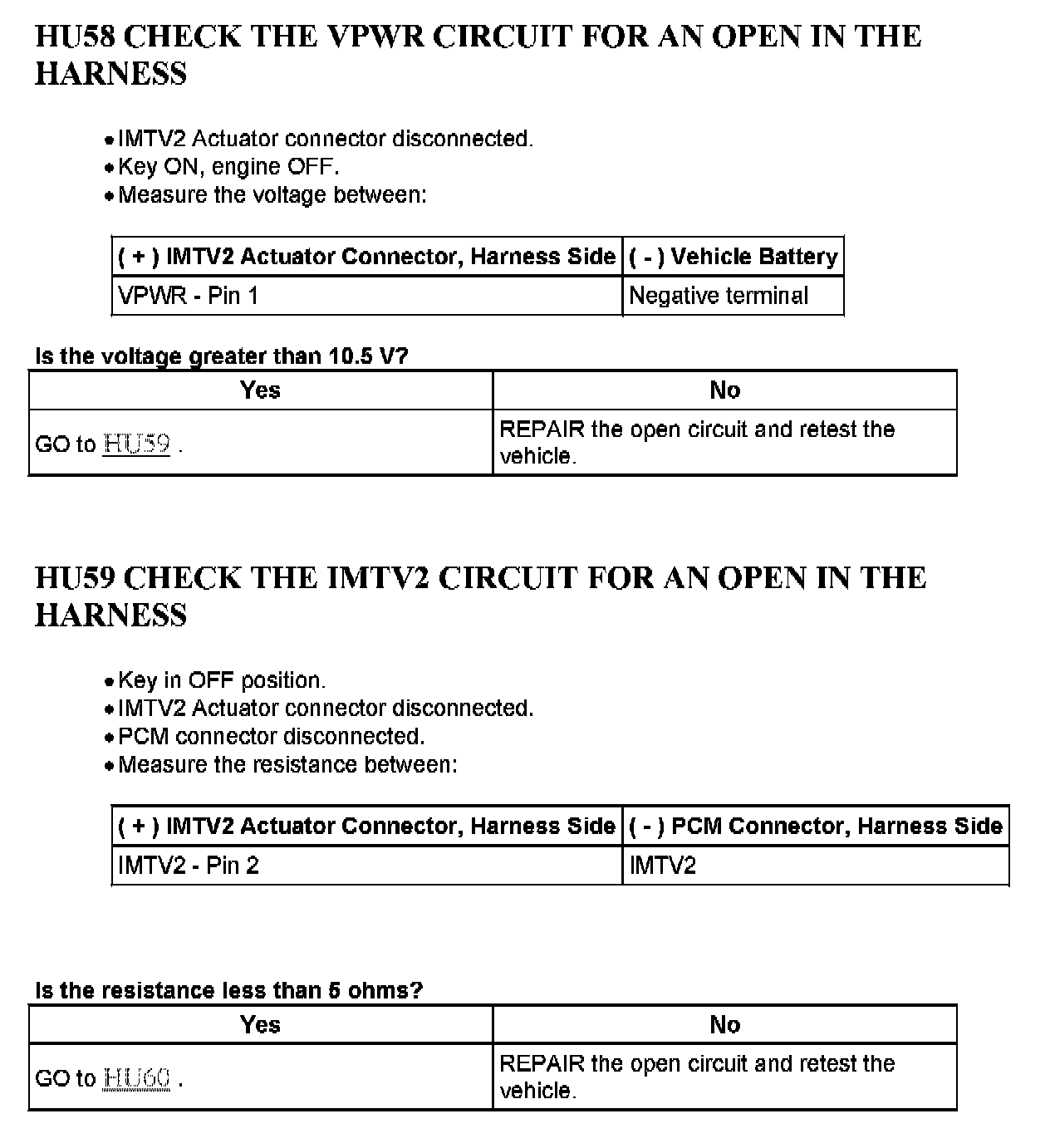

HU58 - HU59:

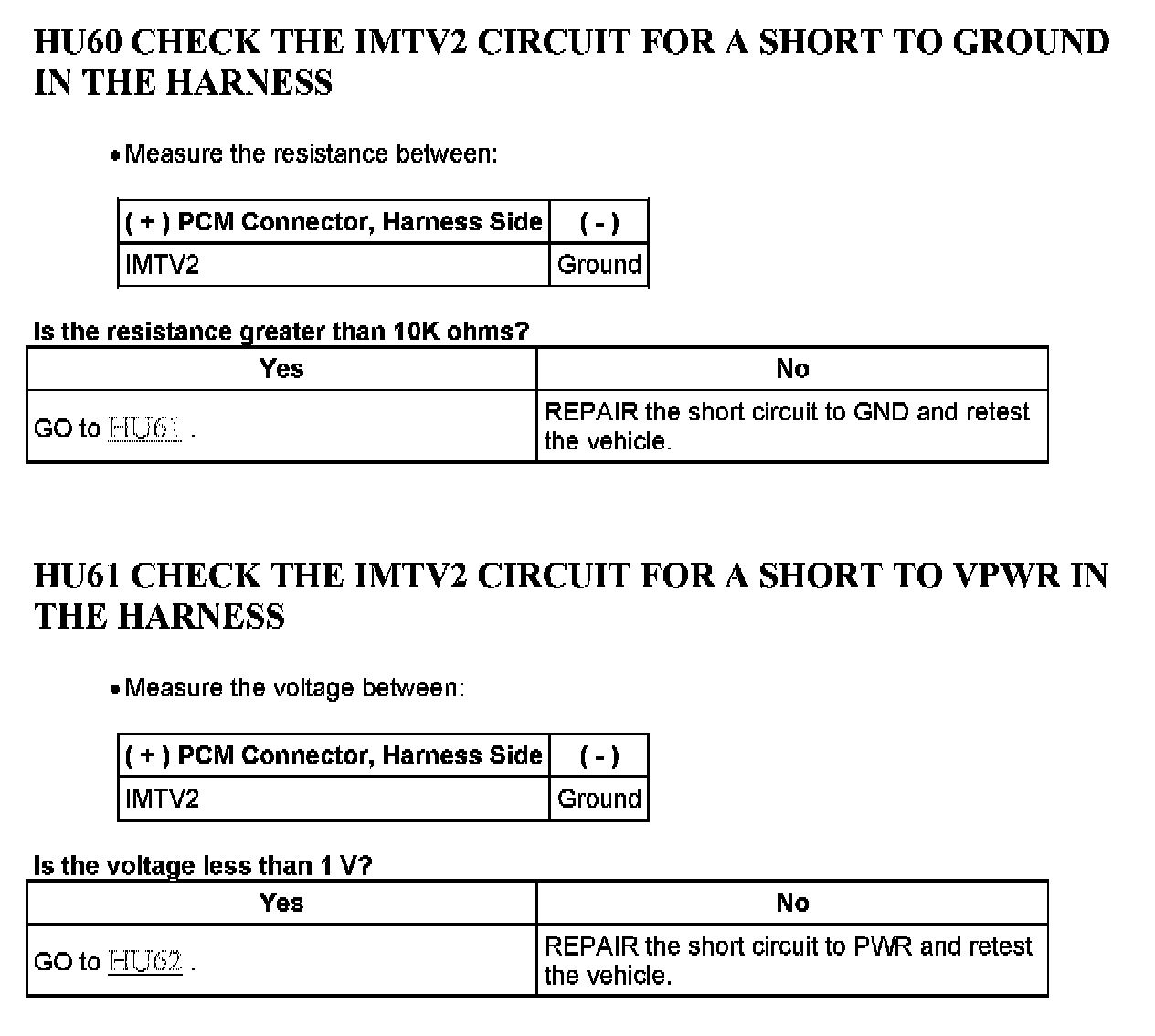

HU60 - HU61:

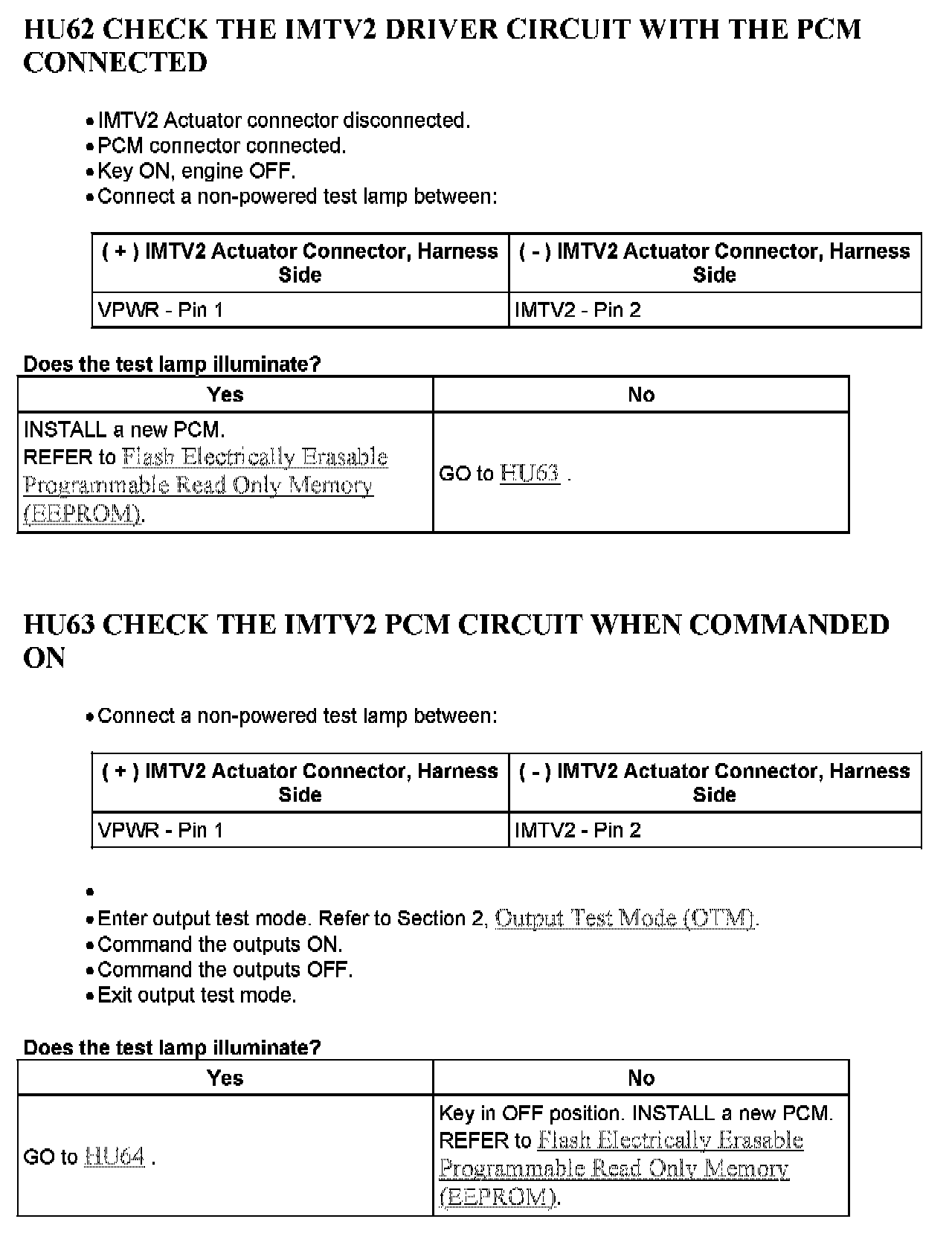

HU62 - HU63:

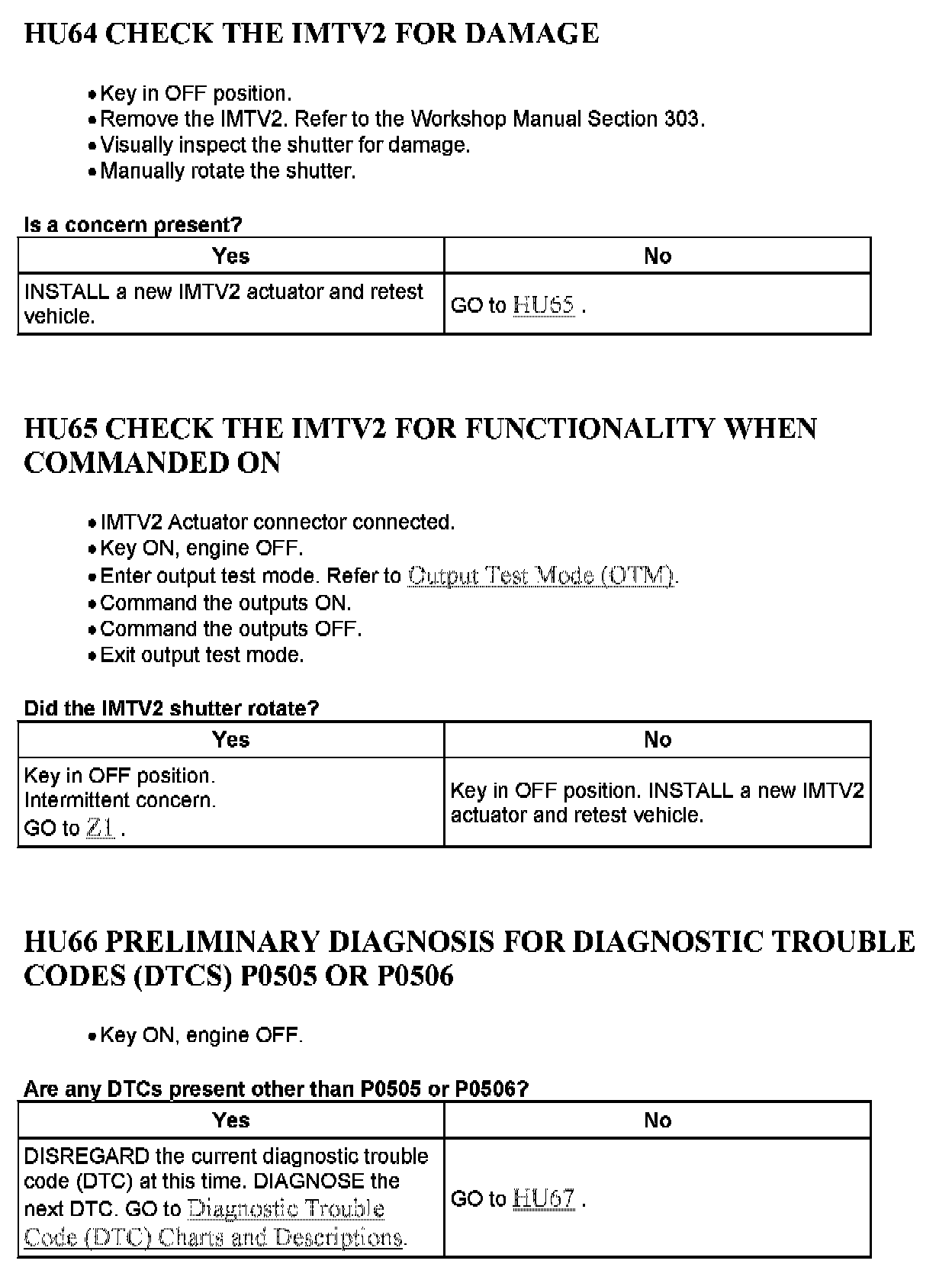

HU64 - HU66:

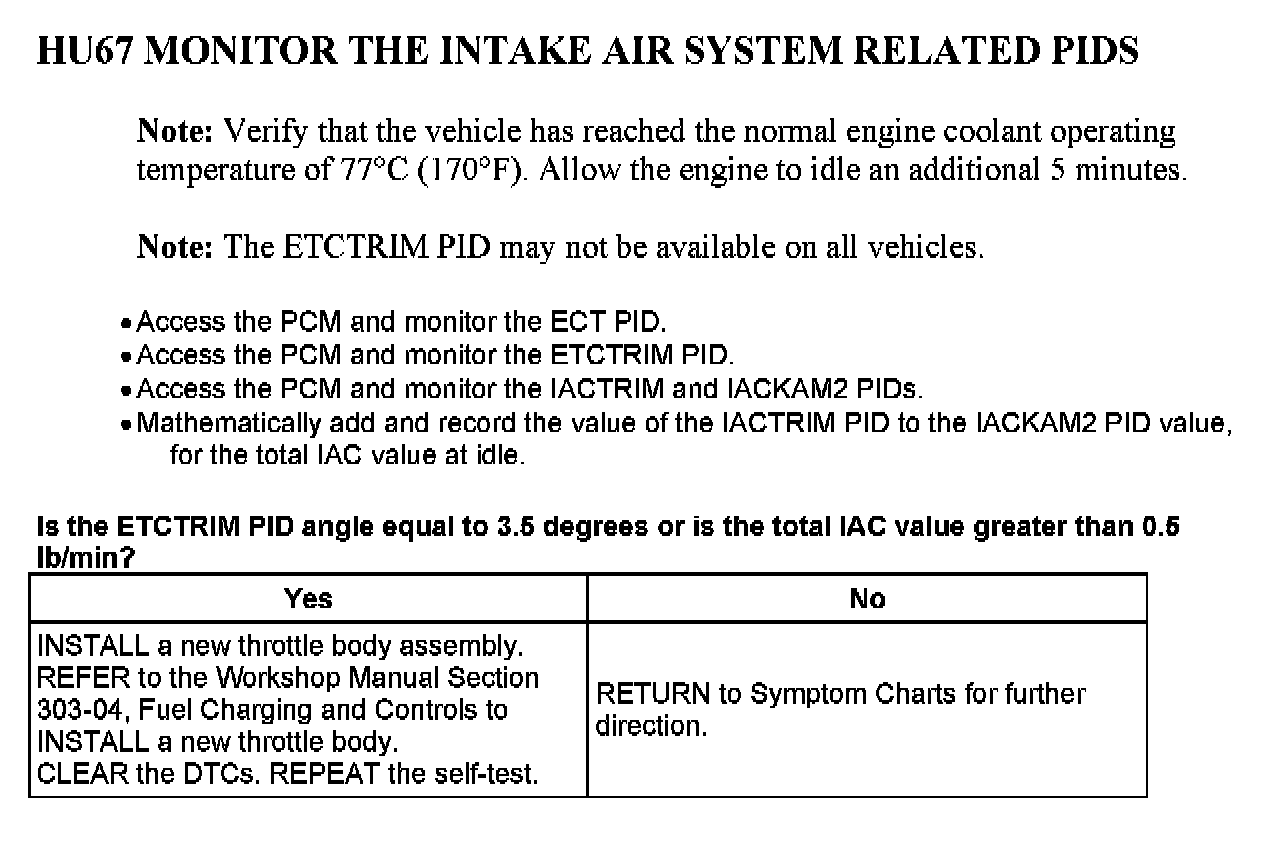

HU67:
