Removal and Installation

SPARK PLUGS

Removal and Installation
1. Remove the air cleaner outlet tube.
2. Remove the ignition coil.







3. NOTE: Remove any foreign material from the spark plug wells with compressed air.

Remove the spark plug.

4. Inspect the spark plugs.

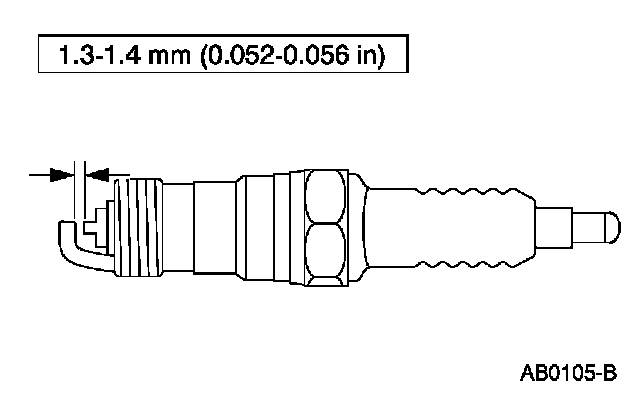

5. Adjust the spark plug gap as necessary.

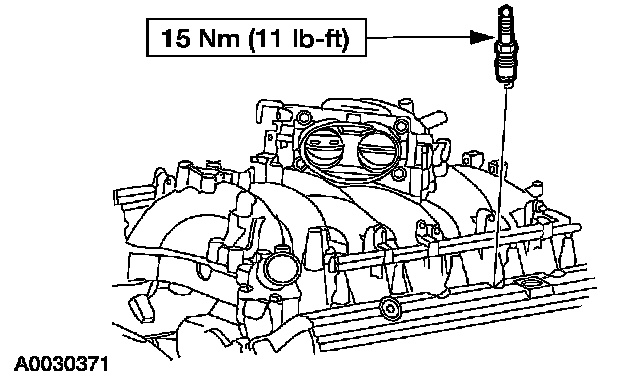

6. To install, reverse the removal procedure.
