Multifunction Switch, Wiper/Washer Portion: Schematic

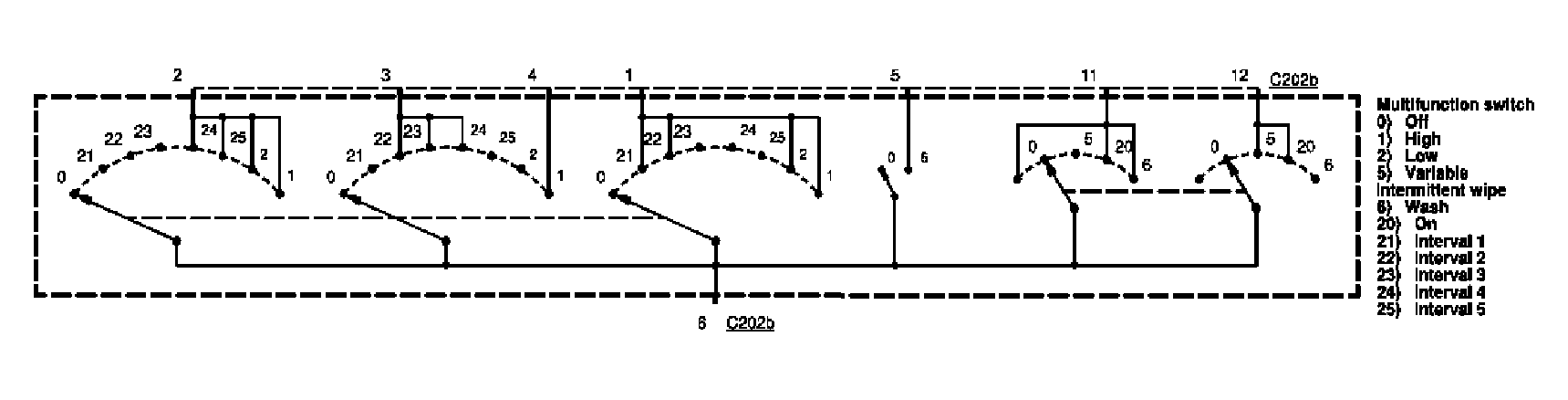

Fig 1: Multifunction Switch Schematic (Wiper/Washer Portion)
G03987510Courtesy of FORD MOTOR CO.
