Removal and Installation

  1. Remove the transmission switch (TCS).
    1. Remove the TCS cover.
    2. Remove the TCS.

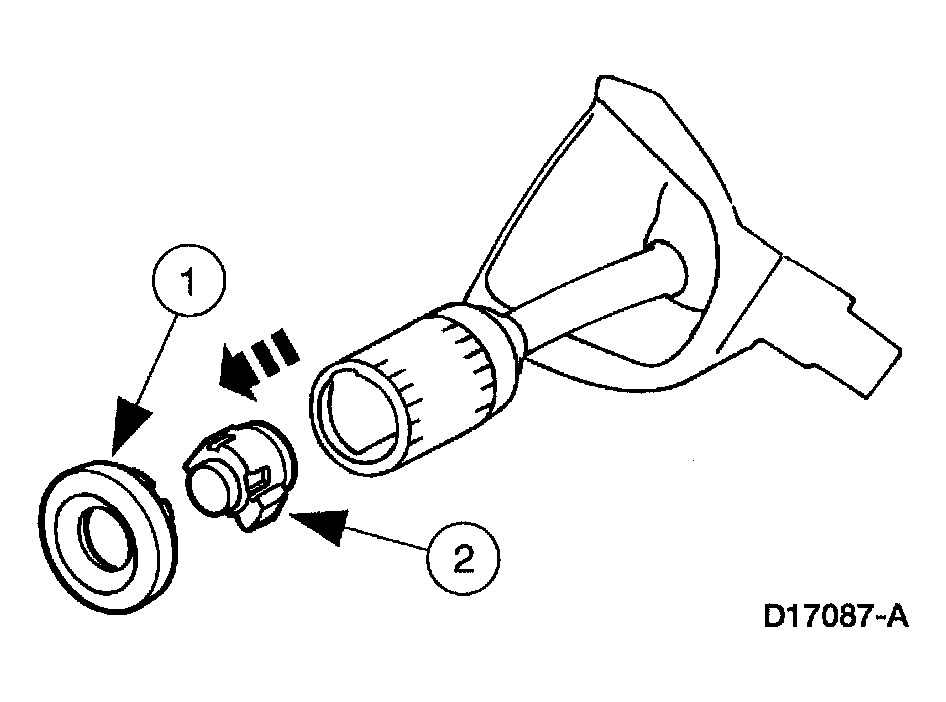

    Fig 1: Removing Transmission Control Switch
    G03909518Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
