Piston Pin Diameter

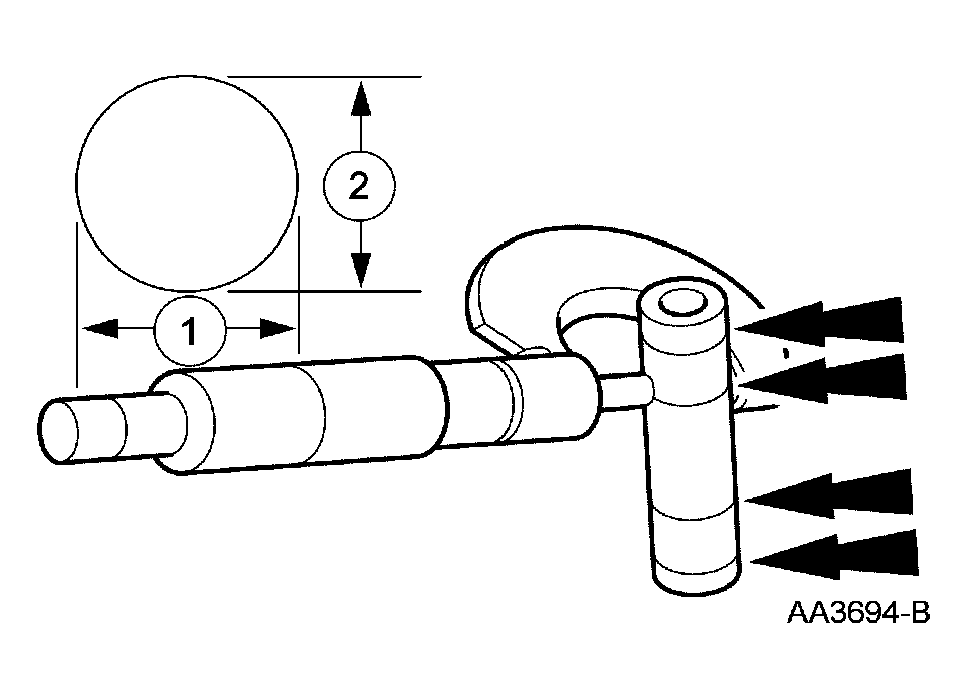

- Measure the piston pin diameter in 2 directions at the points shown. Verify the diameter is within specification.
- Refer to IN-VEHICLE REPAIR for the procedure.
- If out of specification, install new components as necessary. Refer to IN-VEHICLE REPAIR for the procedure.
