Glow Plug Sleeve: Installation

  1. Verify the glow plug bore is completely clean and dry.
  2. Apply Threadlock 262® sealant to the glow plug sleeve in two places.

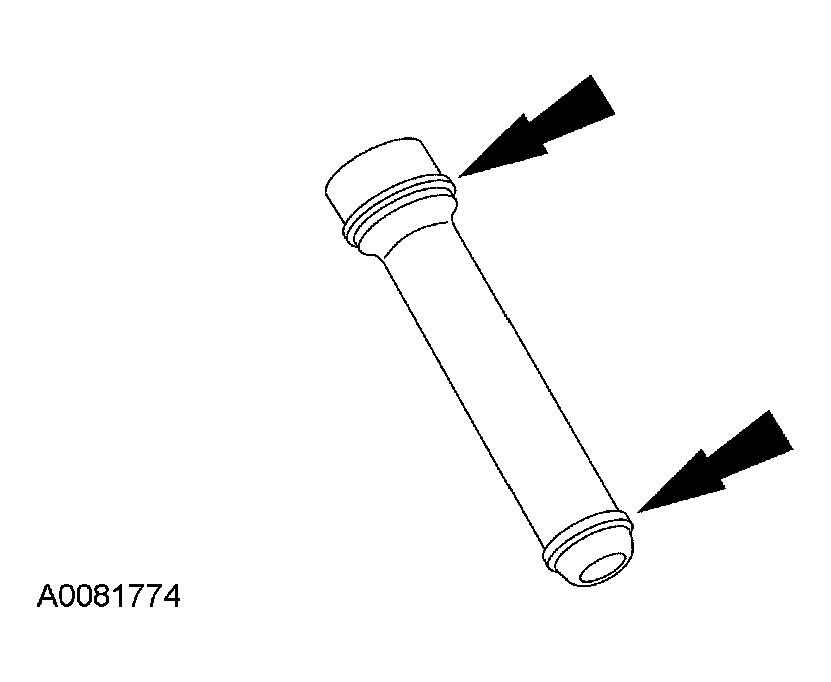

    Fig 1: Applying Threadlock Sealant To Glow Plug Sleeve
    G03888232Courtesy of FORD MOTOR CO.
  3. Install the glow plug sleeve into the glow plug bore until it bottoms.

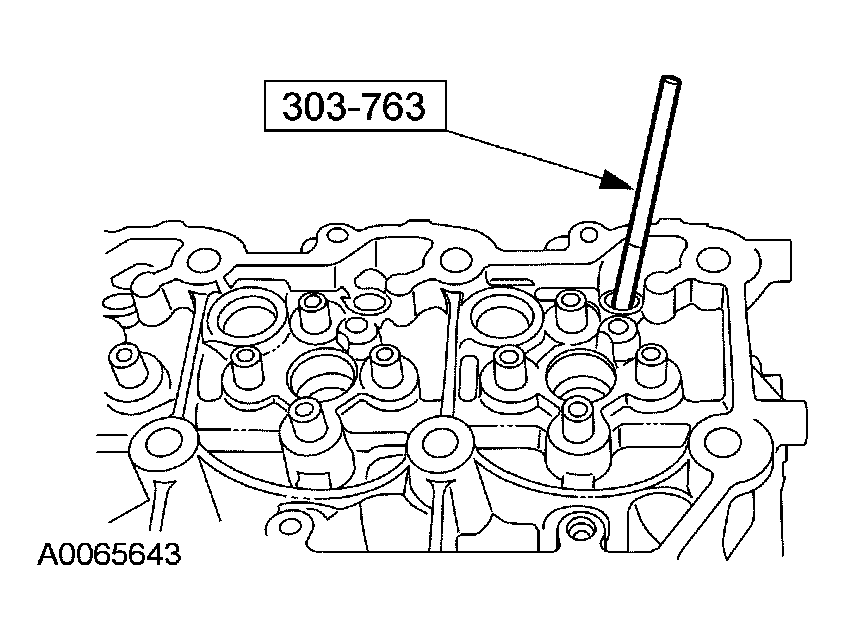

    Fig 2: Installing Glow Plug Sleeve Into Glow Plug Bore
    G03888233Courtesy of FORD MOTOR CO.
  4. Clean the glow plug sleeve after installation with a nylon brush and solvent. Make sure Threadlock 262® sealant is cleaned out before it hardens.
  5. Install the press-in-place gasket.
    • Install new dowels in the cylinder head and the gasket.
    Fig 3: Locating Gasket
    G04519005Courtesy of FORD MOTOR CO.
  6. Position the rocker arm carrier on the cylinder head. Install the bolts.
    Fig 4: Rocker Arm Carrier And Bolts - With Torque Specifications
    G03887669Courtesy of FORD MOTOR CO.
  7. Install the lifting bracket on the cylinder head.
  8. Install the cylinder heads. For additional information, refer to ENGINE - 6.0L DIESEL .
