Removal and Installation

NOTE: If equipped, turn the air suspension switch to the OFF position.

With the vehicle in NEUTRAL, position it on a hoist

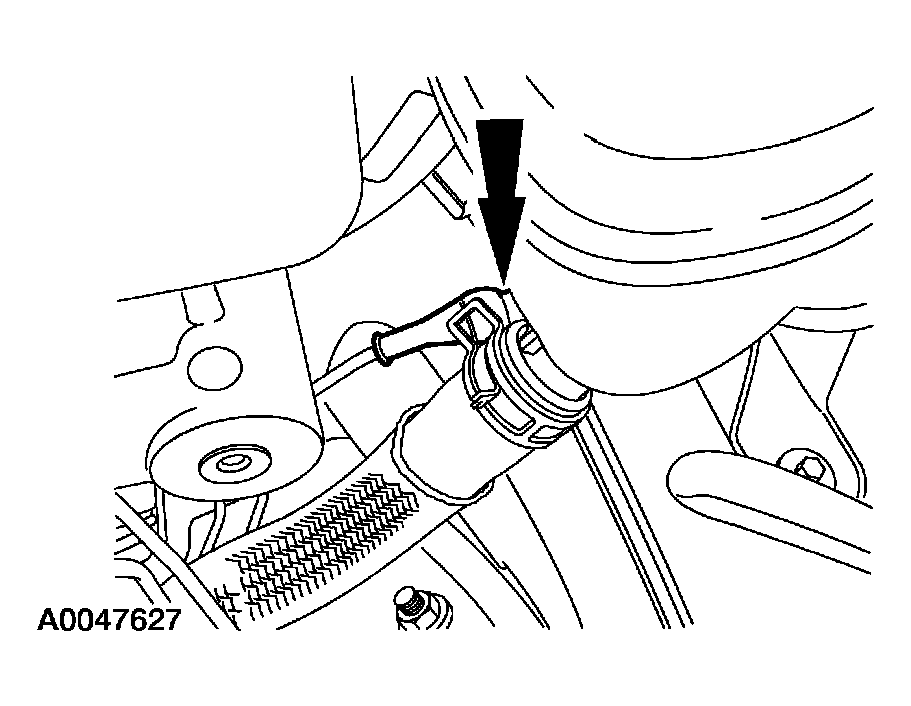

Disconnect the wheel speed sensor electrical connector.

Fig 1: Disconnecting Wheel Speed Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

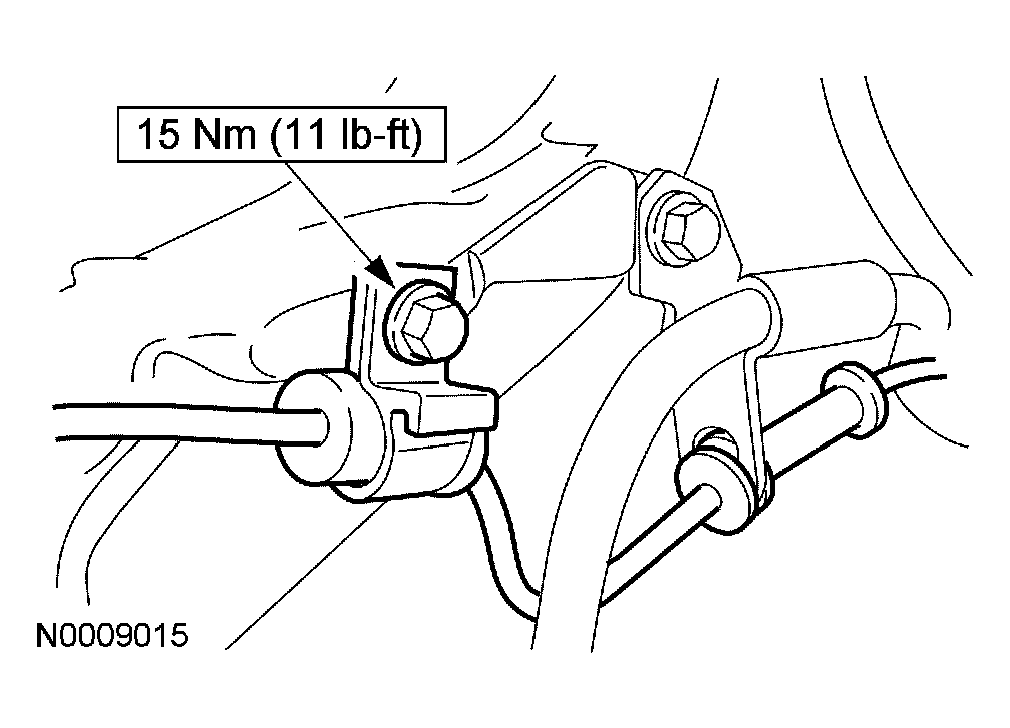

Remove the bolt and the retainers.

Fig 2: Removing Retainers Bolt
Courtesy of FORD MOTOR CO.

CAUTION: Do not allow the caliper to hang from the brake hose or damage to the hose can result.

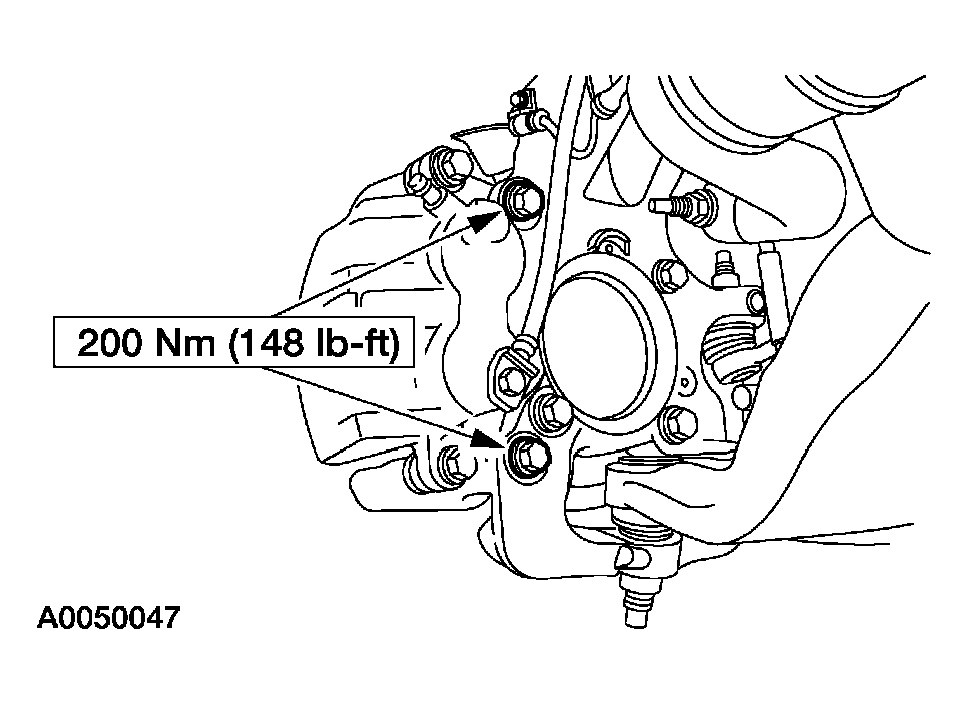

Fig 3: Removing Caliper Bolts

Courtesy of FORD MOTOR CO.

Remove the bolts and position the caliper, pads and anchor plate aside.

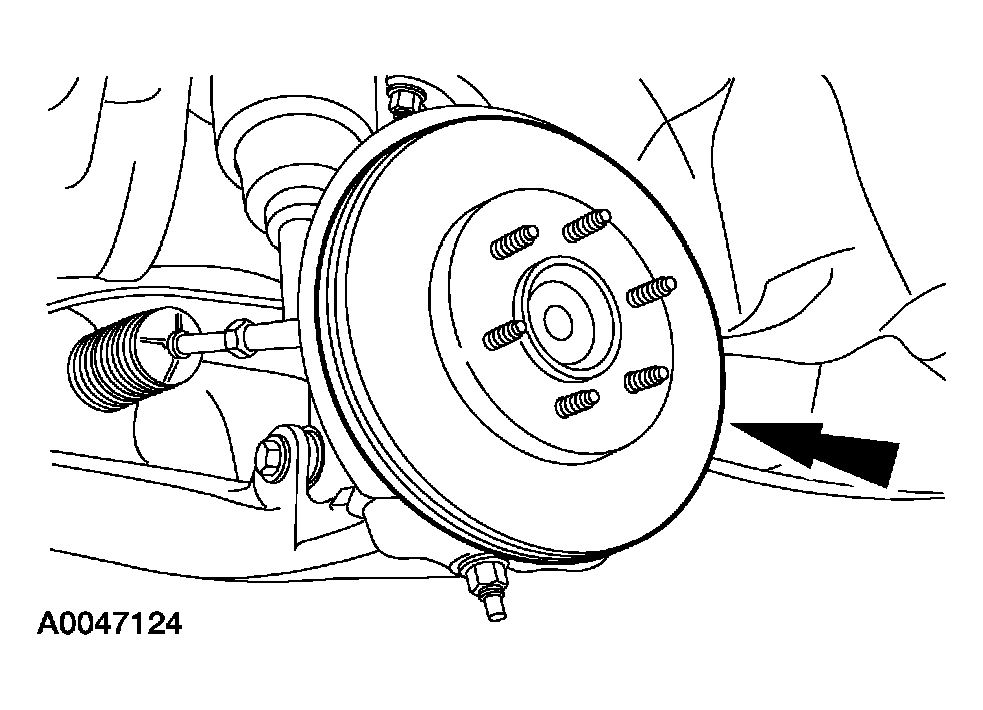

Remove the brake disc.

Fig 4: Removing Brake Disc
Courtesy of FORD MOTOR CO.

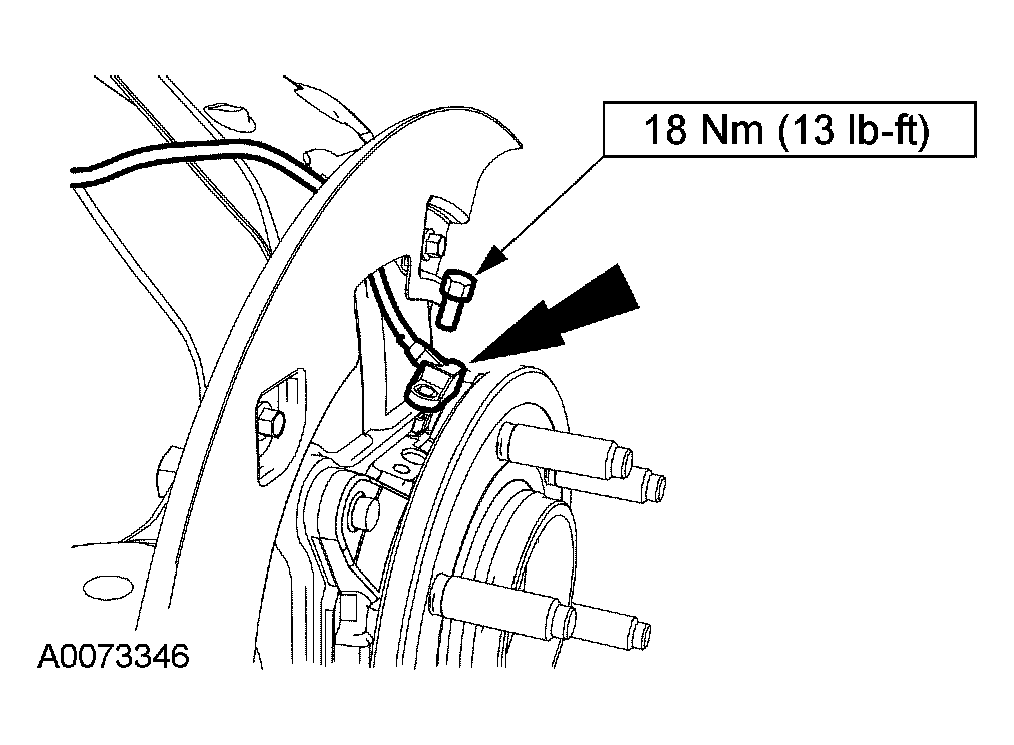

Remove the bolt and the front wheel speed sensor.

Fig 5: Removing Front Wheel Speed Sensor Bolt
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
