Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

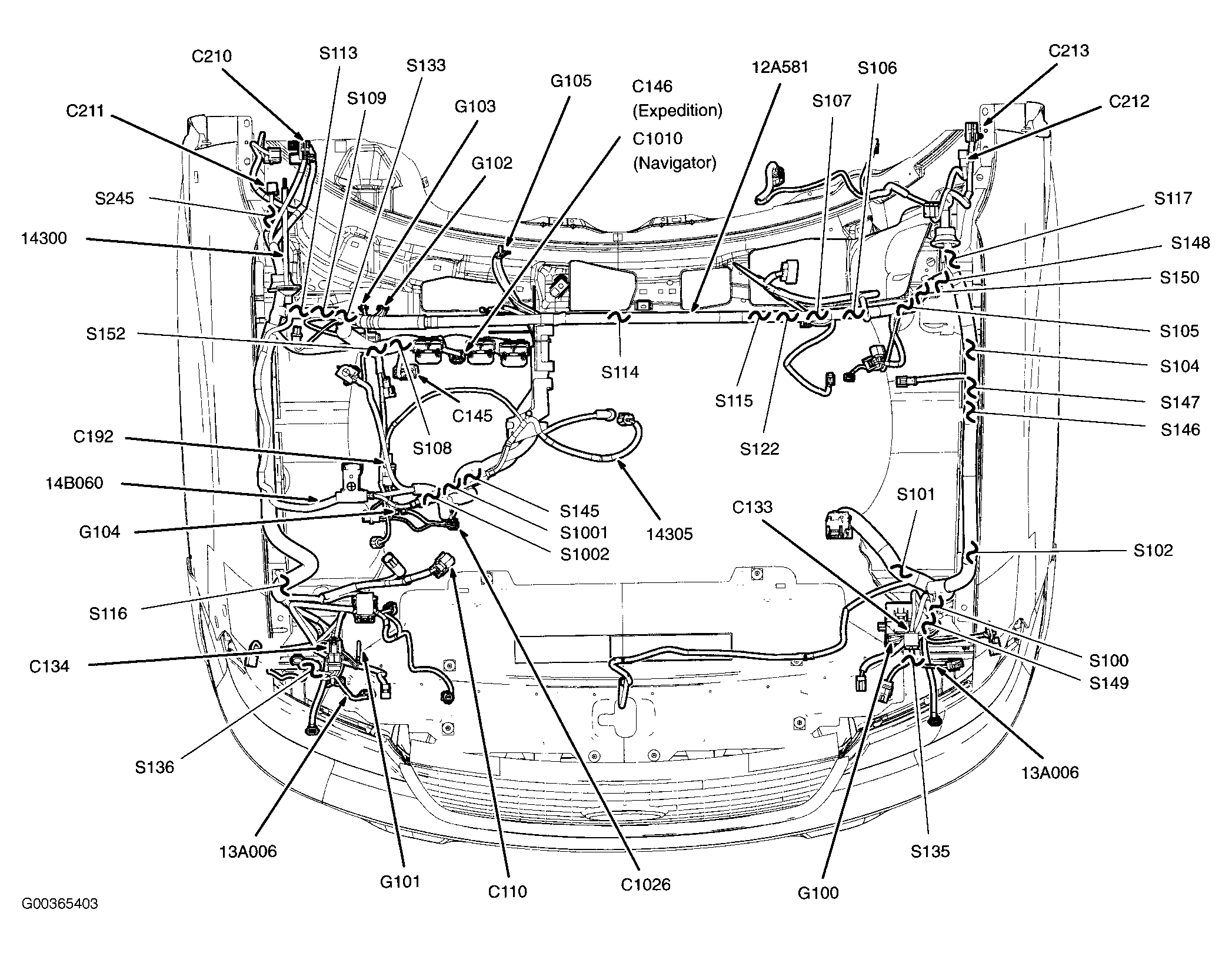

| S100 | In engine control sensor harness, near breakout to G100. See Figure. |
| S101 | In engine control sensor harness, in breakout to left side of engine compartment. See Figure. |
| S102 | In engine control sensor harness, near breakout to C1450. See Figure. |
| S104 | In engine control sensor harness, near breakout to left side of engine compartment. See Figure. |
| S105 | In engine control sensor harness, near breakout to left side of engine compartment. See Figure. |
| S106 | In engine control sensor harness, near breakout to left side of engine compartment. See Figure. |
| S107 | In engine control sensor harness, near breakout to G102. See Figure. |
| S108 | In engine control sensor harness, near breakout for C145. See Figure. |
| S109 | In engine control sensor harness, near breakout to G102. See Figure. |
| S113 | In engine control sensor harness, near breakout to G102. See Figure. |
| S114 | In engine control sensor harness, near breakout to G102. See Figure. |
| S115 | In engine control sensor harness, near breakout to G102. See Figure. |
| S116 | In engine control sensor harness, near breakout to G101. See Figure. |
| S117 | In engine control sensor harness, near breakout to left kick panel. See Figure. |

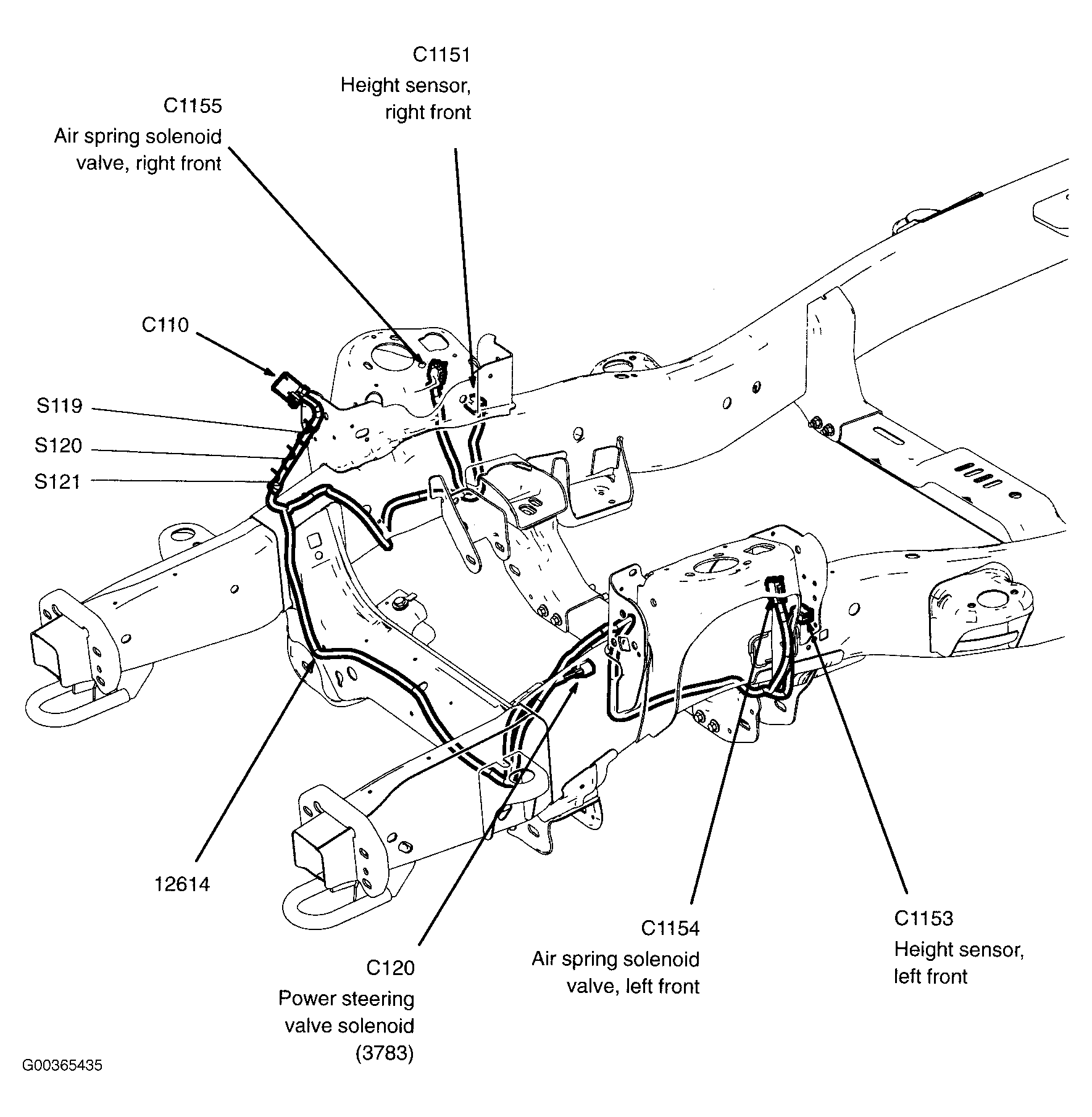

| S119 | In air spring suspension pressure indicator switch harness, in breakout to C110. See Figure. |
| S120 | In air spring suspension pressure indicator switch harness, in breakout to C110. See Figure. |
| S121 | In air spring suspension pressure indicator switch harness, in breakout to C110. See Figure. |
| S122 | In engine control sensor harness, near breakout G102. See Figure. |

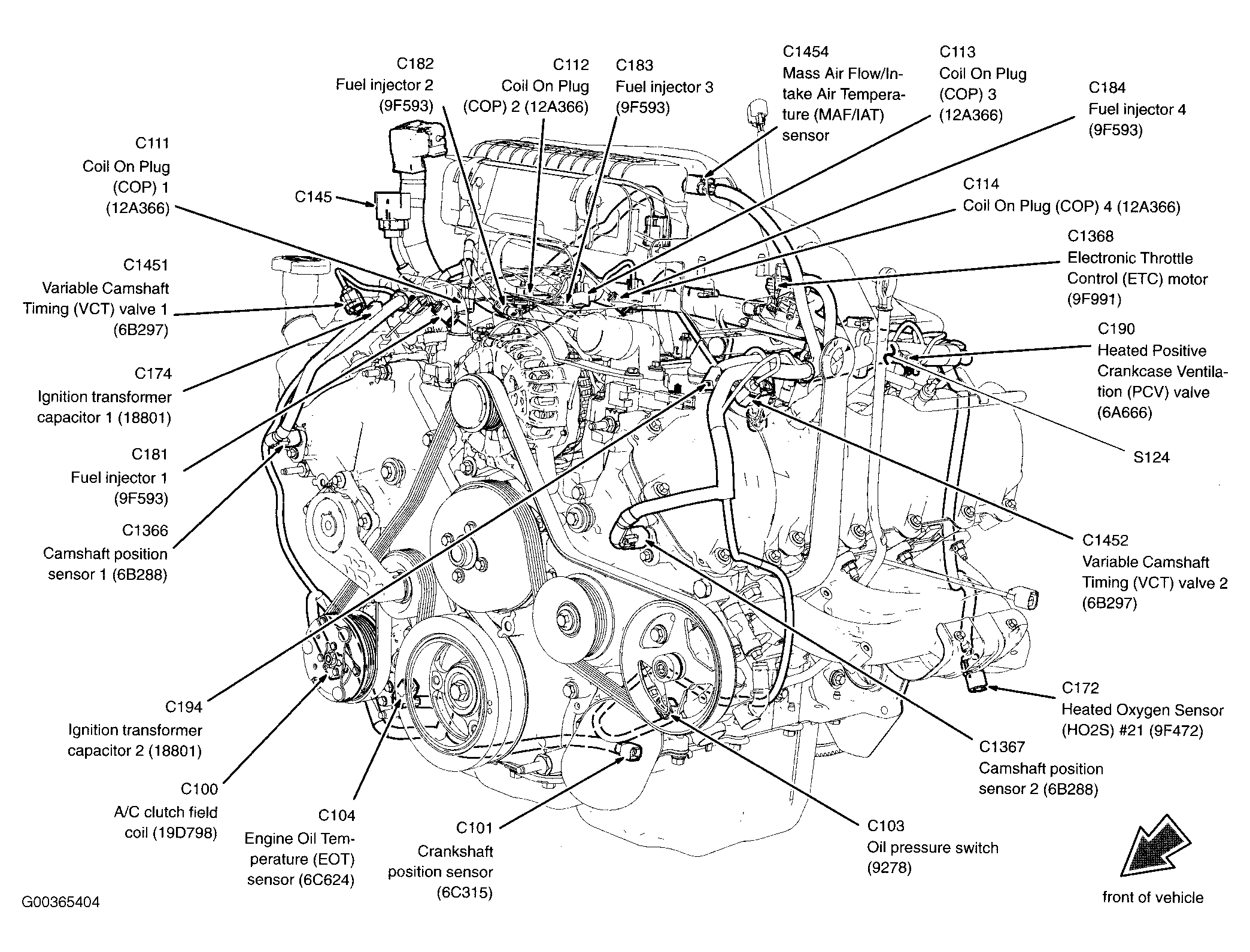

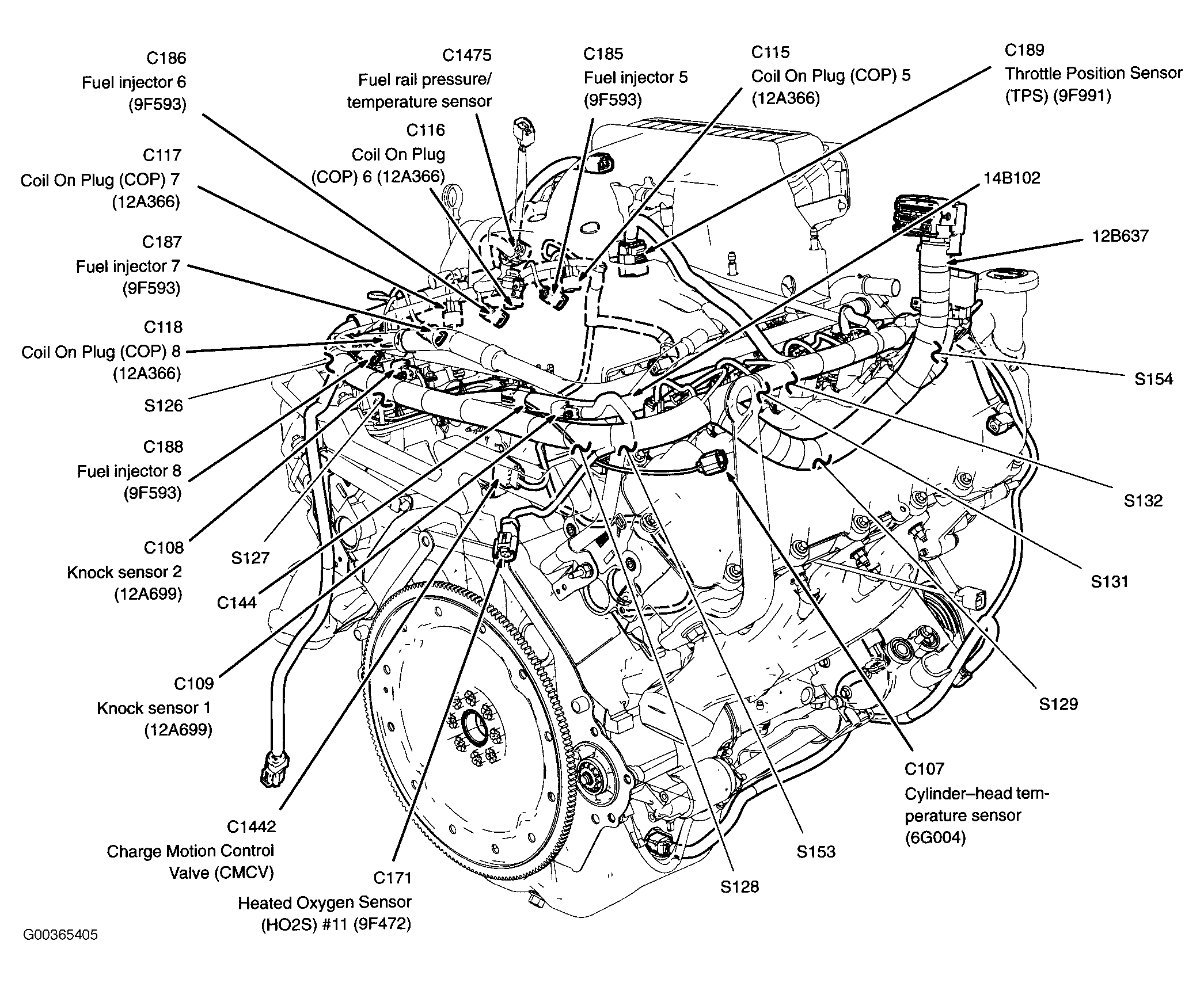

| S124 | In engine control sensor & fuel charge harness, near breakout to heated oxygen sensor No. 21. See Figure. |
| S126 | In engine control sensor & fuel charge harness, near breakout to left cylinder head. See Figure. |
| S127 | In engine control sensor & fuel charge harness, near breakout to left cylinder head. See Figure. |
| S128 | In engine control sensor & fuel charge harness, near breakout to rear of engine. See Figure. |
| S129 | In engine control sensor & fuel charge harness, near breakout to right cylinder head. See Figure. |
| S131 | In engine control sensor & fuel charge harness, at breakout to right cylinder head. See Figure. |
| S132 | In engine control sensor & fuel charge harness, at breakout to right cylinder head. See Figure. |
| S133 | In engine control sensor harness, near breakout to G102. See Figure. |
| S135 | In headlamps harness, in breakout to C133. See Figure. |
| S136 | In headlamps harness, in breakout to C134. See Figure. |

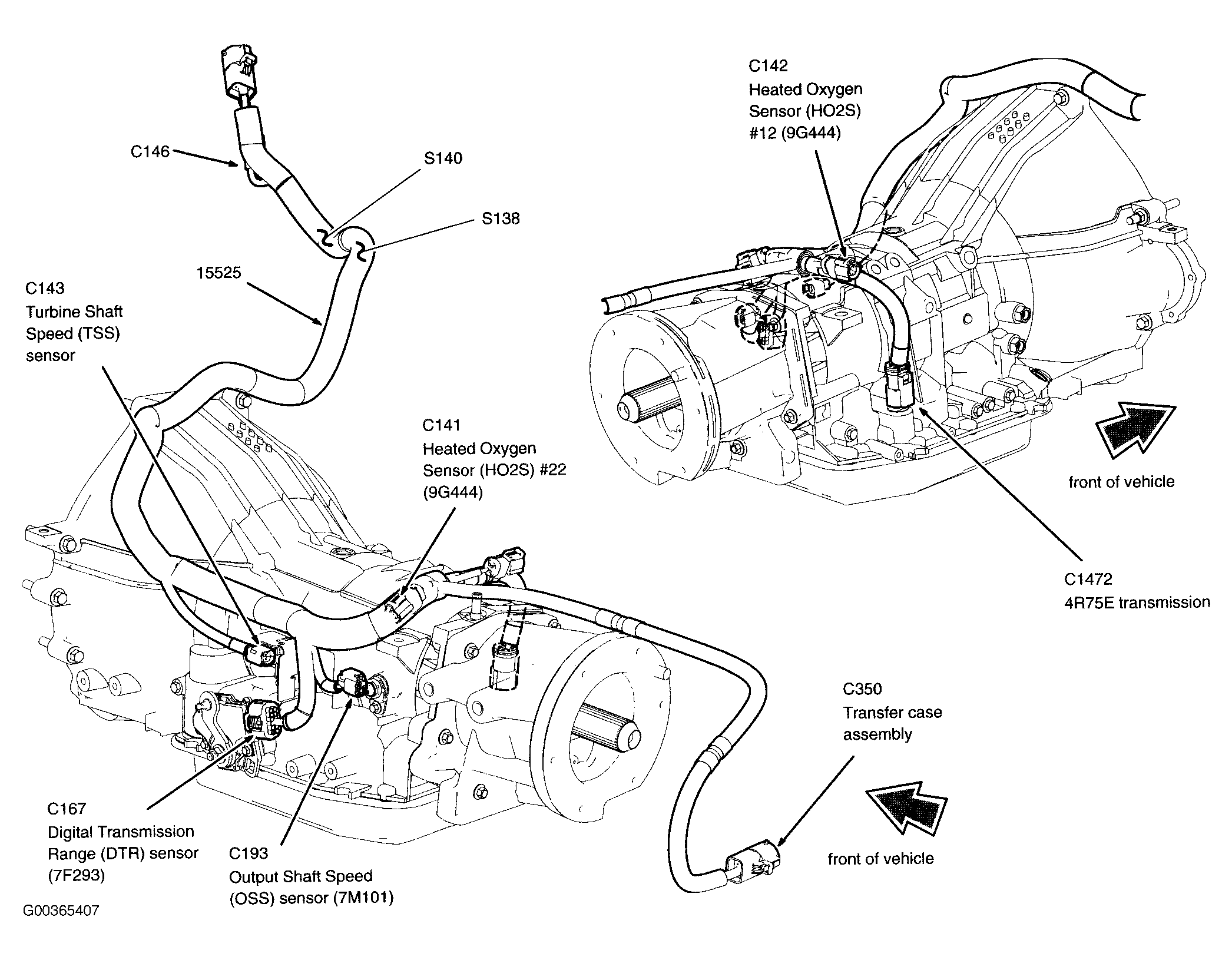

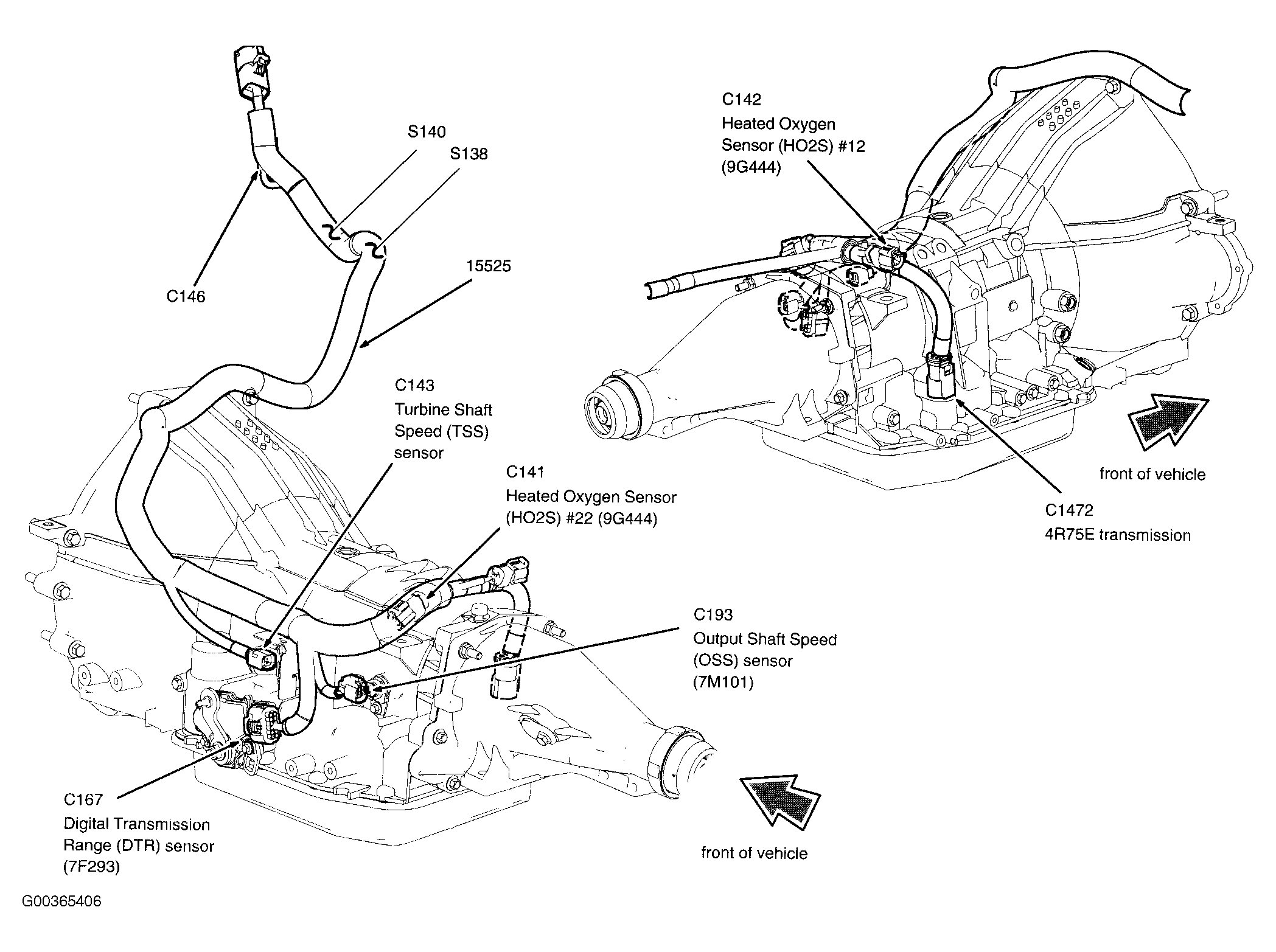

| S138 (4R75E W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S138 (4R75E W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |

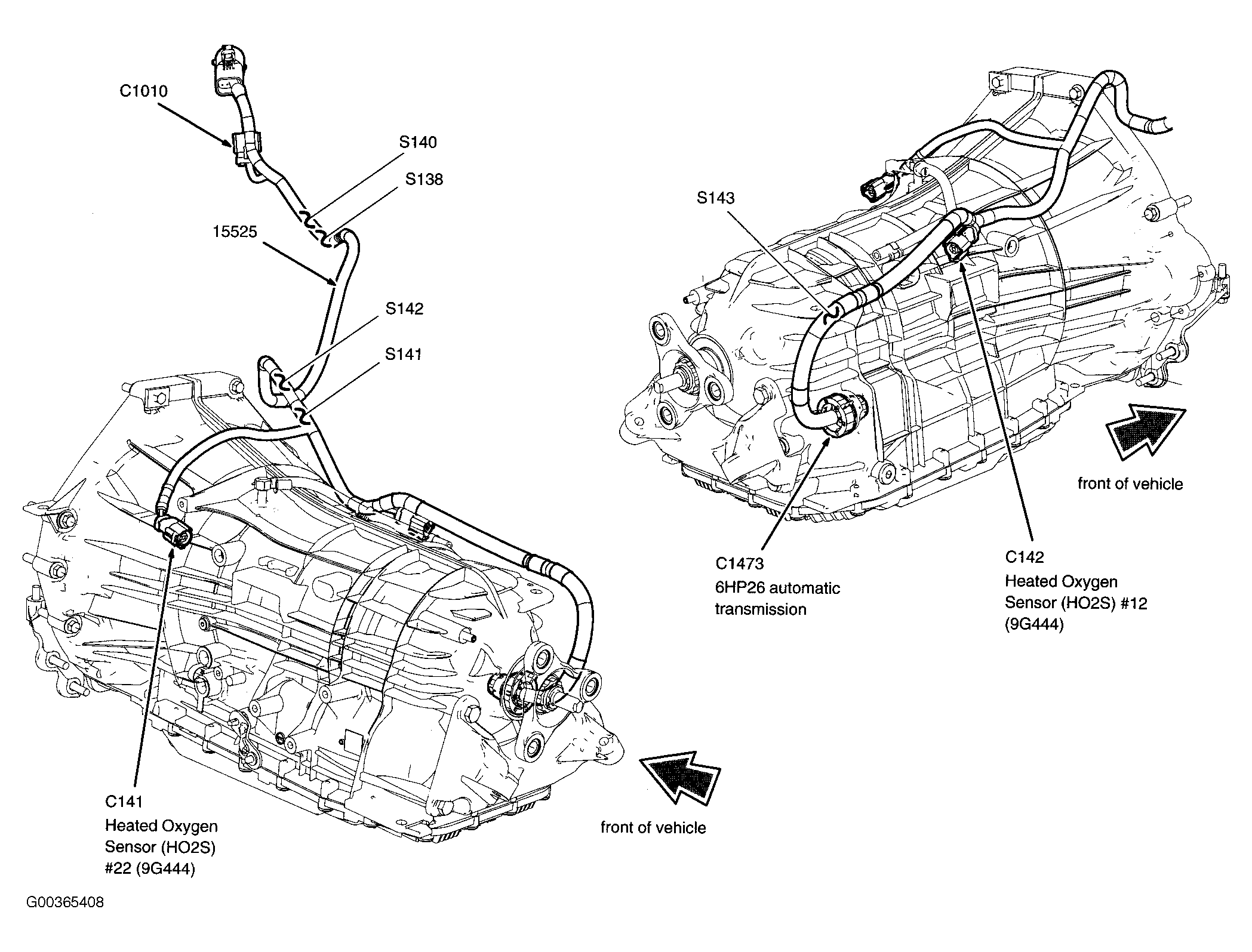

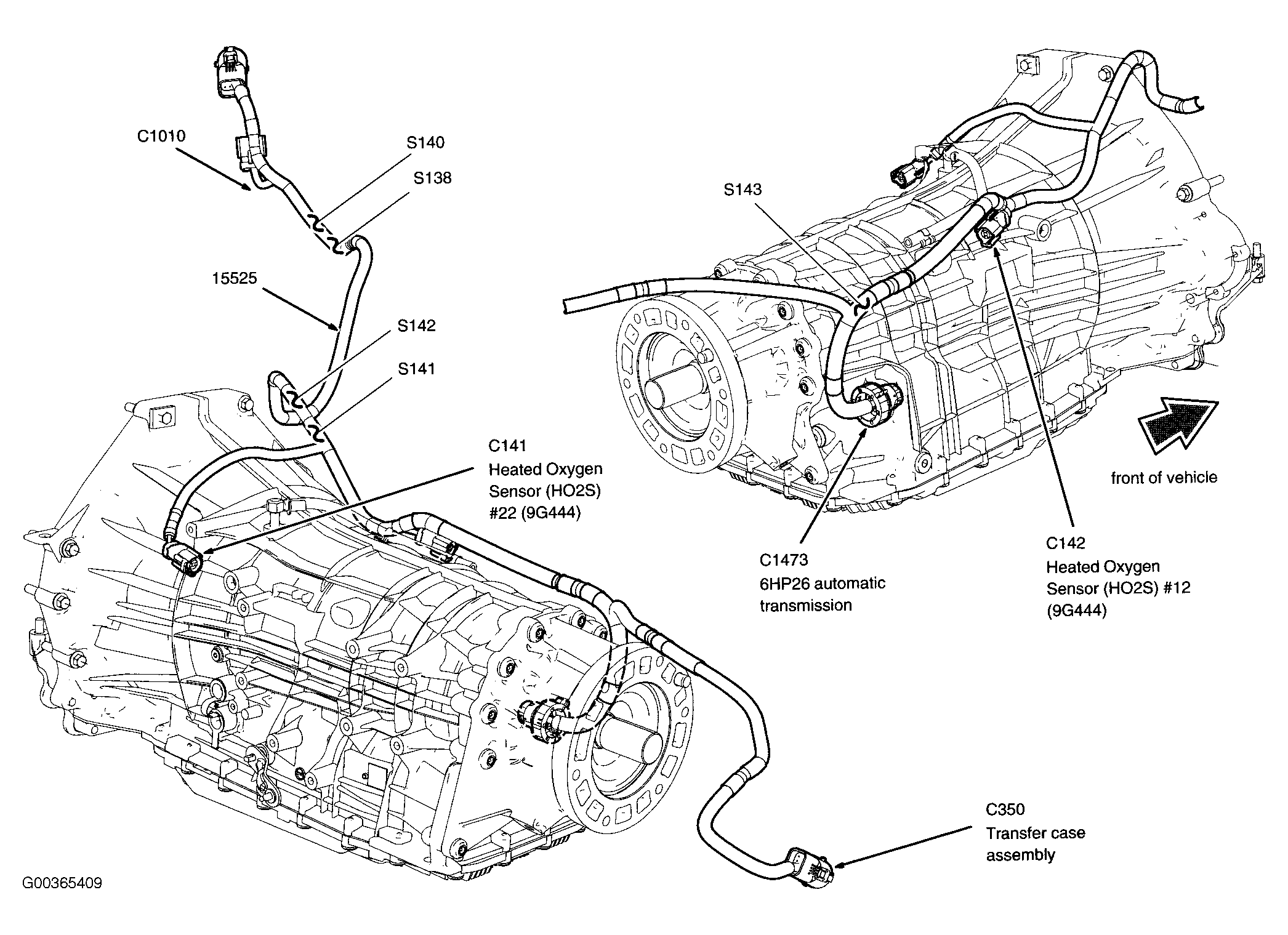

| S138 (6HP26 W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S138 (6HP26 W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S140 (4R75E W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S140 (4R75E W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S140 (6HP26 W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S140 (6HP26 W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to right side of firewall. See Figure. |
| S141 (6HP26 W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to rear of exhaust system. See Figure. |
| S141 (6HP26 W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to rear of exhaust system. See Figure. |
| S142 (6HP26 W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to rear of exhaust system. See Figure. |
| S142 (6HP26 W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to rear of exhaust system. See Figure. |
| S143 (6HP26 W/O 4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to transmission. See Figure. |
| S143 (6HP26 W/4WD) | In back-up lamp switch to rear lamp feed harness, near breakout to transmission. See Figure. |
| S145 | In alternator rectifier system harness, in breakout to fusible link "C". See Figure. |
| S146 | In engine control sensor harness, near breakout to left side of engine compartment. See Figure. |
| S147 | In engine control sensor harness, near breakout to left side of engine compartment. See Figure. |
| S148 | In engine control sensor harness, near breakout to left kick panel. See Figure. |
| S149 | In engine control sensor harness, near breakout to left front of vehicle. See Figure. |
| S150 | In engine control sensor harness, near breakout to left rear of engine compartment. See Figure. |
| S152 | In engine control sensor harness, near breakout to C145. See Figure. |
| S153 | In engine control sensor harness, near breakout to exhaust system, right side. See Figure. |
| S154 | In engine control sensor harness, near breakout to right side of firewall. See Figure. |
| S200 | In front heater blower motor harness, in breakout to C237. See Figure. |

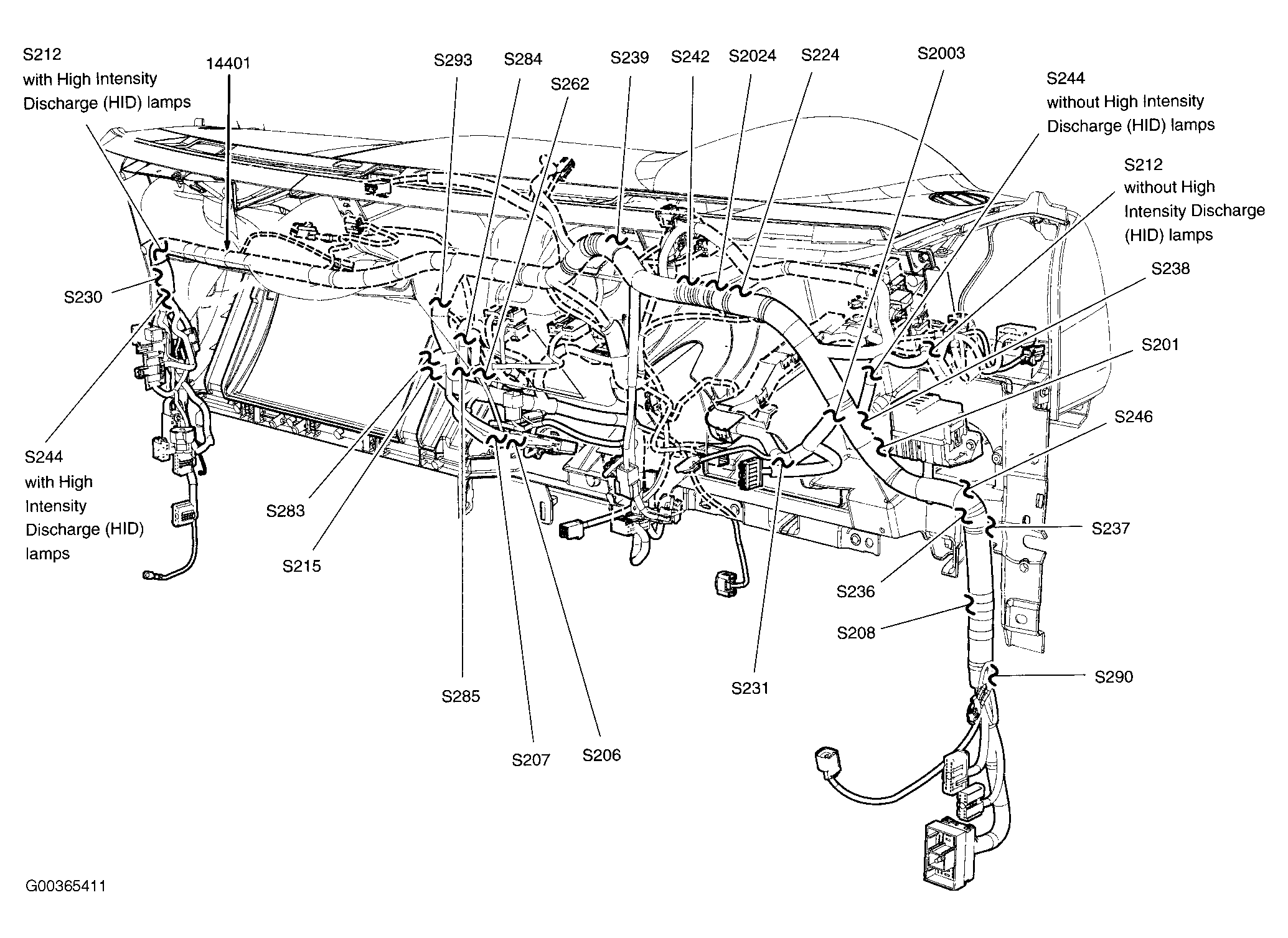

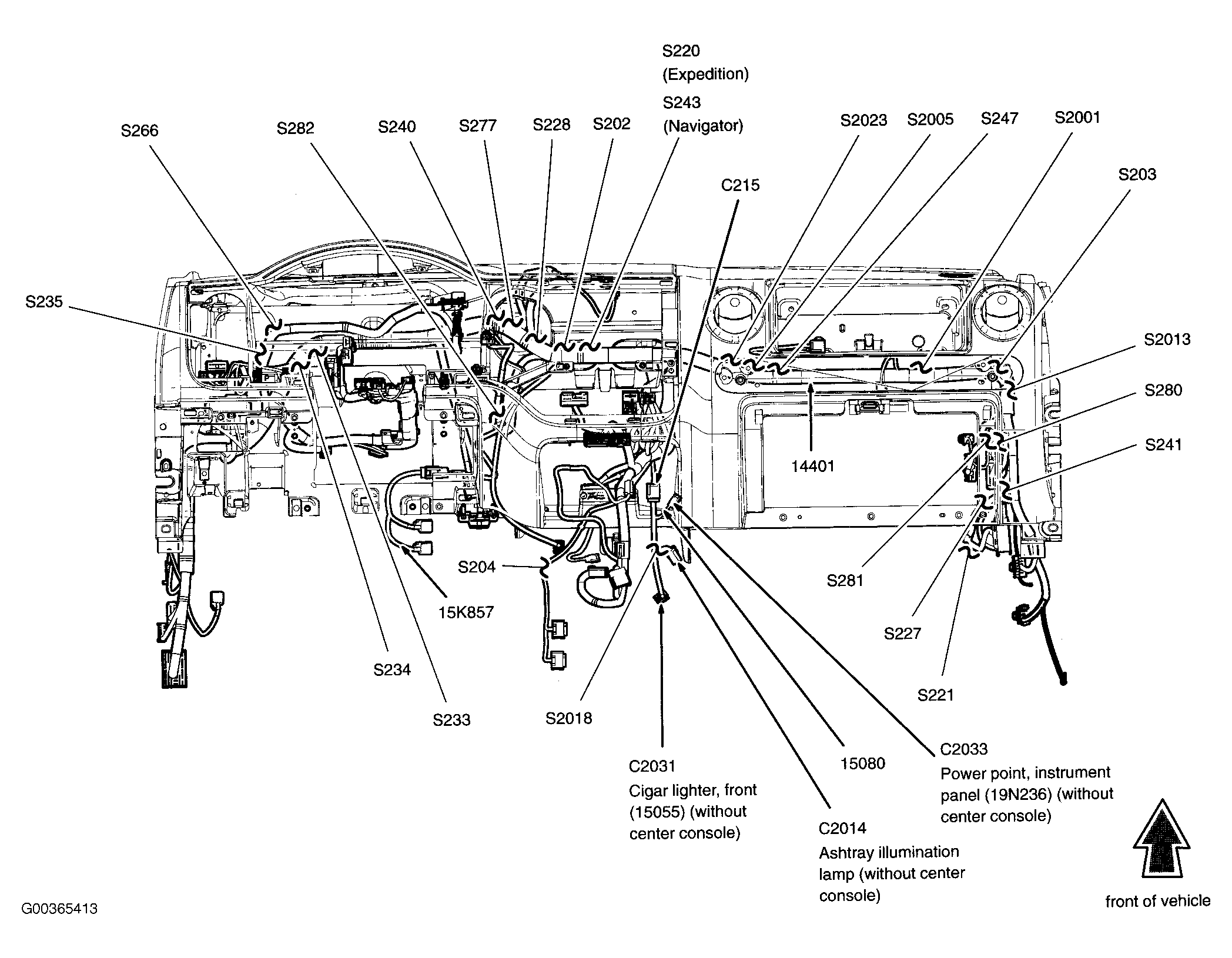

| S201 | In main harness, near breakout to left side of dash. See Figure. |
| S202 | In main harness, near breakout to center of dash. See Figure. |
| S203 | In main harness, near breakout to glove box lamp. See Figure. |
| S204 | In main harness, near breakout to glove box lamp. See Figure. |

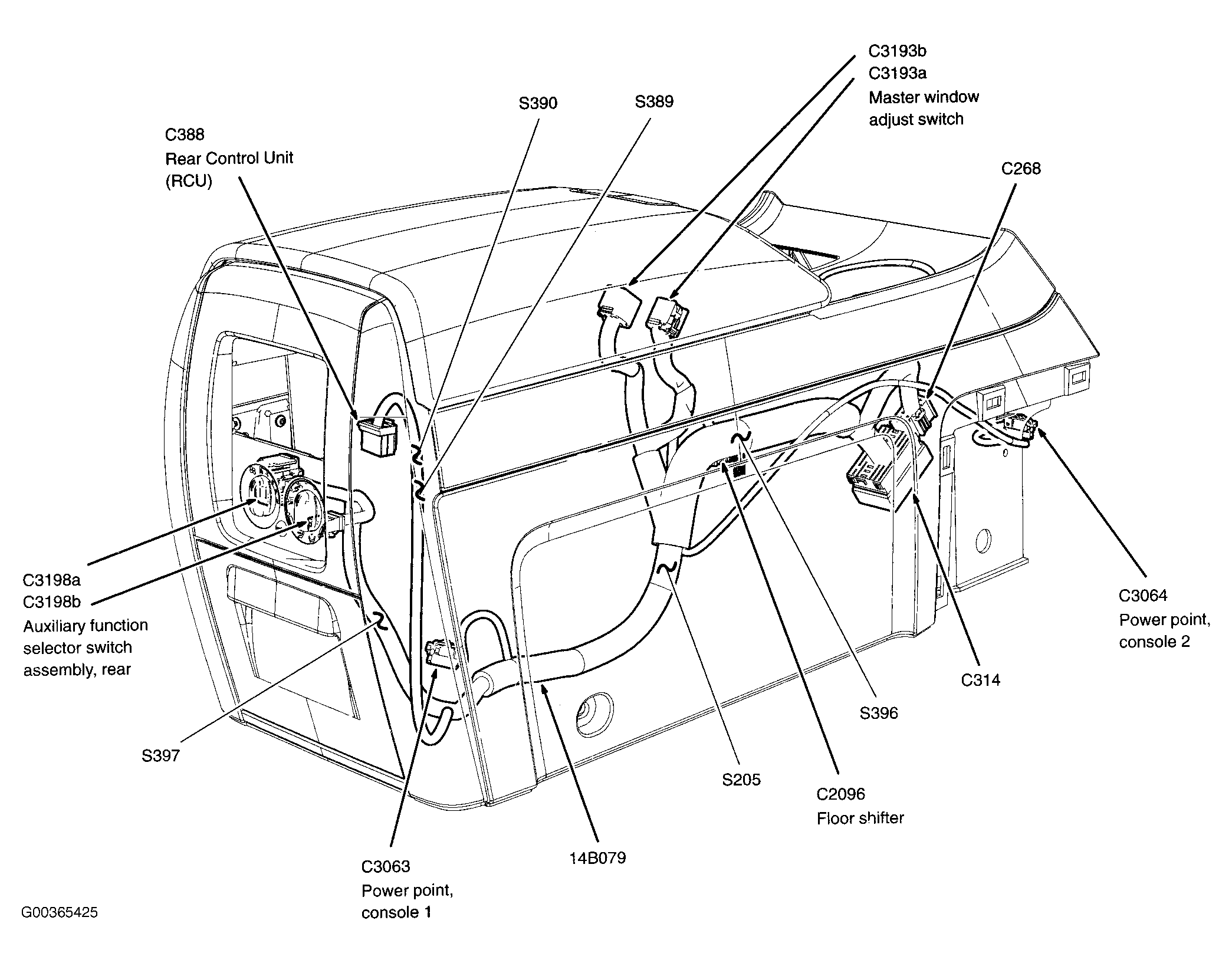

| S205 (Expedition) | In console panel harness, near breakout to storage bin power point. See Figure. |
| S205 (Navigator) | In console panel harness, near breakout to C315. See Figure. |
| S206 | In main harness, near breakout to center of dash. See Figure. |
| S207 | In main harness, near breakout to center of dash. See Figure. |
| S208 | In main harness, near breakout to top of dash. See Figure. |
| S212 (Expedition) | In main harness, near breakout to C2108. See Figure. |
| S212 (Navigator) | In main harness, near breakout to left side of dash. See Figure. |
| S215 | In main harness, near breakout to center of dash. See Figure. |
| S220 | In main harness, near breakout to top of dash. See Figure. |
| S221 | In main harness, at breakout to right side of dash. See Figure. |
| S224 | In main harness, near breakout to brake pedal position switch. See Figure. |
| S227 | In main harness, at breakout to right side of dash. See Figure. |
| S228 | In main harness, at breakout to right side of dash. See Figure. |
| S230 | In main harness, near breakout to C210. See Figure. |
| S231 | In main harness, near breakout to brake pedal position switch. See Figure. |
| S233 | In main harness, near breakout to left side of dash. See Figure. |
| S234 | In main harness, near breakout to left side of dash. See Figure. |
| S235 | In main harness, near breakout to left side of dash. See Figure. |
| S236 | In main harness, near breakout to left side of dash. See Figure. |
| S237 | In main harness, near breakout to left side of dash. See Figure. |
| S238 | In main harness, near breakout to left side of dash. See Figure. |
| S239 | In main harness, near breakout to top of dash. See Figure. |
| S240 | In main harness, near breakout to top of dash. See Figure. |
| S241 | In main harness, near breakout to right side of dash. See Figure. |
| S242 | In main harness, near breakout to center of dash. See Figure. |
| S243 | In main harness, near breakout to center of dash. See Figure. |
| S244 (W/HID Lamps) | In main harness, near breakout to right side of dash. See Figure. |
| S244 (W/O HID Lamps) | In main harness, near breakout to brake pedal position switch. See Figure. |
| S245 | In engine control sensor harness, near breakout to C211. See Figure. |
| S246 | In main harness, near breakout to G202. See Figure. |
| S247 | In main harness, near breakout to right side of dash. See Figure. |
| S248 | In main harness, near breakout to C238. See Figure. |
| S249 | In main harness, near breakout to C238. See Figure. |
| S262 | In main harness, near breakout to front function selector switch assembly. See Figure. |
| S266 | In main harness, in breakout to instrument cluster. See Figure. |
| S277 | In main harness, near breakout to brake pedal position switch. See Figure. |

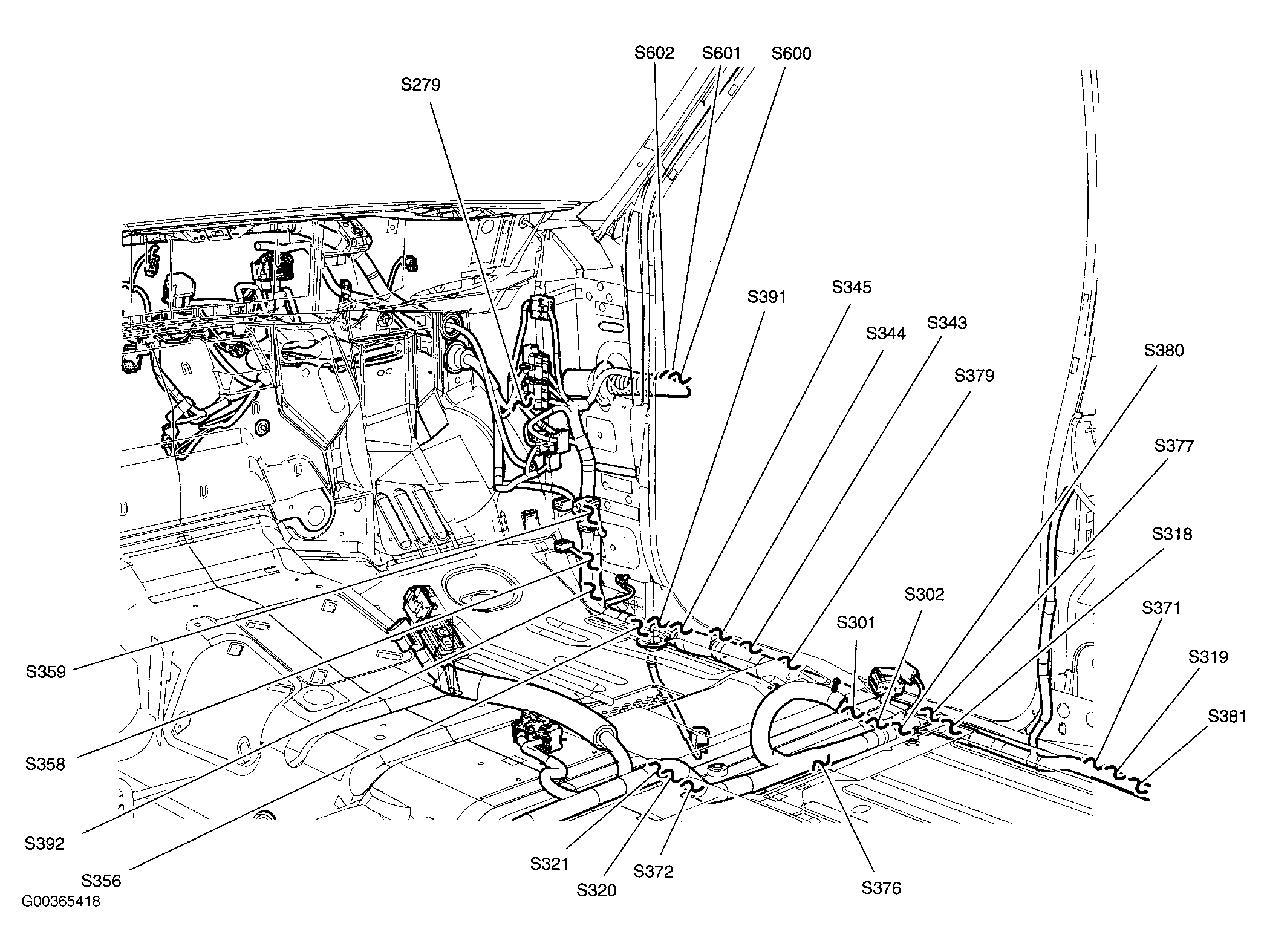

| S279 | In body main harness, in breakout to C214. See Figure. |
| S280 | In main harness, in breakout to C214. See Figure. |
| S281 | In main harness, in breakout to C210. See Figure. |
| S282 | In main harness, near breakout to center of dash. See Figure. |
| S283 | In main harness, near breakout to center of dash. See Figure. |
| S284 | In main harness, near breakout to center of dash. See Figure. |
| S285 | In main harness, near breakout to center of dash. See Figure. |
| S290 | In main harness, near breakout to G202. See Figure. |
| S291 | In front heater blower motor harness, in breakout to heater blower motor. See Figure. |
| S293 | In main harness, near breakout to center of dash. See Figure. |

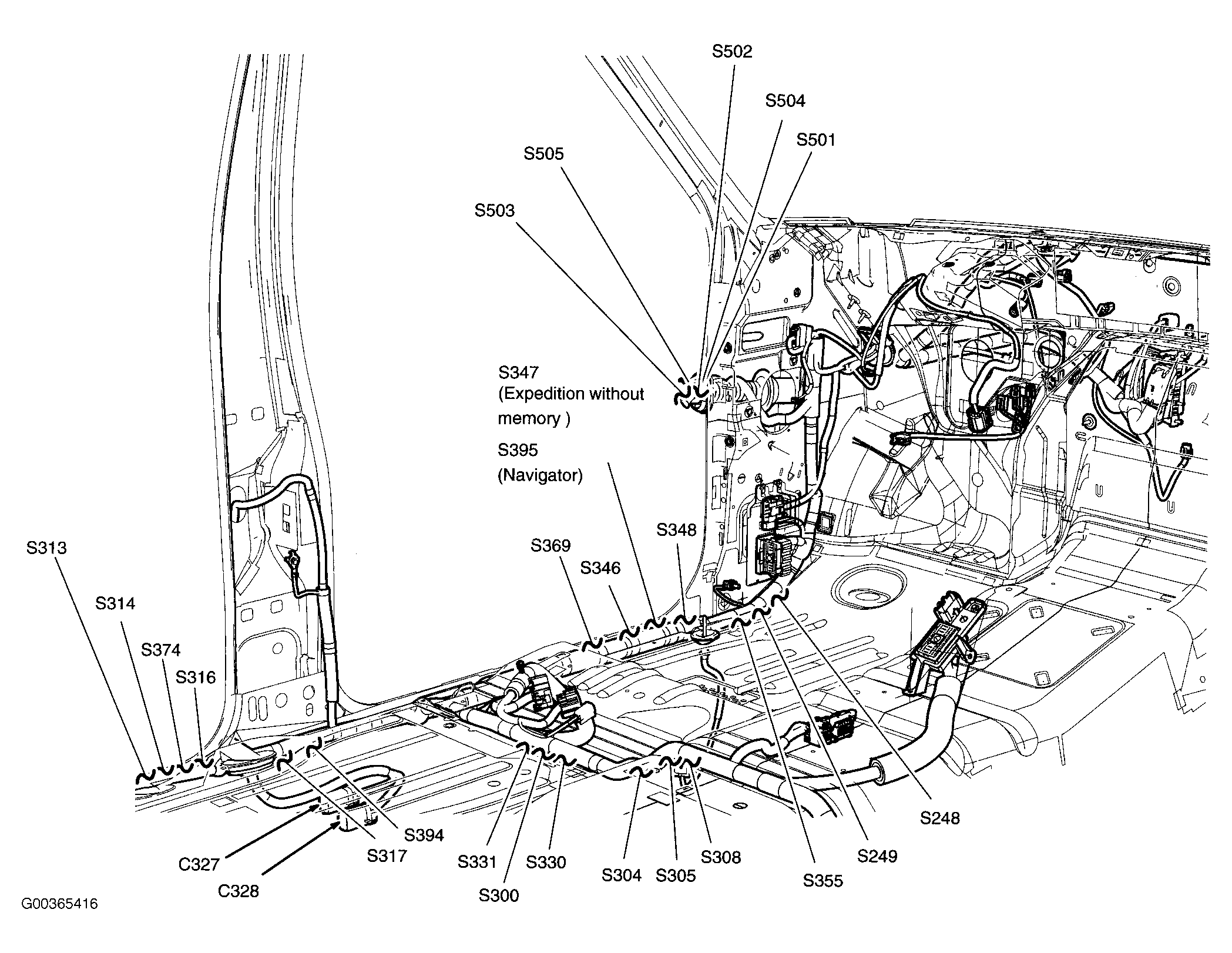

| S300 | In body main harness, near breakout to center console. See Figure. |
| S301 | In body main harness, near breakout passenger seat seat belt buckle. See Figure. |
| S302 | In body main harness, near breakout passenger seat seat belt buckle. See Figure. |

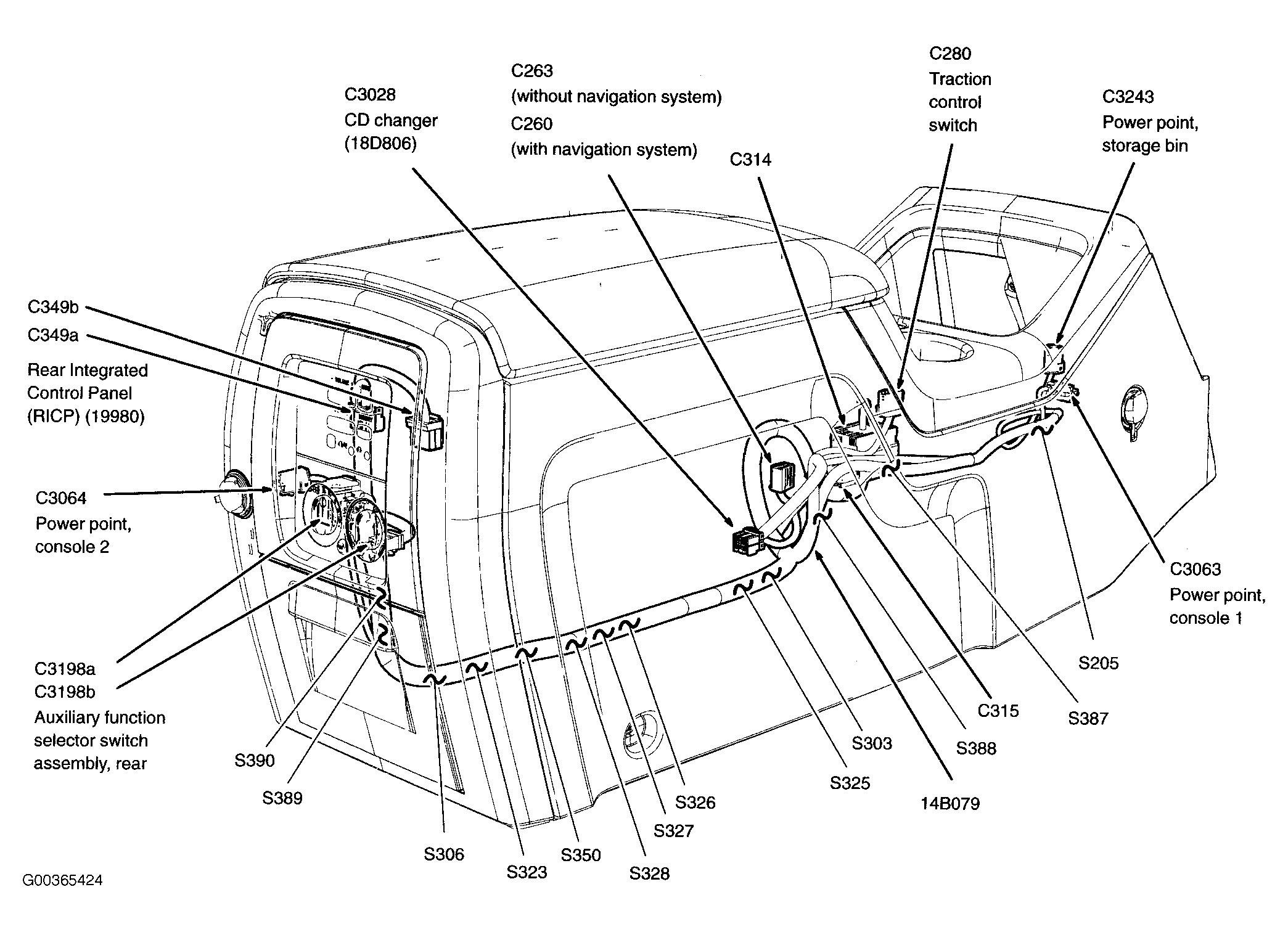

| S303 | In console panel harness, near breakout to C260. See Figure. |
| S304 | In body main harness, near breakout to center console. See Figure. |
| S305 | In body main harness, near breakout to center console. See Figure. |
| S306 | In console panel harness, near breakout to center console. See Figure. |
| S308 | In body main harness, near breakout to restraints control module. See Figure. |
| S309 | In power seats harness, near breakout to C311. See Figure. |
| S310 | In power seats harness, in breakout to driver's seat. See Figure. |
| S311 | In power seats harness, near breakout to C316. See Figure. |

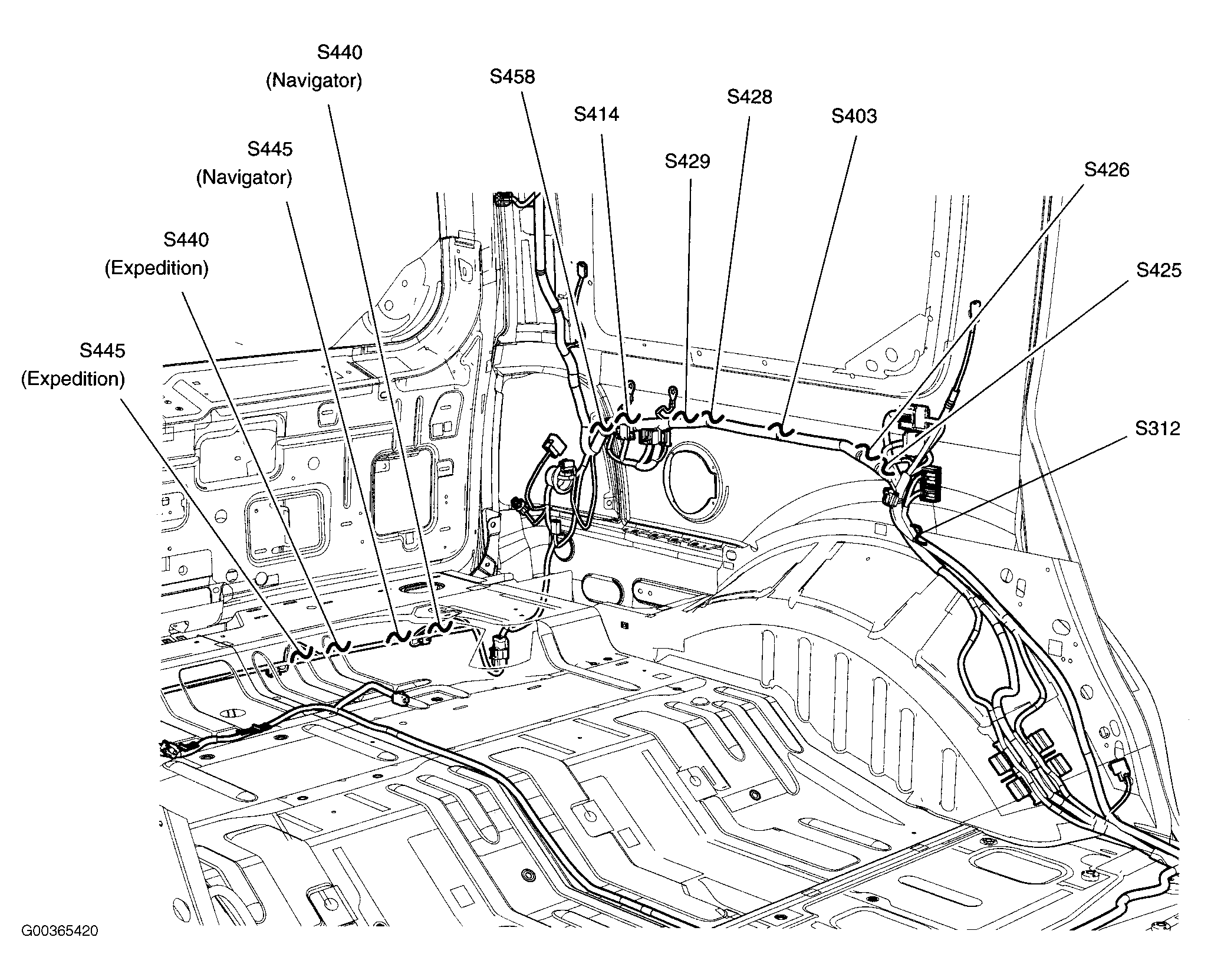

| S312 | In body main harness, near breakout to C465. See Figure. |
| S313 | In body main harness, near breakout to left "C" pillar. See Figure. |
| S314 | In body main harness, near breakout to C328. See Figure. |
| S316 | In body main harness, near breakout to C328. See Figure. |
| S317 | In body main harness, near breakout to C328. See Figure. |
| S318 | In body main harness, near breakout to passenger seat seat belt buckle. See Figure. |
| S319 | In body main harness, near breakout to right "C" pillar. See Figure. |
| S320 | In body main harness, near breakout to center console. See Figure. |
| S321 | In body main harness, near breakout to center console. See Figure. |
| S323 | In body main harness, near breakout to center console. See Figure. |
| S325 | In body main harness, near breakout to C260. See Figure. |
| S326 | In body main harness, near breakout to center console. See Figure. |
| S327 | In body main harness, near breakout to center console. See Figure. |
| S328 | In body main harness, near breakout to center console. See Figure. |
| S329 | In power seats harness, near breakout to passenger seat. See Figure. |
| S330 | In body main harness, near breakout to C311. See Figure. |
| S331 | In body main harness, near breakout to C311. See Figure. |
| S343 | In body main harness, near breakout to G201. See Figure. |
| S344 | In body main harness, near breakout to G201. See Figure. |
| S345 | In body main harness, near breakout to G201. See Figure. |
| S346 | In body main harness, near breakout to G301. See Figure. |
| S347 | In body main harness, near breakout to G301. See Figure. |
| S348 | In body main harness, near breakout to G301. See Figure. |
| S350 | In console panel harness, near breakout to center console. See Figure. |
| S355 | In body main harness, near breakout to G301. See Figure. |
| S356 | In body main harness, near breakout to G201. See Figure. |
| S358 | In body main harness, near breakout to C214. See Figure. |
| S359 | In body main harness, near breakout to C214. See Figure. |
| S360 | In power seats harness, near breakout to underside of passenger seat. See Figure. |
| S369 | In body main harness, near breakout to G301. See Figure. |

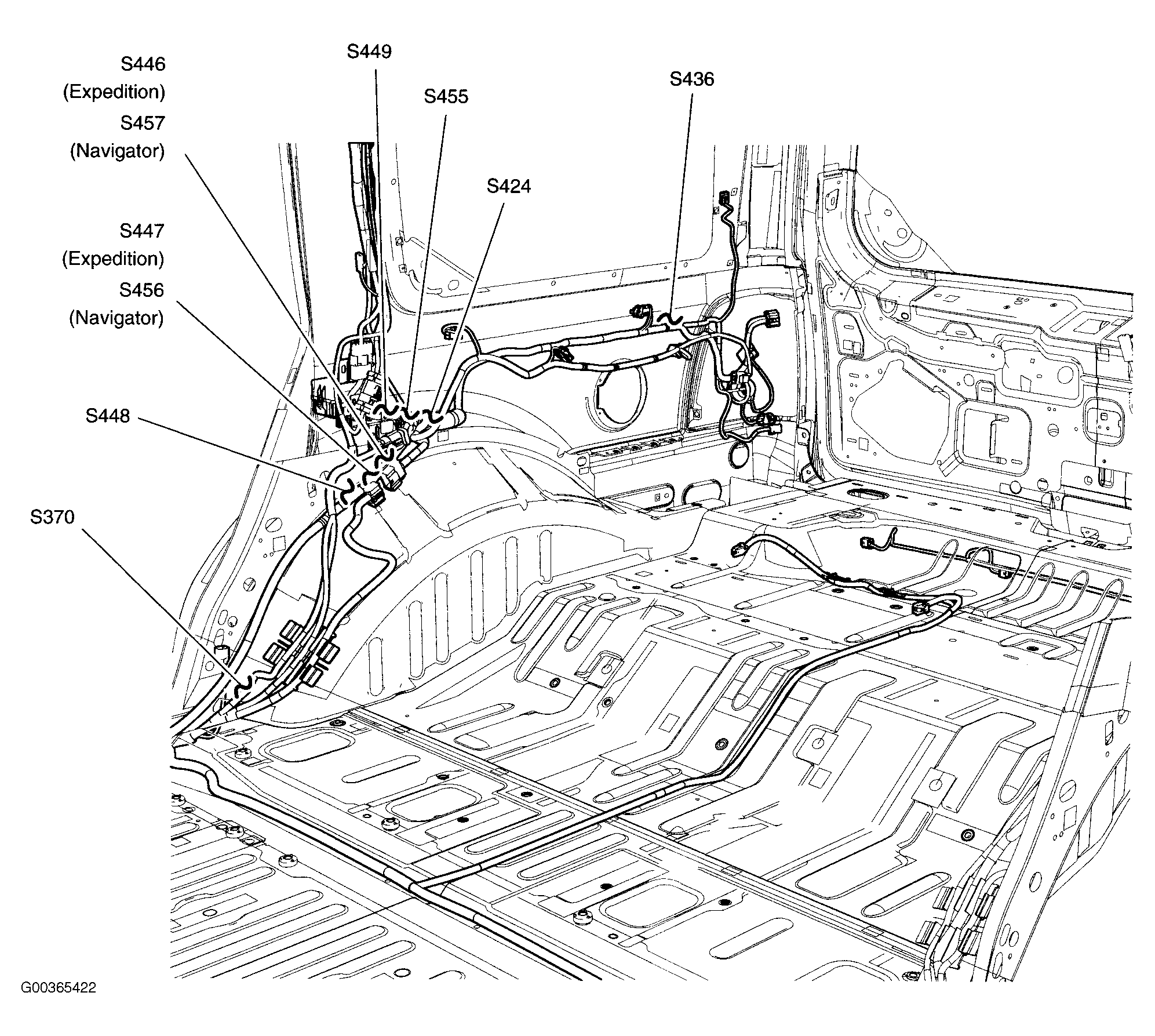

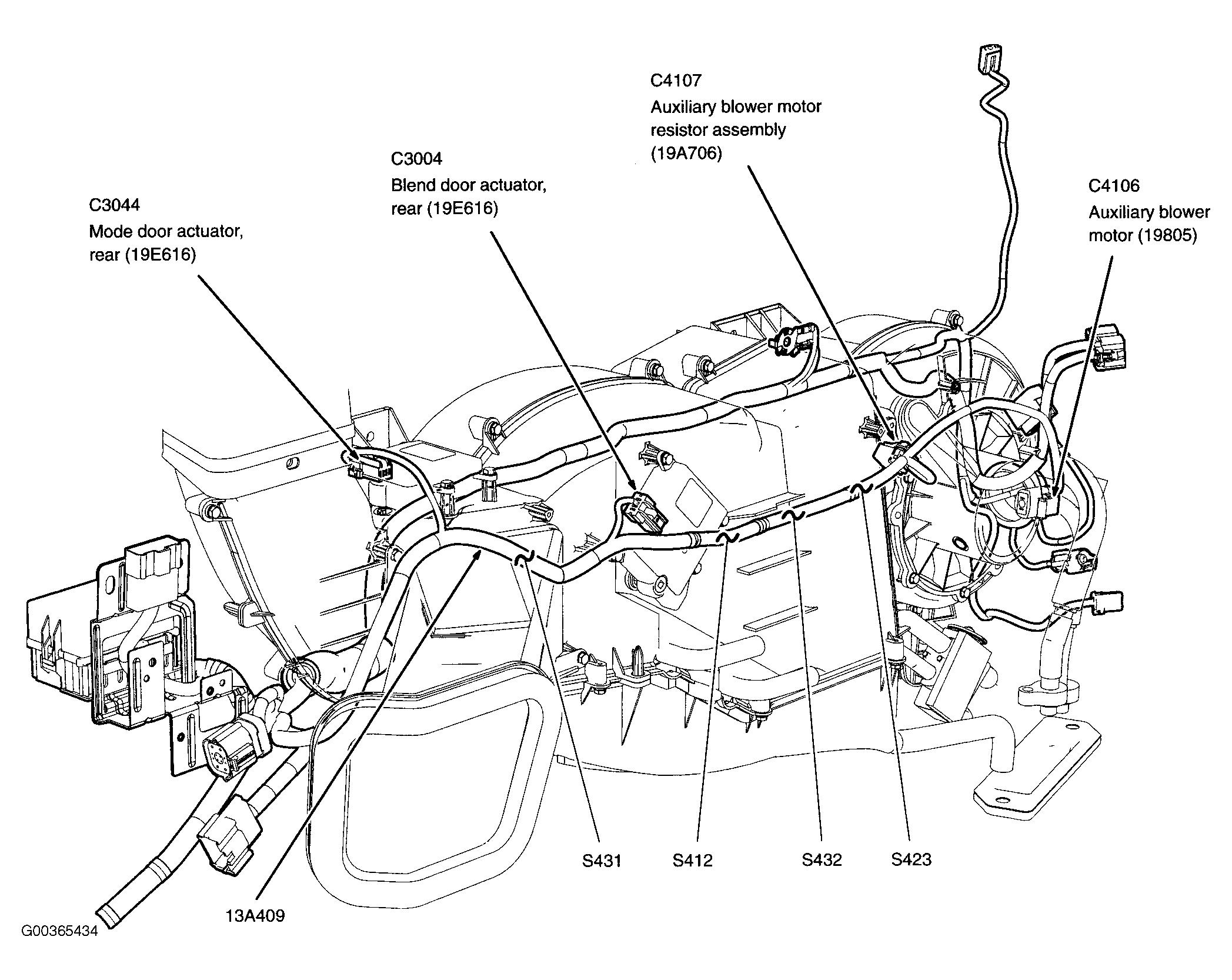

| S370 | In body main harness, near breakout to right "C" pillar. See Figure. |
| S371 | In body main harness, near breakout to right "C" pillar. See Figure. |
| S372 | In body main harness, near breakout under center console. See Figure. |
| S374 | In body main harness, near breakout to C328. See Figure. |
| S376 | In body main harness, near breakout to passenger seat seat belt buckle. See Figure. |
| S377 | In body main harness, near breakout to passenger seat seat belt buckle. See Figure. |
| S379 | In body main harness, near breakout under center console. See Figure. |
| S380 | In body main harness, near breakout to passenger seat seat belt buckle. See Figure. |
| S381 | In body main harness, near breakout to right "C" pillar. See Figure. |
| S382 | In power seats harness, near breakout to driver seat seat belt buckle. See Figure. |
| S383 | In power seats harness, near breakout under driver seat. See Figure. |
| S384 | In power seats harness, near breakout to left side of driver seat. See Figure. |
| S385 | In power seats harness, near breakout under driver seat. See Figure. |
| S387 | In console panel harness, in breakout to center of dash. See Figure. |
| S388 | In console panel harness, in breakout to C315. See Figure. |
| S389 (Expedition) | In console panel harness, near breakout to center console. See Figure. |
| S389 (Navigator) | In console panel harness, near breakout to rear control unit. See Figure. |
| S390 (Expedition) | In console panel harness, near breakout to center console. See Figure. |
| S390 (Navigator) | In console panel harness, near breakout to rear control unit. See Figure. |
| S391 | In body main harness, near breakout to G201. See Figure. |
| S392 | In body main harness, near breakout to right side of dash. See Figure. |
| S393 | In body main harness, near breakout to left front door. See Figure. |
| S394 | In body main harness, near breakout to C328. See Figure. |
| S395 | In body main harness, near breakout to G301. See Figure. |
| S396 | In console panel harness, near breakout to C315. See Figure. |
| S397 | In console panel harness, near breakout to rear of center console. See Figure. |
| S400 | In right rear window regulator control switch & wiring assembly, in breakout to left side of liftgate. See Figure. |
| S402 | In right rear window regulator control switch & wiring assembly, near breakout to rear window. See Figure. |
| S403 | In rear lamp connector harness, near breakout to C465. See Figure. |
| S412 | In rear lamp connector harness, near breakout after right "C" pillar, behind trim panel. See Figure. |
| S414 | In rear lamp connector harness, near breakout to G401. See Figure. |
| S423 | In rear lamp connector harness, near breakout after right "C" pillar, behind trim panel. See Figure. |
| S424 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S425 | In rear lamp connector harness, near breakout to C465. See Figure. |
| S426 | In rear lamp connector harness, near breakout to C465. See Figure. |
| S427 | In right rear window regulator control switch & wiring assembly, near breakout to rear window. See Figure. |
| S428 | In rear lamp connector harness, near breakout to G402. See Figure. |
| S429 | In rear lamp connector harness, near breakout to G402. See Figure. |
| S431 | In rear lamp connector harness, near breakout after right "C" pillar, behind trim panel. See Figure. |
| S432 | In rear lamp connector harness, near breakout after right "C" pillar, behind trim panel. See Figure. |
| S436 | In rear lamp connector harness, near breakout to G404. See Figure. |
| S440 | In back-up alarm jumper harness, near breakout to C4110. See Figure. |
| S445 | In back-up alarm jumper harness, near breakout to right center of bumper. See Figure. |
| S446 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S447 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S448 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S449 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S450 | In taillamp harness, near breakout to rear bumper. See Figure. |
| S451 | In taillamp harness, near breakout to rear bumper. See Figure. |
| S452 | In taillamp harness, near breakout to G400. See Figure. |
| S453 | In taillamp harness, near breakout to G400. See Figure. |
| S454 | In taillamp harness, near breakout to C327. See Figure. |
| S455 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S456 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S457 | In rear lamp connector harness, near breakout to C410. See Figure. |
| S458 | In rear lamp connector harness, near breakout to trim panel at left side of loading area. See Figure. |
| S459 | In taillamp harness, near breakout to rear bumper. See Figure. |
| S461 | In taillamp harness, near breakout to vehicle underbody, above rear axle. See Figure. |
| S462 | In right rear window regulator control switch & wiring assembly, near breakout to right rear of vehicle. See Figure. |
| S463 | In right rear window regulator control switch & wiring assembly, near breakout to liftgate. See Figure. |
| S464 | In right rear window regulator control switch & wiring assembly, near breakout to right side of liftgate. See Figure. |
| S465 | In right rear window regulator control switch & wiring assembly, near breakout to liftgate. See Figure. |

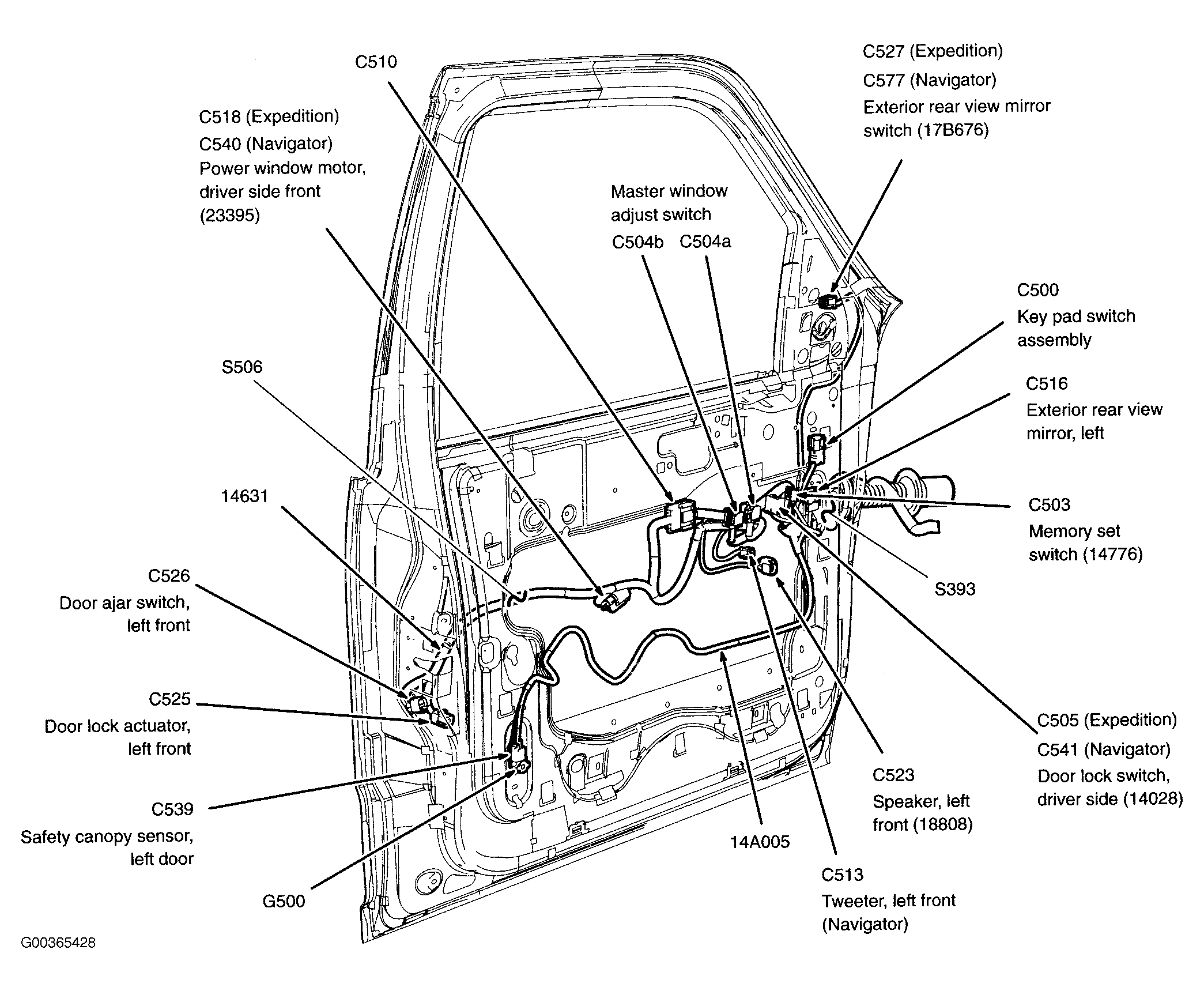

| S501 | In body main harness, near breakout to left front door. See Figure. |
| S502 | In body main harness, near breakout to left front door. See Figure. |
| S503 | In body main harness, near breakout to left front door. See Figure. |
| S504 | In body main harness, near breakout to left front door. See Figure. |
| S505 | In body main harness, near breakout to left front door. See Figure. |
| S506 | In body main harness, near breakout to left front door. See Figure. |
| S600 | In body main harness, near breakout to right right front door. See Figure. |
| S601 | In body main harness, near breakout to right front door. See Figure. |
| S602 | In body main harness, near breakout to right front door. See Figure. |

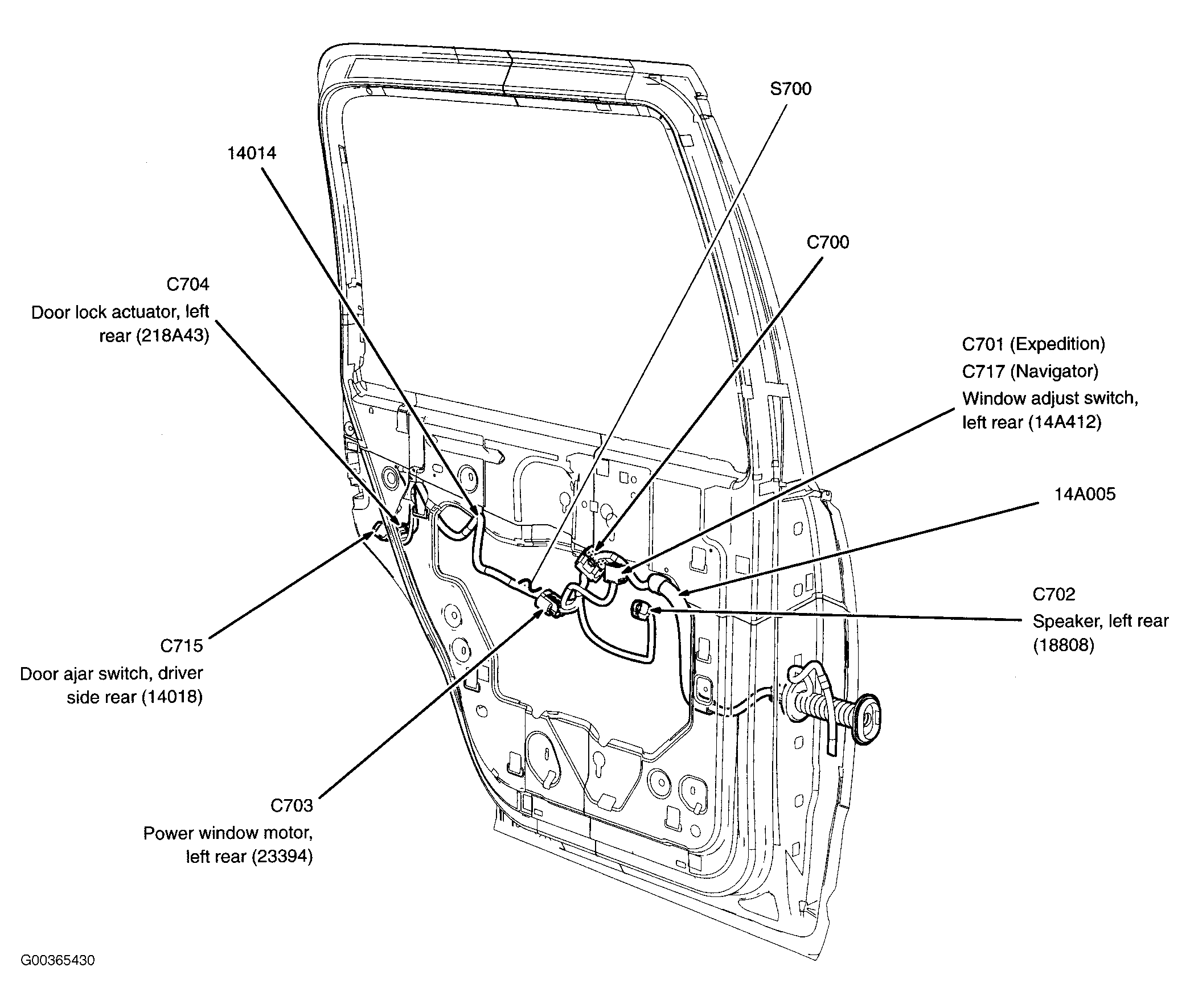

| S700 | In door lock feed harness, near breakout to left rear door. See Figure. |

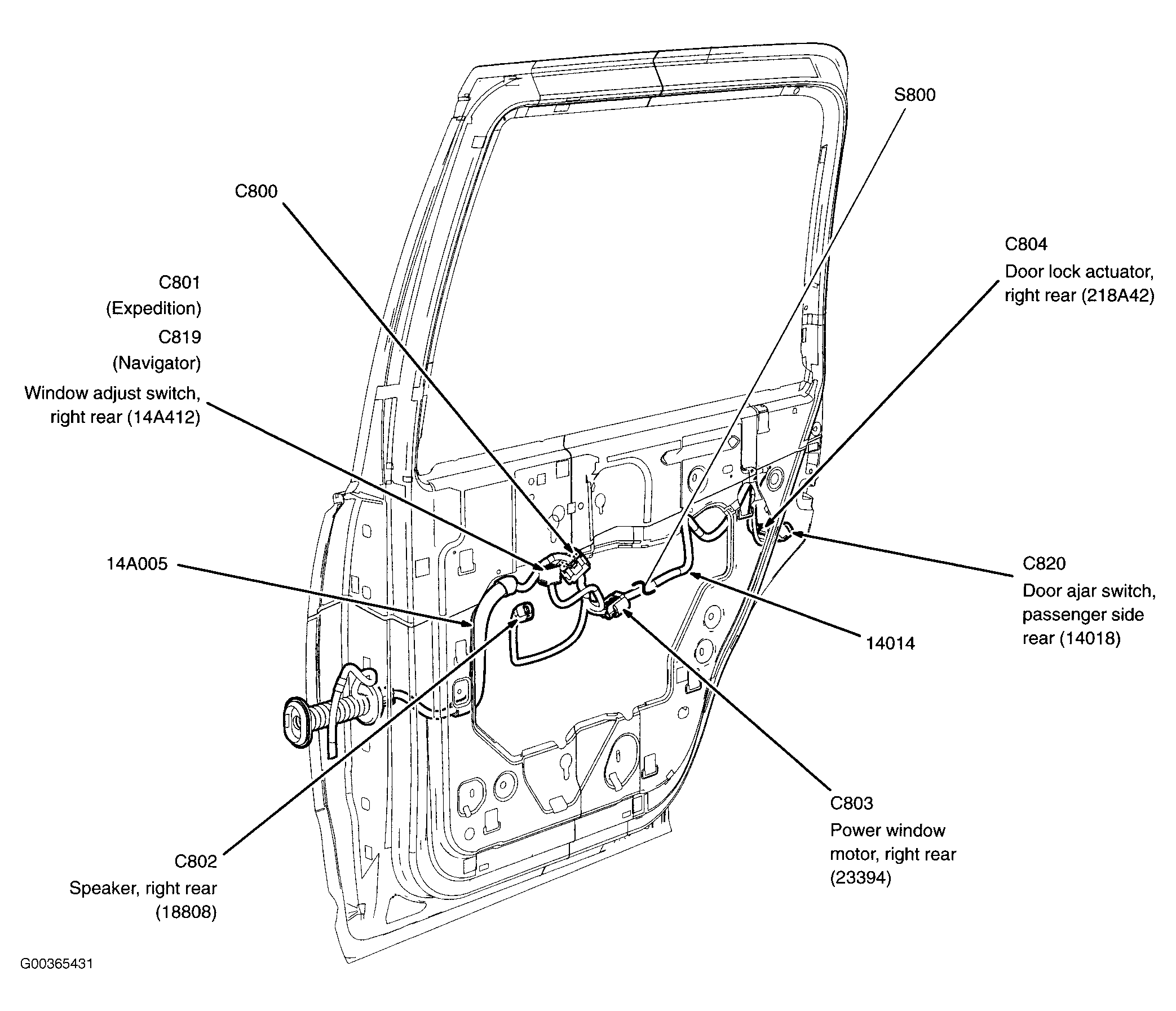

| S800 | In door lock feed harness, near breakout to right rear door. See Figure. |
| S901 | In interior illumination harness, near breakout to right side of roof panel. See Figure. |
| S902 | In interior illumination harness, near breakout to right side of roof panel. See Figure. |
| S904 | In interior illumination harness, near breakout to center of roof panel. See Figure. |
| S905 | In interior illumination harness, near breakout to right front of roof panel. See Figure. |
| S906 | In interior illumination harness, near breakout to right front of roof panel. See Figure. |
| S907 | In interior illumination harness, near breakout to right front of roof panel. See Figure. |
| S908 | In interior illumination harness, near breakout to right side of roof panel. See Figure. |
| S909 | In interior illumination harness, near breakout to center of roof panel. See Figure. |
| S910 | In rear lamp connector harness, near breakout to rear of roof. See Figure. |
| S914 | In rear lamp connector harness, near breakout to rear of roof. See Figure. |
| S915 | In vanity mirror lamp harness, at breakout for C298. See Figure. |
| S1001 | In alternator rectifier system harness, in breakout to fusible link "C". See Figure. |
| S1002 | In alternator rectifier system harness, in breakout to fusible link "B". See Figure. |
| S2001 | In main harness, near breakout behind glove box. See Figure. |
| S2003 | In main harness, near breakout to brake pedal position switch. See Figure. |
| S2005 | In main harness, near breakout to C256. See Figure. |
| S2013 | In main harness, near breakout to C291. See Figure. |
| S2018 | In cigar lighter lamp wiring & socket assembly, in breakout to center of dash. See Figure. |
| S2023 | In main harness, near breakout to C256. See Figure. |
| S2024 | In main harness, near breakout to brake pedal position switch. See Figure. |
| S2025 | In front heater blower motor harness, near breakout to right side of dash. See Figure. |
| S2026 | In front heater blower motor harness, near breakout to right side of dash. See Figure. |
