Starter Motor: Notes

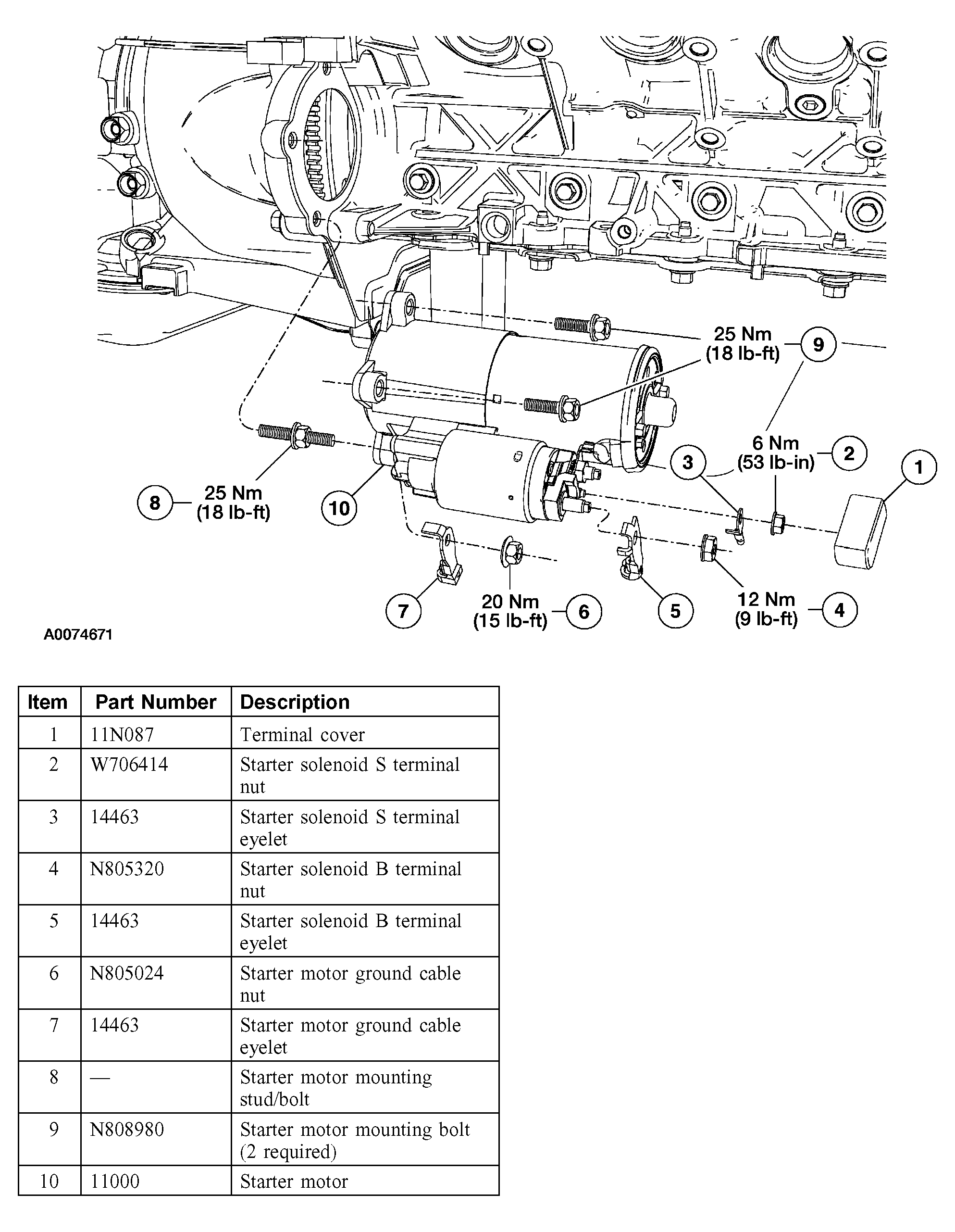

Fig 1: Exploded View Of Starter Motor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
