Engine Lubrication Components - Exploded View

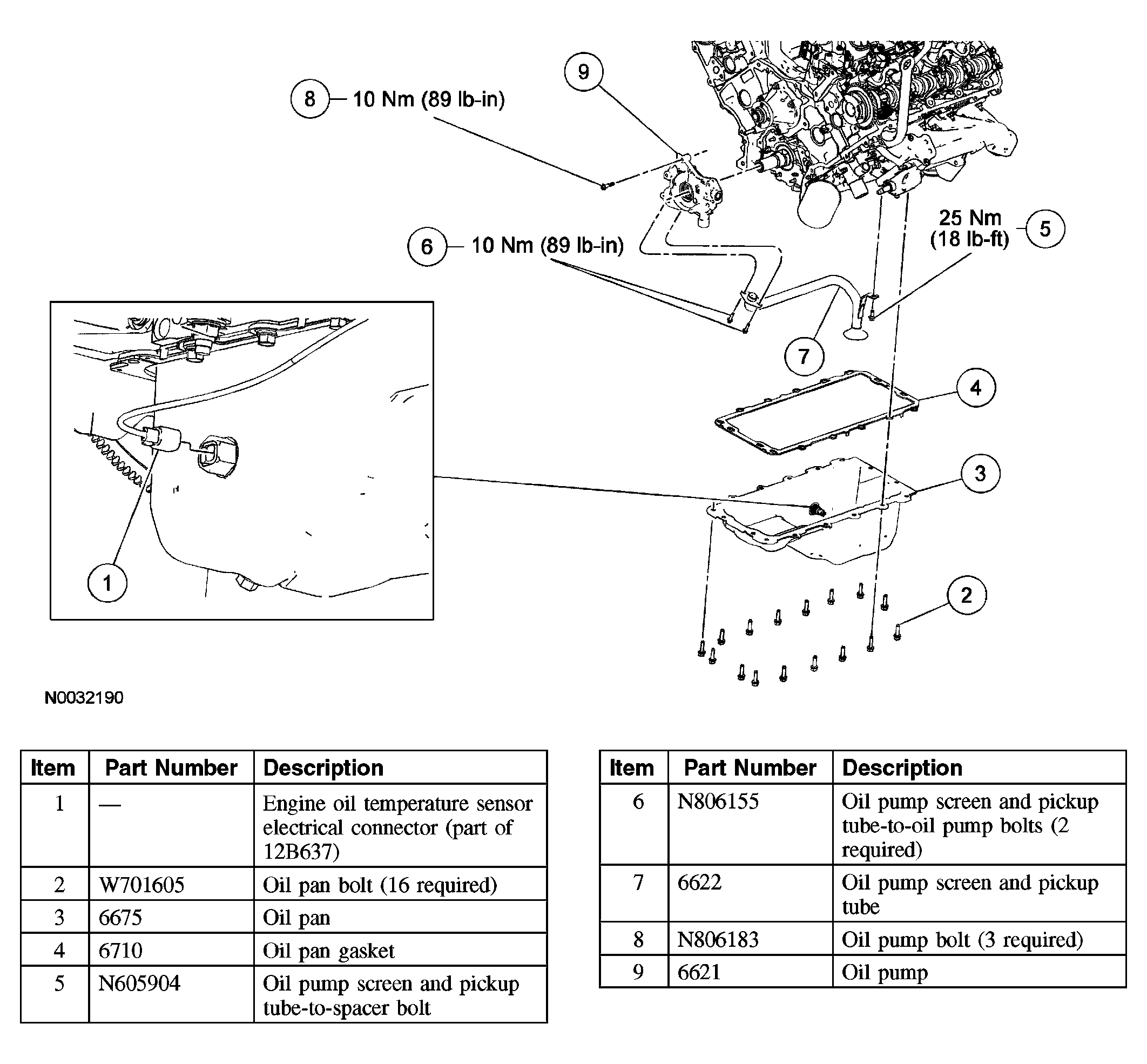

Fig 1: Exploded View Of Engine Lubrication Components
G03933566Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedures in this article.
