Valve Train Components - Exploded View

NOTE: LH shown, RH similar.

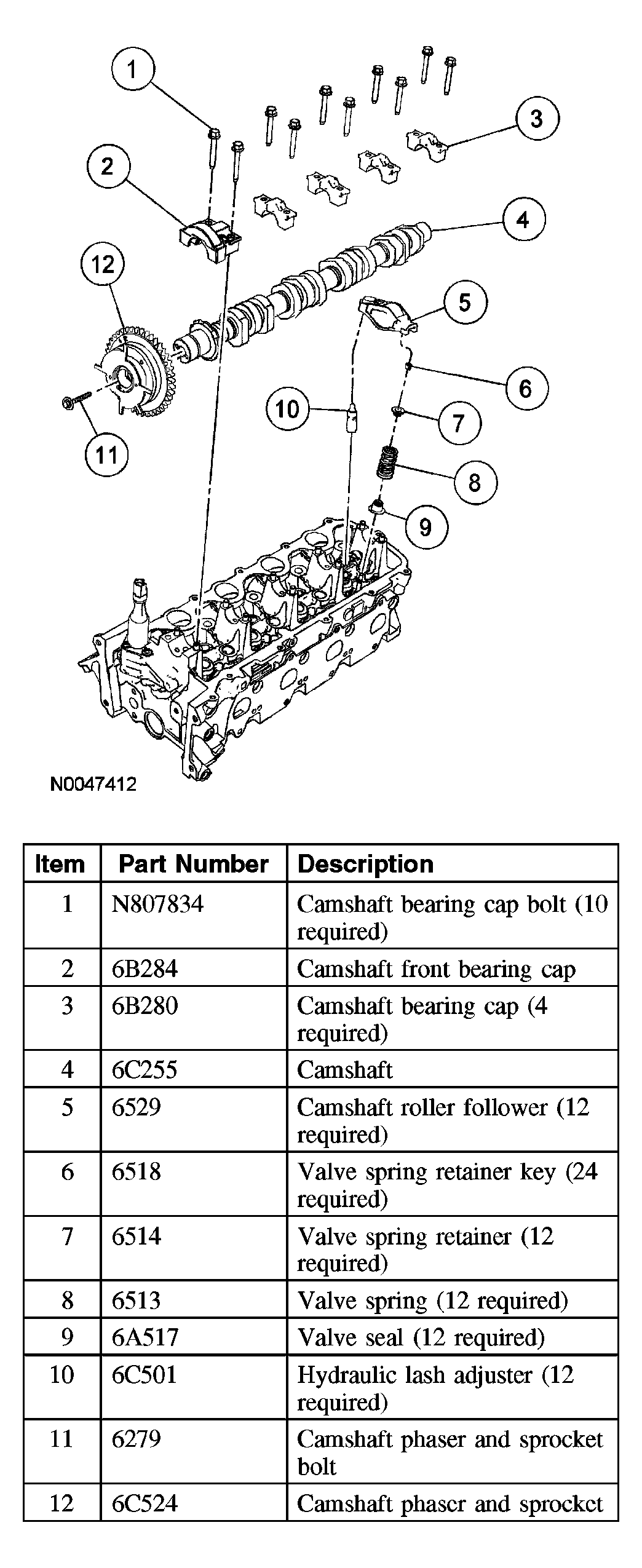

Fig 1: Exploded View Of Valve Train Components
G03933475Courtesy of FORD MOTOR CO.
  1. For additional information, refer to CAMSHAFT - LH  and/or CAMSHAFT - RH .
