Fuel Rail and Fuel Injector - Exploded View

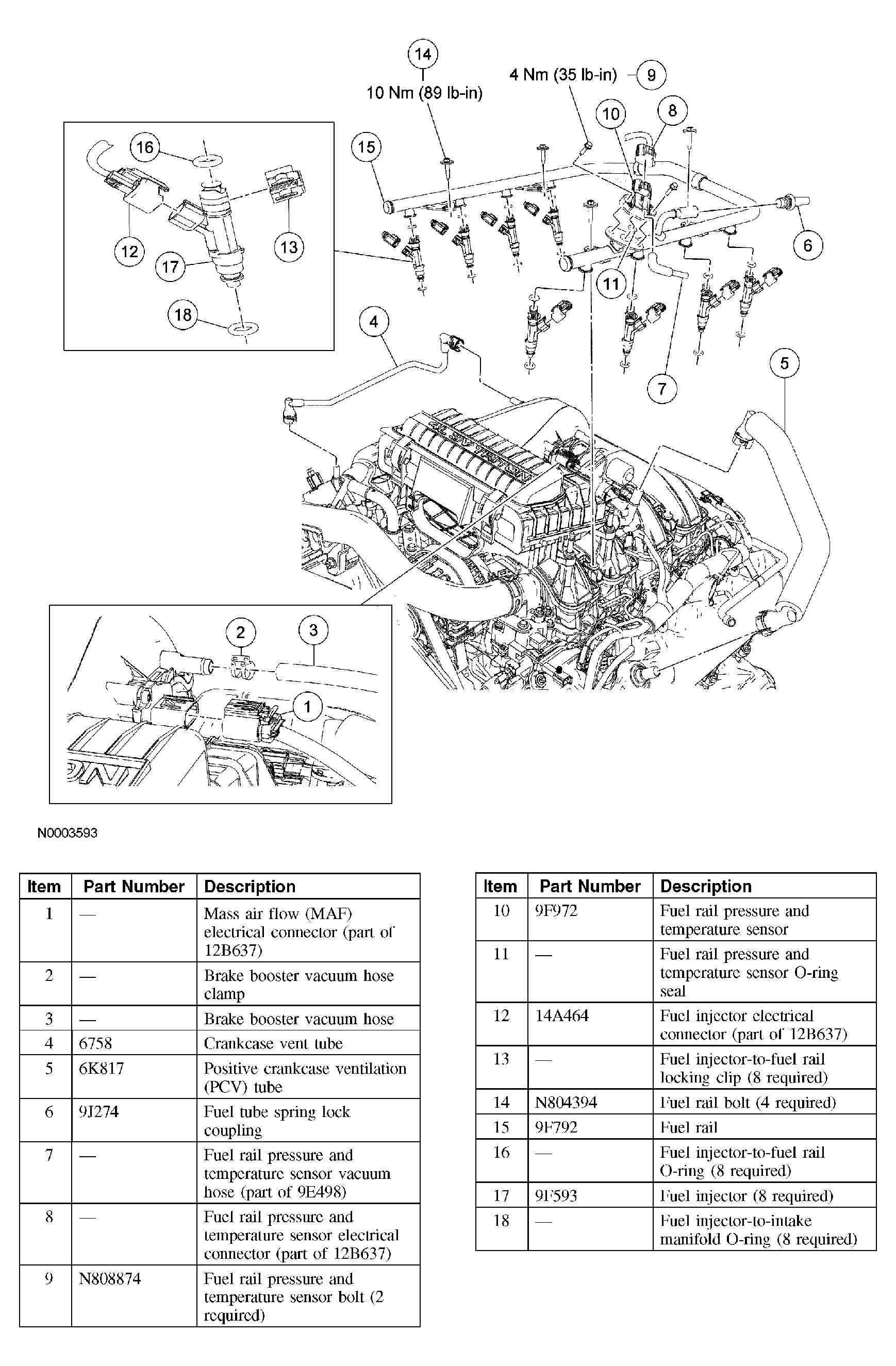

Fig 1: Fuel Rail And Fuel Injector - Exploded View
G03929033Courtesy of FORD MOTOR CO.
  1. For additional information, Refer to the appropriate procedure in this article.
