Overdrive Servo: Installation

  1. Install the overdrive servo piston assembly.
    1. Install the overdrive servo piston return spring.
    2. Install the overdrive servo piston assembly.

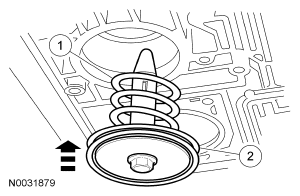

      Fig 1: Installing Overdrive Servo Piston Assembly
      G04628338Courtesy of FORD MOTOR CO.
  2. Use the special tool to install the overdrive servo piston retaining ring.

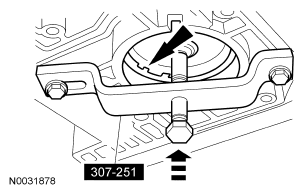

    Fig 2: Installing Overdrive Servo Piston Retaining Ring
    G04628339Courtesy of FORD MOTOR CO.
