Removal and Installation

NOTE: When installing a new module, it must be calibrated and configured (either by download/upload or uploading the as-built data method).

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the ABS module electrical connector.

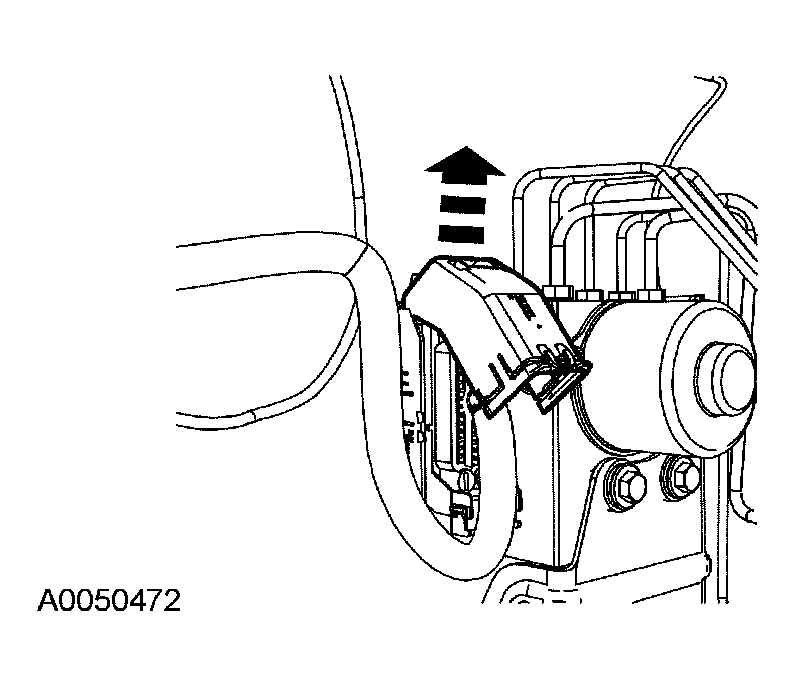

Fig 1: Disconnecting ABS Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 3 bolts and the ABS module.

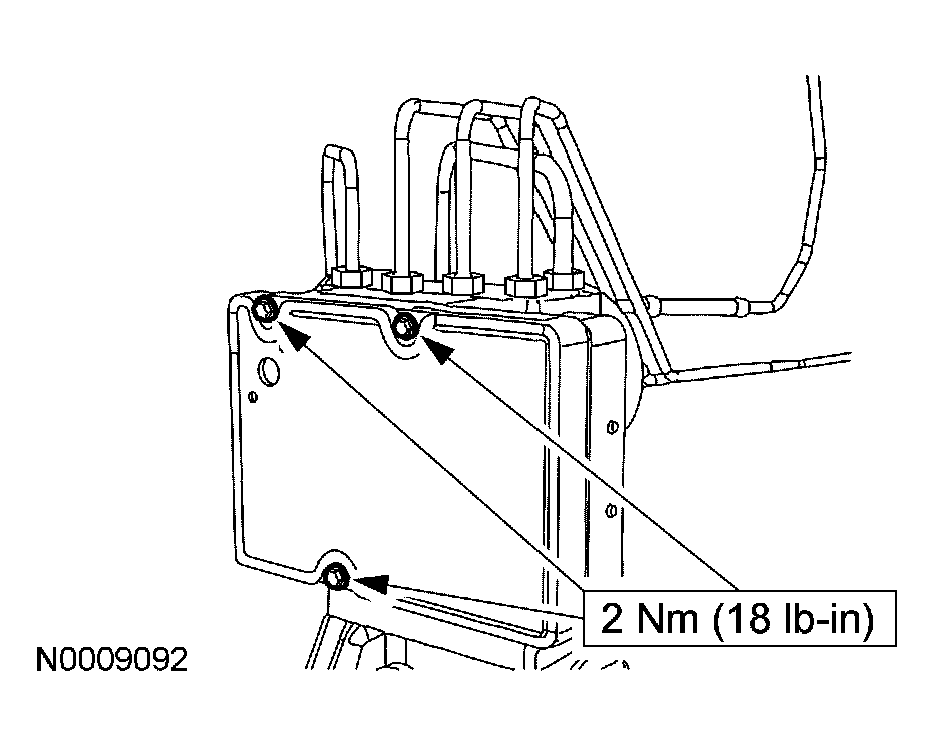

Fig 2: Removing ABS Module Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
