Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C110 (Black, 16 Pin) | At right front of engine compartment. See Figure. |
| C133 (Black, 7 Pin) | At left front of vehicle. See Figure. |
| C134 (Black, 7 Pin) | At right front of vehicle. See Figure. |

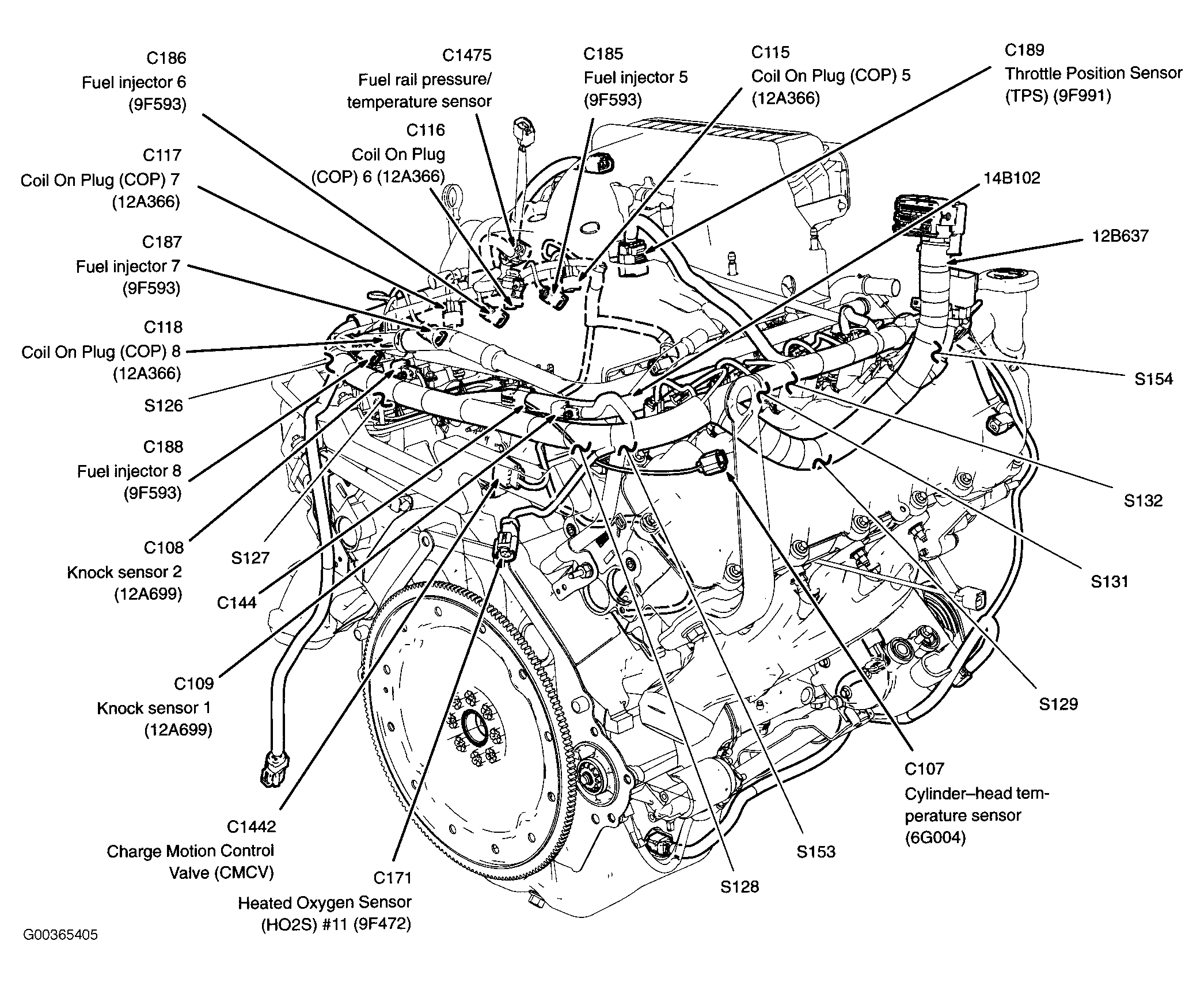

| C144 (Black, 4 Pin) | On left front side of engine. See Figure. |
| C145 (Black, 16 Pin) | At right side of engine. See Figure. |
| C146 (Black, 8 Pin) | At right side of engine compartment. See Figure. |
| C192 (Black, 4 Pin) | At right side of engine compartment. See Figure. |
| C210 (White, 20 Pin) | Behind right kick panel. See Figure. |
| C211 (Gray, 14 Pin) | Behind right kick panel. See Figure. |

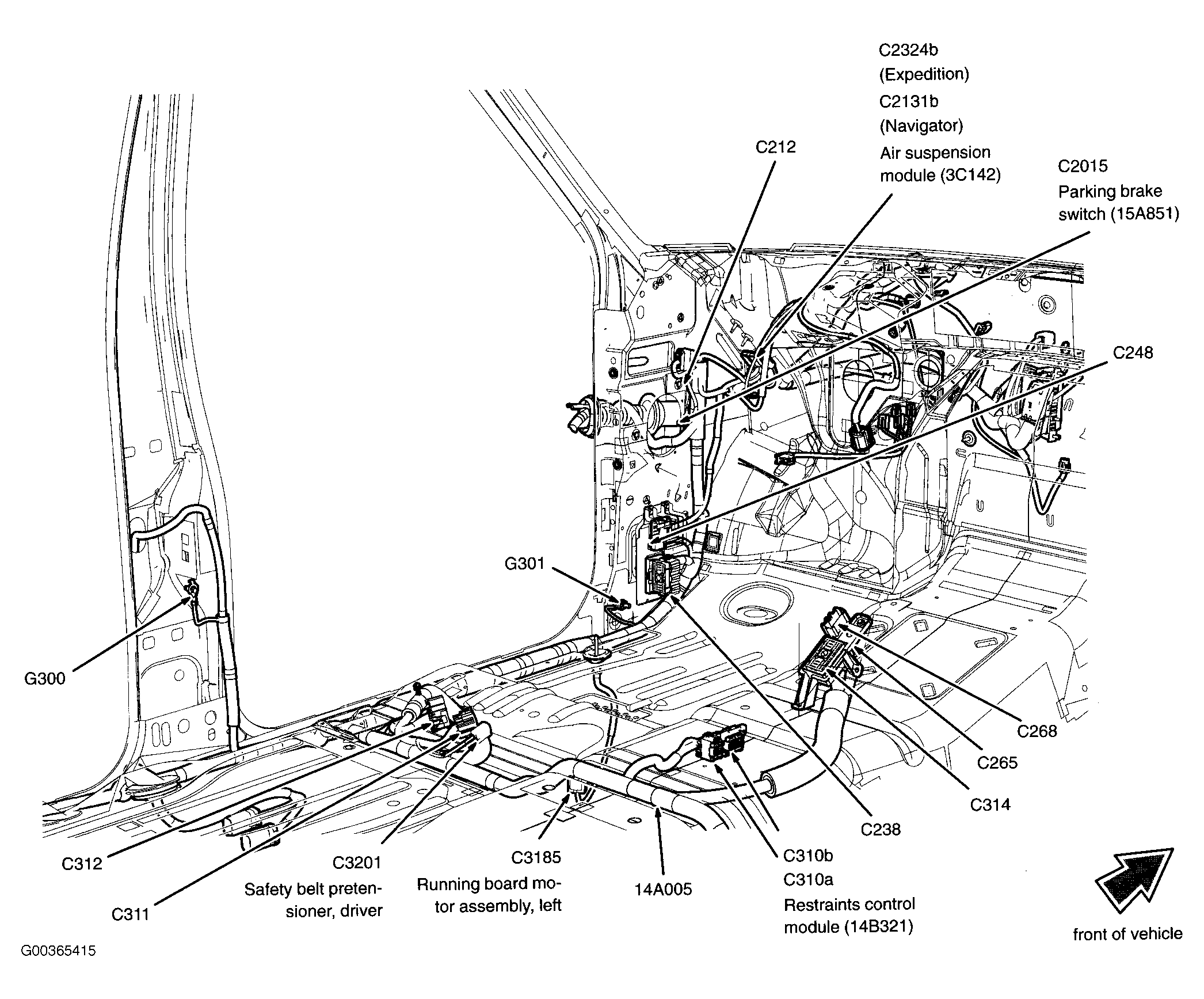

| C212 (Gray, 16 Pin) | Behind left kick panel. See Figure. |
| C213 (Green, 20 Pin) | Behind left kick panel. See Figure. |
| C214 (Green, 20 Pin) | Behind right kick panel. See Figure. |

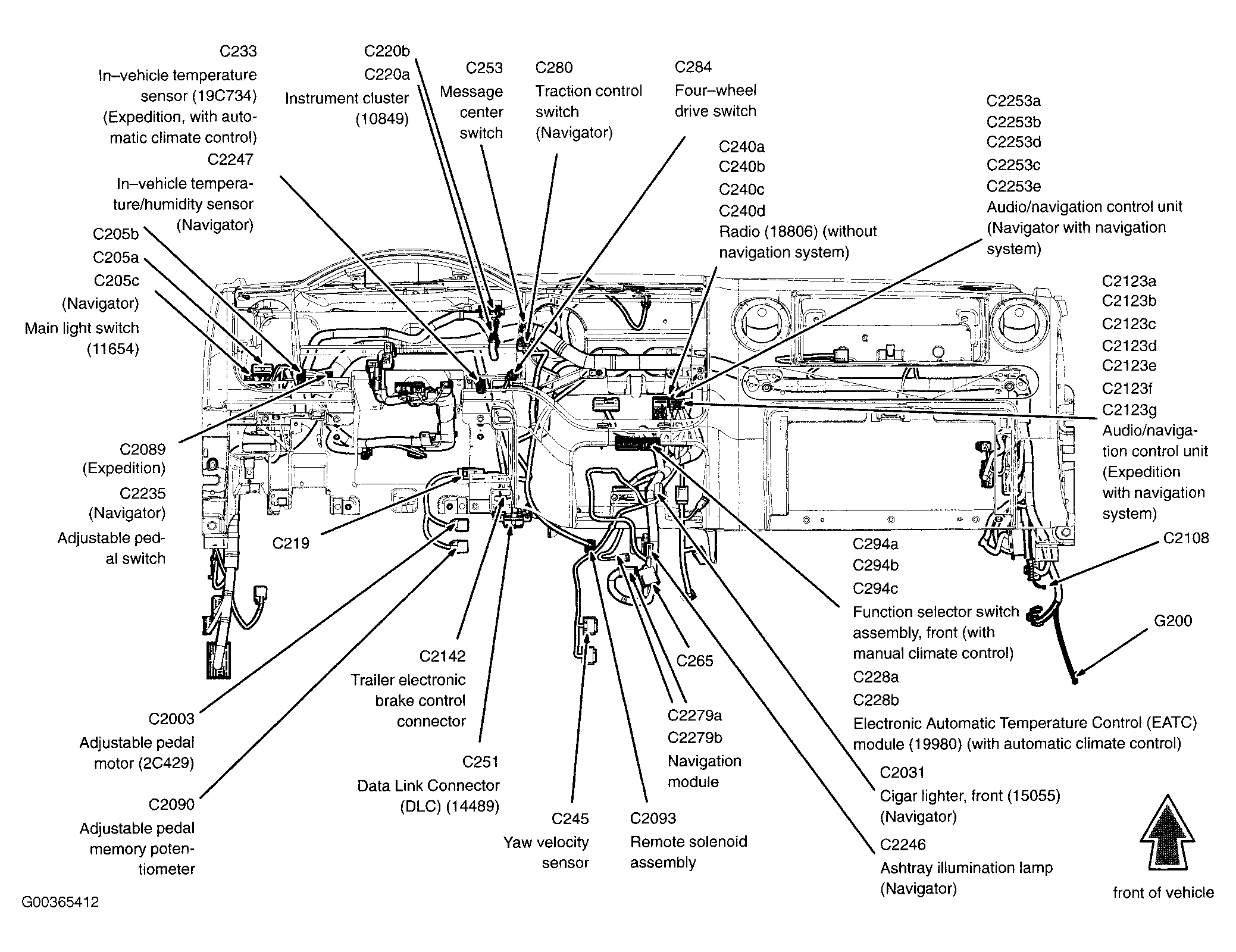

| C215 (Gray, 4 Pin) | Behind right center of dash. See Figure. |
| C219 (Gray, 6 Pin) | Behind left side of dash. See Figure. |
| C237 (Black, 12 Pin) | Behind right side of dash. See Figure. |
| C238 (Gray, 66 Pin) | Behind left kick panel. See Figure. |
| C248 (Black, 12 Pin) | Behind left kick panel. See Figure. |

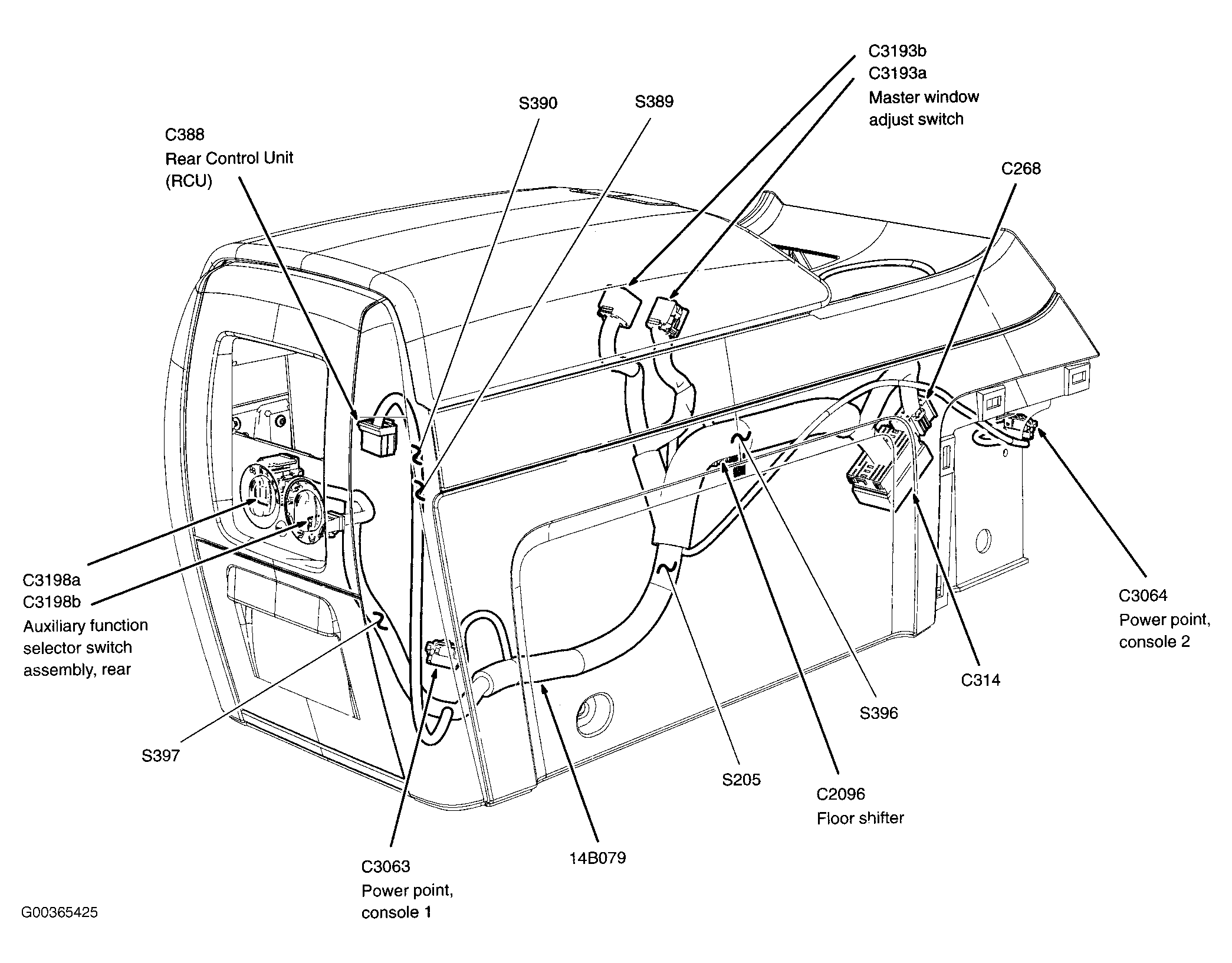

| C260 (Green, 20 Pin) | Under center console. See Figure. |
| C263 (Gray, 10 Pin) | Under center console. See Figure. |
| C265 (Gray, 10 Pin) | Under front of center console. See Figure. |
| C268 (Black, 12 Pin) | Under front of center console. See Figure. |
| C291 (Gray, 13 Pin) | Behind right side of dash. See Figure. |
| C298 (Tan, 16 Pin) | At right kick panel. See Figure. |
| C299 (Gray, 4 Pin) | Behind right side of dash. See Figure. |
| C311 (Black, 30 Pin) | Under driver's seat. See Figure. |
| C312 (White, 40 Pin) | Under driver's seat. See Figure. |
| C314 (Gray, 66 Pin) | Under front of center console. See Figure. |
| C315 (Black, 4 Pin) | Below center console. See Figure. |
| C316 (Black, 30 Pin) | Under passenger's seat. See Figure. |
| C327 (Gray, 16 Pin) | Below rear seats, under left rear of vehicle. See Figure. |
| C328 (Black, 12 Pin) | Below rear seats, under left rear of vehicle. See Figure. |
| C340 (Gray, 16 Pin) | At right "C" pillar. See Figure. |
| C405 (Gray, 12 Pin) | At left "C" pillar. See Figure. |
| C406 (Gray, 12 Pin) | At right "C" pillar. See Figure. |
| C410 (Black, 12 Pin) | At right side of cargo area, behind trim. See Figure. |
| C411 (Black, 12 Pin) | At right side of cargo area, behind trim. See Figure. |
| C421 (Black, 2 Pin) | At left side of liftgate. See Figure. |
| C422 (Black, 2 Pin) | In right side of liftgate. See Figure. |
| C465 (Black, 16 Pin) | At left "C" pillar. See Figure. |
| C494 (Black, 8 Pin) | At left rear of vehicle. See Figure. |
| C495 (Black, 4 Pin) | In liftgate. See Figure. |
| C510 (Gray, 12 Pin) | In left front door. See Figure. |
| C610 (Gray, 8 Pin) | In right front door. See Figure. |
| C700 (Black, 12 Pin) | In left rear door. See Figure. |
| C800 (Black, 12 Pin) | In right rear door. See Figure. |

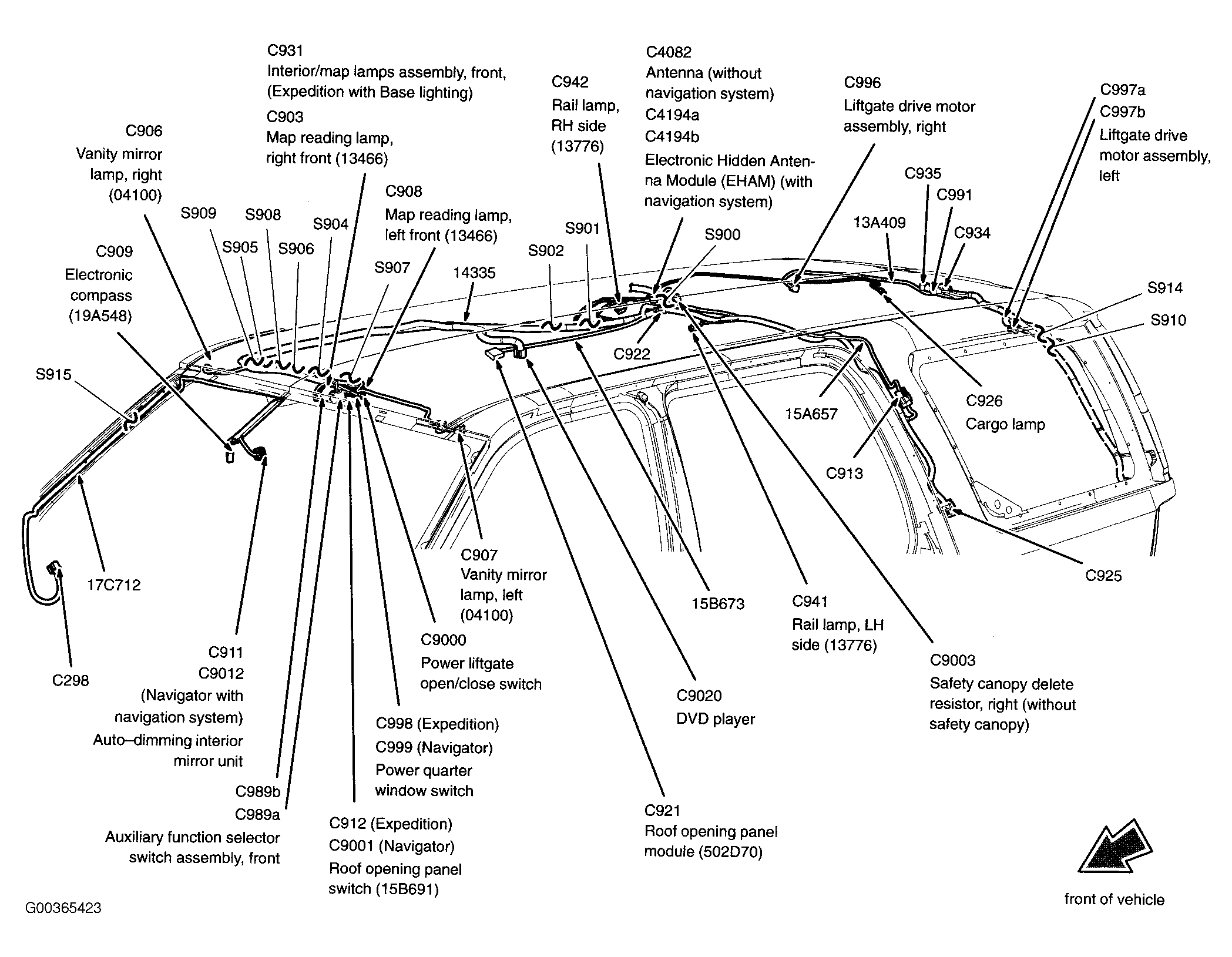

| C913 (Gray, 6 Pin) | In roof panel. See Figure. |
| C919 (Black, 3 Pin) | At right "C" pillar. See Figure. |
| C925 (Gray, 16 Pin) | At left "C" pillar. See Figure. |
| C934 (Gray, 10 Pin) | At left rear of roof. See Figure. |
| C935 (Black, 8 Pin) | At left rear of roof. See Figure. |
| C991 (Gray, 8 Pin) | At rear of roof. See Figure. |
| C1010 (Gray, 12 Pin) | At right side of engine compartment. See Figure. |
| C1026 (Black, 1 Pin) | At right side of engine compartment. See Figure. |
| C2108 (1 Pin) | Behind right kick panel. See Figure. |
