Engine Front Cover: Material

MATERIAL SPECIFICATIONS

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil
XO-5W20-QSP (in Canada Motorcraft SAE 5W-20
Super Premium Motor Oil CXO-5W20-LSP12) or equivalent		 WSS-M2C930-A
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -

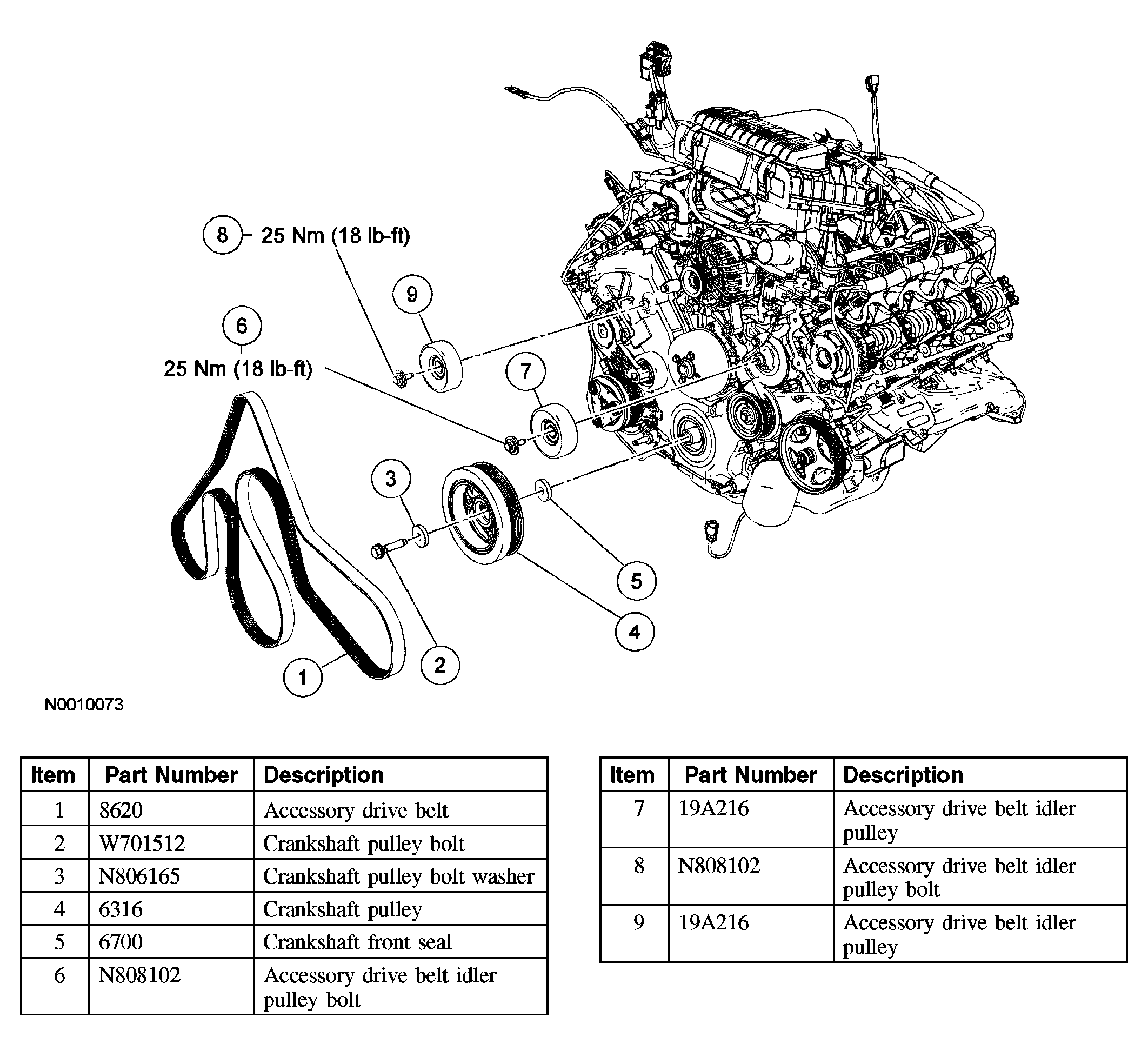

Fig 1: Removing Engine Front Cover (Items 1-9)
G03933410Courtesy of FORD MOTOR CO.

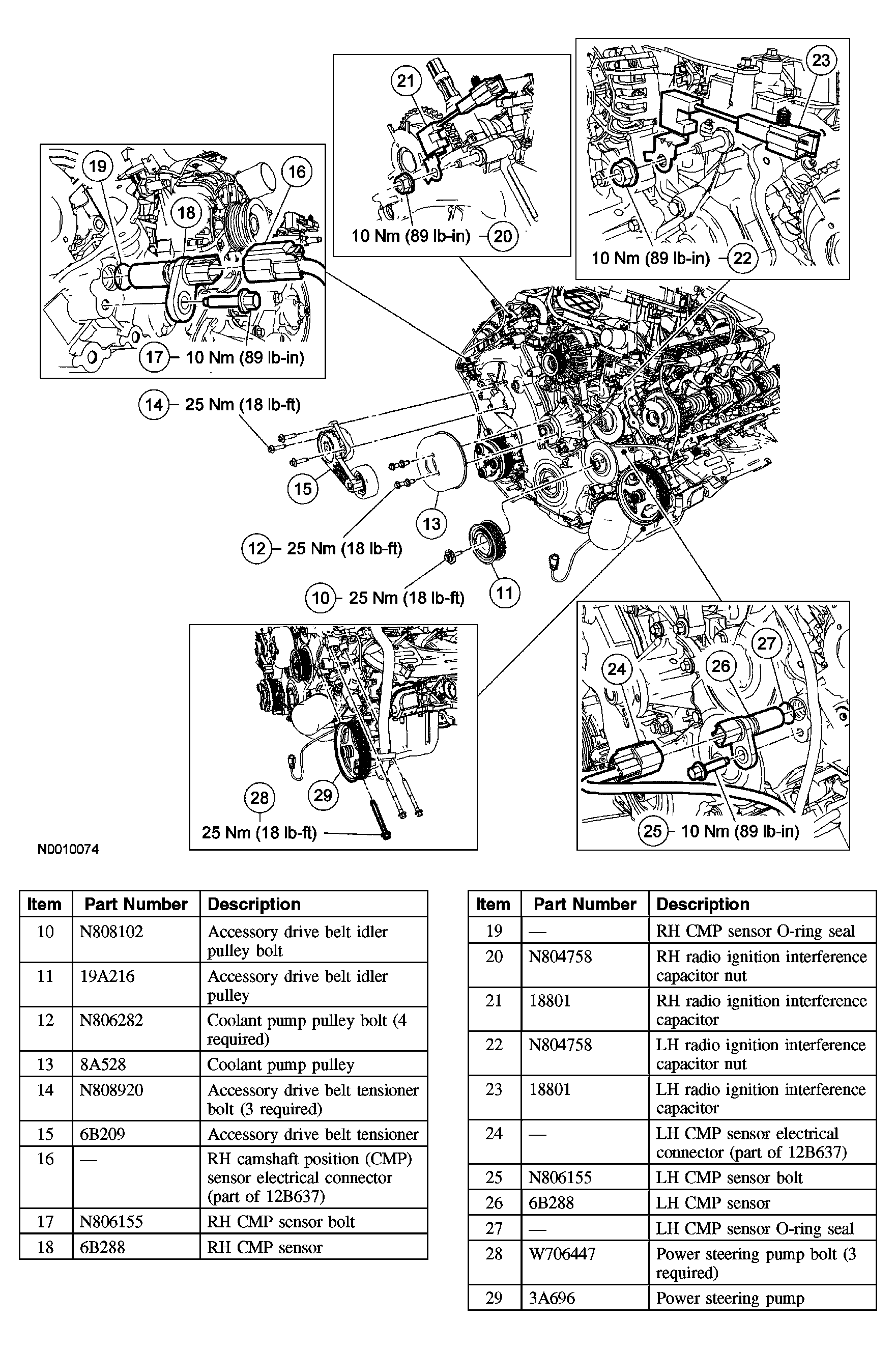

Fig 2: Removing Engine Front Cover (Items 10-29)
G03933411Courtesy of FORD MOTOR CO.

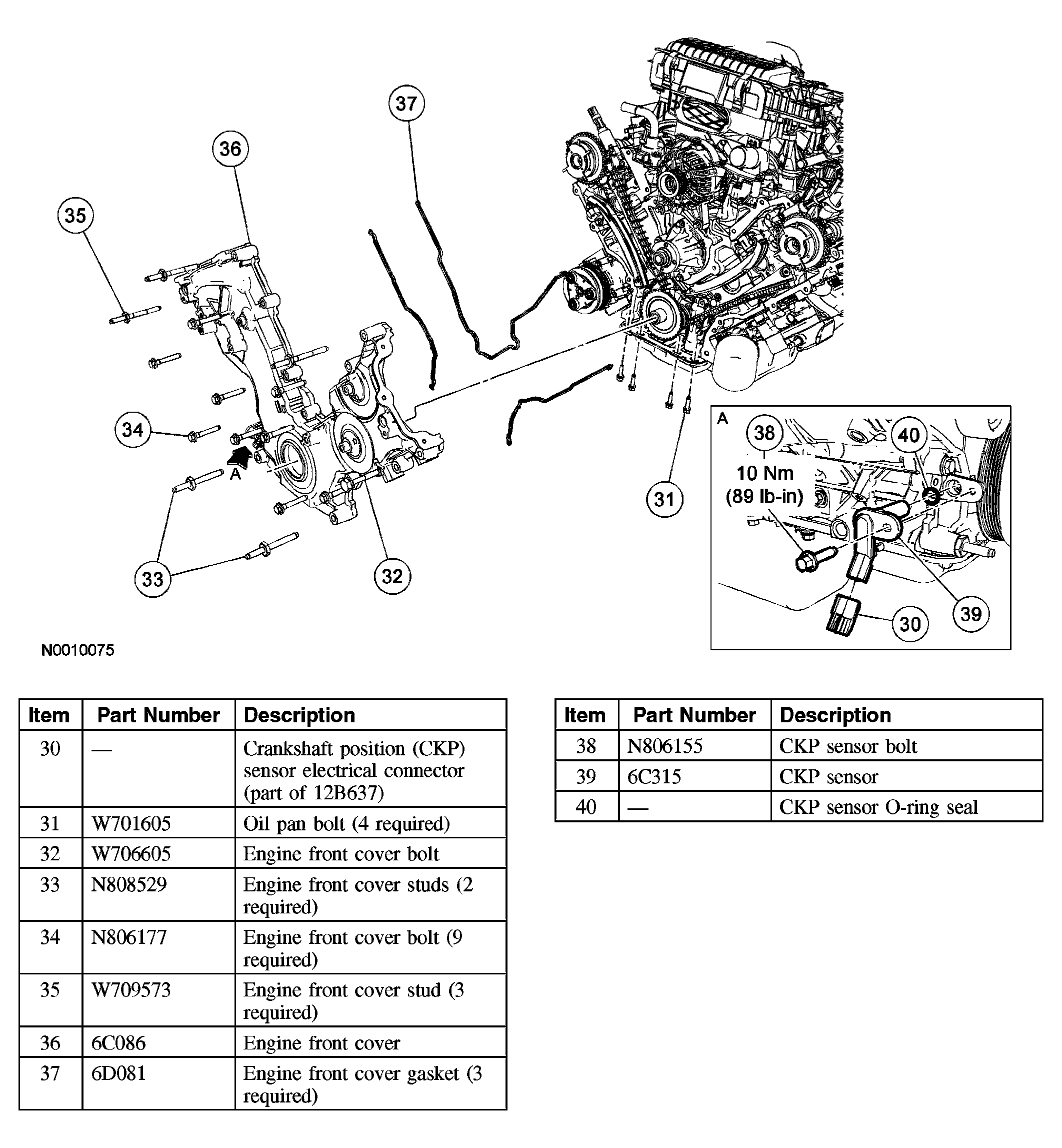

Fig 3: Removing Engine Front Cover (Items 30-40)
G03933412Courtesy of FORD MOTOR CO.
