Fuel Pump Driver Module (FPDM)
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
- Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

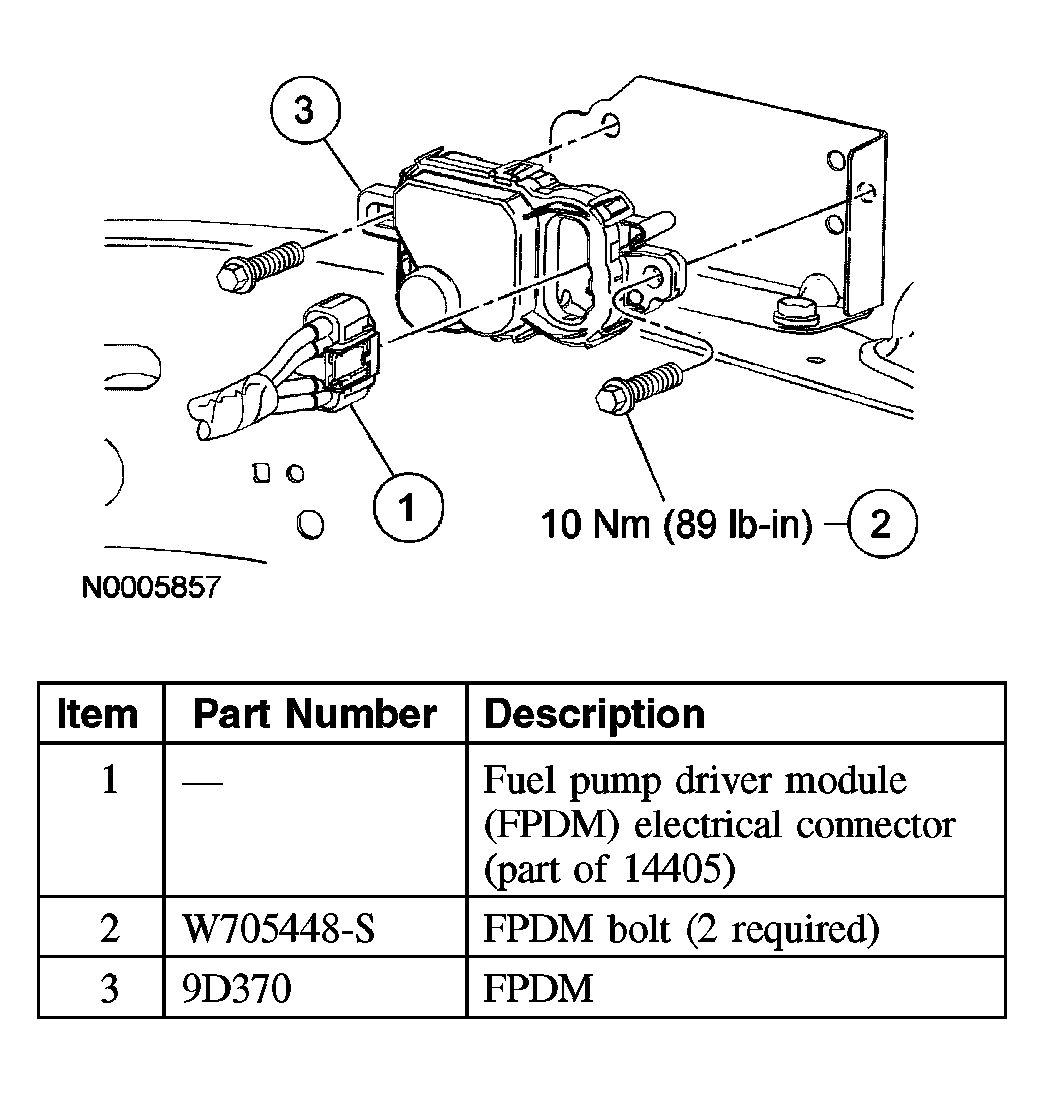

- Disconnect the FPDM electrical connector.
- Remove the bolts and the FPDM.
- To install, tighten to 10 Nm (89 lb-in).
- To install, reverse the removal procedure.
NOTE:
The fuel pump driver module (FPDM) is located on the top of the LH frame rail near the fuel tank filler pipe.
