Main Components and Functions

Transmission Main Components - Sectional View

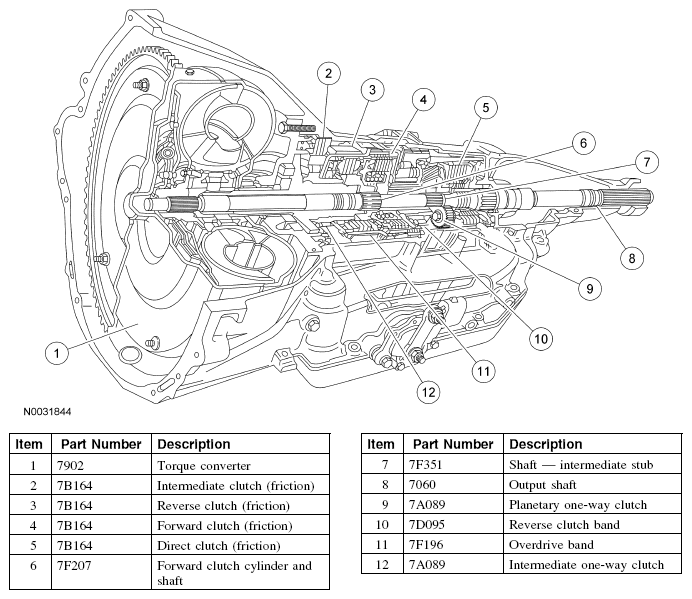

Fig 1: Transmission Main Components - Sectional View
G04628118Courtesy of FORD MOTOR CO.
