2-3 Accumulator: Removal

  1. Remove the main control valve body. For additional information, refer to MAIN CONTROL VALVE BODY .
  2. Remove the 2-3 accumulator piston retainer.
    Fig 1: Locating 2-3 Accumulator Piston Retainer
    G04628344Courtesy of FORD MOTOR CO.
  3. Remove the accumulator piston and spring.

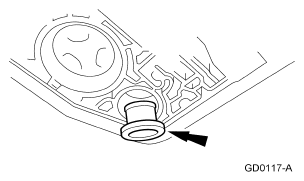

    Fig 2: Locating Accumulator Piston & Spring
    G04628345Courtesy of FORD MOTOR CO.
