Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

Fig 1: Identifying Digital TR Sensor And Bolts
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.

Fig 2: Aligning Digital TR Sensor Slots With Special Tool
Courtesy of FORD MOTOR CO.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

Tighten the digital TR sensor bolts.
- Tighten to 9 N.m (80 lb-in).

  Fig 3: Aligning Digital TR Sensor Slots With Special Tool
  Courtesy of FORD MOTOR CO.
Install the manual control lever.
1. Position the manual control lever.
2. Install a new manual control lever nut.
  - Tighten to 33 N.m (24 lb-ft).

    Fig 4: Identifying Manual Control Lever Nut
    Courtesy of FORD MOTOR CO.
Connect the digital TR sensor electrical connector.

Fig 5: Locating Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the selector lever cable end to the manual lever with the lever in the (D) position.

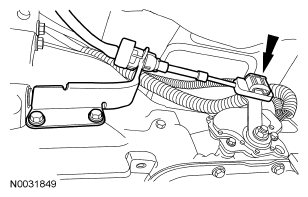

Fig 6: Locating Selector Lever Cable End
Courtesy of FORD MOTOR CO.
