Speed Sensors: Notes
NOTE:
Only remove the affected sensor.

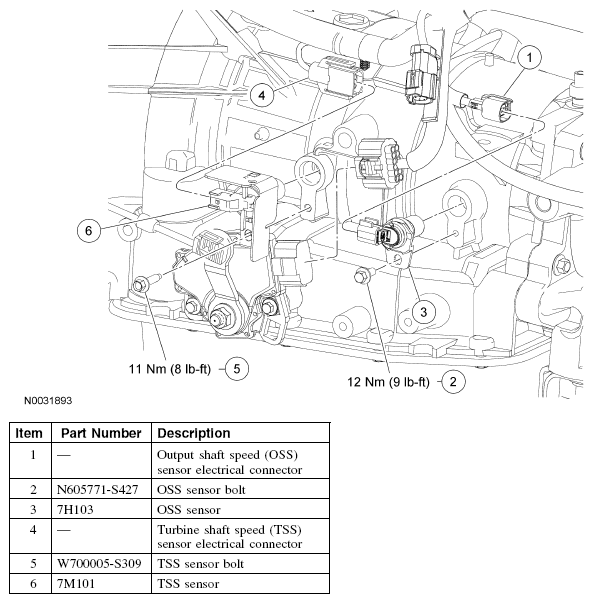

Fig 1: Speed Sensors With Torque Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
