Keyless Entry Key-Pad: Service and Repair

REMOTE KEYLESS ENTRY KEYPAD

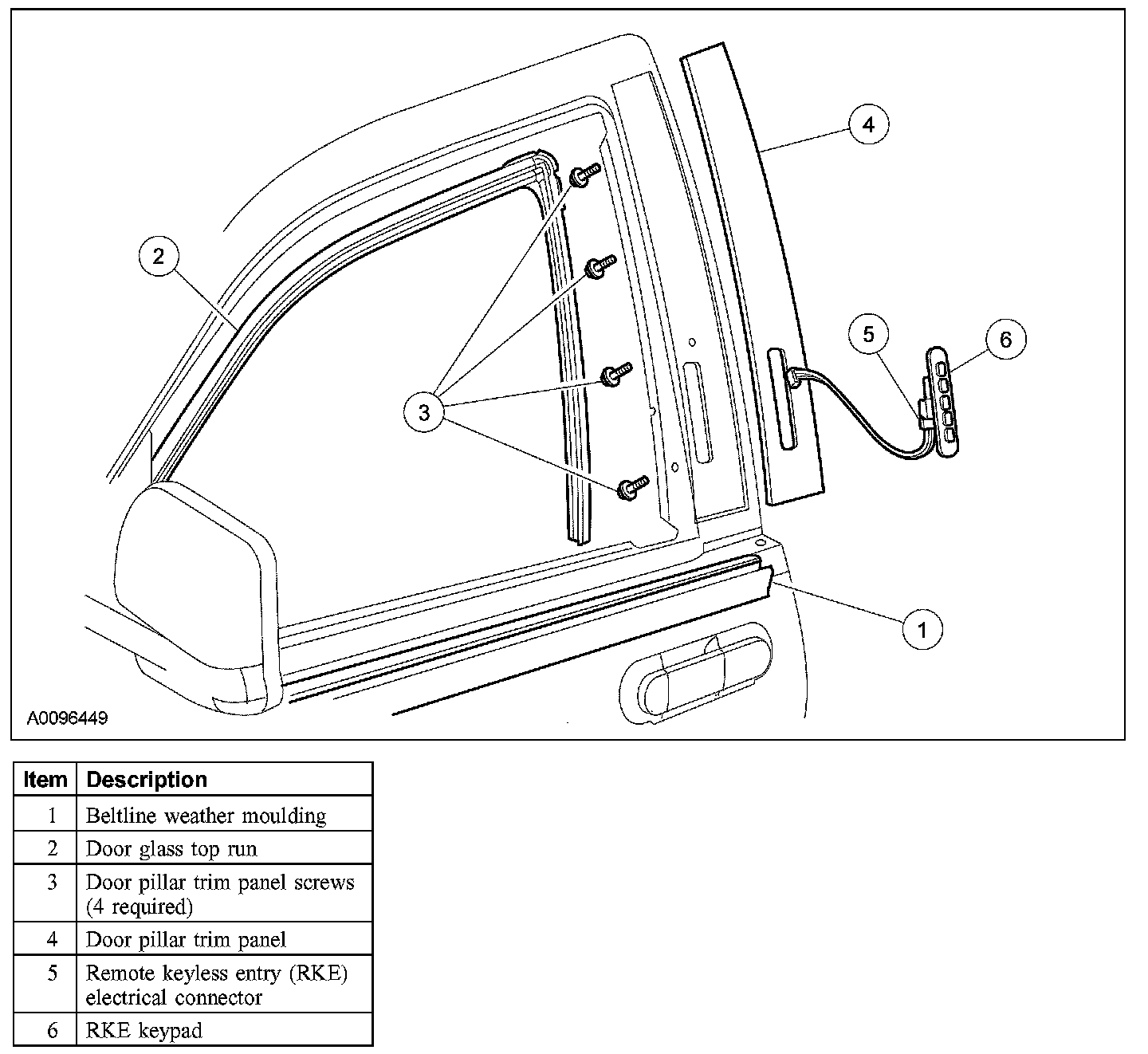

Removal and Installation
1. Remove the beltline weather moulding.
2. Position the door glass top run aside to access the door pillar trim panel screws.
3. Remove the 4 door trim panel screws and the door trim panel.
4. Disconnect the electrical connector and remove the RKE keypad.
5. To install, reverse the removal procedure.
