Data Link Connector: Locations

View 151-25 (behind Dash Panel, Driver Side):

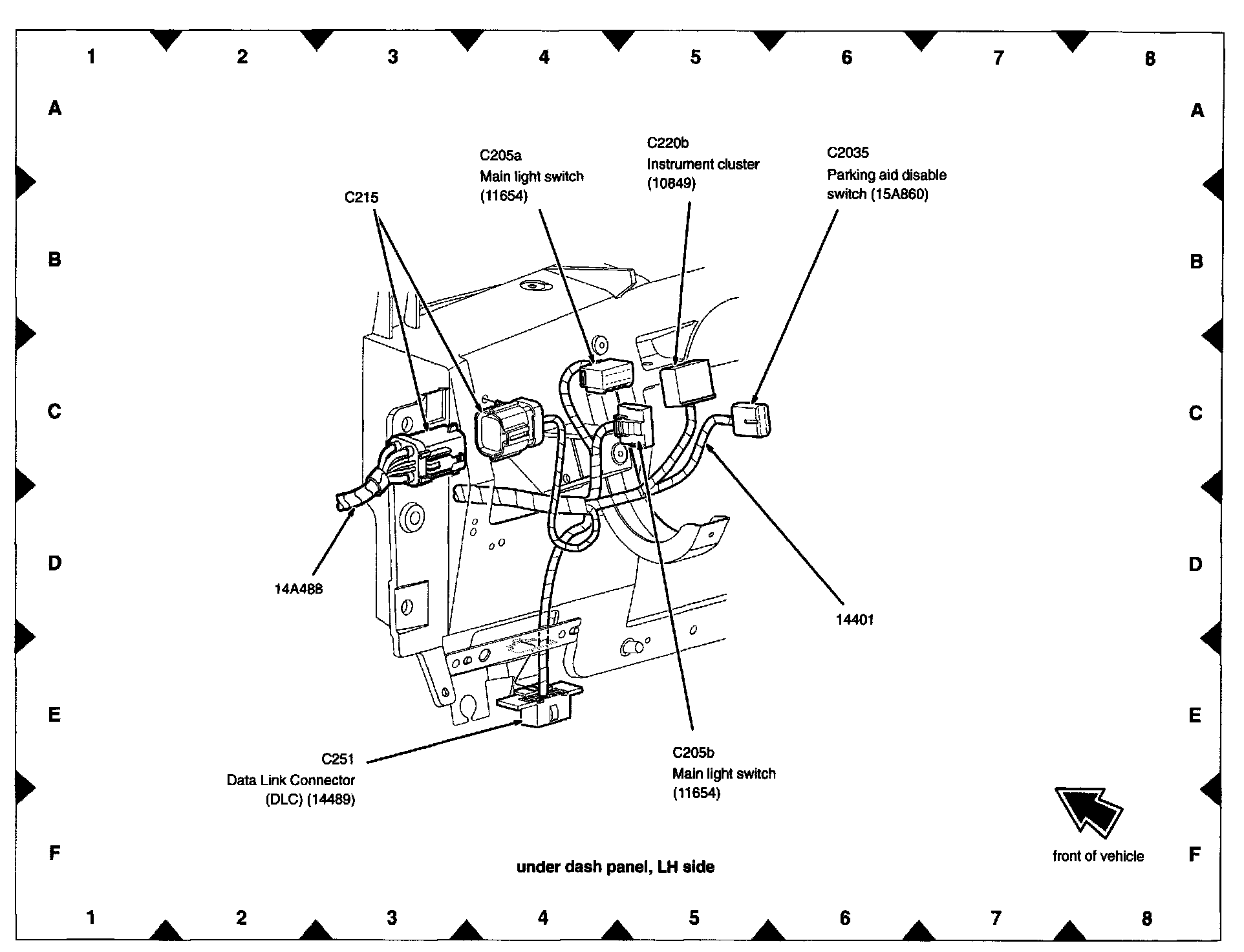

View 151-26 (under Dash Panel, LH Side):
