Catalyst Monitor Sensor

CATALYST MONITOR SENSOR

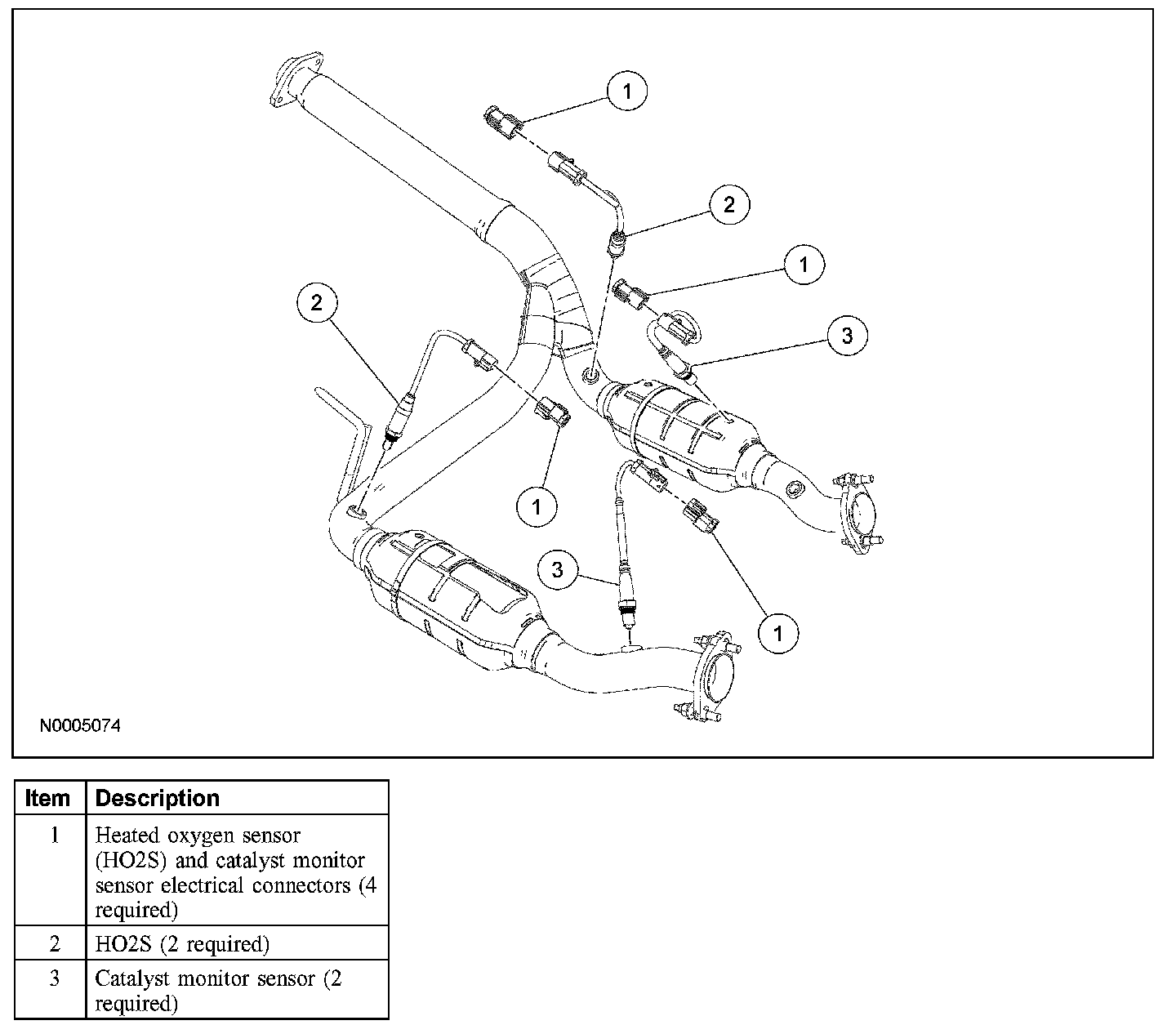

Exploded View

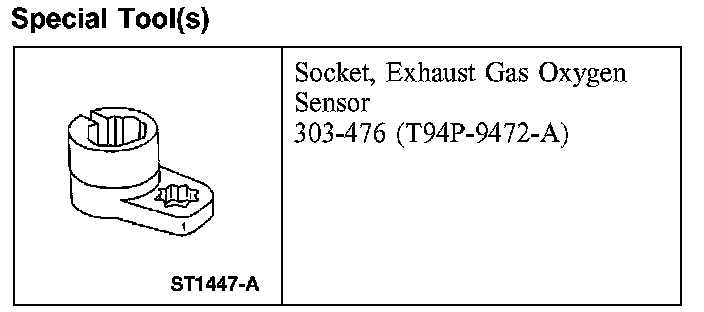

Socket, Exhaust Gas Oxygen Sensor:

Special Tool(s)

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the catalyst monitor sensor electrical connector.







3. NOTE: If necessary, lubricate the catalyst monitor sensor with penetrating and lock lubricant to ease removal.

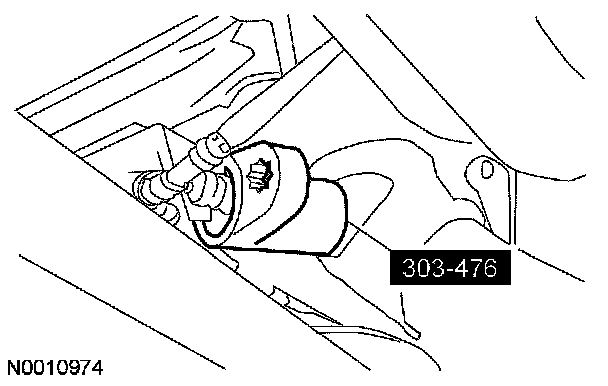

Using the special tool, remove the catalyst monitor sensor.
- To install, tighten to 41 Nm (30 lb-ft).

4. To install, reverse the removal procedure.
- Apply a light coat of anti-seize lubricant to the threads of the catalyst monitor sensor.
