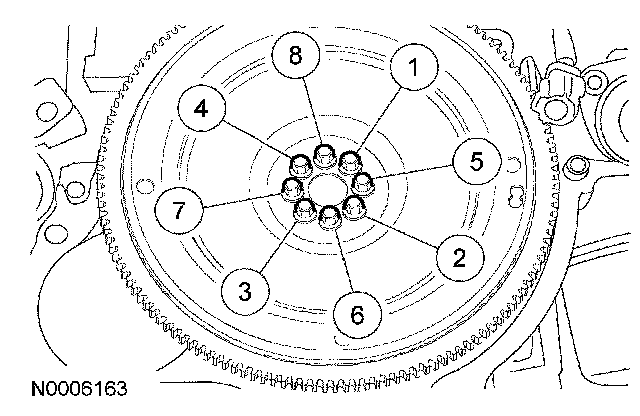

Flex Plate
TORQUE SPECIFICATIONS
Flexplate Bolts
Stage 1
13 Nm (10 ft. lbs.)
Stage 2
71 Nm (52 ft. lbs.)
