Safety Belt System - Exploded View, Front

NOTE: RH side shown, LH side similar.

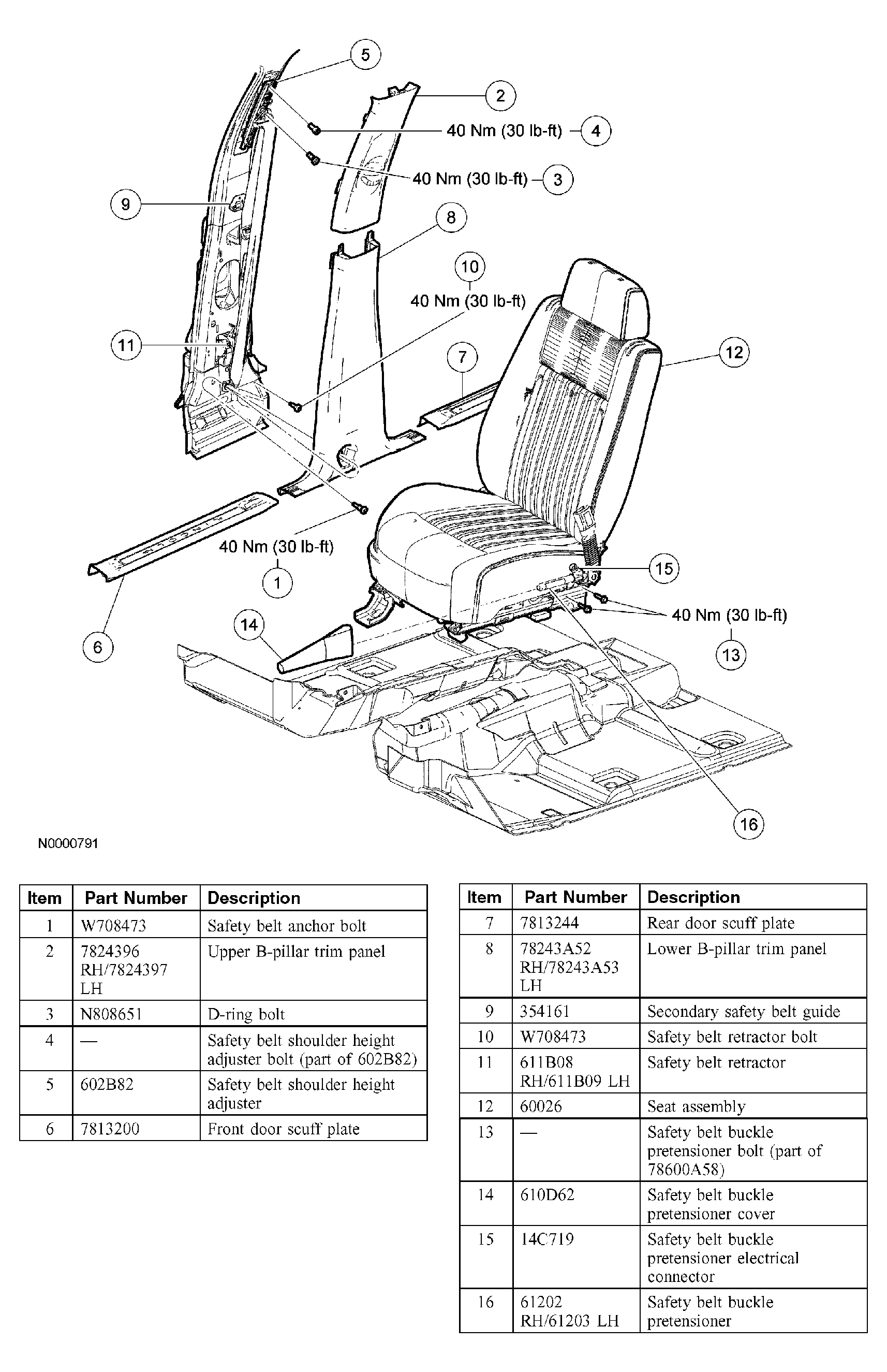

Fig 1: Exploded View Of Front Safety Belt System With Torque Specifications
G03946247Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures.
