Throttle Position Sensor: Service and Repair

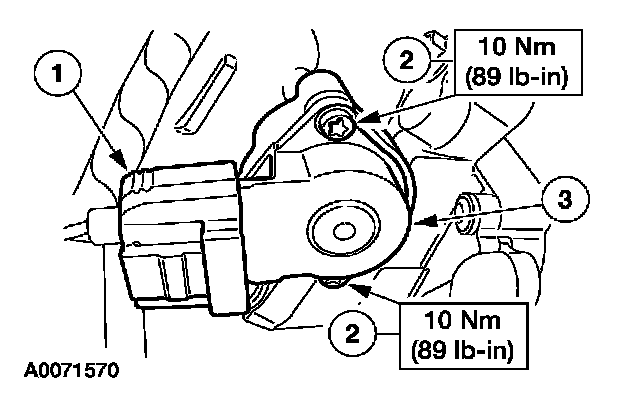

THROTTLE POSITION (TP) SENSORRemoval and Installation
1. Disconnect the battery ground cable.
2. Remove the throttle position (TP) sensor.
1. Disconnect the TP sensor electrical connector.
2. Remove the TP sensor retaining screws.
3. Remove the TP sensor.
3. To install, reverse the removal procedure.
