Timing Cover

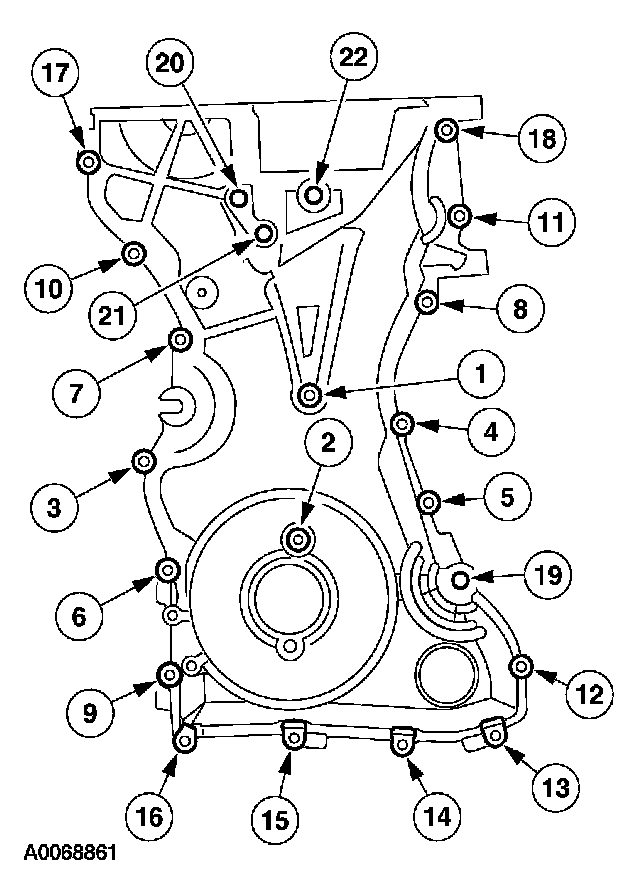

Timing cover bolts & sequence





8 mm bolts 10 Nm (89 inch lbs.).
13 mm bolts 48 Nm (35 ft. lbs.).
